The Biamp EasyConnect EC-P-US is a tabletop cable management box that fits into a conference table and keeps network, HDMI and USB cables out of sight until needed. It includes two US-style AC power receptacles, a sliding cover with cable pass-through and a 5-year warranty. It suits air-conditioned meeting rooms in Doha, Lusail and West Bay. Request a quote from SmartRooms Qatar.
A tabletop connection point for conference rooms

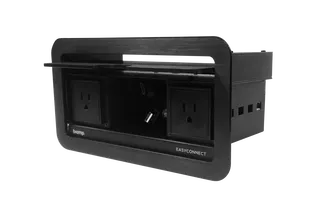

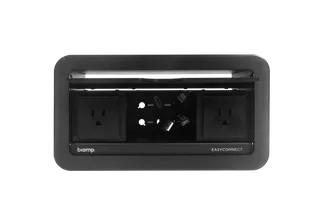

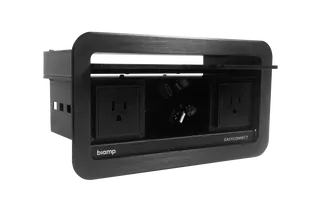

The Biamp EasyConnect EC-P-US is a cable management box that fits into a conference table and holds the cables people use every day. Ethernet, HDMI and USB leads stay stored in the unit and pull out when a presenter or participant needs them, so the table surface stays clear. This model is fitted with two US-style AC power receptacles, which means fewer loose extension leads on the table.
Specifications that matter when planning
The housing measures 102 mm high, 218 mm wide and 89 mm deep. Its top plate is 251 mm by 135 mm, which defines the opening the table needs. The unit weighs 2.5 kg, so it must be secured properly during fitting. The included cables are two CAT5e Ethernet cables, a USB 2.0 Type-A cable and an HDMI 1.4 cable, each with a 5 ft (1.5 m) length that retracts into the box. The sliding cover has a cable pass-through for leads that stay in use.
The product carries CE and RoHS marking. Its ambient operating range is 0 to 30°C, humidity is rated at 10 to 90% non-condensing, and it is rated for altitudes up to 2,000 m. These figures are the main reason to specify it for air-conditioned rooms only.
Where it fits in Qatar
- Government boardrooms in West Bay and Msheireb: a fixed table where Sunday-to-Thursday meetings need laptops, a display and power at the seats without cables across the surface.
- Training rooms in Education City: a university or training centre where participants connect their own laptops and a display from the same table position.
- Hotel and serviced apartment meeting rooms in Lusail: rooms that are reset for different groups, where a neat table layout matters between sessions.
What to plan before ordering
Start with the electrical check. The source data does not state a voltage rating for this model, and its receptacles are US-style, not the BS 1363 (Type G) sockets used across Qatar, where mains supply is 240 V, 50 Hz. Confirm the specification with the SmartRooms Qatar team before ordering rather than assuming compatibility.
Next, check the room climate. The box is rated for 0 to 30°C, and summer temperatures in Qatar regularly exceed 45°C outside, so install it only in an air-conditioned meeting room. Measure the table thickness and the clearance beneath the top against the 102 mm height, and mark the cutout from the 251 mm by 135 mm top plate. A free site survey from SmartRooms Qatar is a sensible step before cutting a boardroom table.
Purchase orders (LPOs) and government tenders are supported, and quotations are usually issued within one working day. To request a quote, send the model name, item number 910-01975, the number of boxes, and the table and room details. The SmartRooms Qatar team will confirm the specification and send your quotation.
Highlights
- Fits into conference tables with a 251 mm by 135 mm top plate
- Two US-style AC power receptacles included in the box

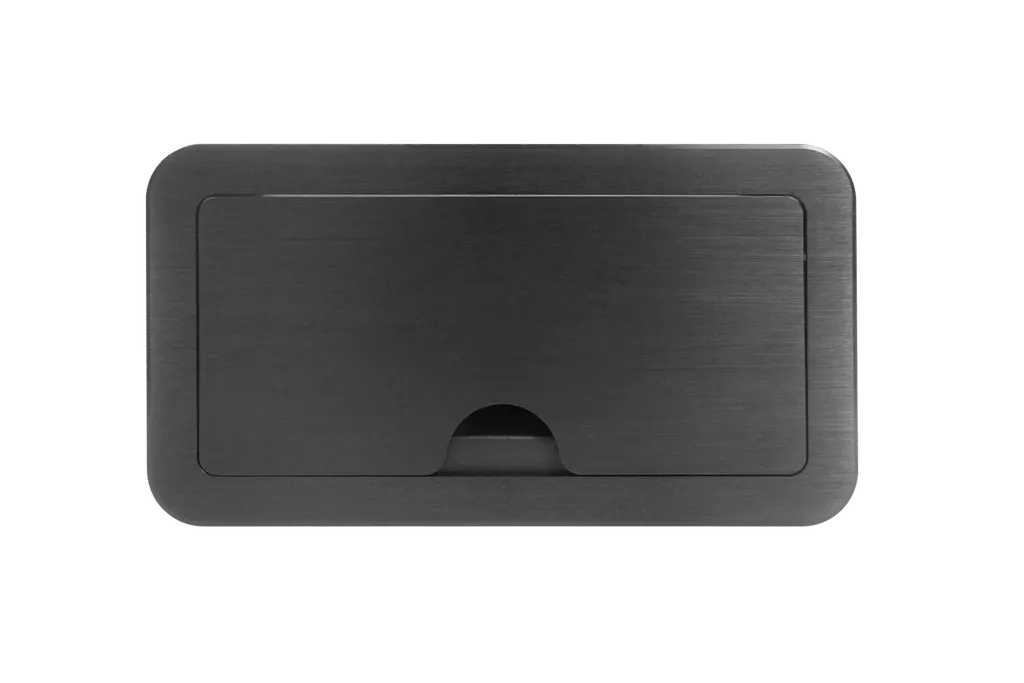

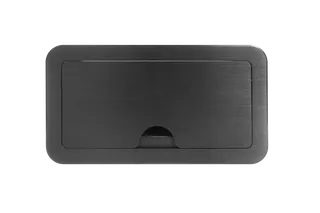

- Sliding cover with cable pass-through for in-use leads
- Includes CAT5e Ethernet, USB 2.0 Type-A and HDMI 1.4 cables
- Ambient operating range 0 to 30°C, 10 to 90% non-condensing
- 5-year manufacturer warranty
Room fit
Tell us the room size and platform (Teams, Zoom or BYOD) and we confirm the right combination with your quotation.
Estimated timeline
Quotation within 1 working day · delivery timing depends on stock availability, and we confirm it with your quotation.
Specifications
8 specifications · Source: manufacturer · checked Oct 2026
GENERAL4
- Height
- 4 inches (102 mm)
- Width
- 8.6 inches (218 mm) Top Plate Dimensions: 9.9 inches (251 mm)
- Depth
- 3.5 inches (89 mm) Top Plate Dimensions: 5.3 inches (135 mm)
- Weight
- 5.5 lbs (2.5 kg)
COMPLIANCE1
- Certifications
- CE Marked (Europe) RoHS Directive (Europe)
ENVIRONMENTAL3
- Ambient Operating Temperature Range
- 32 - 86° F (0 – 30° C)
- Humidity
- 10-90% relative humidity (non-condensing)
- Altitude
- 0-6,600 ft (0-2000m) MSL
Downloads
1 file from the manufacturerQuestions about EasyConnect EC-P-US
What is the EasyConnect EC-P-US used for in a Qatar office?
It is a tabletop cable management box for conference tables. It stores Ethernet, HDMI and USB cables inside the table so that staff in a ministry or corporate meeting room can connect laptops without loose leads across the surface. It also provides two AC power receptacles at the seats, helping the table stay tidy during long meetings.
Which cables come with the EC-P-US?
The box includes two CAT5e Ethernet cables, one USB 2.0 Type-A cable and one HDMI 1.4 cable. Each lead is 5 ft (1.5 m) long, pulls out of the box and retracts for storage. Because the HDMI cable is version 1.4, check that it suits your display and source devices before you finalise the order.
Does the EC-P-US work with Qatar's 240 V supply?
The source data does not state a voltage rating for this model, and its receptacles are US-style rather than the BS 1363 (Type G) sockets used in Qatar, where mains run at 240 V, 50 Hz. Ask the SmartRooms Qatar team to confirm the electrical specification before you order any units.
Can it be used in a meeting room where summer heat exceeds 45°C?
Only in an air-conditioned room. The ambient operating range is 0 to 30°C, with 10 to 90% relative humidity, non-condensing. Outside temperatures in Qatar often exceed 45°C in summer, so the box should not be installed in a space that is unconditioned or exposed to heat from windows. Confirm the room's climate control before ordering.
How much space does the box need under the table?
The housing is 102 mm high, 218 mm wide and 89 mm deep, and weighs 2.5 kg. Its top plate measures 251 mm by 135 mm, which sets the opening to cut in the table. Measure the table thickness and the clearance beneath the top against the 102 mm height before marking the cutout.
Will it suit a boardroom table in West Bay?
Yes, for a fixed boardroom table in an air-conditioned room. A corporate or government boardroom in West Bay can use the box to keep Ethernet, HDMI and USB leads out of sight during Sunday-to-Thursday meetings. Plan the number of boxes against the seating layout and the display position so every seat has a clear connection point.
Is it suitable for a training room in Education City?
It can be, when the training room has a fixed table and reliable air conditioning. A training centre or university room in Education City can use the box so that participants connect their own laptops at the table. Check the seat count, the power receptacles per box and the cable runs to the display before placing the order.
Can a hotel meeting room in Lusail use it?
Yes, where the table is fixed and the room is air-conditioned. Hotel and serviced apartment meeting rooms in Lusail are often reset for different groups, and a box that holds the cables inside the table keeps the setup tidy between sessions. Ask for a site survey so the table is measured before any cutting takes place.
Should we book a site survey before cutting a table?
A site survey is a sensible step, especially for an existing table. SmartRooms Qatar offers free site surveys, where the table thickness, the space beneath the top and the room conditions are checked before cutting. This matters because the unit weighs 2.5 kg and is fitted into the table.
What warranty and certifications apply to the EC-P-US?
The EC-P-US carries a 5-year manufacturer warranty, and SmartRooms Qatar supplies it with that warranty. The product is listed with CE marking and RoHS compliance. Warranty conditions are confirmed with your quotation. Include the model name and item number 910-01975 in your request so the quotation matches this exact product.
