Overview
The Biamp EasyConnect EC-PK-UNI is a tabletop connectivity box that mounts into a conference table and keeps Ethernet, HDMI and USB cables out of sight until needed. It adds one AC power receptacle, a built-in 12VDC power supply and an 8-button Impera Echo Plus programmable control pad. It suits boardrooms, training rooms and classrooms across Doha and Lusail that want a tidy, ready-to-use table. Request a quote from SmartRooms Qatar.
What the EasyConnect EC-PK-UNI does at the table

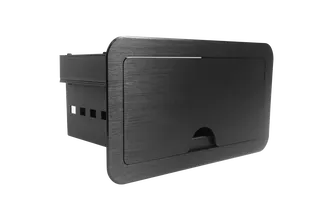

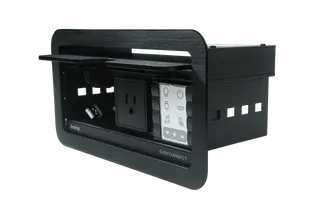

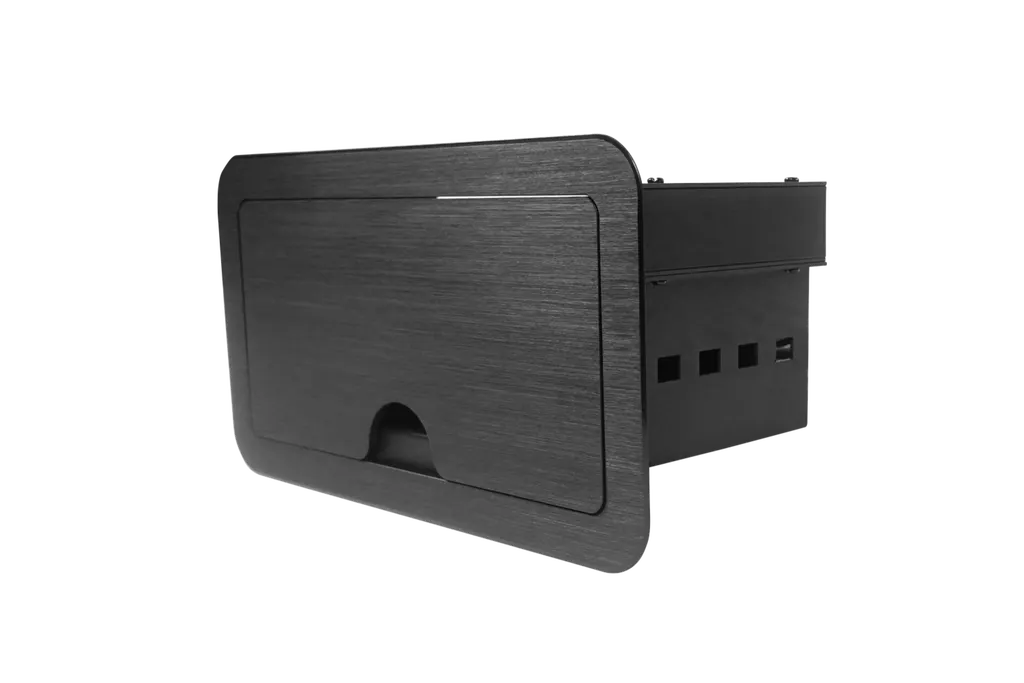

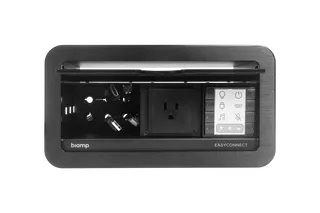

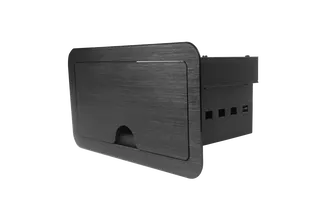

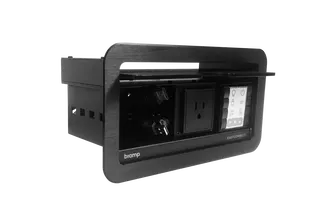

The EC-PK-UNI is a tabletop connectivity unit from Biamp's EasyConnect range. It mounts into the table and gives presenters a single place to connect laptops, so cables do not trail across the table surface. Ethernet, HDMI and USB cables are stored inside the housing and drawn out when needed, and a sliding lid with a cable pass-through keeps the opening closed when the room is not in use.
The unit is built for conference rooms, presentation spaces and learning environments. Because power, data and control functions sit in one box, the table stays uncluttered and the room is quicker to reset between meetings.
The connections and cables supplied
Each of the three pre-fitted cables is five feet (1.5 m) long and retracts for storage. The package includes two CAT5e Ethernet cables, one HDMI 1.4 cable and one USB 2.0 Type-A cable. Two unpopulated cable feed-throughs leave room for up to six cables in total, so a room can add lines later without cutting a new opening in the table.
An AC power receptacle is included, along with a built-in 12VDC power supply. The model carries CE and RoHS compliance markings. The manufacturer's five-year warranty applies to the unit.
Control pad for room control
The 8-button Impera Echo Plus programmable control pad, model 8EUB, is part of the package. It gives a room a simple interface for presentation spaces and conference rooms, and it can be programmed to support a wide range of equipment. Having one controller at the table means users can operate the room from their seat.
Where it fits across Qatar
A corporate boardroom in West Bay or Msheireb often needs a clean table where executives can connect laptops quickly before a call with colleagues abroad. A table box with cable storage and an 8-button pad suits that setting, since the room can be reset between meetings without loose leads on the table.
In an international school in Al Sadd or Lusail, the unit suits a classroom or a teachers' meeting room, where the pad can be programmed for a standard lesson set-up. Universities and training centres in Education City can apply the same approach in seminar rooms where students swap laptops during group work.
Planning the installation and the climate
- Operating range: 0 to 30°C (35 to 86°F), so the table must sit in an air-conditioned room.
- Humidity and altitude: 10 to 90% relative humidity, non-condensing, up to 2,000 m.
- Table cut-out: the housing measures 102 mm high, 218 mm wide and 89 mm deep, with a top plate of 251 mm by 135 mm.
- Weight: 2.5 kg, which should be factored into the table build.
Qatar summers exceed 45°C, so keep the unit in a cooled space and away from window-facing positions that receive direct sun. Confirm the mains configuration for the AC receptacle against Qatar's 240 V, 50 Hz supply when you request a quote. SmartRooms Qatar offers a free site survey before table installation, which is the simplest way to confirm the cut-out and room conditions.
Request a quote
Send us your table layout, the number of meeting rooms and the cable types you need, then request a quote from SmartRooms Qatar. We usually respond within one working day. Purchase orders (LPOs) and government tenders are accepted, and we deliver to all eight municipalities of Qatar with professional installation available.
Highlights
- 8-button Impera Echo Plus programmable control pad included
- Cables included: two CAT5e Ethernet, one HDMI 1.4, one USB 2.0 Type-A
- Five-foot (1.5 m) cables pull out and retract for storage
- Two unpopulated feed-throughs allow for up to six cables
- Integral AC power receptacle and built-in 12VDC power supply
- Five-year manufacturer warranty; CE and RoHS compliance markings
Room fit
Tell us the room size and platform (Teams, Zoom or BYOD) and we confirm the right combination with your quotation.
Estimated timeline
Quotation within 1 working day · delivery timing depends on stock availability, and we confirm it with your quotation.
Specifications
8 specifications · Source: manufacturer · checked Oct 2026
GENERAL4
- Height
- 4 inches (102 mm)
- Width
- 8.6 inches (218 mm) Top Plate Dimensions: 9.9 inches (251 mm)
- Depth
- 3.5 inches (89 mm) Top Plate Dimensions: 5.3 inches (135 mm)
- Weight
- 5.5 lbs (2.5 kg)
COMPLIANCE1
- Certifications
- CE Marked (Europe) RoHS Directive (Europe)
ENVIRONMENTAL3
- Ambient Operating Temperature Range
- 35 - 86° F (0 – 30° C)
- Humidity
- 10-90% relative humidity (non-condensing)
- Altitude
- 0-6,600 ft (0-2000m) MSL
Downloads
1 file from the manufacturerQuestions about EasyConnect EC-PK-UNI
What is the Biamp EasyConnect EC-PK-UNI used for?
It is a tabletop connectivity box for conference rooms. It mounts into the table, stores Ethernet, HDMI and USB cables, and provides one AC power receptacle plus an 8-button control pad. It suits meeting rooms, boardrooms and learning spaces where presenters need quick, tidy connections without cables running across the table surface.
Which cables come with the unit?
The package includes two CAT5e Ethernet cables, one HDMI 1.4 cable and one USB 2.0 Type-A cable. Each is five feet (1.5 m) long and pulls out and retracts for storage. Two unpopulated feed-throughs allow up to six cables in total, so you can add lines later in a room that needs another source without reworking the table.
What control pad is included and what can it do?
It includes the 8-button Impera Echo Plus programmable control pad, model 8EUB. It gives users a simple interface and can be programmed to support a wide range of equipment. In a Doha meeting room, a presenter can control the room from the table once the pad has been programmed for the equipment installed in that room.
Does the box include a power supply?
Yes. The unit has one AC power receptacle and an integral 12VDC power supply. The housing weighs 2.5 kg, so plan how mains cabling will be routed into the table base before installation. Confirm the receptacle configuration against Qatar's 240 V, 50 Hz supply when you request a quote.
Will it work in a hot room in Doha during summer?
The rated ambient operating temperature is 0 to 30°C (35 to 86°F), so the unit must sit in an air-conditioned room, not an unCooled annex or a spot where direct sun reaches the table. Humidity is rated 10 to 90% relative humidity, non-condensing. Check the room's cooling during a free site survey before fitting.
What size opening does the table need?
The housing measures 102 mm high, 218 mm wide and 89 mm deep. Its top plate measures 251 mm by 135 mm. Check these dimensions against your table design before ordering. A free site survey from SmartRooms Qatar can confirm the required cut-out for the specific table in your meeting room.
Is it suitable for a ministry boardroom in Doha?
A boardroom in a government ministry or authority in Doha usually needs a neat table for documents, laptops and video calls. The box keeps Ethernet, HDMI and USB cables stored in the table, and the 8-button pad lets the chair or a staff member control the room. SmartRooms Qatar supports government tenders, including those published through Monaqasat, and accepts purchase orders.
Can a school in Al Rayyan or Lusail fit out several classrooms with it?
Yes. Each classroom gets its own unit, cable set and control pad, and the same table cut-out can be used across similar tables to simplify installation. Consolidating the quantities onto one purchase order (LPO) makes approval easier for the school. The five-year manufacturer warranty applies to each unit supplied.
Does the unit support 4K video or wireless presentation?
The manufacturer data does not list display resolution, video bandwidth or wireless presentation features, so this page does not state them. The included HDMI cable is HDMI 1.4, and the control pad is programmable. Ask the SmartRooms Qatar team to confirm the video specification your display requires before requesting a quote.
Does the unit need a network connection?
The package includes two CAT5e Ethernet cables, so the table connection uses a wired network link. Before installation, ask your IT team whether a suitable network port is available close to the table position. Plan the cable route so the Ethernet run reaches the box without strain in the cable pull-out area.
What warranty applies to the EC-PK-UNI?
The manufacturer gives a five-year warranty on the EasyConnect EC-PK-UNI, and SmartRooms Qatar supplies the unit under that manufacturer's warranty. Ask for the warranty terms in writing alongside your quotation so the procurement file is complete before a purchase order is raised.
How do I request a quote for several meeting rooms?
Send SmartRooms Qatar your room list, table layouts and cable requirements, then request a quote. Quotations are usually issued within one working day. Payment can be made by bank transfer, cheque or purchase order, and a free site survey can confirm table cut-outs before installation across all rooms.
