Overview

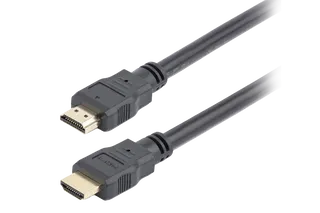

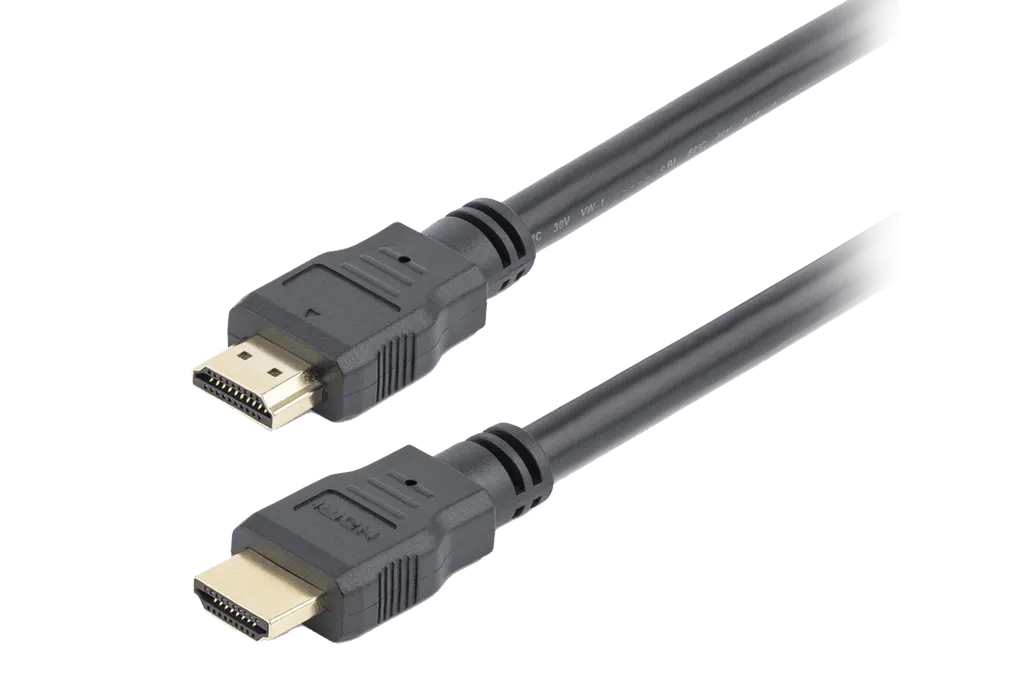

The Biamp EasyConnect HDMI4k-10 is a 3 m (10-foot) passive HDMI 2.0 cable that links a source device to a display in meeting rooms. It carries 4K at 60Hz with HDR10 and HLG at up to 18 Gbps, supports ARC, and handles Dolby Atmos and DTS:X audio formats. Its triple-shielded construction and gold-plated contacts suit boardrooms and conference rooms in Doha, and it carries a 3-year warranty. Request a quote to plan your room layout.
What this HDMI 2.0 cable does in a meeting room
The Biamp EasyConnect HDMI4k-10 is a 3 m (10-foot) HDMI 2.0 cable with HDMI A connectors at both ends. It is passive, so there is no active electronics in the cable body, and it links a source such as a conferencing codec, laptop or content player to a display. Its job is to carry a full-resolution 4K picture without visible loss, which is what presenters and remote participants notice first.
Video and audio figures that matter
The cable supports 3840 x 2160 pixels at 60Hz with full bandwidth. Its maximum data rate is 18 Gbps and its TMDS clock is 600 MHz. At 4K/30Hz it carries 4:4:4 chroma sampling, which keeps text and fine lines crisp in spreadsheets and slide decks. Colour depth is 8 bit per colour. HDR10 and HLG are both supported, so HDR material from a compatible source can reach a compatible display, and HDCP 2.2 is backward compatible.
For audio, ARC is supported, letting a display return sound to a soundbar or amplifier over the same HDMI connection. eARC is not supported. Audio formats include up to 32 channels of PCM, Dolby formats including Atmos, and DTS formats including DTS:X. CEC and EDID support is also included, so connected devices can exchange control and display capability information.
Build quality and routing
Conductors are 28 AWG tinned copper, shielded with foil plus double braid, and the contacts are gold plated. The PVC jacket measures 7.3 mm across. For routing, the minimum static bend radius is 73 mm, the maximum tensile strength is 200 N and the maximum compression load is 500 N. These figures matter when the cable passes through a ceiling void, a cable tray or a wall plate, where tight bends and crushing are common faults.
Where it fits across Qatar
- Boardroom in West Bay: a single display with a conferencing codec and a soundbar, where ARC handles audio return and the 3 m length suits a short, direct run.
- Hotel conference room in Lusail: a meeting space where presenters bring laptops with HDR video and surround-sound clips, and the layout changes between events.
- Government meeting room in Msheireb: a ministry room that hosts Arabic and English presentations side by side, where a reliable 4K signal avoids delays during formal sessions.
What to plan before you order
Measure the route from the source to the display before choosing this 3 m length, and allow for bends inside trays and walls. Plan for the environment too. The operating temperature range is 0 to 50 °C, storage is -20 to 70 °C and humidity is 10 to 80% RH non-condensing. In Qatar summers, a ceiling void or equipment cabinet can run hotter than the room, so check those spaces. SmartRooms Qatar offers a free site survey and professional installation, and we can confirm the route before anything is fixed in place.
Certifications, warranty and ordering
The cable is listed as RoHS and REACH compliant, carries a UL-CMX safety rating and is marked Premium Certified in the manufacturer data. It comes with a 3-year warranty. SmartRooms Qatar delivers to all 8 municipalities of Qatar, accepts purchase orders and government tenders including Monaqasat, and takes payment by bank transfer, cheque or purchase order. Quotations are usually provided within one working day. Request a quote for the EasyConnect HDMI4k-10 with your room layout and quantity.
Highlights
- HDMI 2.0 with 4K at 60Hz and 18 Gbps maximum data rate
- HDR10 and HLG high dynamic range support
- 3 m (10-foot) length with passive signal type
- Triple-shielded cable with gold-plated contacts
- ARC audio return plus Dolby Atmos and DTS:X formats
- 3-year warranty, RoHS and REACH compliant
Room fit
Tell us the room size and platform (Teams, Zoom or BYOD) and we confirm the right combination with your quotation.
Estimated timeline
Quotation within 1 working day · delivery timing depends on stock availability, and we confirm it with your quotation.
Specifications
34 specifications · Source: manufacturer · checked Oct 2026
OTHER13
- Jacket Material
- PVC
- Conductor Material
- Tinned Copper
- Wire Gauge
- 28 AWG
- Shield Type
- Triple Shielded (foil + double braid)
- Contact Plating
- Gold
- Cable Outer Diameter
- 7.3 mm
- Min. Static Bend Radius
- 73 mm
- Max. Tensile Strength
- 200 N
- Max. Compression Load
- 500 N
- CEC Support
- Yes (consumer electronics control)
- EDID Support
- Yes (enhanced display ID)
- Signal Type
- Passive
- Length
- 10 feet (3 m)
DATA4
- Max. Data Rate
- 18 Gbps
- TMDS Clock
- 600 MHz
- Connector Type
- HDMI A (male-male)
- HDMI Version
- 2.0
COMPLIANCE3
- Compliance
- RoHS, REACH
- Safety Rating(s)
- UL-CMX
- Premium Certified
- Yes
ENVIRONMENTAL3
- Operating Temperature
- 0 to 50 °C
- Storage Temperature
- -20 to 70 °C
- Humidity
- 10 to 80% RH (non-condensing)
VIDEO6
- Chroma Sampling
- 4:4:4 (at 4K/30Hz)
- Color Bit Depth
- 8 bit (per color)
- Max. Resolution
- 3840 x 2160 pixels (at 60Hz)
- Max. Refresh Rate @ 4K
- 60 Hz (full bandwidth)
- HDR Support
- Yes (HDR10, HLG)
- HDCP Version
- 2.2 (backward compatible)
AUDIO5
- ARC Support
- Yes (audio return channel)
- eARC Support
- No
- Audio Formats
- Up to 32 channels (PCM)
- Dolby Support
- Yes (including Atmos)
- DTS Support
- Yes (including DTS:X)
Downloads
2 files from the manufacturerQuestions about EasyConnect HDMI4k-10
What is the EasyConnect HDMI4k-10 used for?
It is a 3 m (10-foot) HDMI 2.0 cable for linking a source device, such as a conferencing codec or laptop, to a display in a meeting room. The cable is passive, carries 4K at 60Hz with HDR10 and HLG, and has a maximum data rate of 18 Gbps. It suits boardrooms, training rooms and conference spaces where a clean, full-resolution picture matters. Request a quote if you need several units for a multi-room project.
Does the cable support 4K at 60Hz?
Yes. The HDMI4k-10 supports 3840 x 2160 pixels at 60Hz with full bandwidth, and its TMDS clock is 600 MHz. Chroma sampling is 4:4:4 at 4K/30Hz, and colour depth is 8 bit per colour. This matters in a Doha conference room where presenters share spreadsheets, drawings or detailed slides that lose clarity on lower-specification cables. Confirm that your source and display also support 4K at 60Hz before ordering.
Is HDR supported, and what about HDCP?
The cable supports HDR10 and HLG, so HDR content from a compatible source can reach a compatible display. It is HDCP 2.2 backward compatible, which means it is designed to work with earlier HDCP versions. HDR results depend on the source and display settings, so check those devices before installation. SmartRooms Qatar can help confirm the setup when you request a quote.
Can it carry audio return to a soundbar in a boardroom?
It supports ARC, the audio return channel, which lets a display send audio back to a soundbar or amplifier through the same HDMI connection. eARC is not supported, so this cable is not suited to setups that need enhanced audio return. For a West Bay boardroom with one display and a soundbar, ARC covers the common arrangement. Confirm that the display port you plan to use is labelled ARC before finalising the layout.
Which audio formats does it pass through?
Audio support covers up to 32 channels of PCM, plus Dolby formats including Atmos and DTS formats including DTS:X. This is useful for a hotel conference room in Lusail that hosts video presentations with surround sound, or a lecture hall in Education City where a lecturer plays recorded media. The formats you can use in practice depend on the source device and the receiving equipment, so confirm both before the event.
How long is the cable, and will it reach my display?
The cable is 3 m (10 feet) long, so it suits a display placed close to the source, such as a laptop dock on a table beside a wall-mounted screen. Measure the route from the source to the display along the path the cable will take, including vertical runs and cable trays. If the distance is longer than 3 m, ask SmartRooms Qatar which cable length suits the route before you order.
Can it be routed through ceilings or conduit in a government building?
Routing depends on bend and tension limits. The cable has a 7.3 mm outer diameter, a minimum static bend radius of 73 mm, a maximum tensile strength of 200 N and a maximum compression load of 500 N. Keep bends wider than 73 mm radius and avoid pulling hard on the connectors. A free site survey from SmartRooms Qatar can check the ceiling route in a ministry meeting room in Msheireb, and professional installation is available.
What operating conditions does it tolerate in Qatar?
The operating temperature range is 0 to 50 °C, storage is -20 to 70 °C, and humidity is 10 to 80% RH non-condensing. Qatar summers regularly push outdoor temperatures above 45 °C, so cables run through ceiling voids or near equipment cabinets deserve a check. Keep the cable within the air-conditioned part of the building, and confirm the temperatures of any enclosed space with the SmartRooms Qatar team during the site survey.
What do CEC and EDID do on this cable?
CEC, or consumer electronics control, lets compatible devices send simple control commands to one another over HDMI, for example powering a display on or off alongside a source. EDID, or enhanced display identification, lets the source read the display's supported resolutions and formats so it can send a suitable signal. Both features depend on the connected devices supporting them, so test the behaviour with your own equipment before the room goes live.
Which certifications does the cable carry?
The manufacturer data lists RoHS and REACH compliance, a UL-CMX safety rating and Premium Certified status. The cable uses 28 AWG tinned copper conductors, triple shielding with foil and double braid, and gold-plated contacts. For public-sector and education tenders these details support the technical submission. Include the model and item number 910-00217 in your quotation request so the correct product is priced.
What warranty applies, and how can a school or ministry order several units?
The EasyConnect HDMI4k-10 carries a 3-year warranty from the manufacturer. For a school in Al Wakrah or a government body in Doha fitting out several rooms, SmartRooms Qatar accepts purchase orders (LPOs) and government tenders, including Monaqasat. Payment can be made by bank transfer, cheque or purchase order. Quotations are usually issued within one working day, and lead times are confirmed with the quotation.
