Overview

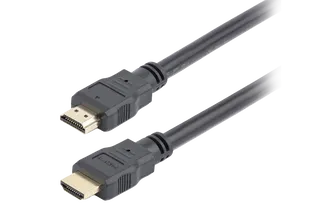

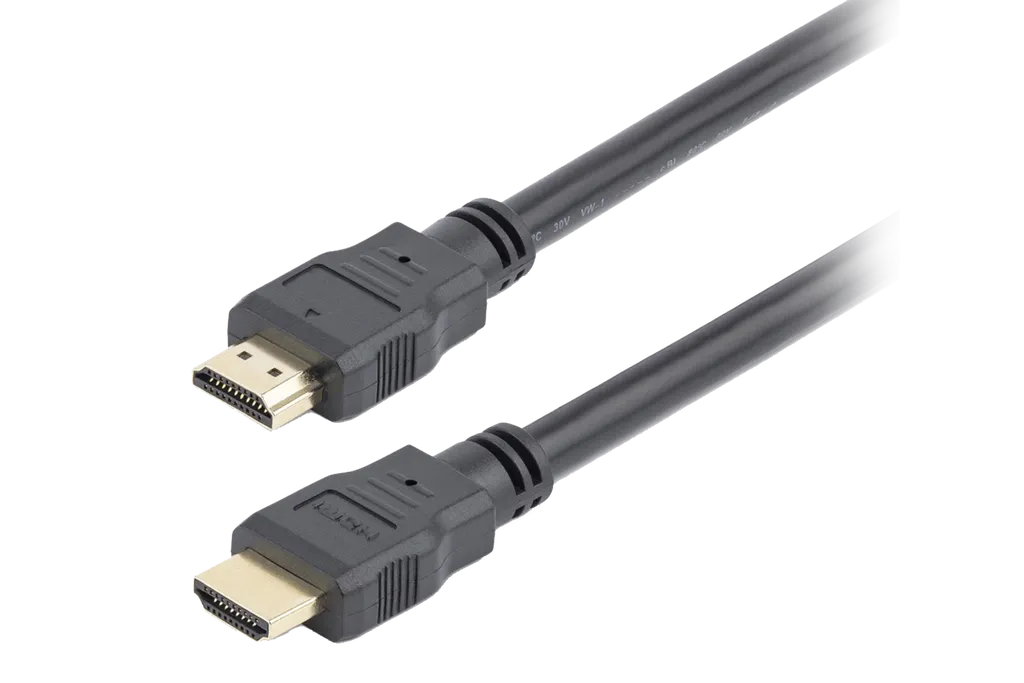

The Biamp EasyConnect HDMI4k-15 is a 15-foot (5 m) passive HDMI 2.0 cable for meeting and conference AV. It carries 4K UHD at 60Hz with HDR10 and HLG support, an 18 Gbps maximum data rate, and Dolby Atmos and DTS:X audio support. Its triple-shielded tinned copper build suits boardrooms, conference rooms and lecture halls across Doha, West Bay and Lusail where a dependable display connection matters.
What the EasyConnect HDMI4k-15 does in a conference room
The Biamp EasyConnect HDMI4k-15 is a 15-foot (5 m) HDMI cable built to HDMI 2.0 specifications. It carries 4K video at 60Hz, the frame rate most modern laptops, document cameras and video conferencing codecs send to a display, and it adds HDR10 and HLG support for a brighter, wider-range picture where the source and screen both support it. Its maximum data rate of 18 Gbps provides the bandwidth HDMI 2.0 needs at this resolution.
Signal and build details that matter on installation day
The cable is passive, so it has no electronics in the run, and uses tinned copper conductors at 28 AWG. A triple shield of foil and double braid helps limit interference from nearby power cables and lighting, and the connectors carry gold contact plating. The outer diameter is 7.3 mm, the minimum static bend radius is 73 mm, and the cable is rated for 200 N of tensile strength and 500 N of compression load, figures that matter when the run passes through trunking or a wall plate.
- HDMI 2.0 connection with 4K at 60Hz and 4:4:4 chroma at 4K/30Hz
- Audio: ARC support, Dolby Atmos and DTS:X support, up to 32 channels of PCM
- Control: CEC and EDID support, with HDCP 2.2 backward compatibility
Where it fits in Qatar
In a boardroom in West Bay, a single HDMI run usually links the video codec or laptop dock at the table to the wall-mounted display. The 5 m length suits a typical table-to-wall distance in a standard meeting room; for a larger hall or a route that crosses a lecture theatre, measure the path first. At a university in Education City, lecture rooms often use this cable type to connect a presenter's laptop to a projector or interactive panel, and a consistent 4K signal helps when slides contain small text or fine detail.
Offices in Lusail and The Pearl that run hybrid meetings with teams abroad often route cables through floor boxes or ceiling voids. The stated operating range is 0 to 50 °C with 10 to 80% relative humidity, non-condensing. In a Doha summer, ceiling voids and equipment cabinets can run warm, so ask your installer to check the ambient temperature along the route before ordering for the whole project.
What to plan before you order
Count the rooms, measure each route from the source device to the display, and note where cable will pass through trunking or wall plates. Confirm that both the source and the display support HDMI 2.0 and the HDR formats you need. For a school or ministry equipping several rooms, one purchase order can cover the full set under a single quotation. SmartRooms Qatar offers free site surveys and professional installation, and quotations are usually issued within one working day. The product is covered by a 3-year warranty as listed by the manufacturer.
Request a quote from SmartRooms Qatar to confirm the right cable length for each room and whether this model fits your AV design.
Highlights
- HDMI 2.0 connection with 4K UHD at 60Hz
- HDR10 and HLG high dynamic range support
- 18 Gbps maximum data rate
- 15-foot (5 m) passive cable
- Tinned copper conductors with gold-plated contacts
- CEC, EDID and ARC support; eARC not supported
- 3-year warranty; RoHS and REACH compliant
Room fit
Tell us the room size and platform (Teams, Zoom or BYOD) and we confirm the right combination with your quotation.
Estimated timeline
Quotation within 1 working day · delivery timing depends on stock availability, and we confirm it with your quotation.
Specifications
35 specifications · Source: manufacturer · checked Oct 2026
OTHER13
- Jacket Material
- PVC
- Conductor Material
- Tinned Copper
- Wire Gauge
- 28 AWG
- Shield Type
- Triple Shielded (foil + double braid)
- Contact Plating
- Gold
- Cable Outer Diameter
- 7.3 mm
- Min. Static Bend Radius
- 73 mm
- Max. Tensile Strength
- 200 N
- Max. Compression Load
- 500 N
- CEC Support
- Yes (consumer electronics control)
- EDID Support
- Yes (enhanced display ID)
- Signal Type
- Passive
- Length
- 15 feet (5 m)
DATA4
- Max. Data Rate
- 18 Gbps
- TMDS Clock
- 600 MHz
- Connector Type
- HDMI A (male-male)
- HDMI Version
- 2.0
COMPLIANCE3
- Compliance
- RoHS, REACH
- Safety Rating(s)
- UL-CMX
- Premium Certified
- Yes
ENVIRONMENTAL3
- Operating Temperature
- 0 to 50 °C
- Storage Temperature
- -20 to 70 °C
- Humidity
- 10 to 80% RH (non-condensing)
VIDEO7
- Chroma Sampling
- 4:4:4 (at 4K/30Hz)
- Color Bit Depth
- 8 bit (per color)
- HDMI Audio Formats
- Up to 32 channels (PCM)
- Max. Resolution
- 3840 x 2160 pixels (at 60Hz)
- Max. Refresh Rate @ 4K
- 60 Hz (full bandwidth)
- HDR Support
- Yes (HDR10, HLG)
- HDCP Version
- 2.2 (backward compatible)
AUDIO5
- ARC Support
- Yes (audio return channel)
- eARC Support
- No
- Audio Formats
- Up to 32 channels (PCM)
- Dolby Support
- Yes (including Atmos)
- DTS Support
- Yes (including DTS:X)
Downloads
2 files from the manufacturerQuestions about EasyConnect HDMI4k-15
What is the Biamp EasyConnect HDMI4k-15 used for?
It is a 15-foot (5 m) HDMI 2.0 cable for connecting AV sources such as laptops, codecs and document cameras to displays in meeting and conference rooms. It is listed under meeting and conference AV in the manufacturer data. A typical use is linking a boardroom table source to a wall-mounted screen in a Doha office, where a short, reliable 4K run is needed without rebuilding the room.
Does the cable support 4K resolution at 60Hz?
Yes. The EasyConnect HDMI4k-15 supports 4K UHD at 60Hz with full bandwidth, and its maximum resolution is 3840 x 2160 pixels at 60Hz. Chroma sampling is 4:4:4 at 4K/30Hz, and colour depth is 8 bit per colour. Confirm that your source device and display also support 4K at 60Hz, since the cable can only deliver what both ends output.
Which HDR formats are supported?
The cable supports HDR10 and HLG. HDR is only visible when the source device and the display both support the same format, so check the specifications of your laptop, codec or media player before ordering. For a conference room, HDR mainly benefits shared video content and presentations with rich imagery when the display is set up to use it.
Is this a passive or active cable, and what length limit applies?
The cable is listed as passive with a length of 15 feet (5 m). It is a single run with no active electronics. The manufacturer data does not give a maximum distance beyond 5 m, so for any longer route, such as between a lectern in one hall and a display across a campus room, send your measurements to the SmartRooms Qatar team before choosing a product.
Does it support CEC and EDID?
Yes, the cable supports CEC (consumer electronics control) and EDID (enhanced display identification). CEC can let some compatible devices pass basic power and control commands over the HDMI link, and EDID lets the source read the display's supported resolutions. This helps a meeting room system detect the screen correctly during setup, though control behaviour still depends on the connected devices.
Does it support audio return and surround formats?
ARC (audio return channel) is supported, but eARC is not listed. The cable also supports Dolby Support including Atmos, DTS Support including DTS:X, and up to 32 channels of PCM. A conference room that sends sound from a display's built-in ARC-capable tuner or soundbar back to a source will work with this cable, but confirm that your equipment supports ARC and the formats you plan to use.
Which room types suit this 5 m cable?
A 5 m length suits a standard boardroom or meeting room where the source sits at a table and the display is on a nearby wall. It is also suitable for a training room in a private school in Al Wakrah or an office in Al Sadd where equipment is close to the screen. For a large lecture hall or a stadium-scale event space, the route is usually longer and should be surveyed first.
How should the cable be routed through a ceiling or cabinet in summer?
The stated operating temperature is 0 to 50 °C, with storage between -20 and 70 °C and humidity from 10 to 80% non-condensing. In Doha summers, ceiling voids and AV cabinets can exceed comfortable levels, so check the ambient temperature along the route with your installer. Keep the cable clear of heat sources, and avoid tight bends in trunking where the minimum static bend radius of 73 mm applies.
What bend radius and diameter should installers plan for?
The outer diameter is 7.3 mm and the minimum static bend radius is 73 mm. Installers should allow for this when routing through floor boxes, wall plates and trunking, so the cable is not kinked. The cable is also rated for 200 N of tensile strength and 500 N of compression load. Plan space for these bends before pulling cable through conduits or cable management channels.
Is the cable covered by a warranty and does it meet compliance standards?
The manufacturer data lists a 3-year warranty, along with RoHS and REACH compliance and a UL-CMX safety rating. It is also listed as Premium Certified. Warranty terms for your order are confirmed with the quotation from SmartRooms Qatar. Procurement teams in government entities or banks can ask for these compliance details to be included in their tender documentation.
Can SmartRooms Qatar supply and install several units for a school or ministry?
Yes. SmartRooms Qatar supplies this cable across Qatar, delivers to all 8 municipalities and offers professional installation. For a school in Al Khor fitting out several classrooms, or a ministry equipping meeting rooms, one purchase order or LPO can cover the full project under a single quotation. A free site survey helps confirm the correct cable length for each room before ordering.
