Overview

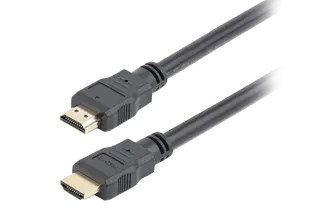

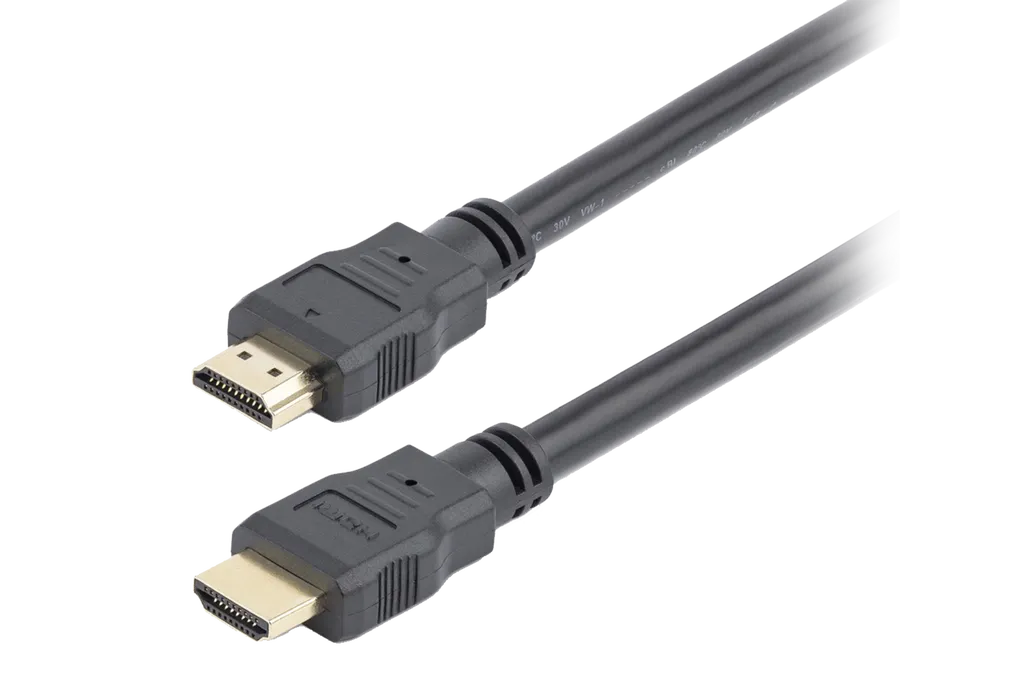

The Biamp EasyConnect HDMI4k-30 is a 10 m (30 ft) active HDMI 2.0 cable for 4K UHD at 60Hz with HDR10 and HLG, rated at 18 Gbps. It supports CEC and EDID and carries Dolby Atmos and DTS:X audio, with triple-shielded construction. It suits boardrooms and meeting rooms in Doha where the screen sits well away from the laptop or codec. Request a quote from SmartRooms Qatar.
What the EasyConnect HDMI4k-30 does
The Biamp EasyConnect HDMI4k-30 is a 10 m (30 ft) HDMI 2.0 cable that links a source such as a conferencing codec, laptop or media player to a display across a room. It carries 4K UHD at 60Hz with HDR10 and HLG, and its 18 Gbps maximum data rate gives full-bandwidth 4K video room to run. Biamp lists it under meeting and conference AV, and its signal type is active.
Specifications that matter on a 10 m run
- Resolution: 3840 x 2160 pixels at 60Hz with full bandwidth, and 4:4:4 chroma sampling listed at 4K/30Hz
- Colour and HDR: 8-bit per colour, HDR10 and HLG support, HDCP 2.2 backward compatible
- Control and identification: CEC and EDID support
- Audio: up to 32 channels of PCM, ARC, Dolby including Atmos, and DTS including DTS:X. eARC is not supported
- Construction: tinned copper and multi-mode optical fibre conductors, triple shielding (foil plus double braid), gold-plated contacts, 4.5 mm outer diameter, PVC jacket
- Handling: 45 mm minimum static bend radius, 200 N maximum tensile strength, 500 N maximum compression load
- Environment: operating range 0 to 50 °C, storage -20 to 70 °C, 10 to 80% RH non-condensing
- Compliance: RoHS, CE, FCC and UL-CMX, marked Premium Certified
Where it fits in Qatar
In a boardroom in West Bay or Msheireb, a 10 m run lets the codec sit in a credenza at one end of the table while the display hangs on the far wall. Many ministries and corporate teams present in Arabic and English in the same meeting, and one HDMI link carries either language's slides from the laptop to the screen.
In a lecture hall in Education City, the cable can connect a lectern PC to a display or projector at the back of the room, with ARC returning audio to the room system. At a training centre in Al Sadd, it can link a media player to a screen in a classroom where the equipment sits away from the wall.
What to plan before ordering
Measure the actual route through trunking, cable trays and ceiling voids, not the straight-line distance between the two devices. The 45 mm minimum bend radius and 4.5 mm outer diameter decide how the cable can pass through conduit and behind wall-mounted panels. SmartRooms Qatar offers a free site survey to check the path, bends and entry points before installation.
The rated operating range is 0 to 50 °C at 10 to 80% RH non-condensing. Keep the run inside air-conditioned rooms. Qatar summer temperatures can exceed 45 °C in unconditioned spaces, so confirm any route through ceiling voids or outdoor-facing areas with the SmartRooms Qatar team before installation.
Quotations are usually issued within one working day. We accept purchase orders (LPOs) and government tenders, including Monaqasat, and payment is by bank transfer, cheque or purchase order. Delivery covers all 8 municipalities of Qatar. The manufacturer lists a 3-year warranty on this cable.
Request a quote for the EasyConnect HDMI4k-30 from SmartRooms Qatar, and tell us the room, the source device and the approximate route length.
Highlights
- 10 m (30 ft) HDMI 2.0 cable for 4K UHD video
- 4K at 60Hz with HDR10 and HLG support
- 18 Gbps maximum data rate
- Active signal type with CEC and EDID support
- Triple-shielded, gold-plated, 4.5 mm outer diameter
- Operating range 0 to 50 °C; 3-year manufacturer warranty
Room fit
Tell us the room size and platform (Teams, Zoom or BYOD) and we confirm the right combination with your quotation.
Estimated timeline
Quotation within 1 working day · delivery timing depends on stock availability, and we confirm it with your quotation.
Specifications
34 specifications · Source: manufacturer · checked Oct 2026
OTHER13
- Jacket Material
- PVC
- Conductor Material
- Tinned Copper & Multi-Mode Optical Fibers
- Wire Gauge
- 24+28+28+30 AWG
- Shield Type
- Triple Shielded (foil + double braid)
- Contact Plating
- Gold
- Cable Outer Diameter
- 4.5 mm
- Min. Static Bend Radius
- 45 mm
- Max. Tensile Strength
- 200 N
- Max. Compression Load
- 500 N
- CEC Support
- Yes (consumer electronics control)
- EDID Support
- Yes (enhanced display ID)
- Signal Type
- Active
- Length
- 30 feet (10 m)
DATA3
- Max. Data Rate
- 18 Gbps
- TMDS Clock
- 600 MHz
- HDMI Version
- 2.0
COMPLIANCE3
- Compliance
- RoHS, CE, FCC
- Safety Rating(s)
- UL-CMX
- Premium Certified
- Yes
ENVIRONMENTAL3
- Operating Temperature
- 0 to 50 °C
- Storage Temperature
- -20 to 70 °C
- Humidity
- 10 to 80% RH (non-condensing)
VIDEO7
- Chroma Sampling
- 4:4:4 (at 4K/30Hz)
- Color Bit Depth
- 8 bit (per color)
- HDMI Audio Formats
- Up to 32 channels (PCM)
- Max. Resolution
- 3840 x 2160 pixels (at 60Hz)
- Max. Refresh Rate @ 4K
- 60 Hz (full bandwidth)
- HDR Support
- Yes (HDR10, HLG)
- HDCP Version
- 2.2 (backward compatible)
AUDIO5
- ARC Support
- Yes (audio return channel)
- eARC Support
- No
- Audio Formats
- Up to 32 channels (PCM)
- Dolby Support
- Yes (including Atmos)
- DTS Support
- Yes (including DTS:X)
Downloads
2 files from the manufacturerQuestions about EasyConnect HDMI4k-30
What is the EasyConnect HDMI4k-30 used for?
It is a 10 m (30 ft) HDMI 2.0 cable that links a source such as a conferencing codec, laptop or media player to a display in a meeting room. Biamp lists it under meeting and conference AV, and it carries 4K UHD at 60Hz with HDR10 and HLG. Organisations in Doha usually buy it when the screen and the source sit at opposite ends of a room. Request a quote from SmartRooms Qatar.
Does it support 4K at 60Hz?
Yes. The data lists a maximum resolution of 3840 x 2160 pixels at 60Hz with full bandwidth, over HDMI 2.0 with an 18 Gbps maximum data rate. Chroma sampling is listed as 4:4:4 at 4K/30Hz, so check the output settings on your source before setting it up for 4K60 content. Colour bit depth is 8 bit per colour.
Can it cover a 10 m boardroom run in West Bay?
A 10 m cable suits a boardroom where the codec sits in a credenza at one end of the table and the display is on the far wall. Before ordering, measure the actual route through trunking and ceiling voids rather than the straight-line distance. SmartRooms Qatar offers a free site survey to check the path, bends and entry points before installation.
Does it carry HDR content?
Yes. The manufacturer lists HDR support for HDR10 and HLG, along with HDCP 2.2 backward compatibility. HDR only appears when the source, the display and the content all support it, so confirm the display's HDR specifications with your supplier before purchase. The cable itself carries the signal at up to 18 Gbps.
Does it pass Dolby Atmos and DTS:X audio?
The source lists Dolby support including Atmos and DTS support including DTS:X, with up to 32 channels of PCM audio. The cable supports ARC for audio return but not eARC, so a soundbar connected through an eARC port will need a different cable. Check the audio ports on both devices before ordering several units for a lecture hall.
Does it support CEC and EDID?
Yes, both are listed for this model. CEC lets connected devices exchange control commands over the HDMI link, and EDID lets the source read the resolutions the display supports. This is useful in a meeting room where one device manages the screen when someone connects a new laptop.
Can it be used in a hot space such as an unconditioned store room?
The stated operating range is 0 to 50 °C at 10 to 80% RH non-condensing, and storage is rated from -20 to 70 °C. Qatar summer temperatures can push unconditioned spaces above 45 °C, so keep the cable run inside air-conditioned rooms and confirm any route through unconditioned ceilings or outdoor-facing areas with the SmartRooms Qatar team.
How tight can the cable bend when routing it?
The minimum static bend radius is 45 mm and the outer diameter is 4.5 mm. Keep bends at or above that radius when passing the cable through trunking, behind a wall-mounted display or around a bracket. The maximum tensile strength is 200 N and the maximum compression load is 500 N, so avoid pinching it under cabinet doors or furniture.
What is the cable made from and how is it shielded?
The conductors are tinned copper and multi-mode optical fibres, with wire gauges of 24+28+28+30 AWG. Shielding is triple, consisting of foil plus double braid, the contacts are gold-plated and the jacket is PVC. The manufacturer lists compliance with RoHS, CE, FCC and UL-CMX and marks it Premium Certified.
What warranty applies, and how do I buy it?
The manufacturer lists a 3-year warranty on this cable, and SmartRooms Qatar supplies it with that manufacturer warranty. Organisations can order against a purchase order or LPO, or through government tenders including Monaqasat. Payment is by bank transfer, cheque or purchase order. Request a quote and a quotation is usually issued within one working day.
Can a ministry or school buy several cables for multiple rooms on one LPO?
Yes. A school fitting out several classrooms, or a ministry equipping meeting rooms in Msheireb, can issue one LPO covering the whole set. Ask for a quotation that lists each cable with its length and quantity. Delivery covers all 8 municipalities of Qatar, and expected lead times are confirmed with the quotation.
Is it suitable for a lecture hall in Education City?
It can connect a lecturer's PC at the lectern to a display or projector at the back of the hall, provided the route is about 10 m or less. Confirm the length with a site survey, because lecture halls often have longer routes under raised floors. Note the measured route length when you request a quote.
