Barco
ClickShare Power Supply 100W
Barco ClickShare Power Supply 100W, 100-Watt Video Conferencing Accessory
EasyConnect HDMI4k-50
Biamp EasyConnect HDMI4k-50 15 m 4K HDMI Active Cable
- Platforms
- Yes
Priceon request
QuotationWithin 1 working day
DeliveryConfirmed with your quote, based on stock
Overview
A 15 m (50 ft) active HDMI 2.0 cable from Biamp's EasyConnect range, built for 4K UHD at 60Hz with HDR10 and HLG support and an 18 Gbps maximum data rate. It supports Dolby Atmos and DTS:X audio, passes CEC and EDID data, and has triple-shielded construction. Meeting rooms and lecture halls in Doha and Lusail that need a long laptop or codec-to-display link will find it a practical fit. Request a quote from SmartRooms Qatar.
A 15 m active HDMI 2.0 link for long 4K runs
Signal quality in passive HDMI cables falls off as the distance grows, so a 15 m run between a meeting room table, a ceiling-mounted codec and a wall display often calls for an active cable. The Biamp HDMI4k-50 is a 15 m (50 ft) active HDMI 2.0 cable that carries 4K UHD video at 60Hz with an 18 Gbps maximum data rate. It suits connections where the source and the display sit far apart, such as a rear-of-room lectern feeding a front-wall panel.
The specifications that matter for a 4K installation
The cable delivers 3840 x 2160 pixels at 60Hz with full bandwidth and supports HDR10 and HLG for high dynamic range content. Colour depth is 8 bit per colour, and chroma sampling is 4:4:4 at 4K/30Hz as specified. HDCP 2.2 is supported and is backward compatible. Audio includes ARC, Dolby support including Atmos, DTS support including DTS:X, and up to 32 channels of PCM. eARC is not supported, so check this if your display or soundbar depends on it.

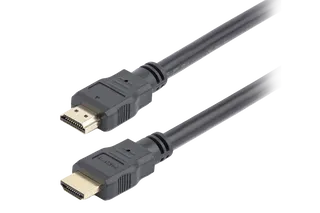

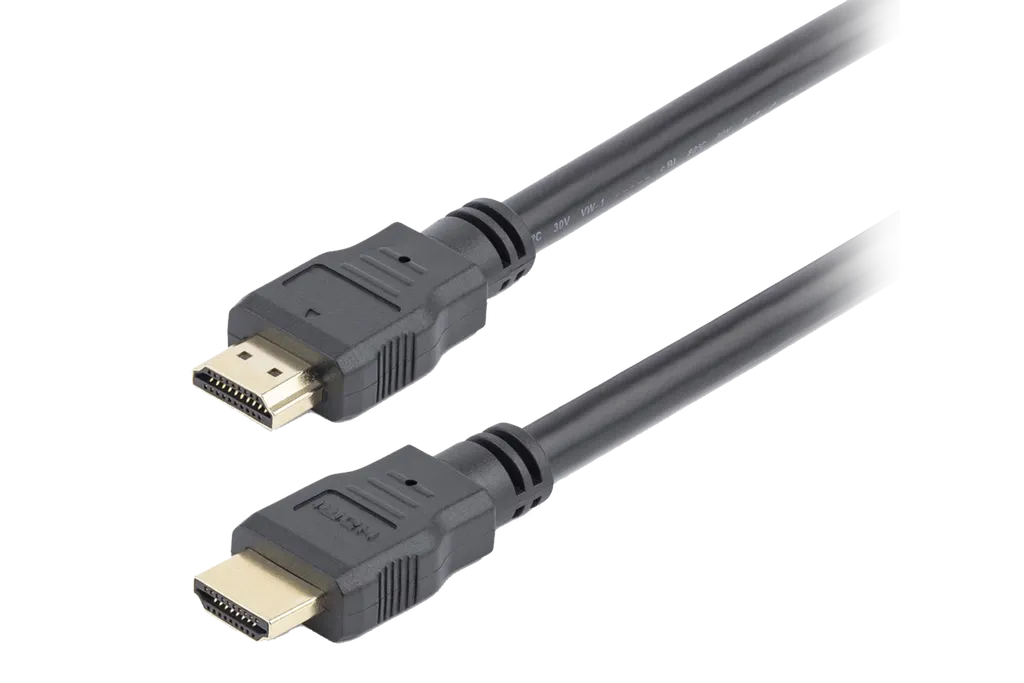

- Connector: HDMI A male-to-male
- Contacts: gold plated
- Construction: triple shielded (foil plus double braid) with PVC jacket and 4.5 mm outer diameter
- Handling: 45 mm minimum static bend radius, 200 N maximum tensile strength, 500 N maximum compression load
Where it fits in Qatar
A boardroom in West Bay with the presenter's laptop at one end of the table and the display on the far wall is a typical case. A lecture theatre in Education City, with the lectern at the back and a large panel at the front, is another. A hotel conference room in Lusail or a training room in the Industrial Area, where the AV equipment sits in a separate room, can use the same cable. The 15 m length covers each of these distances in a single run.
Planning the route and operating environment
Measure the route before ordering, including cable trays, ceiling voids and bends, and keep the 45 mm minimum bend radius in mind when routing. The operating range is 0 to 50 °C with 10 to 80% humidity, non-condensing. Qatar summers regularly pass 45 °C, so keep runs in air-conditioned rooms and away from hot equipment vents, and confirm any unventilated ceiling route with the SmartRooms Qatar team before installation. The cable is rated RoHS, CE, FCC and VW-1 and carries a 2-year manufacturer warranty.
Request a quote
SmartRooms Qatar supplies the HDMI4k-50 to all eight municipalities of Qatar, with professional installation and a free site survey where routing needs checking. Quotations are usually issued within one working day. We accept purchase orders (LPOs), government tenders including Monaqasat, and payment by bank transfer, cheque or purchase order. If you are fitting out several rooms, send the route length for each one and we will quote them together. Request a quote today.
Highlights
- 15 m (50 ft) active HDMI 2.0 cable
- 4K UHD at 60Hz with 18 Gbps maximum data rate
- HDR10 and HLG high dynamic range support
- Dolby Atmos and DTS:X audio support
- Triple-shielded with gold-plated contacts
- 2-year manufacturer warranty
Room fit
Tell us the room size and platform (Teams, Zoom or BYOD) and we confirm the right combination with your quotation.
Estimated timeline
Quotation within 1 working day · delivery timing depends on stock availability, and we confirm it with your quotation.
Specifications
35 specifications · Source: manufacturer · checked Oct 2026
OTHER13
- Jacket Material
- PVC
- Conductor Material
- Tinned Copper & Multi-Mode Optical Fibers
- Wire Gauge
- 24+28+28+30 (AWG)
- Shield Type
- Triple Shielded (foil + double braid)
- Contact Plating
- Gold
- Cable Outer Diameter
- 4.5 mm
- Min. Static Bend Radius
- 45 mm
- Max. Tensile Strength
- 200 N
- Max. Compression Load
- 500 N
- CEC Support
- Yes (consumer electronics control)
- EDID Support
- Yes (enhanced display ID)
- Signal Type
- Active
- Length
- 50 feet (15 m)
DATA4
- Max. Data Rate
- 18 Gbps
- TMDS Clock
- 600 MHz
- Connector Type
- HDMI A (male-male)
- HDMI Version
- 2.0
COMPLIANCE3
- Compliance
- RoHS, CE, FCC
- Safety Rating(s)
- VW-1
- Premium Certified
- Yes
ENVIRONMENTAL3
- Operating Temperature
- 0 to 50 °C
- Storage Temperature
- -20 to 70 °C
- Humidity
- 10 to 80% RH (non-condensing)
VIDEO7
- Chroma Sampling
- 4:4:4 (at 4K/30Hz)
- Color Bit Depth
- 8 bit (per color)
- HDMI Audio Formats
- Up to 32 channels (PCM)
- Max. Resolution
- 3840 x 2160 pixels (at 60Hz)
- Max. Refresh Rate @ 4K
- 60 Hz (full bandwidth)
- HDR Support
- Yes (HDR10, HLG)
- HDCP Version
- 2.2 (backward compatible)
AUDIO5
- ARC Support
- Yes (audio return channel)
- eARC Support
- No
- Audio Formats
- Up to 32 channels (PCM)
- Dolby Support
- Yes (including Atmos)
- DTS Support
- Yes (including DTS:X)
Downloads
2 files from the manufacturerQuestions about EasyConnect HDMI4k-50
What is the EasyConnect HDMI4k-50 used for?
It is a 15 m active HDMI 2.0 cable for connecting a conference codec or laptop to a display in meeting and conference rooms. It carries 4K UHD at 60Hz with HDR10 and HLG, so a boardroom panel receives full-resolution video over a long run. Its 18 Gbps maximum data rate is the bandwidth it is built to handle for this kind of link.
Does this cable support 4K at 60Hz?
Yes. The data lists a maximum resolution of 3840 x 2160 pixels at 60Hz with full bandwidth, and a maximum data rate of 18 Gbps. Chroma sampling is 4:4:4 at 4K/30Hz as specified, so confirm that your source and display can also run at the resolution and frame rate you need before ordering.
How long is the cable and can it reach across a large room?
The cable is 15 m (50 ft). That suits a rear-of-room lectern to a front-wall display in a lecture theatre, or a laptop at one end of a boardroom table to a wall panel at the other. Measure the full path, including vertical drops and cable trays, and make sure the length leaves some slack at both ends.
Does it support HDR?
Yes. The cable supports HDR10 and HLG, so high dynamic range content can pass through to a compatible display. Colour depth is 8 bit per colour. The display must also support the HDR format you plan to use, so check your display's specification sheet before finalising the cable for a project.
Will it pass Dolby Atmos and DTS:X audio?
The specification lists Dolby support including Atmos, DTS support including DTS:X, and up to 32 channels of PCM audio. ARC is supported for audio return, but eARC is not. If your display or soundbar relies on eARC, plan a separate audio connection rather than relying on this cable.
Is it compatible with CEC and EDID?
Yes. CEC (consumer electronics control) and EDID (enhanced display identification) are both supported. This allows a source to read the display's capabilities and lets some functions be controlled across the HDMI link. Confirm with your codec or display vendor which CEC commands they use if you need specific remote control behaviour.
What HDCP version does it use?
The cable supports HDCP 2.2 and is backward compatible, so it works alongside older HDCP versions. This matters when protected content passes from a source device to a display. Check that your source and display both use HDCP before installing, especially in rooms where licensed streaming or recorded material is shown.
Can it be installed in ceilings or trunking in a Qatar building?
The cable has a 4.5 mm outer diameter and a 45 mm minimum static bend radius, so routes should use gentle curves rather than tight corners. Operating range is 0 to 50 °C at 10 to 80% humidity, non-condensing. Ceiling voids in Qatar can run hot, so confirm conditions with the SmartRooms Qatar team and request a free site survey before fixing the route.
Is there a warranty on the HDMI4k-50?
Yes. The product data lists a 2-year warranty from the manufacturer, and products supplied by SmartRooms Qatar are covered by that warranty. For a school or government project, keep the purchase order and the cable details together in your asset register so the item stays traceable throughout the warranty period.
Can it be used outdoors or near windows?
The data gives an operating range of 0 to 50 °C and a storage range of -20 to 70 °C. Qatar's summer heat can exceed 45 °C near windows and in sun-exposed rooms, so keep the cable in air-conditioned spaces out of direct sunlight. The data does not describe outdoor use, so ask the SmartRooms Qatar team before using it in any exposed area.
How should a facilities team in Doha order several units?
Send one request listing each room, its display, and the cable route length. SmartRooms Qatar supplies across all eight municipalities of Qatar, accepts LPOs and government tenders including Monaqasat, and usually issues quotations within one working day. A single quotation covering all rooms keeps the purchase order and delivery records simple for the finance team.
What should I check on my source and display before buying?
Confirm that both devices support HDMI 2.0 and the resolution and refresh rate you need, plus HDR if you plan to use it. Check whether the display needs eARC, since this cable does not support it. The connectors are HDMI A male-to-male, so confirm the ports on both ends before ordering, and send the details with your quote request.
