Overview
The Biamp EasyConnect HDMI4k-6 is a 2 m (6 ft) passive HDMI 2.0 cable for linking laptops, room codecs and media players to displays at 4K UHD and 60Hz, with HDR10 and HLG support and bandwidth up to 18 Gbps. It adds CEC and EDID support, 32-channel PCM audio and a 3-year warranty. It suits meeting rooms, boardrooms and training rooms across Doha, West Bay and Lusail where the source sits close to the screen.
What the EasyConnect HDMI4k-6 does

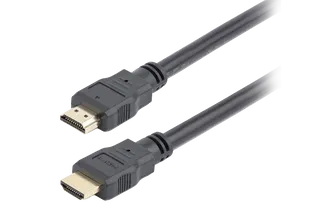

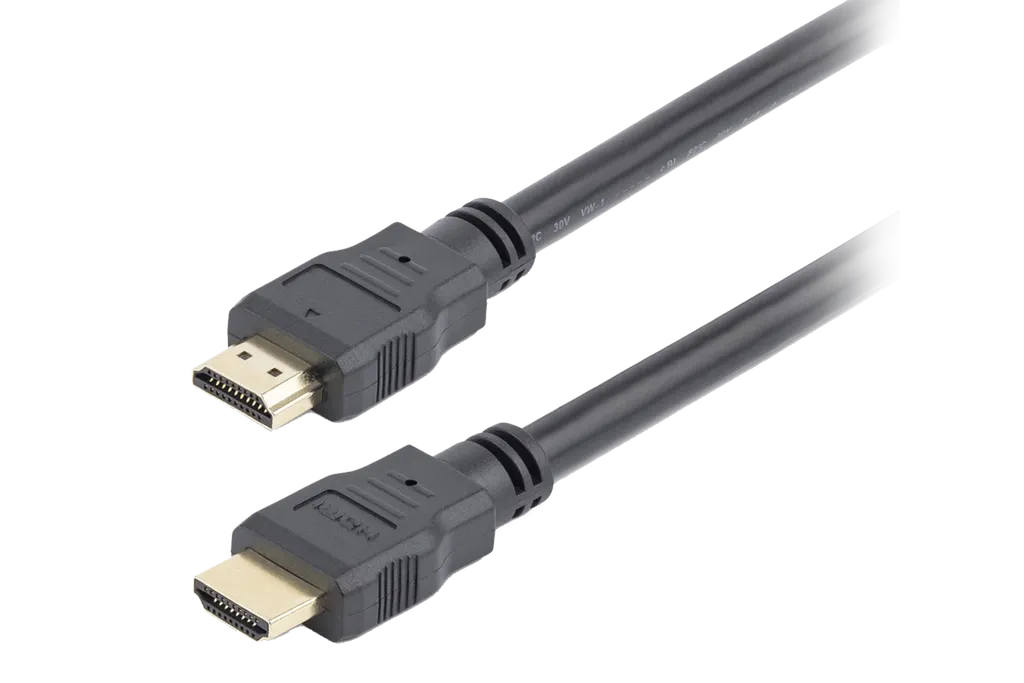

The Biamp EasyConnect HDMI4k-6 is a 2 m (6 ft) HDMI A to HDMI A cable from the EasyConnect series, sold under item number 910-10150. It links a source such as a laptop, room codec or media player to a display, carrying 4K UHD video at 60Hz with HDR10 and HLG support and bandwidth up to 18 Gbps. Because the cable is passive, it needs no power supply of its own.
Specifications that matter on a live system
Video conferencing chains fail at their weakest link, so check the bandwidth figures first. The cable handles 3840 x 2160 pixels at 60Hz with full bandwidth and a TMDS clock of 600 MHz. Chroma sampling is 4:4:4 at 4K/30Hz, colour depth is 8 bit per colour, and HDCP 2.2 is supported with backward compatibility. Audio is well covered too: up to 32 channels of PCM, Dolby formats including Atmos, DTS formats including DTS:X, and ARC for audio return. eARC is not supported.
- CEC and EDID help the source and the display exchange information and work together more predictably.
- Active equalization and error correction are listed among the signal features for the length of the run.
Build quality and installation handling
The cable uses tinned copper conductors at 30 AWG, triple shielding (foil plus double braid), gold-plated contacts and a PVC jacket with an outer diameter of 6.1 mm. The minimum static bend radius is 61 mm, the maximum tensile strength is 200 N, the maximum compression load is 500 N and the maximum pull strength is 50 N. Route it with gentle curves, keep it out from under cable trays or wall brackets, and use a pull guide rather than the cable end when feeding it through conduit. The data lists RoHS and REACH compliance, a UL-CMX safety rating and a Premium Certified designation.
Where it fits in Qatar
Three common situations show where a 2 m run makes sense:
- A government ministry boardroom in Msheireb where the presenter laptop sits on the table and the screen is on the far wall, so the cable reaches the display without crossing the walkway.
- A university training room in Education City where the lectern holds the source device and the display is mounted close by.
- A hotel meeting room in West Bay where the AV rack sits beside the display, keeping the connection short and tidy for event staff.
What to plan before you order
- Confirm that the source and the display both support HDMI 2.0 and 4K at 60Hz.
- Measure the route, including vertical drops, and check that 2 m leaves enough slack for a gentle bend.
- Note item number 910-10150 and the number of cables needed for each room.
- Confirm the environment. The manufacturer data does not list an operating temperature range, so ask the SmartRooms Qatar team to review any route near direct sunlight or unconditioned space.
SmartRooms Qatar supplies the EasyConnect HDMI4k-6 across all eight municipalities of Qatar, with professional installation and free site surveys available. Request a quote with item number 910-10150 and your room layout, and the team will reply with a quotation, usually within one working day.
Highlights
- 4K UHD at 60Hz with HDR10 and HLG support
- Bandwidth up to 18 Gbps over HDMI 2.0
- 2 m (6 ft) passive cable with tinned copper conductors
- CEC and EDID support for source and display
- Triple-shielded construction with gold-plated contacts
- 3-year warranty; item number 910-10150
Room fit
Tell us the room size and platform (Teams, Zoom or BYOD) and we confirm the right combination with your quotation.
Estimated timeline
Quotation within 1 working day · delivery timing depends on stock availability, and we confirm it with your quotation.
Specifications
35 specifications · Source: manufacturer · checked Oct 2026
OTHER16
- Jacket Material
- PVC
- Conductor Material
- Tinned Copper
- Wire Gauge
- 30 AWG
- Shield Type
- Triple Shielded (foil + double braid)
- Contact Plating
- Gold
- Cable Outer Diameter
- 6.1 mm
- Min. Static Bend Radius
- 61 mm
- Max. Tensile Strength
- 200 N
- Max. Compression Load
- 500 N
- Max. Pull Strength
- 50 N
- CEC Support
- Yes (consumer electronics control)
- EDID Support
- Yes (enhanced display ID)
- Active Equalization
- Yes
- Error Correction
- Yes
- Signal Type
- Passive
- Length
- 6 feet (2 m)
DATA4
- Max. Data Rate
- 18 Gbps
- TMDS Clock
- 600 MHz
- Connector Type
- HDMI A (male-male)
- HDMI Version
- 2.0
COMPLIANCE3
- Compliance
- RoHS, REACH
- Safety Rating(s)
- UL-CMX
- Premium Certified
- Yes
VIDEO7
- Chroma Sampling
- 4:4:4 (at 4K/30Hz)
- Color Bit Depth
- 8 bit (per color)
- HDMI Audio Formats
- Up to 32 channels (PCM)
- Max. Resolution
- 3840 x 2160 pixels (at 60Hz)
- Max. Refresh Rate @ 4K
- 60 Hz (full bandwidth)
- HDR Support
- Yes (HDR10, HLG)
- HDCP Version
- 2.2 (backward compatible)
AUDIO5
- ARC Support
- Yes (audio return channel)
- eARC Support
- No
- Audio Formats
- Up to 32 channels (PCM)
- Dolby Support
- Yes (including Atmos)
- DTS Support
- Yes (including DTS:X)
Downloads
2 files from the manufacturerQuestions about EasyConnect HDMI4k-6
What is the EasyConnect HDMI4k-6 used for?
It is a 2 m HDMI 2.0 cable that connects a source such as a laptop, room codec or media player to a display in a meeting room. It carries 4K UHD video at 60Hz with HDR10 and HLG, with bandwidth up to 18 Gbps. It suits conference rooms in Doha, West Bay and Lusail where the source sits close to the screen and a short, reliable run is needed.
Does the cable support 4K at 60Hz and HDR?
Yes. The manufacturer data lists 3840 x 2160 pixels at 60Hz with full bandwidth, plus HDR10 and HLG support. Chroma sampling is 4:4:4 at 4K/30Hz, and colour depth is 8 bit per colour. Check that your laptop, codec and display also support HDMI 2.0 and 4K60, because the cable can only deliver what both ends can send and receive.
Is 2 m enough for a boardroom where the laptop sits on the table and the screen is on the far wall?
A 2 m length suits many table-to-wall runs, but measure the actual route first, including any drop from a table box and any cable tray. Keep the cable clear of walkways where people pass. The SmartRooms Qatar team can run a free site survey in Doha or Lusail before you order, so the length you buy matches the room.
Does it support ARC and eARC?
It supports ARC, the audio return channel, which lets a display send audio back to a soundbar or AV receiver over the same HDMI connection. According to the source data, it does not support eARC. If your soundbar or receiver needs eARC for high-bitrate audio, confirm the full chain before ordering, because this cable will not provide it.
Which audio formats does it carry?
The cable carries up to 32 channels of PCM audio. The data also lists Dolby support, including Atmos, and DTS support, including DTS:X. These formats only work when the source and the receiving device both decode them, so check the audio settings on the laptop or codec before installation day.
Does it support CEC and EDID?
Yes, both. CEC, or consumer electronics control, allows compatible devices to pass some control commands across the HDMI link, which can simplify daily use of a meeting room display. EDID, or enhanced display ID, lets the source read the display's capabilities so it can choose a suitable output. Actual behaviour depends on the connected equipment.
Does it need a power supply? Is it suitable for a training room at a university in Education City?
No. The manufacturer lists the signal type as passive, so the cable needs no separate power supply or power cable. In a training room in Education City, where the lectern holds the source device, no extra socket is needed for the cable itself, though the laptop and display still need their own power.
How should I plan cable routing and bend radius?
The minimum static bend radius is 61 mm and the outer diameter is 6.1 mm. Avoid tight loops behind a wall-mounted display and leave a gentle curve at each connector. The data also gives a maximum pull strength of 50 N, so pull cables through conduit with a guide rather than by the cable end. Plan the route before the installer arrives.
Is it rated for hot areas, such as near a sunny window or in an unconditioned store room?
The manufacturer data does not state an operating temperature range for this cable, so we cannot confirm one from the data. Keep it inside air-conditioned meeting spaces, away from direct sunlight and hot equipment. If a route passes through a hot or dusty area in Qatar, ask the SmartRooms Qatar team to confirm the environment before you order.
What warranty applies to the EasyConnect HDMI4k-6?
The manufacturer provides a 3-year warranty on the EasyConnect HDMI4k-6. Keep your purchase documents with the item number 910-10150 and the installation record, so your facilities team can identify the cable quickly if a fault appears in a meeting room later.
Can a school or ministry order several cables through an LPO or tender?
Yes. SmartRooms Qatar accepts purchase orders (LPOs) and government tenders, including Monaqasat, with payment by bank transfer, cheque or purchase order. A school fitting out several meeting rooms can order a set of these cables under one LPO, and a quotation is usually issued within one working day.
How do I request a quote for this cable?
Send item number 910-10150, the length you need and the source and display models to SmartRooms Qatar. The team will reply with a quotation, usually within one working day, and can deliver across all eight municipalities of Qatar. A free site survey is available if you want the cable route checked before you order.
