EasyConnect MPX 100
Biamp EasyConnect MPX 100 BYOM AV Switcher
- Platforms
- TAA Compliant
Priceon request
QuotationWithin 1 working day
DeliveryConfirmed with your quote, based on stock
Overview
The Biamp EasyConnect MPX 100 is a BYOM AV switcher that lets a guest connect their own laptop to a meeting room already equipped with a dedicated Teams Rooms or Zoom Rooms system. One USB and one HDMI cable pair moves the room display and USB peripherals to the laptop automatically, with no drivers needed. It offers HDMI 2.0 output for displays up to 4K and extra USB ports for cameras, microphones and touchscreens, suiting boardrooms and conference rooms in Doha, West Bay and Lusail.
Why a BYOM switcher matters in a UC meeting room
Many boardrooms and conference rooms in Doha are built around a dedicated video conferencing system running Microsoft Teams Rooms or Zoom Rooms. That set-up works well until a visitor, a consultant or a team member needs to join a call on a different platform from their own laptop. The EasyConnect MPX 100 from Biamp handles that handover. It sits between the room's primary compute and the in-room peripherals, so a guest can bring a BYOM laptop and use the display, camera and microphones without calling IT to reconfigure the room.
When a laptop is connected with a USB and HDMI cable pair, the switcher moves the room display and USB peripherals over to that laptop. When the cables are removed, the room returns to its dedicated system. Nothing needs to be reset between meetings.
Key specifications to check before you order

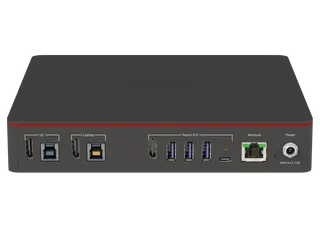

The unit measures 37.3 mm high, 206 mm wide and 206 mm deep, and weighs 0.86 kg, so it can sit behind a display or in a credenza. Its ports are grouped by function. The UC side has one HDMI 2.0 input and one USB 3.0 Type-B port. The laptop side has one HDMI 2.0 input and one USB 3.0 Type-B port. The room side has one HDMI 2.0 output, three USB 3.0 Type-A ports and one USB 3.0 Type-C port. HDMI 2.0 supports displays up to 4K resolution, and the data lists camera support up to 4K.
- Power: external 24V/3.75A supply with lock connector, consumption under 150W at 100-240VAC, 50/60Hz.
- Network: Gigabit Ethernet (RJ45) LAN connection for monitoring and administration.
- Environment: 0-40°C ambient operating range, 0-98% humidity non-condensing, up to 2,000 m altitude.
- Compliance: TAA compliant, with FCC Part 15B, CE, UL and C-UL, RCM and RoHS listings.
- Warranty: 5-year manufacturer warranty.
Where the MPX 100 fits in Qatar
Heat is the main site condition to plan for. Summer temperatures in Qatar regularly exceed 45°C, while the MPX 100 is rated for 0-40°C ambient operation. It belongs in an air-conditioned meeting room with proper airflow, not in an unventilated cabinet or a hot ceiling void. Confirm the room's cooling with the SmartRooms Qatar team before placing the unit.
- A government office boardroom in Doha where visiting officials bring laptops running a different conferencing platform from the room's Teams Rooms system.
- A university seminar room in Education City where faculty join partner meetings on Zoom in a room normally set up for Teams.
- A consultancy client room in Lusail where the room display and camera stay usable for a guest's own laptop without moving furniture or cables.
Planning the cabling and installation
A mounting plate with cable retainer is included, and the unit is designed to mount behind the display with cables running to the table. The kit includes two 1 m USB 3.0 Type A-to-B cables, one 5 m USB 3.0 Type B-to-C active cable, two 1 m HDMI 2.0 cables, one 5 m HDMI 2.0 cable and two cable sliders for tabletop wire management. Other lengths are available as optional accessories.
Measure the distance from the display to the table before ordering, because the included cable lengths may not suit every layout. SmartRooms Qatar offers free site surveys to confirm cable routes, wall access and power points before installation. Plan a network drop as well, since the unit uses a Gigabit Ethernet connection for SageVue or web-based monitoring.
To check whether the MPX 100 suits your room layout and UC platform, request a quote from SmartRooms Qatar. We deliver to all eight municipalities of Qatar, provide professional installation, and can work with purchase orders (LPOs) and government tenders.
Highlights
- Adds BYOM laptop calls to Teams Rooms and Zoom Rooms
- Switches room display and USB peripherals automatically on connection
- No drivers required for Windows and macOS laptops
- HDMI 2.0 output for displays up to 4K resolution
- Three USB 3.0 Type-A ports for cameras, microphones or touchscreens
- Gigabit Ethernet, SageVue monitoring and 5-year warranty
Room fit
Tell us the room size and platform (Teams, Zoom or BYOD) and we confirm the right combination with your quotation.
Estimated timeline
Quotation within 1 working day · delivery timing depends on stock availability, and we confirm it with your quotation.
Specifications
16 specifications · Source: manufacturer · checked Oct 2026
GENERAL6
- Height
- 1.47 inches (37.3 mm)
- Width
- 8.11 inches (206 mm)
- Depth
- 8.11 inches (206 mm)
- Weight
- 1.9 lbs (0.86kg)
- Mounting
- Mounting plate with cable retainer (included)
- Included Accessories
- INCLUDED: 2 x USB 3.0 3 foot (1m) Type A to B 1 x USB 3.0 15 foot (5m) Type B to C Active 2 x HDMI 2.0 3 foot (1m) 4k60 1 x HDMI 2.0 15 foot (5m) 4k60 2 x Cable sliders (tabletop USB/HDMI wire management) 1 x Mounting plate with cable retainer OPTIONAL ACCESSORIES USB Type A to B Cables: EasyConnect USB3-3-AB (USB 3.0 3 foot (1m) Type A to B) EasyConnect USB3-5-AB (USB 3.0 5 foot (2m) Type A to B) USB Type B to C Cables: EasyConnect USB3-15-BC (USB 3.0 15 foot (5m) Type B to C Active) EasyConnect USB3-30-BC (USB 3.2 30 foot (10m) Type B to C Active) EasyConnect USB3-50-BC (USB 3.0 2.0 50 foot
POWER2
- Power
- 1 x 24V/3.75A with lock connector
- Power Consumption
- 100-240VAC 50/60Hz: < 150W
NOTES1
- Specification Notes
- UC ports: 1 x HDMI in 2.0 1 x USB 3.0 Type-B Laptop ports: 1 x HDMI in 2.0 1 x USB 3.0 Type-B Room A/V ports: 1 x HDMI out 2.0 3 x USB 3.0 Type-A 1 x USB 3.0 Type-C
NETWORK1
- Network Connection(s)
- RJ 45 Network Gigabit Ethernet (LAN)
CERTIFIED SOLUTIONS2
- TAA Compliant
- TAA Compliant
- Certified Solutions
- TAA Compliant
COMPLIANCE1
- Environmental Ratings
- FCC Part 15B (USA) Canada ICES-003 (A) / NMB-003 (A) CE marked (Europe) UL und C-UL listed (USA and Canada) RCM (Australia) RoHS Directive (Europe)
ENVIRONMENTAL3
- Ambient Operating Temperature Range
- 32-104° F (0–40° C)
- Humidity
- 0–98%, non-condensing
- Altitude
- 0-6,600 ft (0-2000m) MSL
Downloads
3 files from the manufacturerQuestions about EasyConnect MPX 100
What is the EasyConnect MPX 100 used for?
It is a BYOM switcher for meeting rooms that already have a dedicated UC system such as Microsoft Teams Rooms or Zoom Rooms but occasionally need another platform. When a user connects a laptop with one USB and one HDMI cable pair, the unit moves the room display and USB peripherals to that laptop. Unplugging the cables returns the room to its primary system.
Does a guest laptop need drivers to connect?
According to the manufacturer, the MPX 100 provides connectivity with no drivers required over USB and HDMI, and it supports Windows and macOS laptops. A visitor only plugs in the cable pair and starts their own conferencing app. This keeps setup quick for external guests in a boardroom, where IT staff may not be present during the meeting.
Which meeting rooms is the MPX 100 designed for?
It suits conference rooms equipped with a dedicated Teams Rooms or Zoom Rooms system that still need to host calls on an alternate platform. A typical example is a Doha government office where visiting delegations use their own laptops. The switcher is less useful in rooms with no UC room system, since its purpose is handing peripherals between two sources.
What is connected to the room side of the unit?
The room side has one HDMI 2.0 output for the display, three USB 3.0 Type-A ports and one USB 3.0 Type-C port. These ports are used for peripherals such as cameras, microphones or touchscreens. The data also lists a USB-C port that provides power and firmware updates to the Parlé bar, so confirm your bar model fits this set-up before ordering.
What display and camera resolution does it support?
The HDMI 2.0 connections support displays up to 4K resolution, and the manufacturer lists camera support up to 4K. For a large panel in a West Bay boardroom, this means the display can run at 4K when the source laptop and display also support it. Your installer should check the display's native resolution before the unit is specified.
What power supply does the MPX 100 need in Qatar?
It uses an external 24V/3.75A supply with a lock connector, rated for 100-240VAC at 50/60Hz, and draws less than 150W. That input range covers Qatar's 240 V, 50 Hz mains. The data does not specify the mains plug type, so ask the SmartRooms Qatar team to confirm the supply's plug and cord before installation.
Can the MPX 100 operate in Qatar's summer heat?
The unit is rated for an ambient operating range of 0-40°C, 0-98% humidity non-condensing, and altitude up to 2,000 m. Qatar summer temperatures often exceed 45°C, so it should be installed in an air-conditioned meeting room with airflow around the unit. Avoid unventilated AV cabinets or hot ceiling voids without cooling.
How can IT teams monitor and update the switcher?
The unit supports SageVue or web-based monitoring and administration of the MPX 100 and connected room peripherals. It also allows firmware updates on connected Biamp devices. A Gigabit Ethernet RJ45 LAN connection is provided, so the unit needs a network point at installation. This is useful for facilities teams managing several rooms in an office or school.
Will it fit behind a wall-mounted display?
Yes, the unit is designed to mount behind the display. It measures 37.3 mm high, 206 mm wide and 206 mm deep, and weighs 0.86 kg. A mounting plate with cable retainer is included. Before ordering, check the space between the panel and the wall, and where the cables will run to the table. A free site survey from SmartRooms Qatar can confirm this.
Is the MPX 100 TAA compliant?
Yes, the manufacturer lists the MPX 100 as compliant with the US Trade Agreement Act (TAA). This matters where a procurement specification or a buyer's policy requires TAA-compliant AV equipment. Compliance also includes listings such as FCC Part 15B, CE, UL and C-UL, RCM and RoHS, which your procurement team can check against its requirements.
What cables come in the box?
The kit includes two 1 m USB 3.0 Type A-to-B cables, one 5 m USB 3.0 Type B-to-C active cable, two 1 m HDMI 2.0 cables, one 5 m HDMI 2.0 cable, two cable sliders and a mounting plate with cable retainer. Longer USB and HDMI cables, including 10 m and 15 m active options, are sold separately, so confirm lengths during the site survey.
How does ordering work for a government office with several rooms?
SmartRooms Qatar usually issues quotations within one working day. For multiple rooms, the quotation can list one MPX 100 per room with the matching cables and mounting plates. We deliver to all eight municipalities, support purchase orders (LPOs) and government tenders, and accept payment by bank transfer, cheque or purchase order. Request a quote with your room list.
What warranty does the MPX 100 carry?
The product is covered by a 5-year warranty from the manufacturer. For a buyer equipping several meeting rooms in a Doha office or school, this applies to each unit supplied. Ask the SmartRooms Qatar team for a quotation that includes installation and the cable lengths you need, so the warranty covers a complete, documented installation.
