EasyConnect MPX TA 203x508
Biamp EasyConnect MPX TA 203x508 Table Adapter
Priceon request
QuotationWithin 1 working day
DeliveryConfirmed with your quote, based on stock
Overview

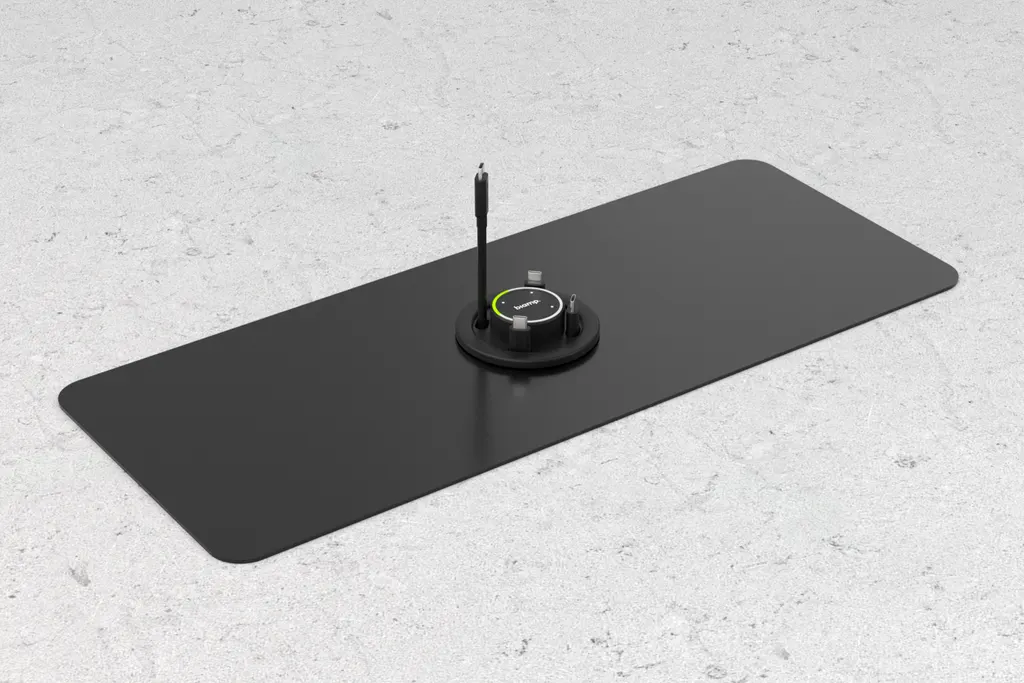

The Biamp EasyConnect MPX TA 203x508 is a table adapter that lets an EasyConnect MPX 200 or MPX 250 be fitted into an oversized cutout without cutting or replacing the furniture. It ships with a top and a bottom adapter plate, has a black paintable finish, and covers openings up to 7 x 19 inches. It suits boardrooms and meeting rooms in Doha and Lusail.
What this table adapter does
The Biamp EasyConnect MPX TA 203x508 is an accessory for the EasyConnect MPX 200 and MPX 250 units. Its job is to fill a table opening that is larger than a standard cutout, so the MPX unit can sit in a conference table that was not built for it. One top adapter plate and one bottom adapter plate are included in the box.
The adapter measures 8.0 inches wide and 20 inches high (203 x 508 mm). Its maximum opening coverage is 7 x 19 inches (179 x 483 mm). The MPX 200 and MPX 250 are sold separately, so a quotation request should cover both the adapter and the matching unit.

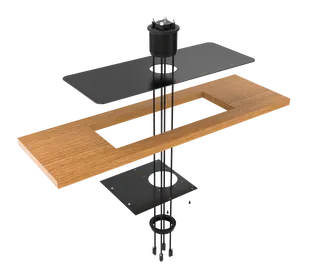

Fitting it into an existing table
The main value of this adapter is avoiding alterations. A conference table that already has an oversized opening can take the MPX unit without the carpentry, redesign or replacement that would otherwise be needed. For a fit-out where the furniture is already in place, the job becomes a connection and mounting task rather than a joinery project.
The finish ships black and is paintable, so the plates can be painted to suit the table surface. Confirm the table thickness and the exact opening during the free site survey before ordering, so the unit and adapter are specified correctly.
Where it suits meeting rooms in Qatar
- Ministry meeting room in West Bay: an existing conference table with a large cutout from an older furniture layout, upgraded for video conferencing so staff can join sessions with colleagues abroad.
- Seminar room in Education City: a shared table where the cutout is wider than standard, and the room needs a clean, professional finish for calls with outside partners.
- Developer's sales boardroom in Lusail: a boardroom table refitted without replacing the furniture, with installation scheduled around client meetings.
Planning the cutout and the MPX pairing
Two limits matter. The opening must not exceed 7 x 19 inches (179 x 483 mm). If the MPX CRS USB-C is used alongside, the hole to be covered must be less than 17 inches (431 mm) long so the CRS bracket can be secured to the table. Measure the opening before ordering and check it against both limits.
The source data for this adapter does not give an operating temperature range, so confirm the installation environment with the SmartRooms Qatar team before fitting the unit in any space that is not an air-conditioned meeting room.
SmartRooms Qatar can supply the TA 203x508 with the MPX units you need, deliver to all eight municipalities of Qatar, and arrange professional installation. Request a quote with your table measurements and a room plan, and the team will confirm the fit and the estimated lead time in the quotation.
Highlights
- Fits EasyConnect MPX 200 and MPX 250 units (sold separately)

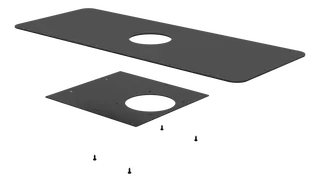

- Two adapter plates included: one top, one bottom
- Covers openings up to 7 x 19 inches (179 x 483 mm)
- Overall size 8.0 x 20 inches (203 x 508 mm)
- Black finish that can be painted to suit tables
- MPX CRS USB-C use requires an opening under 17 inches
Room fit
Tell us the room size and platform (Teams, Zoom or BYOD) and we confirm the right combination with your quotation.
Estimated timeline
Quotation within 1 working day · delivery timing depends on stock availability, and we confirm it with your quotation.
Specifications
5 specifications · Source: manufacturer · checked Oct 2026
GENERAL4
- Height
- 20 inches (508 mm)
- Width
- 8.0 inches (203 mm)
- Finish
- Black (Paintable)
- Included Accessories
- 1x Adapter plate (top) 1x Adapter plate (bottom)
NOTES1
- Specification Notes
- Used together with EasyConnect MPX 200/250 (sold separately) *Maximum opening coverage: 7 x 19 inches (179 x 483 mm) **Note: If using MPX TA 203x508 with MPX CRS USB-C, the hole to be covered must be less than 17 inches (431mm) long to ensure the CRS bracket can be secured to the table.
Downloads
2 files from the manufacturerQuestions about EasyConnect MPX TA 203x508
What is the Biamp EasyConnect MPX TA 203x508 used for?
It is a table adapter that lets an EasyConnect MPX 200 or MPX 250 fit into an oversized opening in a conference table, so the furniture does not need cutting, redesigning or replacing. It suits meeting rooms where the table is already in place and the room is being upgraded for video conferencing with a neat, professional finish.
Which EasyConnect units does this adapter work with?
The adapter is designed for the EasyConnect MPX 200 and EasyConnect MPX 250. Both units are sold separately, so list the one you need alongside the adapter in your quotation request. Because the adapter supports both models, a site running the two models in different rooms can plan around one adapter type.
What size opening does the adapter cover?
The maximum opening coverage is 7 x 19 inches (179 x 483 mm). The adapter itself measures 8.0 inches wide and 20 inches high (203 x 508 mm). Measure the existing cutout before ordering and check it against the coverage limit, not just the adapter's outer size. SmartRooms Qatar offers a free site survey to take those measurements on site.
What comes in the box?
The adapter is supplied with two adapter plates, one for the top and one for the bottom. The EasyConnect MPX 200 or MPX 250 unit is not included and is sold separately. The finish is black and paintable, which helps if the table surface is a different colour. Ask for a quotation that lists both the adapter and the matching MPX unit.
Can it be used with the MPX CRS USB-C bracket?
Yes, but only when the opening being covered is less than 17 inches (431 mm) long. That length allows the CRS bracket to be secured to the table. If the opening is longer, plan the table fitting around the bracket before ordering, and have the SmartRooms Qatar team review the measurements with you.
Can the adapter be painted to match our table?
The adapter ships in black and is paintable. You can paint the plates before installation so they blend with the table surface. Choose a paint suited to the table material and agree the finish with your installer during the site survey, so the edges stay clean and the plates sit neatly against the table.
Our ministry office in West Bay has an old table with a large cutout. Do we need to replace it?
If the existing opening falls within 7 x 19 inches, this adapter is designed for exactly that situation, so the table may not need replacing. Ask SmartRooms Qatar for a site survey to measure the opening and confirm the CRS limit if needed, then request a quote covering the MPX unit and adapter together.
We are fitting out a seminar room in Education City during a semester break. How should we plan?
Start by measuring the cutout and deciding whether an MPX CRS USB-C bracket is required, since that brings in the 17-inch limit. Schedule installation outside teaching hours. SmartRooms Qatar provides professional installation, and a free site survey helps confirm the cutout before the order. Send measurements and a room layout with your request so the quotation matches the room.
A property developer in Lusail wants to upgrade a boardroom table. Can we issue an LPO?
Yes. SmartRooms Qatar accepts purchase orders (LPOs) and government tenders, and payment can be made by bank transfer, cheque or purchase order. Quotations are usually issued within one working day. Because the adapter depends on an exact cutout measurement, book a free site survey first so the quotation and purchase order reflect the correct MPX model and adapter.
Our admin meeting room in Al Rayyan gets very hot in summer. Is this adapter suitable?
The source data for this adapter does not give an operating temperature range, so we cannot confirm its performance in hot or uncontrolled conditions. Confirm the installation environment with the SmartRooms Qatar team before ordering, especially if the table sits near a window or in a space that is not air-conditioned.
Our Doha meeting room has a cutout wider than the usual size. Will this adapter fit?
Not necessarily. The maximum opening coverage is 7 x 19 inches (179 x 483 mm), so an opening wider than that cannot be fully covered by this adapter. Measure the cutout carefully before ordering. If it exceeds the limit, discuss your options with the SmartRooms Qatar team during the free site survey, before requesting a quote.
Who installs it, and is it covered by warranty?
SmartRooms Qatar offers professional installation, preceded by a free site survey to confirm the fit. The product is covered by the manufacturer's warranty. The source data does not state a warranty duration or terms, so ask the team to confirm them in your quotation before you buy.
