EasyConnect USB 200
Biamp EasyConnect USB 200 2x1 USB Switch for Meeting Rooms
- Platforms
- TAA Compliant
Priceon request
QuotationWithin 1 working day
DeliveryConfirmed with your quote, based on stock
Overview

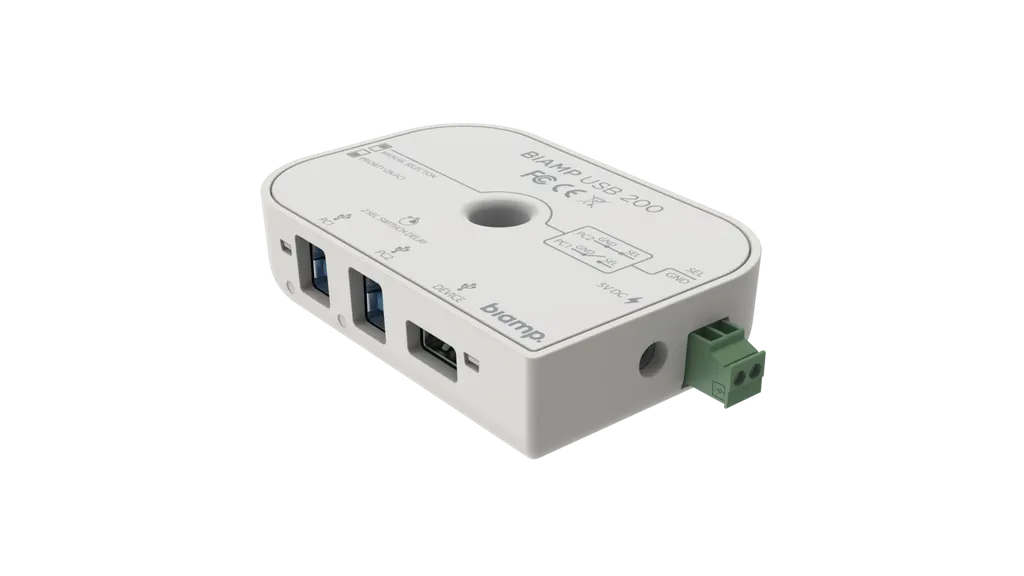

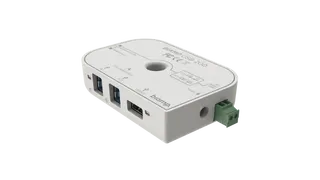

The Biamp EasyConnect USB 200 is a 2x1 USB switch moving one device between two host computers, letting a visitor's laptop take over the room's setup. It supports USB 2.0 and 3.0, switches to a second connected computer automatically or under control from a third-party system, and includes a built-in extender for longer cable runs. It suits BYOD meeting rooms across Doha and Lusail. Request a quote.
What the USB 200 does in a dedicated conference room

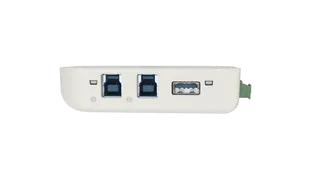

The EasyConnect USB 200 is a 2x1 USB switch made for video conferencing rooms that have a fixed in-room computer but still need to accept guest laptops. It has two USB 3.0 Type-B inputs for host computers and one USB 3.0 Type-A device port. A single USB device, such as a peripheral the room's conferencing setup relies on, can be routed to whichever computer is in use, so presenters do not have to swap cables at the table.
Both USB 2.0 and USB 3.0 are supported, which matters because many older peripherals and laptops still run on USB 2.0. It is a practical addition to any meeting space that needs more presentation flexibility without changing the main room computer.
Switching behaviour and control options
When a second computer is connected, the USB 200 can switch to it automatically, and this priority behaviour is configurable. Where the room already runs a control system, manual switching is supported through a third-party controller. The unit also provides one general-purpose input using contact closure on a 2-pin, 0.3-inch Euroblock connector.
Each switch cuts power to the connected device for two seconds. That pause is designed to give the device a stable, reliable reconnection to the newly selected computer.
Cable reach, size and power
- USB 3.0: up to 10 ft (3m) on each side of the switch
- USB 2.0: up to 17 ft (5m) on each side of the switch
- Dimensions: 23 mm high, 64 mm wide, 95 mm deep
- Weight: 75 g
- Power: 5V DC, 15W, with convection cooling
The built-in USB extender means the switch does not have to sit beside the room computer or the table laptop position. Its light, compact body suits placement under a conference table or in an AV cabinet, wherever the room's cable routing allows.
Where it fits in Qatar
In a ministry boardroom in West Bay, officials often arrive with their own laptops while the room computer runs the conferencing platform. The USB 200 lets a guest take over the shared USB devices without unplugging the room PC. In an Education City seminar room, lecturers and visiting researchers can present from their own machines in the same way. For a company in Lusail with teams in Doha and abroad, the fixed room setup stays in place while visiting presenters connect their laptops before each call.
What to plan before ordering
The rated operating range is 0 to 40 °C, with 10 to 90% humidity (non-condensing) and operation up to 2000 m altitude. Qatar summers can exceed 45 °C, so the switch should sit inside the air-conditioned meeting room, away from hot equipment cabinets and sunlit windows. Confirm the location with the SmartRooms Qatar team before installation.
Measure the distance from the room computer to the table position, then check each USB cable against the USB 3.0 and USB 2.0 limits. SmartRooms Qatar offers a free site survey to check cable routes, mounting positions and control wiring. Quotations are usually returned within one working day. Schools, government entities and companies can issue a purchase order (LPO), and delivery covers all eight municipalities of Qatar.
If your room needs a dependable way to share its USB devices with guest laptops, request a quote for the Biamp EasyConnect USB 200 (item number 920-01882-00001) and include your room layout and expected cable lengths.
Highlights
- Two USB 3.0 Type-B computer inputs and one Type-A device port
- Supports both USB 2.0 and USB 3.0 devices
- Configurable automatic switching when a second computer connects
- Manual switching through a third-party control system
- Built-in extender: USB 3.0 up to 10 ft, USB 2.0 up to 17 ft
- 5-year warranty; CE, RoHS and TAA compliant
Room fit
Tell us the room size and platform (Teams, Zoom or BYOD) and we confirm the right combination with your quotation.
Estimated timeline
Quotation within 1 working day · delivery timing depends on stock availability, and we confirm it with your quotation.
Specifications
13 specifications · Source: manufacturer · checked Oct 2026
GENERAL4
- Height
- 0.9 inches (23 mm)
- Width
- 2.5 inches (64 mm)
- Depth
- 3.7 inches (95 mm)
- Weight
- 0.2 lbs (75 g)
POWER2
- Power
- 5V DC 15W
- Cooling
- Convection
NETWORK1
- Network Connection(s)
- USB (Computers): Number of Ports: 2 Connector: USB 3.0 Type-B Bit Depth: 16-bit Sample Rate: 48kHz USB (Device) Number of Ports: 1 Connector: USB 3.0 Type-A Bit Depth: 16-bit Sample Rate: 48kHz General Purpose Input: Quantity: 1 Connector: 2-pin, 0.3-inch Euroblock Type: Contact closure
CERTIFIED SOLUTIONS2
- TAA Compliant
- TAA Compliant
- Certified Solutions
- TAA Compliant
COMPLIANCE1
- Certifications
- CE Marked (Europe) RoHS Directive (Europe)
ENVIRONMENTAL3
- Operating Environment
- Operating Temperature: 32 - 104° F (0 – 40° C)
- Humidity
- 10-90% (non-condensing)
- Altitude
- 0-6,600 ft (0-2000m) MSL
Downloads
3 files from the manufacturerQuestions about EasyConnect USB 200
What is the Biamp EasyConnect USB 200 used for?
It is a 2x1 USB switch for dedicated video conferencing rooms. It lets one USB device move between two host computers, so a guest can connect a laptop and take over the room's shared USB setup without rewiring the table. It suits meeting rooms that keep a fixed room computer but still need presentations from visitors' own devices.
Does the USB 200 support both USB 2.0 and USB 3.0?
Yes. Its two computer connections use USB 3.0 Type-B connectors, and the device port is USB 3.0 Type-A. Because many older peripherals still run on USB 2.0, check which devices your room uses before ordering, then plan cable lengths within the extender limits for each standard.
How does switching between two computers work?
When a second computer is connected, the switch can move to it automatically, and this priority behaviour is configurable. Switching can also be done manually through a third-party control system. During each change, power to the connected device is cut for two seconds, which gives it a stable reconnection to the new computer.
Can the switch be controlled from a room control system?
Yes, manual switching is supported through a third-party control system. The unit also has one general-purpose input using contact closure on a 2-pin, 0.3-inch Euroblock connector. Ask your system integrator to confirm the wiring and control commands before installation, and send the control system details with your quote request.
How long can the USB cables be?
The built-in extender allows USB 3.0 cables up to 10 ft (3m) and USB 2.0 cables up to 17 ft (5m) on each side of the switch. In a Doha boardroom where the table laptop position sits several metres from the room computer, measure the full route first, then choose cables within these limits.
Will it cope with Qatar's summer heat?
The rated operating temperature is 0 to 40 °C, with humidity of 10 to 90% non-condensing and operation up to 2000 m altitude. Summer temperatures in Qatar can exceed 45 °C, so install the USB 200 inside the air-conditioned meeting room, away from hot equipment cabinets and sunlit windows, and confirm the location with the SmartRooms Qatar team.
How much power does it use, and does it need a fan?
It is rated at 5V DC 15W and cools by convection, so it has no fan. It measures 23 mm high, 64 mm wide and 95 mm deep, and weighs 75 g. Its compact body suits placement under a conference table or in an AV cabinet, where the room's cable routing allows.
Is it suitable for Qatar's 240 V mains supply?
The source data for this model lists a 5V DC 15W power rating but does not state a mains input range. Before ordering, ask SmartRooms Qatar to confirm the power adapter specification against Qatar's 240 V, 50 Hz supply and BS 1363 sockets, so the power arrangement for your room is clear.
Does it meet compliance requirements for public sector buyers?
It carries CE marking and RoHS compliance for Europe, and it is TAA compliant under the US Trade Agreement Act. TAA status matters mainly for projects tied to US federal contracts. A Qatari ministry or school buying under local tender rules should confirm its own compliance requirements with the SmartRooms Qatar team when requesting a quote.
What warranty does the USB 200 carry?
The product comes with a 5-year warranty from the manufacturer. When you raise a purchase order, quote item number 920-01882-00001 so the unit supplied matches this exact model and its warranty coverage.
Can a government office or school in Qatar buy it through an LPO?
Yes. SmartRooms Qatar accepts purchase orders (LPOs) and government tenders, including Monaqasat, and accepts payment by bank transfer, cheque or purchase order. Quotations are usually returned within one working day, and delivery covers all eight municipalities of Qatar.
Do I need a site survey before installing it?
A site survey is still useful for a single small switch. SmartRooms Qatar offers free site surveys to check the switch position away from heat, the distance from the room computer to the table, and whether cable runs fit within 10 ft for USB 3.0 or 17 ft for USB 2.0. This avoids surprises once the room is in use.
