EasyConnect USB3-6-AB
Biamp EasyConnect USB3-6-AB USB 3.2 Gen 1 Type A to B Cable
Priceon request
QuotationWithin 1 working day
DeliveryConfirmed with your quote, based on stock
Overview
The Biamp EasyConnect USB3-6-AB is a 2 m passive USB 3.2 Gen 1 cable with Type A and Type B connectors, rated for data transfer up to 5 Gbps. Its tinned copper conductors, gold-plated contacts and foil-plus-braid double shielding suit conference rooms in Doha where a laptop must reach a Type B device port. Backed by a 3-year warranty, it is sold by quotation.
What the EasyConnect USB3-6-AB does in a meeting room

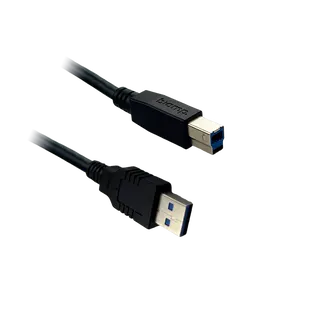

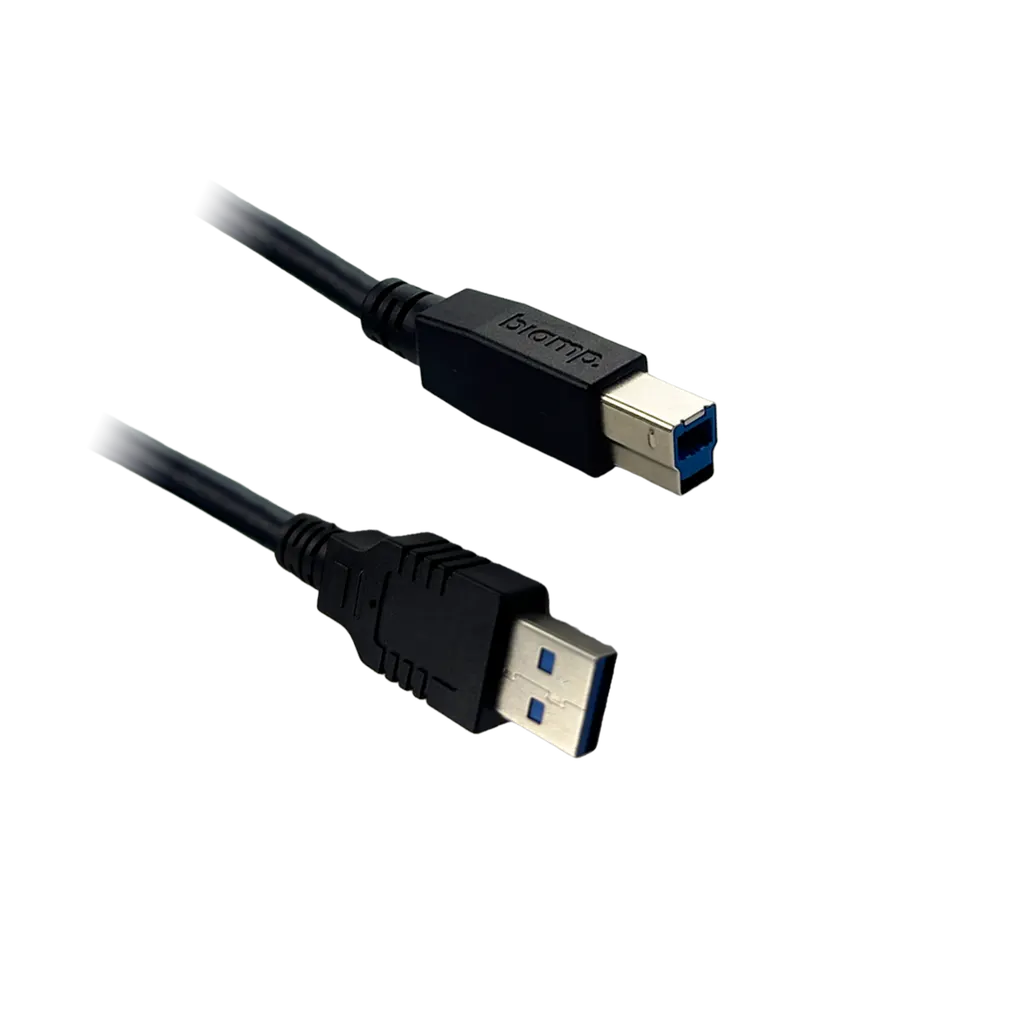

The EasyConnect USB3-6-AB is a 2 m (6 ft) USB 3.2 Gen 1 cable with a Type A connector at one end and a Type B connector at the other. The Type A plug fits a host such as a laptop or PC, while the Type B plug connects to the upstream port of a conferencing peripheral. Because it is passive, the cable carries the signal without active electronics, and it supports data transfer rates up to 5 Gbps.
Construction details that matter to AV installers
The conductors are tinned copper at 28 AWG, and the contacts carry gold plating. The PVC jacket surrounds a double shield of foil and braid, a layer of protection that matters in rooms packed with wireless devices, displays and power cabling. The cable carries a UL-CMX safety rating and is listed as RoHS and REACH compliant.
- Jacket: PVC
- Conductors: tinned copper, 28 AWG
- Shielding: double, foil plus braid
- Contacts: gold-plated
- Safety rating: UL-CMX
- Environmental compliance: RoHS, REACH
Where this cable fits in Qatar
In a boardroom in West Bay, the presenter's laptop often sits at the table while the conference hub is on a credenza or shelf near the wall. A 2 m run covers that table-edge distance in many rooms, so the cable can connect the two without trailing across the floor. Measure before ordering, since a longer path needs a longer cable.
A government office in Msheireb setting up a training room may fit several identical stations. Each station needs one host-to-device link, so the order is planned by the number of connections rather than by the number of rooms.
At a university in Education City, a lecture theatre or seminar room may need a reliable laptop connection to a camera or conferencing hub at the lectern. The 5 Gbps rating and double shielding are the specifications to check against the device's port and the room layout.
What to plan before you order
Confirm the port type at both ends. Type A is the host end and Type B is the device end, so check that the device has a Type B upstream port and that the host has a Type A port. Next, record the cable path from host to device, including any cable tray or wall routing. The source data does not give an operating temperature range for this cable, so if a run passes near a window, a sun-exposed wall or an outdoor enclosure in Al Khor or Mesaieed, confirm conditions with the SmartRooms Qatar team before installation.
- Check both port types and their USB version.
- Measure the route, not just the straight-line distance.
- Group identical cables on one order to simplify purchase orders.
SmartRooms Qatar offers free site surveys and professional installation, and delivers to all eight municipalities of Qatar. Quotations are usually issued within one working day. Request a quote with your room list and port details, and we will confirm the cable count and any installation needs.
Highlights
- 2 m (6 ft) passive cable
- USB 3.2 Gen 1 with data rates up to 5 Gbps
- Type A to Type B connectors
- Tinned copper conductors, 28 AWG, gold-plated contacts
- Double shielding: foil plus braid
- 3-year warranty
Room fit
Tell us the room size and platform (Teams, Zoom or BYOD) and we confirm the right combination with your quotation.
Estimated timeline
Quotation within 1 working day · delivery timing depends on stock availability, and we confirm it with your quotation.
Specifications
3 specifications · Source: manufacturer · checked Oct 2026
GENERAL1
- Material
- Jacket Material: PVC Conductor Material: Tinned Copper Wire Gauge: 28 AWG Shield Type: Double Shielded (foil + braid) Contact Plating: Gold
COMPLIANCE2
- Safety Features
- Safety Rating: UL-CMX
- Environmental Ratings
- RoHS, REACH
Downloads
2 files from the manufacturerQuestions about EasyConnect USB3-6-AB
What is the EasyConnect USB3-6-AB used for?
It is a USB 3.2 Gen 1 cable that links a host computer, usually a laptop, to a device with a Type B port, which is typical in meeting and conference AV setups. At 2 m long with Type A and Type B connectors, it suits a table-edge connection in a meeting room. Its rated data transfer rate is up to 5 Gbps. Request a quote if you need a cable for a specific room layout.
Is this cable passive, and does it need its own power?
Yes, the source data lists its signal type as passive, so the cable carries the signal without active electronics. The source data does not describe a separate power supply for it. Check the host and device port requirements separately before ordering, since those determine whether the connection will work.
How fast can it transfer data?
The cable is rated for data transfer rates up to 5 Gbps, which is the USB 3.2 Gen 1 speed class, previously called USB 3.0 in many product listings. Real throughput depends on the host, the device and the port at each end. Confirm that both ends support USB 3.2 Gen 1 or faster before you order for a room.
How long is the cable and will it reach from a boardroom table to a conference device?
The cable is 2 m (6 ft) long. In a boardroom in West Bay, that typically covers the distance from a presenter's seat at the table edge to a device on a nearby credenza. Measure the route from host to device first, because the cable needs enough length for slack and a longer path needs a different length.
Which connectors does it use?
One end is Type A and the other is Type B. Type A is the flat, rectangular plug that normally goes into a computer. Type B is the squarer plug used on the upstream port of many conferencing devices, hubs and peripherals. Check the device's port before ordering, since a Type B connector does not fit a standard Type A socket.
Why is the shielding important in a conference room?
The cable has double shielding made of foil and braid under a PVC jacket. Conference rooms often include wireless devices, displays and power cabling close together, so shielding helps keep the data signal clean. The conductors are 28 AWG tinned copper and the contacts are gold-plated.
What certifications and compliance does it carry?
The source data lists a UL-CMX safety rating and RoHS and REACH environmental compliance. Include these details in your procurement file or tender submission. For any other certificate or test report, ask the SmartRooms Qatar team before you rely on it.
Is there a warranty?
Yes, the source data lists a 3-year warranty, and products are covered by the manufacturer's warranty. SmartRooms Qatar supplies the cable with delivery to all eight municipalities of Qatar. Ask for a quotation that states the cable quantity and warranty information for your order.
Can a school or ministry buy this cable through a purchase order or tender?
Yes. SmartRooms Qatar accepts purchase orders (LPOs) and government tenders, including Monaqasat. Payment can be made by bank transfer, cheque or purchase order. A school in Al Khor fitting out several meeting rooms can group identical cables on one LPO once quantities and port types are confirmed.
Can I use it in a hot or dusty location, such as near a window or outdoors?
The source data does not list an operating temperature range, so do not assume it suits hot or dusty areas. Keep the cable inside air-conditioned rooms and away from direct sun and dust. If a route passes a window or an outdoor enclosure, ask the SmartRooms Qatar team to confirm the environment before installation.
How many cables do I need for a multi-room meeting suite?
Count one cable for each host-to-device link, not one per room. A developer in Lusail fitting out a suite with two rooms, each with a laptop and a conference device, would need two cables. Add a spare if your plan includes a backup route. Request a quote with your room list and port details.
Do you survey the site before installation?
SmartRooms Qatar offers free site surveys and professional installation. A survey can confirm distances, cable routes and port positions before you order, which prevents buying a 2 m cable for a longer run. Quotations are usually issued within one working day.
