Overview
The Biamp EasyConnect USB3-6-BC is a 2 m passive USB 3.2 Gen 1 cable with Type B and Type C connectors, rated for data up to 5 Gbps. Tinned copper conductors, gold-plated contacts and foil plus braid shielding support links between conferencing peripherals and laptops. Suited to meeting rooms and boardrooms in schools, ministries and offices across Qatar. Request a quote from SmartRooms Qatar.
What the EasyConnect USB3-6-BC does

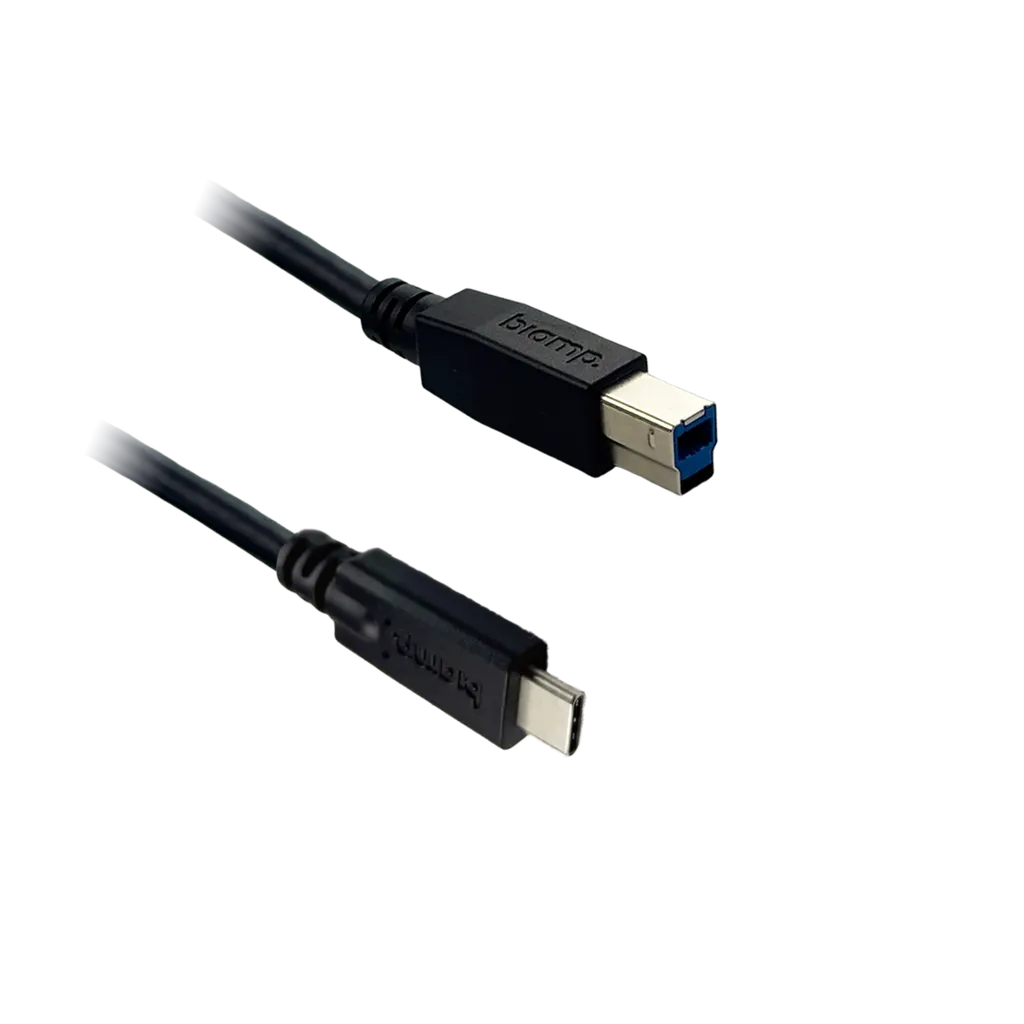

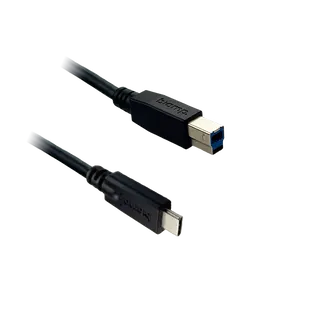

The EasyConnect USB3-6-BC is a passive USB 3.2 Gen 1 cable from Biamp's EasyConnect range, with a Type B connector at one end and a Type C connector at the other. Its 2 m (6-foot) length suits a conferencing peripheral placed on a table or shelf while the host device sits a short distance away. The cable is rated for data transfer up to 5 Gbps and contains no active electronics, so it needs no separate power source.
Construction and shielding in meeting rooms
The conductors are tinned copper at 28 AWG, and the contacts at both connector ends are gold-plated. A double shield of foil and braid surrounds the conductors, which helps protect the data signal in rooms with many cables, wireless devices and power lines nearby. The jacket is PVC and the cable carries a UL-CMX safety rating, and it is compliant with RoHS and REACH.
Key specifications
- Standard: USB 3.2 Gen 1
- Connectors: Type B to Type C
- Length: 6 ft (2 m)
- Data rate: up to 5 Gbps
- Signal type: passive
- Conductors: tinned copper, 28 AWG
- Shielding: double, foil plus braid
- Contact plating: gold
- Jacket: PVC, UL-CMX rated
- Compliance: RoHS, REACH
- Warranty: 3 years
Where it fits in Qatar
In a boardroom in West Bay, a conferencing peripheral can sit near the chairperson's seat and connect to the laptop at the head of the table through this 2 m cable, without a loose extension lead running between chairs. A private school in Al Wakrah fitting out a staff meeting room can use it to link a USB peripheral to a teacher's laptop in a tidy, fixed run. A training centre in Education City equipping several rooms with the same setup can order identical cables so that every room behaves the same way.
What to plan before ordering
- Check both ports: the device end must take a Type B plug and the host end a Type C port.
- Measure the distance from device to host, including table gaps and cable trays, against the 2 m length.
- Keep a spare cable for any room where peripherals are moved often.
- Confirm the environment with the SmartRooms Qatar team before running cable through a hot or dusty area, since the source data does not give an operating temperature range.
Request a quote
SmartRooms Qatar supplies and delivers the EasyConnect USB3-6-BC to all eight municipalities of Qatar and offers free site surveys to check cable routes before installation. Quotations are usually issued within one working day. We accept LPOs and government tenders, including Monaqasat, and payment by bank transfer, cheque or purchase order. Request a quote for one cable or a full set for your room.
Highlights
- USB 3.2 Gen 1 with Type B to Type C connectors
- Data transfer rates up to 5 Gbps
- Passive 2 m (6-foot) cable with no active electronics
- Double shielding made of foil plus braid
- Tinned copper conductors with gold-plated contacts
- 3-year warranty
Room fit
Tell us the room size and platform (Teams, Zoom or BYOD) and we confirm the right combination with your quotation.
Estimated timeline
Quotation within 1 working day · delivery timing depends on stock availability, and we confirm it with your quotation.
Specifications
3 specifications · Source: manufacturer · checked Oct 2026
GENERAL1
- Material
- Jacket Material: PVC Conductor Material: Tinned Copper Wire Gauge: 28 AWG Shield Type: Double Shielded (foil + braid) Contact Plating: Gold
COMPLIANCE2
- Safety Features
- Safety Rating: UL-CMX
- Environmental Ratings
- RoHS, REACH
Downloads
2 files from the manufacturerQuestions about EasyConnect USB3-6-BC
What is the EasyConnect USB3-6-BC used for?
It is a 2 m USB 3.2 Gen 1 cable with a Type B connector at one end and a Type C connector at the other. It links a peripheral to a host device in meeting and conference AV setups, such as connecting a conferencing device to a laptop. Its rated data transfer rate is up to 5 Gbps, which suits short, direct connections in meeting rooms.
What data transfer speed does it support?
The cable is rated for data transfer up to 5 Gbps under the USB 3.2 Gen 1 standard. It is a passive cable, so it does not boost the signal over longer distances. It is designed for the 2 m length it is supplied in. If the distance between your devices is greater, ask the SmartRooms Qatar team to review suitable options before you order.
Which connectors does it have, and how do I know which end goes where?
One end has a USB Type B plug and the other has a USB Type C plug. Type B is the squarer connector often found on printers and some conferencing peripherals. Type C is the smaller, reversible connector found on many modern laptops. Check the port on your peripheral and your host before ordering, so the Type B end goes to the device and the Type C end goes to the host.
Does the cable need external power or an adaptor?
No. The EasyConnect USB3-6-BC is a passive cable, so it has no active electronics and no separate power supply. Its conductors are 28 AWG tinned copper, its jacket is PVC, and it is rated UL-CMX. It is also compliant with RoHS and REACH. Connecting both ends is all that is required to use it.
How does the double shielding help in a meeting room?
The cable has a double shield made of foil plus braid. In a meeting room with many cables, wireless equipment and power lines nearby, shielding helps keep the data signal cleaner. This matters in busy boardrooms in Lusail or training rooms in Education City, where many devices sit close together on a small table area.
Is it suitable for a boardroom in West Bay with a long table?
Yes, provided the peripheral is close to the host. A conferencing device placed near the chairperson's seat can connect to a laptop at the head of the table with this 2 m cable. Measure the distance first, including the gap between table and device. If the distance is larger than 2 m, ask SmartRooms Qatar for alternatives before finalising the quote.
Can a school in Al Wakrah use it for staff meeting rooms or classrooms?
It suits a small staff meeting room or classroom where a USB peripheral sits within 2 m of the teacher's laptop. A school fitting out several rooms can issue one LPO covering all the cables and request a quote for identical units. SmartRooms Qatar delivers to all eight municipalities, including Al Wakrah, and offers a free site survey to confirm cable routes.
Is the cable covered by a warranty?
Yes. The EasyConnect USB3-6-BC carries a 3-year warranty from Biamp. SmartRooms Qatar supplies products under the manufacturer's warranty, so the terms are set by Biamp. Ask the SmartRooms Qatar team to confirm the warranty terms when you request your quote, particularly if you are buying for a government or school contract.
Can the cable run through a table grommet or cable tray?
The source data does not give the connector dimensions or minimum bend radius, so it cannot be confirmed whether the cable will pass through a specific grommet or tray. Before installation, ask the SmartRooms Qatar team to check the route during the free site survey. Measuring the route in advance also helps you confirm that the 2 m length is enough.
Can I order one cable or several for a full room fit-out?
You can order a single cable for one room or a larger quantity for a full building. Quotations are usually issued within one working day. Payment can be made by bank transfer, cheque or purchase order, and we accept LPOs and government tenders. Send the number of rooms and the distance between each peripheral and host so the right quantity can be quoted.
