Impera Echo 8DKW

What the Impera Echo 8DKW does in a room

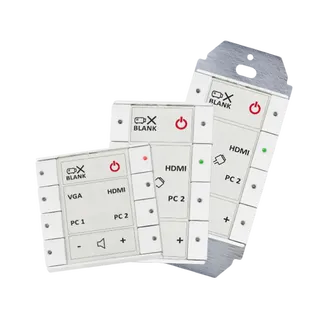

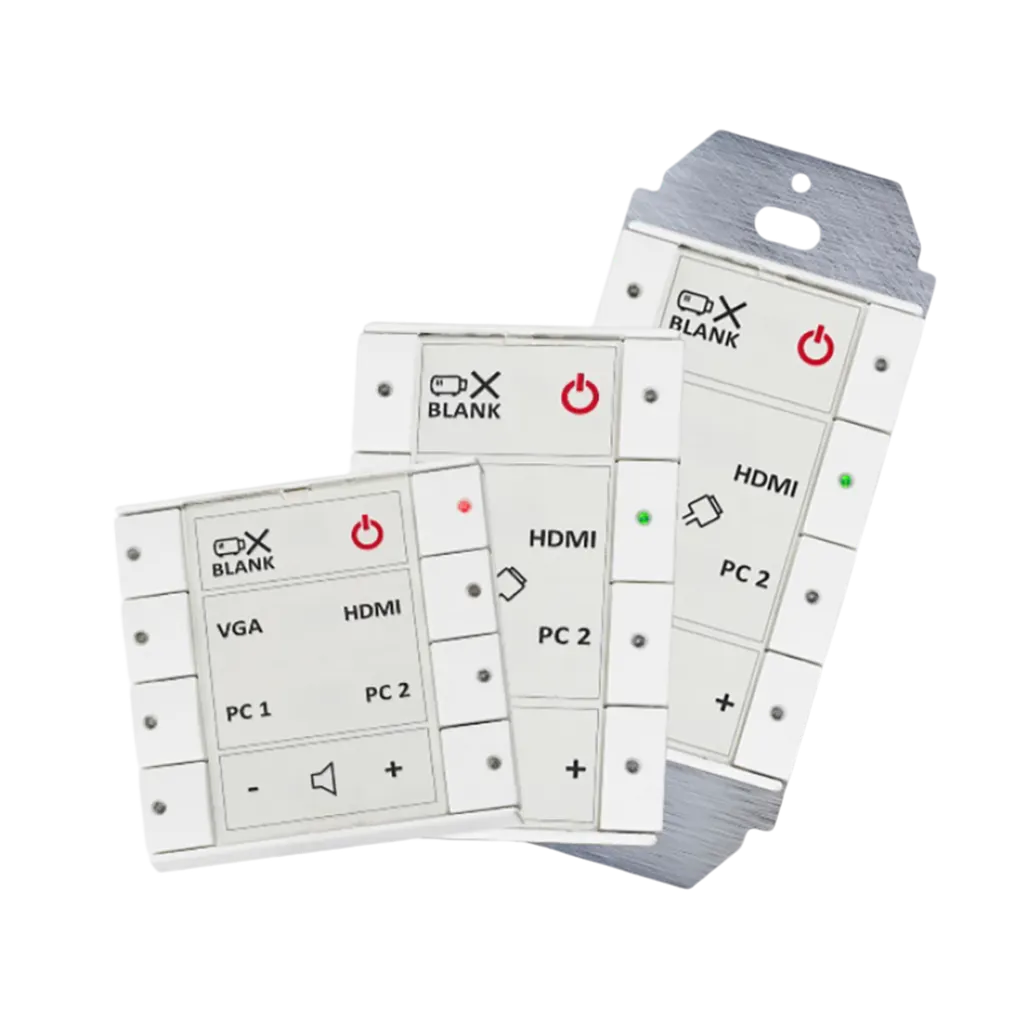

The Biamp Impera Echo 8DKW is a wall-mounted control keypad with eight programmable buttons, finished in white. Each button can be set up to run a task, such as switching on a display, starting a projector or changing the lighting. Because the keypad includes its own controller, many rooms do not need a separate control processor, which means fewer boxes to mount, wire and maintain.

Ports and integration facts that matter

Integration is where this keypad earns its place in a mixed AV system. The port layout gives an integrator a clear way to match each connected device to the right type of control:

• One bidirectional RS-232/IR port for devices that send status feedback back to the controller.
• One unidirectional RS-232/IR port for standard command control of third-party equipment.
• Three GPIO ports for sensors, triggers or relay connections.
• Expansion bus for up to two additional keypads or port expanders on larger installations.

Setup, scheduling and maintenance alerts

System integrators configure the keypad with Project Designer software. Button functions, automated sequences and the connections for each device are all set in the software before the room is handed over. The keypad can also send email notifications for maintenance alerts such as lamp or filter hours, which helps a facilities team plan service before a projector drops out during a lecture or a board meeting.

Where it fits in Qatar

• A private school in Al Wakrah fitting out new classrooms, where teachers want one panel to switch on the display, select the input and set the lights at the start of a lesson.
• A government ministry meeting room in West Bay, where staff need the same simple control on every floor, with the configuration copied from one room to the next by the integrator.
• A university seminar room in Education City or a hotel conference room in Lusail, where a projector and a display must be controlled from a single wall position.

What to plan before ordering

Start with a list of the devices in the room and the control method each one uses: RS-232 or IR, and whether it returns feedback. This tells you how many ports you need and whether an expansion keypad or port expander is required. Check the wall box and faceplate against the DK-style Decora form factor before ordering. The source data does not give an operating temperature range for this model, so confirm the installation environment with the SmartRooms Qatar team before using it anywhere other than an air-conditioned room. A free site survey is the simplest way to check wall boxes, cable routes and device lists before the keypad is specified.

The Impera Echo 8DKW is backed by a 5-year manufacturer warranty. To receive a quotation, send your room list and device list to SmartRooms Qatar. Our team usually responds within one working day with a quote for the keypad, any expansion parts and professional installation.
