Impera Echo 8USW

What the Impera Echo 8USW does in a room

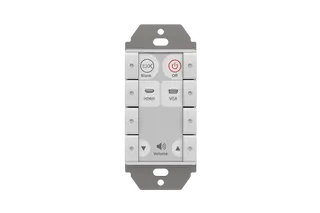

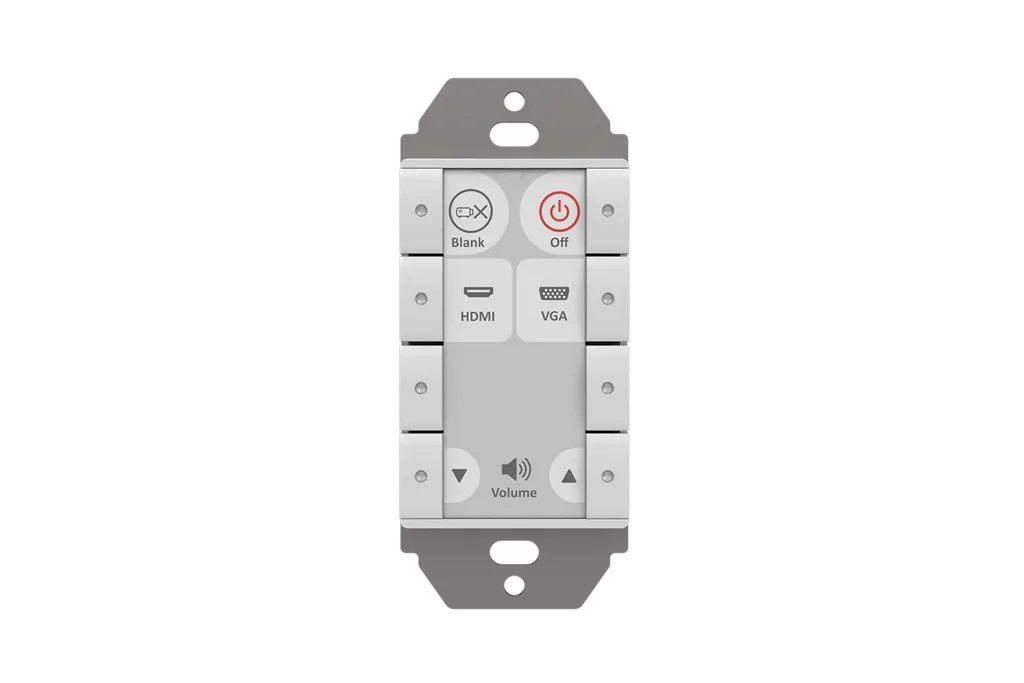

The Impera Echo 8USW is a wall-mounted AV control pad from Biamp's Impera series. Its eight buttons can be assigned to the actions a room needs, such as switching sources, starting a presentation or lowering a projection screen. The pad contains its own controller, so a separate control processor is not needed for the functions it handles. Presenters press one button and the room responds, which keeps the interface simple for staff who are not technical.

Control ports and expansion

Connectivity is where this model earns its place in a larger installation. Key points:

• One bidirectional RS-232/IR port that sends commands to third-party equipment and receives feedback, so the pad can show the state of a connected device.
• One unidirectional RS-232/IR port for devices that only need to receive commands.
• Three GPIO ports for simple switched connections, such as relays that trigger screens or lighting scenes.
• An expansion bus that supports up to two additional devices, including keypads and port expanders, for rooms that need more control points later.

Configuration and ongoing management

The Echo is configured in Biamp's Project Designer software, and a micro USB connection is used for system configuration and maintenance. The pad can send email notifications for lamp and filter hours and warnings, which helps facilities teams plan servicing for projectors and displays instead of waiting for a fault. Because changes are made in software, the button layout can be updated when a room changes purpose, such as a classroom converted into a meeting space.

Where it fits in Qatar

Three situations suit this model well:

• A university teaching room in Education City where lecturers need one panel to start the projector, select a display source and recall a lighting scene without calling IT.
• A government ministry boardroom in Doha where one wall-mounted pad controls the display and other connected devices for meetings that run in Arabic and English.
• A hotel conference room in West Bay or Lusail where event staff switch between room setups for different bookings.

What to plan before ordering

Confirm which devices will connect and whether each needs a bidirectional or unidirectional port, since that decides how the control ports are allocated. Count the GPIO requirements early and decide whether the room will need expansion keypads. Check the wall position and cable route with the SmartRooms Qatar team, as free site surveys are available before installation. For spaces outside a fully air-conditioned environment, confirm the operating conditions with the team before fixing the pad to the wall. Schools and campuses buying several units can order through a purchase order (LPO) or a government tender.

To confirm the right configuration and quantity for your room, request a quote from SmartRooms Qatar and our team will recommend the setup that fits your space.
