Impera Echo Plus 8EUB
Biamp Impera Echo Plus 8EUB Black Wall-Mounted Control Pad
Priceon request
QuotationWithin 1 working day
DeliveryConfirmed with your quote, based on stock
Overview

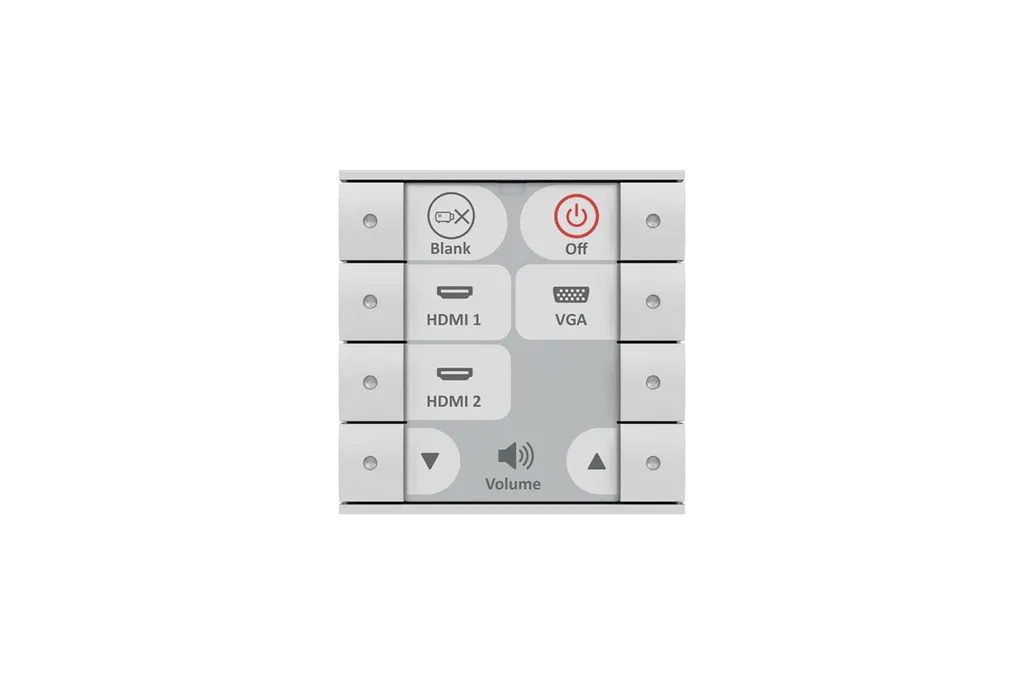

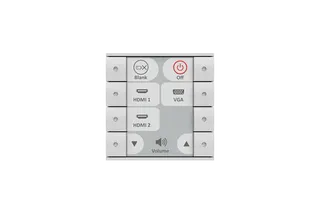

The Biamp Impera Echo Plus 8EUB is a wall-mounted control pad with eight software-configurable buttons and an onboard controller, so no external processor is needed. It controls up to two third-party devices over Ethernet and offers one bidirectional and one unidirectional RS-232/IR port plus three GPIO ports. Configured in Project Designer, it suits boardrooms, classrooms and training rooms in Doha, Lusail and Education City. Request a quote for supply and installation.
What the Echo Plus 8EUB controls in a room
The Echo Plus 8EUB is a compact, wall-mounted AV control pad built around eight buttons that you configure in software. Each button can be assigned to a room function, so a presenter or facilities officer can start a set routine without touching the equipment behind the wall. The pad includes its own onboard controller, which means no external processor is needed to run it.
Network and serial connectivity
Control runs over Ethernet, and the pad can control up to two third-party devices across the network. For equipment that still relies on serial or infrared control, it provides one bidirectional RS-232/IR port that can receive feedback from the device, and one unidirectional RS-232/IR port for command-only connections. Three GPIO ports handle simple external signals. An Expansion Bus accepts up to two additional devices, such as keypads or port expanders, when a room needs more buttons or more inputs.
Maintenance and alerts
A Micro USB connection supports system configuration and maintenance. The pad can also send email notifications for lamp and filter hours and for warnings, which lets a facilities team act before a projector fails during a lesson or a board meeting.
Where it fits in Qatar
In a boardroom in West Bay, the pad sits beside the door and lets the chair start a presentation, switch the display source and close the room down without calling IT. In a private school in Al Wakrah, one pad per classroom gives teachers a consistent start to each lesson, and the layout can be reconfigured when the timetable changes. A training centre near the Industrial Area can use the pad to standardise how instructors run courses across several rooms. University lecture rooms in Education City benefit from the expansion option when a room needs extra keypads.
What to plan before ordering
Confirm the wall position and mounting height with the room users, and plan cable routes for Ethernet and any serial or GPIO connections before the walls are finished. List which third-party devices the pad must control and whether each one needs feedback, because that decides which port to use. Qatar summers exceed 45 degrees Celsius, so confirm the operating environment for the wall location with the SmartRooms Qatar team. The unit carries a 5-year manufacturer warranty, and item number 920-02260-10002 identifies the black EU version.
Request a quote from SmartRooms Qatar for the Biamp Impera Echo Plus 8EUB. We will confirm availability and installation details in your quotation, usually within one working day.
Highlights
- Eight software-configurable buttons on a wall-mounted pad
- Onboard controller, so no external processor is required
- Controls up to two third-party devices over Ethernet
- One bidirectional and one unidirectional RS-232/IR port
- Three GPIO ports plus Expansion Bus for up to two devices
- 5-year manufacturer warranty; item number 920-02260-10002
Room fit
Tell us the room size and platform (Teams, Zoom or BYOD) and we confirm the right combination with your quotation.
Estimated timeline
Quotation within 1 working day · delivery timing depends on stock availability, and we confirm it with your quotation.
Specifications
Source: manufacturer · checked Oct 2026
The full specification and datasheet for this model are available on request; we send them with your quotation.
Downloads
5 files from the manufacturerQuestions about Impera Echo Plus 8EUB
What is the Biamp Impera Echo Plus 8EUB used for?
It is a wall-mounted control pad for presentation spaces, learning environments and conference rooms. Its eight software-configurable buttons let a user run a set routine, such as switching a display or starting a lesson setup, without touching the back-end equipment. Because it includes an onboard controller, it manages those functions directly. It suits meeting rooms in West Bay or Lusail where staff need one simple control point.
Does it need a separate control processor?
No. The pad includes an onboard controller, so it runs without an external processor. This matters on smaller projects, such as a single meeting room in Msheireb, because there is one fewer box to install and maintain. Button functions are set up in Project Designer software, so plan that configuration step as part of the room design.
How many devices can it control over Ethernet?
It controls up to two third-party devices over Ethernet. With the Expansion Bus, up to two additional devices such as keypads or port expanders can be added. For a room with a display, a conferencing system and a third piece of equipment, confirm early which devices need Ethernet and which need serial or GPIO connections, because each interface has its own role on the pad.
What is the difference between the two RS-232 ports?
The first port is bidirectional, so it can send commands and receive feedback from a connected device. The second is unidirectional and sends commands only. Both are listed as RS-232/IR ports, so they also support infrared control. Use the bidirectional port for any device whose status the pad must display, and the unidirectional port for simpler equipment that only needs commands.
What are the three GPIO ports for?
The three GPIO ports handle simple general-purpose inputs and outputs, allowing the pad to respond to or trigger external signals. The source data does not give voltage or wiring details, so confirm the signal type with the SmartRooms Qatar team before ordering cable and terminations. A training room where one contact must start a fixed routine is a typical case for this kind of integration.
Can it alert facilities staff when lamps or filters need service?
Yes. The Echo Plus 8EUB supports email notifications for lamp and filter hours and for warnings. This helps facilities teams in a university building in Education City plan maintenance before a projector fails during a lecture. Notifications depend on the connected equipment reporting that information, so confirm which devices in your room provide it.
How is the pad configured and maintained?
Configuration is done in Project Designer software, and a Micro USB connection is provided for system configuration and maintenance. An integrator can change button functions as a room's needs evolve without replacing the hardware. Ask SmartRooms Qatar to include configuration in the installation scope so the buttons match your meeting or teaching routines from the first day.
Which version is this and where is it sold?
This listing is the black EU version, item number 920-02260-10002. The manufacturer lists this model as not available in the United States and Canada. Quote the full model code and item number when you request a quote, so the correct variant is supplied for your project in Qatar.
What warranty applies to this model?
The manufacturer provides a 5-year warranty on the Echo Plus 8EUB, and SmartRooms Qatar supplies the unit with that manufacturer warranty. Keep the purchase documents with your asset register. For a government tender or a purchase order covering several rooms, state the warranty in the specification so the requirement is clear to every approver.
Is it suitable for a classroom in Al Wakrah?
Yes, for a classroom where a teacher needs one wall-mounted point to run a fixed set of functions. Eight configurable buttons can cover display control and source selection for each lesson. Mount the pad at a reachable height beside the teacher's usual position, and route Ethernet and any serial cabling before the walls are closed, so the classroom can be used the same day the installation is complete.
Is a site survey needed before installing it?
A site survey is advisable. SmartRooms Qatar offers free site surveys, which help confirm the wall position, cable routes for Ethernet and serial connections, and the devices the pad must reach. For a boardroom in West Bay being refurbished, checking these points before the wall finishes avoids costly rework and keeps the control layout aligned with the room's furniture and layout.
Can one pad control a whole room on its own?
It can run the room functions you configure on its eight buttons, provided the connected devices can be reached over Ethernet, serial or GPIO. The pad controls up to two third-party devices over Ethernet, and the Expansion Bus adds up to two more units. Map every device in the room during design so you know whether the base unit and its expansions cover the full setup.
