Impera Echo Plus 8EUW
Biamp Impera Echo Plus 8EUW (White) 8-Button AV Control Pad
Priceon request
QuotationWithin 1 working day
DeliveryConfirmed with your quote, based on stock
Overview

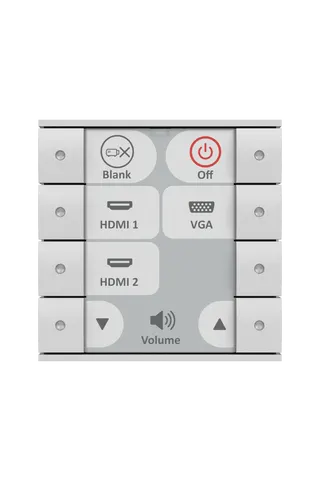

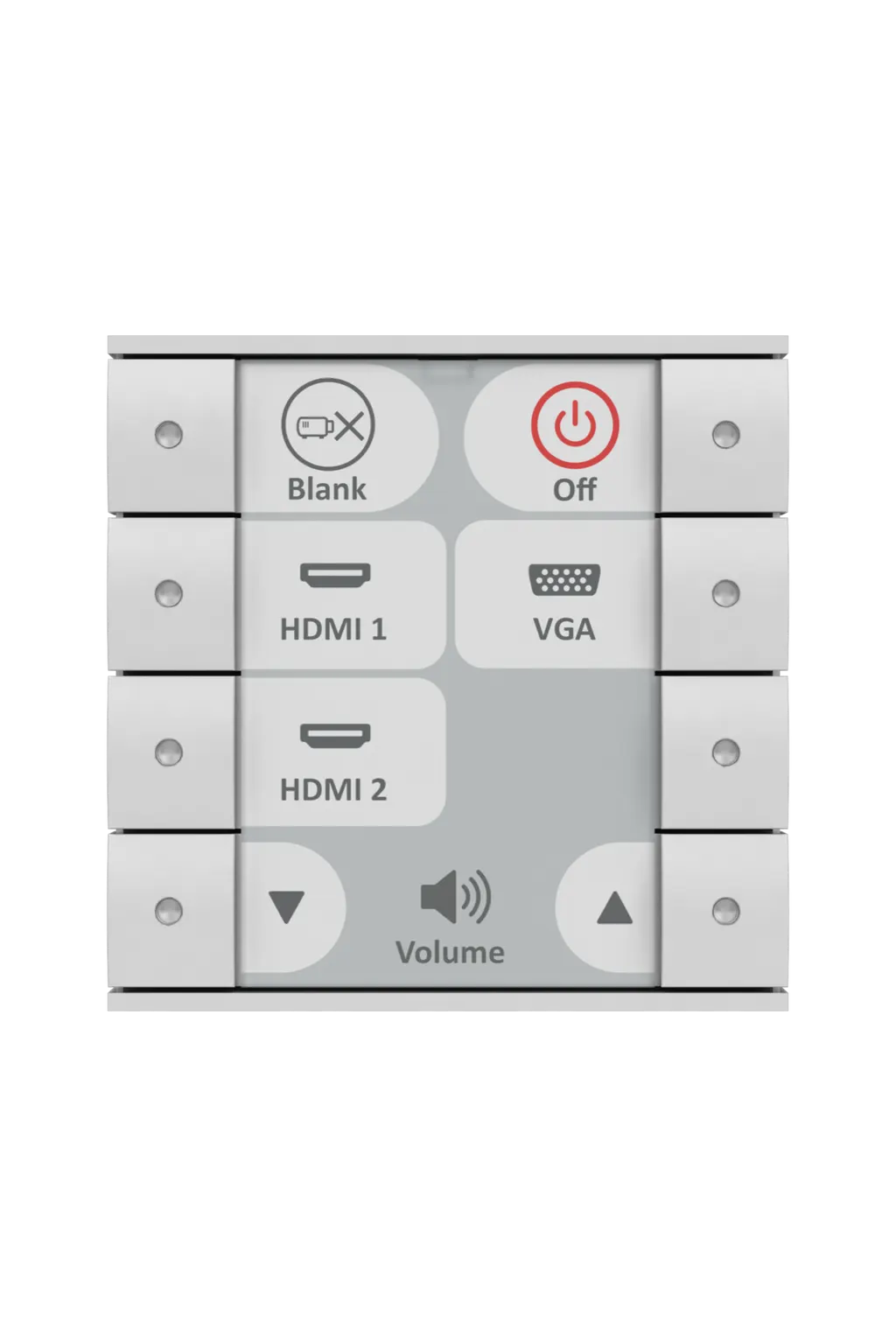

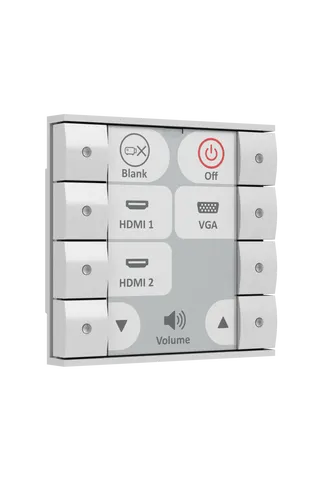

The Biamp Impera Echo Plus 8EUW is a white, EU-form-factor AV control pad with eight programmable buttons and an onboard processor, removing the need for an external controller. It controls up to two third-party devices over Ethernet and adds RS-232/IR and GPIO ports for serial and automation gear. It suits classrooms, meeting rooms and collaboration spaces in Doha and Lusail. Request a quote from SmartRooms Qatar.
What the Impera Echo Plus 8EUW does in a room
The Biamp Impera Echo Plus 8EUW is a control pad for wall or tabletop mounting that gives a presenter a row of eight programmable buttons for the audiovisual equipment in a room. Each button can be assigned to a task such as switching a source or starting a room routine, so the person at the front does not need to know which device sits behind each function. Because the pad carries its own onboard processor, the logic runs on the pad itself and a separate control unit is not needed.
This white model with an EU-style form factor suits classrooms, conference rooms and collaborative spaces where the same few actions are repeated every day. Non-technical staff can operate the room with a consistent set of buttons, while the integrator sets the behaviour once during commissioning.

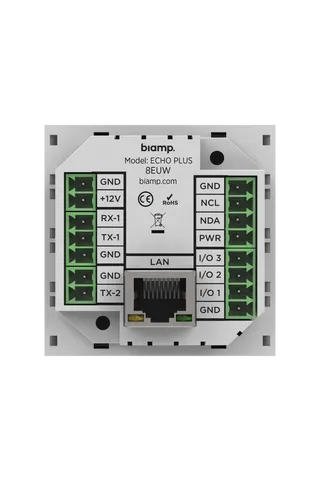

Connectivity for mixed Ethernet and serial systems
Most rooms in Doha today combine networked equipment with older devices that rely on serial control. The Echo Plus 8EUW covers both sides:
- Ethernet: control of up to two third-party devices, such as displays, projectors or video switchers.
- One bidirectional RS-232/IR port that returns feedback from the connected device.
- One unidirectional RS-232/IR port for sending external control commands.
- Three GPIO ports for triggers, sensors and other automation peripherals.
An expansion bus accepts up to two additional devices, such as extra keypads or port expanders, which helps in long rooms that need a second control point.
Where it fits across Qatar
A private school in Al Wakrah fitting out new classrooms could give each room one pad, so a teacher starts the display and selects the input with a single press. In a West Bay boardroom, a door contact or occupancy sensor wired to a GPIO port can start a room routine when a meeting begins, provided that response is programmed in Project Designer. A training centre in Al Rayyan or a lecture theatre in Education City can use the expansion bus to add a second control point at the back or side of the room.
Planning mounting, programming and maintenance
- Decide between wall mounting and integration into the EasyConnect tabletop system before ordering accessories.
- Map the eight buttons to their functions in Project Designer software before installation.
- Enable email notifications so lamp and filter service intervals reach the facilities team.
- Confirm the room environment with the SmartRooms Qatar team, because the data for this model gives no operating temperature range.
Warranty and ordering from SmartRooms Qatar
The Echo Plus 8EUW carries a 5-year manufacturer warranty. The manufacturer also states that this model is not available in the US or Canada. SmartRooms Qatar supplies the pad, delivers it to all eight municipalities of Qatar, provides professional installation and free site surveys, and usually issues quotations within one working day. Purchase orders (LPOs), government tenders including Monaqasat, and payment by bank transfer, cheque or purchase order are all accepted. Request a quote for this model and send your room layout with the list of devices you want to control.
Highlights
- Eight software-configurable buttons with onboard processing
- Ethernet control of up to two third-party devices
- One bidirectional and one unidirectional RS-232/IR port
- Three GPIO ports for triggers, sensors and automation
- Expansion bus for up to two keypads or port expanders
- Wall-mount or EasyConnect tabletop installation with 5-year warranty
Room fit
Tell us the room size and platform (Teams, Zoom or BYOD) and we confirm the right combination with your quotation.
Estimated timeline
Quotation within 1 working day · delivery timing depends on stock availability, and we confirm it with your quotation.
Specifications
Source: manufacturer · checked Oct 2026
The full specification and datasheet for this model are available on request; we send them with your quotation.
Downloads
5 files from the manufacturerQuestions about Impera Echo Plus 8EUW
What is the Biamp Impera Echo Plus 8EUW used for?
It is a control pad that lets one person run the AV functions of a room from a compact panel with eight programmable buttons. It suits classrooms, conference rooms and collaborative spaces where the same actions are repeated daily, such as starting a session or switching a source. Because the button functions are set during programming, presenters see simple labels rather than device menus.
Does the pad need a separate control processor for the room?
No. The Echo Plus 8EUW includes an onboard controller, so it can manage local and networked devices without an external processor. That reduces the equipment list in a room and the number of components to commission. Confirm your device list and control interfaces with SmartRooms Qatar before ordering, so the quotation matches the equipment you need to control.
Which third-party devices can it control over Ethernet?
It communicates with up to two third-party devices over Ethernet, and the manufacturer lists displays, projectors and video switchers as typical examples. A training room with one display and one video switcher, for instance, would use both network connections. Compatibility depends on each device's control interface, so ask the SmartRooms Qatar team to check your exact models against the pad before purchase.
What do the two RS-232/IR ports do, and which one returns status?
The bidirectional RS-232/IR port sends commands and receives feedback from the connected device, such as a projector's power state if that device reports it. The unidirectional port only sends external control commands, which suits a second serial device that does not need to report back. Check each device's serial specification during the site survey to confirm which port it should use.
Can a door or occupancy sensor be connected in a West Bay boardroom?
Yes, the pad has three GPIO ports for triggers, sensors and other automation peripherals. In a West Bay boardroom, a door contact or occupancy sensor wired to a GPIO port could start a room routine when a meeting begins, if the integrator programs that response in Project Designer. Confirm the sensor type and cable route with the installer during the survey.
Can I add a second control point in a long lecture hall in Education City?
Yes. The expansion bus supports up to two additional devices, such as keypads or port expanders. In a long lecture hall in Education City, a lecturer can operate the room from the front while a second keypad sits at the back or side of the hall. Check with SmartRooms Qatar which expansion devices work with the pad before ordering.
Can it be wall-mounted or set into a table in a training centre in Al Rayyan?
Yes. The pad can be wall-mounted or integrated into the EasyConnect tabletop system. A wall position by the door suits a trainer who moves around the room, while a tabletop installation suits a board table used for group work. Before drilling or cutting, SmartRooms Qatar offers a free site survey that checks cable routes, panel height and the position of the connected equipment.
Who programs the buttons, and what software is used?
Button functions, room automation and email notifications are configured in Project Designer software. An integrator usually completes this programming during commissioning, and SmartRooms Qatar can install the pad as part of the order. Ask for the programming scope in the quotation, including which of the eight buttons will be assigned and which connected devices each one controls.
Can the pad alert facilities staff before lamps or filters need service?
Yes. The pad supports email notifications for maintenance alerts, including lamp and filter service intervals. For a facilities team managing a plant office in Mesaieed or a school in Doha, this turns routine service into a scheduled task rather than an emergency. Confirm during planning which connected devices can supply those service intervals to the system.
Is it suitable for a hot, dusty room with a window in Doha?
The source data for this model does not give an operating temperature range or a dust rating, so suitability should not be assumed. Summer temperatures in Doha regularly exceed 45°C, and dust storms are common. Place the pad in an air-conditioned room away from direct sunlight, and ask the SmartRooms Qatar team to confirm the environment before you order.
What warranty does the Echo Plus 8EUW carry?
The Echo Plus 8EUW is covered by a 5-year manufacturer warranty. Keep your quotation and purchase order with the asset register, so that any warranty claim can be traced back to the specific unit and its installation date. The manufacturer also states that this model is not available in the US or Canada.
How do I request a quote for a ministry or school order through an LPO or Monaqasat?
Send SmartRooms Qatar your room list, the device list and the number of pads you need, and a quotation is usually issued within one working day. For a ministry or a public school ordering several units, purchase orders (LPOs) and government tenders, including Monaqasat, are accepted. Payment can be made by bank transfer, cheque or purchase order.
