Impera Uniform 8U

What the Impera Uniform 8U does in a room

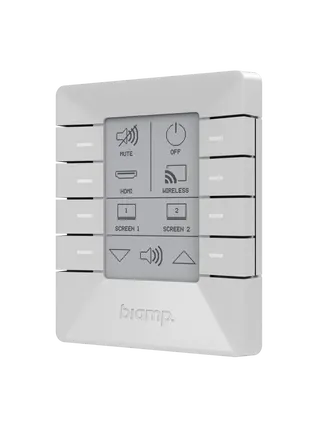

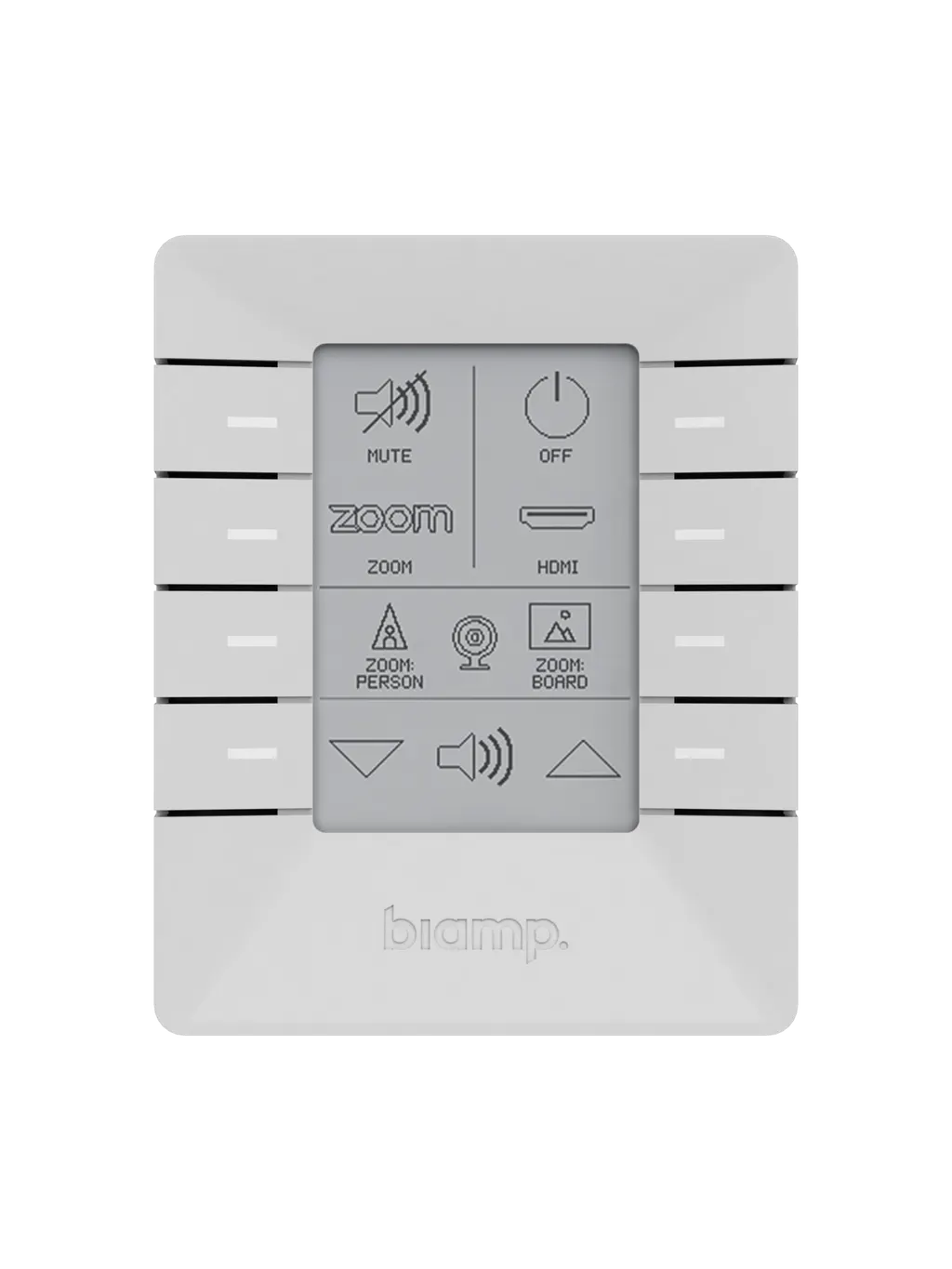

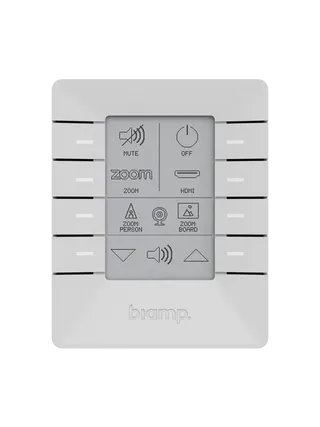

The Impera Uniform 8U is a wall-mounted control pad that gives room users one place to switch sources, manage display power, recall lighting presets and adjust audio. Each of its eight mechanical buttons can be configured in software, so the same hardware can serve a boardroom in West Bay with one layout and a classroom in Al Wakrah with another. Button labels, system states and status messages appear on a 2.7-inch high-contrast E Ink display with a resolution of 264 x 172 pixels, shown in black and white.

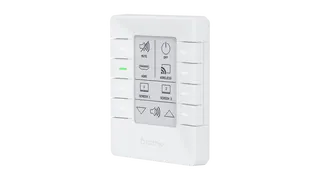

Seven-colour LED indicators add quick visual feedback to the buttons, so staff can confirm what the room is doing alongside the on-screen labels.

Control connections and automation

• Serial control: one bidirectional RS-232 port and two unidirectional RS-232 ports, with baud rates from 1200 to 115200 bit/sec and selectable data bits, parity and stop bits.
• Network devices: a 10/100 Mbps Ethernet port, with support listed for two third-party devices and eight Biamp devices.
• Automation inputs and outputs: three GPIO ports for sensors, switches and relays, with open-drain outputs rated at up to 24 VDC and 0.5 A.
• Infrared: an IR frequency range from 381 Hz to 200 kHz for compatible remote-controlled equipment.

The bidirectional RS-232 port can both send commands and receive responses, which helps when a control system needs to confirm that a display has changed state. The two unidirectional ports send commands only. An expansion bus supports up to eight additional keypads or port expanders, so a larger room or a group of linked rooms can grow without replacing the first pad.

Power over Ethernet and installation planning

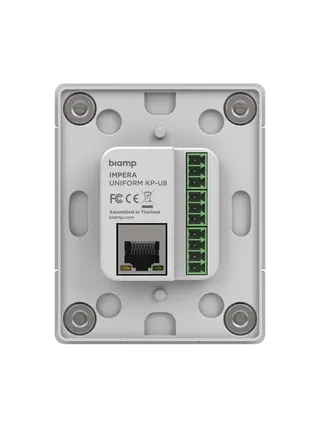

The pad draws its power from the network cable under IEEE 802.3at Class 1, rated at 4W, with consumption below 4W at maximum. One CAT5e or CAT6 cable carries both data and power, so no separate mains adapter is needed at the wall. Your network switch or PoE injector in the comms cabinet must supply Class 1 power on that port. The package includes an in-wall mounting bracket with mounting screws and wall plugs. Measuring 94 mm high, 76 mm wide and 15 mm deep, and weighing 84 g, the pad is compact enough for standard wall positions. SmartRooms Qatar offers free site surveys to confirm the wall position, the cable route to the comms room and the serial runs to each device before a batch is ordered.

Where it fits across Qatar

• A university seminar room in Education City where a lecturer switches between a laptop, a document camera and the video conferencing link from one wall-mounted pad.
• A ministry meeting room in Msheireb where facilities staff want lights, blinds and projector power controlled from a single panel with clear, short labels.
• A private school in Al Rayyan fitting out a row of classrooms, where each room needs the same simple layout and the school wants to order several units under one LPO.

Operating conditions to check first

The data lists an ambient operating range of 0 to 40°C, humidity from 10 to 90% non-condensing, and altitude up to 2,000 m. Qatar summers regularly pass 45°C, so the Impera Uniform 8U should sit in an air-conditioned room rather than a sun-exposed lobby, a glazed corridor or an unconditioned plant space. If you are unsure about the climate in a particular room, confirm it with the SmartRooms Qatar team before installation.

Request a quote from SmartRooms Qatar with your room count, the devices you need to control and your cable plan. We usually return quotations within one working day, accept purchase orders and government tenders, and deliver to all eight municipalities of Qatar.
