MRB-L-X1600-BMA360DI-CIC6

What the bundle contains

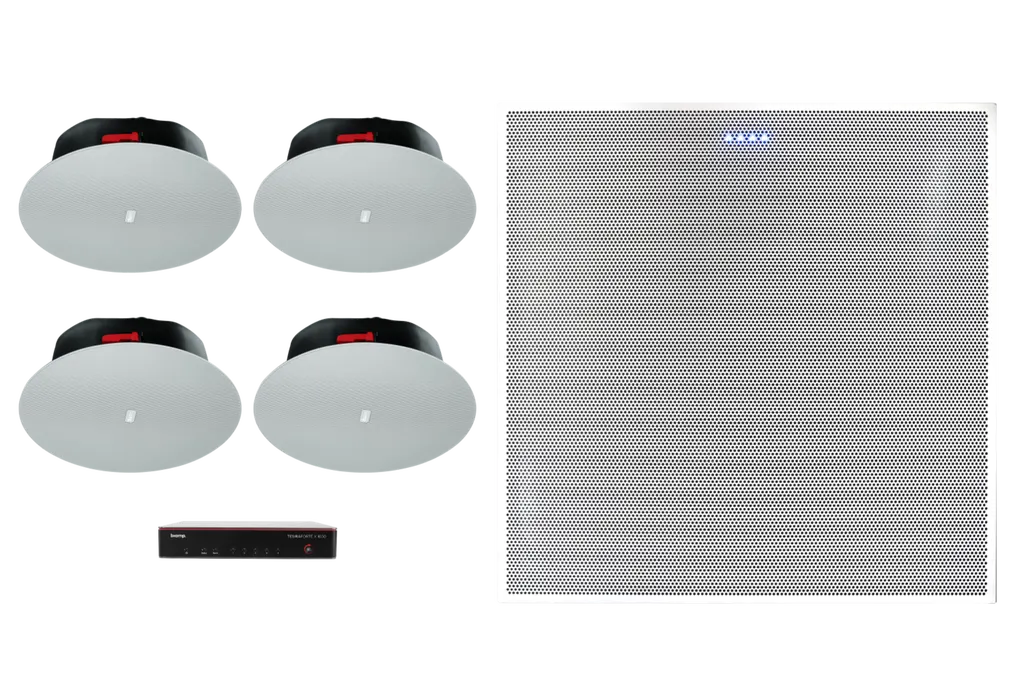

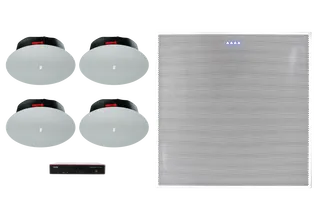

The Biamp MRB-L-X1600-BMA360DI-CIC6 is a pre-matched set of audio hardware for rooms too large for a single ceiling speaker or a desk microphone. At its centre is the TesiraFORTÉ X 1600 digital signal processor, which handles echo control and audio routing for the whole room. Alongside it you receive a BMA 360D-I ceiling microphone array, four Desono C-IC6 ceiling loudspeakers, an EasyConnect POE-90W injector and a cable kit.

The bundle is designed around standard suspended ceilings. The microphone array is a 600 mm ceiling tile unit intended for 600 mm x 600 mm grid positions, and the C-IC6 loudspeakers are low-profile units that sit discreetly in the ceiling plane.

Voice pickup and processing for large rooms

Beamforming is what keeps participants audible at the far end of a long table. The BMA 360D-I uses ultra-wideband, frequency-invariant beamforming and can form up to 12 configurable beams, so coverage follows the seating plan rather than a fixed pattern. Each beam is available as an individual Dante channel, alongside a smart-switched mix of active talkers, so the DSP can process every feed separately.

The TesiraFORTÉ X 1600 provides sixteen channels of acoustic echo cancellation. This matters when loudspeakers and microphones share the same room, because it prevents far-end voices from feeding back into the call. Biamp Launch supports automatic device discovery and room tuning, which helps the installer bring the room into service more quickly.

Power and cabling in one package

The EasyConnect POE-90W injector supplies the 90W of PoE++ power needed to run both the microphone array and the four loudspeakers from a single unit. The kit includes plenum-rated CAT5e cable in three lengths: one 25 ft (7.5 m) run, four 10 ft (3 m) runs and one 3 ft (1 m) run. Because these lengths are fixed, measure the distance from the equipment rack to each ceiling position before ordering.

Where it fits in Qatar

• Ministry boardroom in Msheireb: an executive meeting room where senior officials join video calls with agencies in Doha and abroad, and where the ceiling layout is already fixed by the building design.
• Training room in Education City: a university or training centre room that hosts lectures and remote seminars and needs clear speech across a long room.
• Bank conference floor in Lusail: a large meeting room where Arabic and English speakers take part in the same discussion, and where ceiling microphones keep the table free of devices.

What to plan before ordering

Start with a site survey. Confirm the ceiling grid, the depth of the void above it and the cable route from the rack to each ceiling position. SmartRooms Qatar offers free site surveys, and this is the best point to check the 600 mm tile layout before any cable is pulled. Ask the team to confirm the environmental conditions for your room before installation.

Quotations are usually issued within one working day. Government and school buyers can order on purchase orders (LPOs) or through government tenders, and payment can be made by bank transfer, cheque or purchase order. Products are covered by the manufacturer's warranty. Request a quote for the MRB-L-X1600-BMA360DI-CIC6 bundle and the SmartRooms Qatar team will confirm the cabling, installation scope and quantity for your room.
