MRB-M-X400-C-MASK6C

What the bundle contains

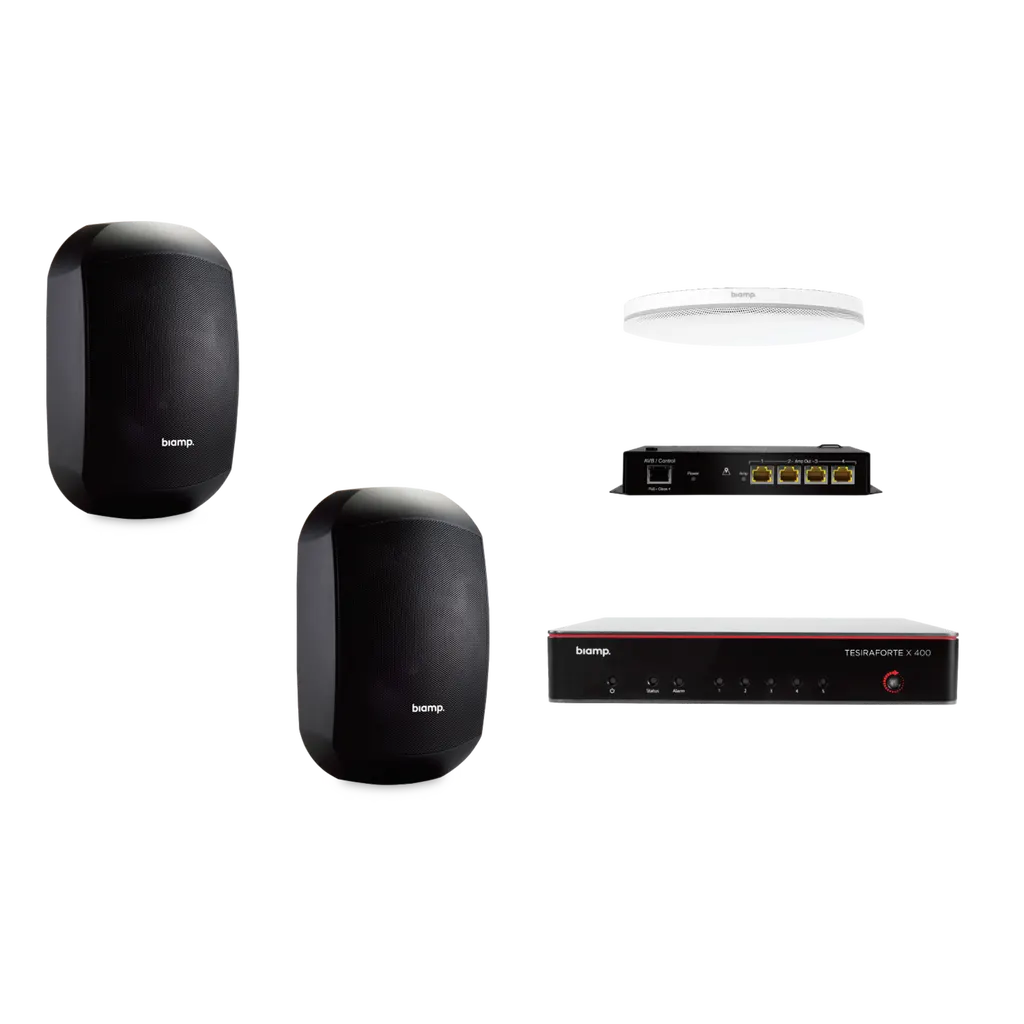

The MRB-M-X400-C-MASK6C is a complete audio package for medium meeting rooms, supplied as one matched set so that the processor, microphone, loudspeakers and cabling arrive together. The core is a TesiraFORTÉ X 400 meeting room DSP, which manages mixing, echo control and noise processing for the whole room. Speech is picked up by a white Parlé TCM-XA Beamtracking ceiling microphone with an integrated amplifier, and played back through two black Desono MASK6C surface-mount loudspeakers.

Connection hardware is also included: one 25 ft plenum-rated CAT5e cable, four 10 ft plenum-rated CAT5e cables, one 3 ft CAT5e cable and an AMP-450BP PoE+ power amplifier. Because the cabling is pre-terminated, installers spend less time preparing connections on site.

How the audio behaves during a live call

Biamp Launch scans the connected devices, tunes the room and sets the configuration automatically, so a standard medium room needs no manual programming. Custom acoustic echo cancellation stops the far end from hearing its own voice returned through the room, while AI-based noise reduction filters HVAC hum and keyboard clatter so remote participants hear the speakers rather than the room.

The ceiling microphone uses beamtracking to follow participants as they lean in, turn or move to a whiteboard. Integrated LED mute indicators show the mute state at a glance, and UC software synchronisation keeps that status aligned with the conferencing application.

Where it fits in Qatar

• A ministry meeting room in Msheireb: a department reviewing projects with colleagues in other cities, working a Sunday to Thursday week, with calls that run between Doha and regional offices.
• A seminar room in Education City: a university team running panels and hybrid lectures, where the ceiling microphone picks up presenters and the MASK6C loudspeakers carry remote voices across the room.
• A meeting room in a Lusail hotel or serviced apartment: a property team hosting visitors and clients who join from abroad, where staff can start a call without re-tuning the audio each time.

Planning the installation

Medium rooms leave less margin for error than they appear to, so plan the layout before fixing anything. Mark where the ceiling microphone will sit relative to the table and the projection screen, check that the two surface-mount loudspeakers can be fixed to suitable wall or ceiling surfaces, and map the cable route from the DSP to each device. Measure every run first, because the supplied cable lengths are fixed and longer runs need additional cable.

Confirm the PoE+ power source for the AMP-450BP amplifier during the design stage. The source data for this bundle does not state an operating temperature range, so confirm the room conditions with the SmartRooms Qatar team before installing in any space outside an air-conditioned environment, where summer temperatures in Qatar can exceed 45°C.

SmartRooms Qatar offers a free site survey before installation, which is useful for confirming ceiling access and cable routing. The bundle is covered by a 5-year manufacturer warranty.

To plan this bundle for your meeting room, request a quote from SmartRooms Qatar. Send the room dimensions, a rough layout and item number 930-10007-00009, and our team will return a quotation, usually within one working day.
