Biamp MRB-M-X800-BMA360DI-CIC6

Name: Biamp MRB-M-X800-BMA360DI-CIC6 Medium Meeting Room Audio Bundle
Brand: Biamp
SKU: biamp-mrb-m-x800-bma360di-cic6
Availability: InStock

Overview

The Biamp MRB-M-X800-BMA360DI-CIC6 is a complete audio kit for medium meeting rooms, built around a TesiraFORTÉ X 800 DSP, a BMA 360D-I 600 mm ceiling microphone array, two Desono C-IC6 ceiling loudspeakers and an EasyConnect POE-90W injector. It arrives with plenum-rated CAT5e cabling. It suits Doha offices, boardrooms and training rooms where ceiling-mounted audio should stay out of sight. Request a quote for your room.

What the bundle contains

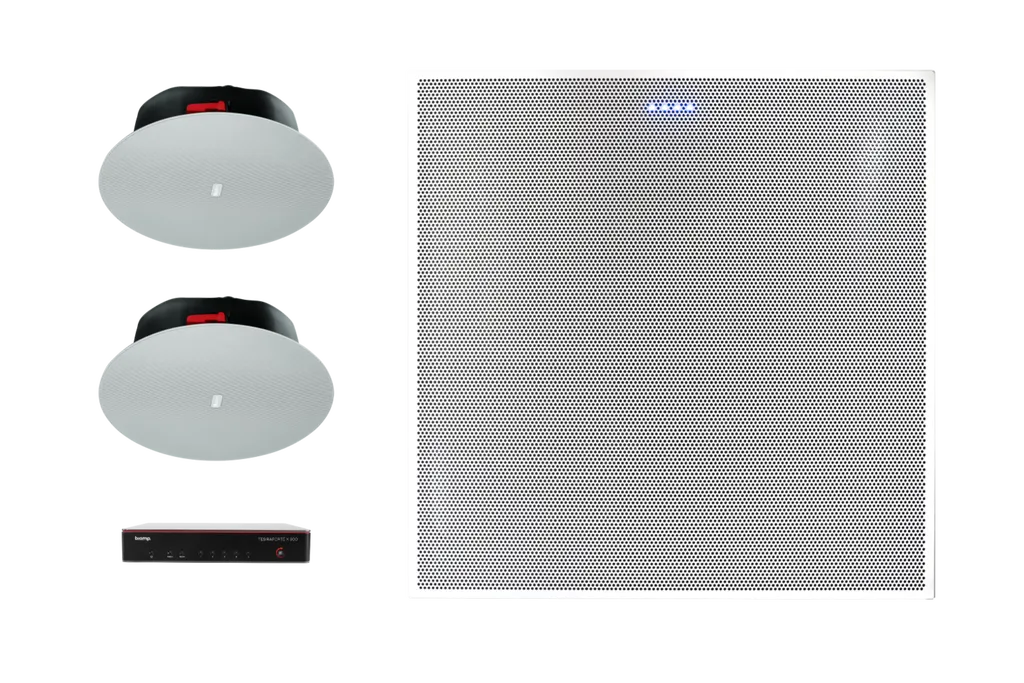

The MRB-M-X800-BMA360DI-CIC6 (model number 930-00027) groups the audio parts a medium meeting room needs into one matched package: a TesiraFORTÉ X 800 DSP, a BMA 360D-I ceiling microphone array, two Desono C-IC6 ceiling loudspeakers, an EasyConnect POE-90W injector and a plenum-rated CAT5e cable kit. Specifying these together means one reference to quote and one system to commission. The package is audio only. It does not include a camera, display or conferencing codec, so those should be planned alongside it.

Microphone pickup and signal processing

The BMA 360D-I uses ultra-wideband, frequency-invariant beamforming, which keeps voice pickup consistent across the room whether a participant sits close to the head of the table or at the far side. Up to 12 configurable beams let the room be tuned to its layout. Each beam can be sent as an individual Dante channel for full control in the DSP, while a smart-switched mix of active talkers is also available for simpler routing.

The TesiraFORTÉ X 800 handles the processing. It provides eight channels of acoustic echo cancellation alongside signal routing, mixing, equalisation and dynamics processing. Biamp Launch adds automatic device discovery and room tuning, which helps an installer bring the system up in a structured way.

Ceiling loudspeakers, power and cabling

The two Desono C-IC6 units are low-profile ceiling loudspeakers with speech-optimised output, so sound comes from the ceiling rather than from wall-mounted cabinets. The EasyConnect POE-90W injector supplies 90W of PoE++ power to both the microphone array and the loudspeakers from one point, which simplifies the layout of the comms cabinet. The cable kit contains one 25 ft (7.5 m) run, two 10 ft (3 m) runs and one 3 ft (1 m) run, all plenum-rated for installation in ceiling voids.

Where it fits in Qatar

Boardroom in Msheireb: a government or corporate boardroom where participants speak from different seats and no one has to lean toward a tabletop microphone.
Training room in West Bay: an office refitting a medium room for meetings held in Arabic and English, with colleagues in Doha and abroad joining from the same table.
Seminar room in Education City: a university department that wants a clean ceiling finish and steady voice pickup for staff and visiting speakers.

What to plan before you order

The microphone array is designed for 600 mm x 600 mm ceiling tiles, so confirm the ceiling grid module before ordering. Note the room size, the ceiling height, the route from the ceiling void to the equipment location, and the length of each cable run, since the kit contains fixed lengths. Ask the SmartRooms Qatar team to confirm the environmental conditions of the room before installation, particularly if it has a west-facing window. The source data does not state an operating temperature range, so this check matters. Free site surveys are available before installation, which is useful when the ceiling layout is not yet known.

Send the room dimensions, ceiling type and any other equipment you plan to use, and SmartRooms Qatar will prepare a quotation for the bundle and installation, usually within one working day. Request a quote today to start planning your medium meeting room.

Highlights

TesiraFORTÉ X 800 DSP with eight channels of acoustic echo cancellation
BMA 360D-I 600 mm ceiling microphone array for 600 x 600 mm tiles
Up to 12 configurable beams with individual Dante channel outputs
Two Desono C-IC6 ceiling loudspeakers for speech-optimised audio
EasyConnect POE-90W injector powers microphones and loudspeakers
Plenum-rated CAT5e cable kit included: 25 ft, 10 ft and 3 ft runs

Room fit

Tell us the room size and platform (Teams, Zoom or BYOD) and we confirm the right combination with your quotation.

Estimated timeline

Quotation within 1 working day · delivery timing depends on stock availability, and we confirm it with your quotation.

Specifications

Source: manufacturer · checked Oct 2026

The full specification and datasheet for this model are available on request; we send them with your quotation.

Downloads

6 files from the manufacturer

PDF Datasheets Biamp_Data_Sheet_BMA-360D-I_Jun26.pdf 560 KB PDF Datasheets Biamp_Data_Sheet_Desono_C-IC6_Apr25_v1.pdf 570 KB PDF Datasheets Biamp_Data_Sheet_TesiraFORTE-X800_Oct25_v1.pdf 505 KB PDF Manuals & guides Biamp_BMA_360D_Cmd_Ref_Manual_June-08-2026.pdf 1.7 MB PDF Manuals & guides biamp_bma_360ds_quick_start_guide_Sept-21-2026.pdf 1.3 MB PDF Manuals & guides biamp_manual_tesiraforte-x_feb23.pdf 626 KB

Questions about MRB-M-X800-BMA360DI-CIC6

What is the MRB-M-X800-BMA360DI-CIC6 and who is it for?

It is an audio bundle for a medium meeting room, combining a TesiraFORTÉ X 800 DSP, a BMA 360D-I ceiling microphone array, two Desono C-IC6 ceiling loudspeakers, an EasyConnect POE-90W injector and plenum-rated CAT5e cabling. It suits offices, boardrooms and training rooms where people should be heard from anywhere at the table without handheld microphones. The package is audio only, so a camera and display need to be specified separately.

How many microphone beams does the BMA 360D-I form, and how is the audio output?

The BMA 360D-I supports up to 12 configurable beams using ultra-wideband, frequency-invariant beamforming. Each beam can be sent as an individual Dante channel, which keeps raw beam audio available for processing in the DSP. A smart-switched mix of active talkers is also output, so the integrator can choose between full control and a simpler ready-made mix depending on how the room will be run.

What does the TesiraFORTÉ X 800 handle in this bundle?

The TesiraFORTÉ X 800 is the DSP for the room. It provides eight channels of acoustic echo cancellation, along with signal routing, mixing, equalisation and dynamics processing. Biamp Launch adds automatic device discovery and room tuning, which helps the installer configure the system. Because processing happens in the DSP, the integrator controls the signal path rather than relying on the microphone alone.

Does the bundle include the cables and power needed to run it?

Yes. The bundle includes the EasyConnect POE-90W injector and a plenum-rated CAT5e cable kit with one 25 ft (7.5 m) run, two 10 ft (3 m) runs and one 3 ft (1 m) run. Measure your ceiling routes before ordering, because runs longer than these lengths are not covered by the kit and would need to be quoted separately.

Will the ceiling microphone array fit a standard suspended ceiling?

The BMA 360D-I is a 600 mm ceiling tile array designed for 600 mm x 600 mm ceiling tiles, so it installs into a standard grid without changing the ceiling layout. Confirm the grid module and tile type in the room before ordering. A free site survey from SmartRooms Qatar can check the tile, the depth of the ceiling void and the route for the cable runs.

Can one injector power both the microphone array and the ceiling speakers?

Yes. The EasyConnect POE-90W injector supplies 90W of PoE++ power, which is enough to run both the BMA 360D-I microphone array and the two Desono C-IC6 loudspeakers from a single injector. Plan its location within reach of the network switch and the ceiling cable runs, and keep it in a ventilated comms cabinet or accessible space rather than in a hot, enclosed void.

A corporate boardroom in Msheireb has a long table and glass walls. Will ceiling pickup work well?

The beamforming is designed to keep voice pickup consistent wherever participants sit, which suits long tables where people speak from both ends. Up to 12 beams let the system be tuned to the table layout. Glass walls and hard surfaces reflect sound, so ask the SmartRooms Qatar team to review the room acoustics during the site survey before final sign-off.

A training room in West Bay runs sessions in Arabic and English with colleagues joining from abroad. Does the bundle help?

The bundle is an audio system for one medium room, so it covers pickup and playback rather than language features. The array keeps pickup consistent across the room, and the echo cancellation in the TesiraFORTÉ X 800 supports remote participants when they join through a conferencing system. The bundle does not include a codec or conferencing platform, so that must be specified separately.

A university department in Education City wants a seminar room with a clean ceiling. Is plenum cabling a concern?

The cable kit is plenum-rated, which matters where cabling runs through ceiling voids used for air movement. Ask the installer to confirm the void route before work starts. For a seminar room, ceiling microphones keep presenters' hands free and avoid devices on the lectern or table. The bundle covers audio only, so lecture capture and display would be quoted separately.

How should I plan cable routes for a presentation suite in Lusail?

Start by measuring the distance from each ceiling position to the equipment location. The kit includes one 25 ft (7.5 m) run, two 10 ft (3 m) runs and one 3 ft (1 m) run, all plenum-rated. Mark any route that exceeds these lengths or passes through a difficult void. Those runs need a separate quotation, so resolving them early in the site survey avoids delays during installation.

Can the bundle go in a room with a west-facing window in summer heat?

The source data does not state an operating temperature range for these components, so one cannot be confirmed here. Summer temperatures in Doha can exceed 45°C, so ask the SmartRooms Qatar team to check the room conditions and ceiling-void environment before installation. Locate the injector and DSP in an air-conditioned, ventilated space wherever possible.

Can we buy this bundle through an LPO or a government tender?

Yes. SmartRooms Qatar supplies against purchase orders (LPOs) and government tenders, including Monaqasat, and accepts payment by bank transfer, cheque or purchase order. The bundle is sold by quotation, so send the room details and the number of rooms you plan to equip. Each room should be planned separately for cable routes and ceiling layout.
