Parlé DTM-X

What the Parlé DTM-X White is

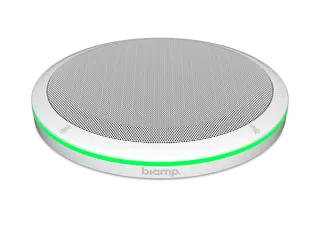

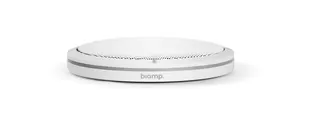

The Parlé DTM-X White is a tabletop conferencing microphone from the Biamp Parlé series, designed specifically for Devio UCX meeting room systems. Its white finish, item number 920-00029-20000, suits light-coloured tables and bright conference rooms. The black version is a separate item, 920-00029-10000.

The microphone measures 110 mm in diameter and 18 mm in height. It connects to a network box measuring 106 mm wide, 106 mm deep and 23 mm high, which handles audio processing and can sit out of view beneath the table. The microphone weighs 231 g and the network box weighs 310 g.

Beamtracking pickup for real meetings

A 16-element digital array forms a beamformed pickup pattern, and beamtracking follows the active talker as the discussion moves around the table. Four independently controlled zones provide full 360° pickup. Because auto-mixing tracks conversation on its own, there is no lobe aiming or room mapping during setup, which keeps commissioning simple for IT and AV teams.

Performance is specified as a frequency response of 150 Hz to 16 kHz within ±3 dB, a dynamic range of 90 dB A-weighted at THD+N below 10%, and a maximum SPL of 109 dB at 0.5% THD. For a longer table, one DTM-XEX expansion microphone can be connected to the RJ-45 port on the network box, adding coverage for a second position.

Cabling, power and operating conditions

• A single CAT5 cable links the microphone to the network box, which carries audio, control and DSP processing.
• The network box is powered over Ethernet to IEEE 802.3at Class 3, drawing up to 15.4 W, so the switch port must provide PoE.
• An LED mute status indicator gives participants clear visual feedback during active meetings.
• A green, yellow and red power LED shows the network box status.

The network box is rated for ambient temperatures of 0 to 40°C (32 to 104°F), 0 to 95% relative humidity without condensation, and altitudes up to 3,000 m. Summer temperatures in Doha can climb above 45°C, which is beyond that rating, so the network box should sit inside an air-conditioned room away from windows that take direct sun. Confirm the location with the SmartRooms Qatar team before fixing it.

Optional accessories include the TTM-X-SM secure mounting bracket (part 910-00521) and a 16 mm table grommet with a 7 mm inside diameter, available in white as part 920-00524-10000.

Where it fits in Qatar

• Government boardroom in Msheireb: a ministry or authority equipping a boardroom where several officials sit around one central table, ordered through a purchase order with TAA compliance required.
• Research meeting room in Education City: a research team joining calls with partners abroad, where Microsoft Teams certification and talker tracking help remote participants follow each contributor.
• Administrative meeting room in Al Sadd: a hospital management team where speakers switch between Arabic and English, and beamtracking picks up whoever is talking without anyone adjusting the microphone.

What to plan before ordering

Confirm that the room runs, or will run, a Devio UCX system, because this microphone is designed for that platform. Check the PoE capacity of the switch before ordering several units for a school or ministry project, and measure any table cut-out you plan to use for cable routing before choosing the grommet.

SmartRooms Qatar offers a free site survey, delivery to all eight municipalities of Qatar, professional installation and quotations usually within one working day. Purchase orders, LPOs and government tenders including Monaqasat are accepted, and the manufacturer's five-year warranty applies. Request a quote for the Parlé DTM-X White and we will confirm the configuration for your room.
