Biamp Parlé DTM-XEX · Price in Qatar

Name: Biamp Parlé DTM-XEX White Expansion Beamtracking Tabletop Microphone
Brand: Biamp
SKU: biamp-parle-dtm-xex-920-10118-20000
Availability: InStock

Overview

The Biamp Parlé DTM-XEX White is an expansion tabletop microphone for Devio UCX meeting room systems. Beamtracking follows active talkers around the table across four 90-degree zones. A single CAT5 cable carries signal and power, and no Tesira DSP platform is needed. It suits larger boardrooms and government meeting rooms in Doha and Lusail that need extra pickup points, and it carries a five-year warranty.

What the DTM-XEX adds to a Devio UCX room

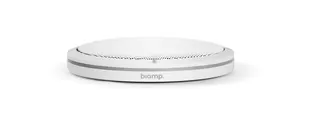

The Parlé DTM-XEX is a tabletop microphone built as an expansion for Devio UCX meeting room systems. When a room needs more pickup points than the main setup provides, it adds coverage at the table without changing the architecture of the system. The white finish suits light-toned meeting rooms, and the black version is a separate model with its own page.

Beamtracking and coverage in practice

Beamtracking follows whoever is speaking as the conversation moves around the table, so participants joining from Doha or abroad hear each speaker as people move from seat to seat. The microphone divides its pickup into four 90-degree zones that together cover the full 360 degrees around it. Its 16-element digital array is rated for a frequency response of 150 Hz to 16 kHz within ±3 dB, a dynamic range of 90 dB A-weighted and a maximum SPL of 109 dB.

Setup does not need manual tuning. There is no lobe aiming or room mapping to complete before use, so the time between installation and a working meeting stays short.

Installation and cabling

Connection: one CAT5 cable carries both signal and power, using an RJ-45 connector with a 6.6 ft (2 m) cable length.
Distance: up to 33 ft (10 m) between the DTM-XEX and its DSP host device.
DSP: the processing runs inside the network box supplied with the unit.
Channels: each microphone uses one AEC channel, including when a DCM-XEX is daisy-chained.
Size and weight: 4.3 in (110 mm) diameter, 0.7 in (18 mm) high, 0.5 lb (231 g).
Optional accessories: a TTM-X-SM secure mounting bracket (part 910-00521) and a 16 mm table grommet in white (part 920-00524-10000).

Where it fits in Qatar

In a ministry boardroom in Msheireb, some participants often sit far from a single central pickup point, and a call with teams abroad needs clear speech from every seat. In an international school in Lusail, a staff meeting room can gain extra pickup points with one cable run per microphone. At a university training centre in Education City, the four zones help capture speakers at the far end of a long table during hybrid seminars.

Planning for a Qatar installation

Confirm that the room runs Devio UCX before ordering, because the DTM-XEX is designed specifically for that system. Map the table layout and measure the distance from each microphone to the DSP host, which must stay within 33 ft (10 m). Keep the unit in air-conditioned rooms: its rated ambient operating range is 32 to 104 °F (0 to 40 °C) with 0 to 95 percent non-condensing humidity, and summer temperatures in Qatar can exceed 45 °C. The microphone is TAA compliant and carries FCC Part 15B, CE, UL and C-UL listings and RoHS compliance, which helps procurement teams working through government tenders. A free site survey is available before installation, and quotations are usually issued within one working day. Request a quote for the White model and the SmartRooms Qatar team will help confirm compatibility with your current Devio UCX setup.

Highlights

Expansion tabletop microphone for Devio UCX systems
Beamtracking follows active talkers across four 90-degree zones
Single CAT5 cable carries both signal and power
Up to 33 ft (10 m) from DTM-XEX to DSP host device
TAA compliant with FCC, CE, UL and RoHS listings
Five-year warranty backed by the manufacturer

Room fit

Tell us the room size and platform (Teams, Zoom or BYOD) and we confirm the right combination with your quotation.

Estimated timeline

Quotation within 1 working day · delivery timing depends on stock availability, and we confirm it with your quotation.

Specifications

16 specifications · Source: manufacturer · checked Oct 2026

GENERAL4

Height: 0.7 inches (18 mm)
Diameter: 4.3 inches (110 mm)
Weight: 0.5 lbs (231 g)
Optional Accessories: TTM-X-SM Secure mounting bracket for DTM-X/-XEX: Part# 910-00521 16mm Grommet Table grommet, 7mm ID: Black (Part# 920-00524-20000) or White (Part# 920-00524-10000)

POWER1

Power: Power: Custom/Proprietary Max Distance Between Devices: 33 feet (10 meters) between DTM-XEX and DSP host device

CERTIFIED SOLUTIONS2

TAA Compliant: TAA Compliant
Certified Solutions: TAA Compliant

COMPLIANCE1

Certifications: FCC Part 15B (USA) CE marked (Europe) UL and C-UL listed (USA and Canada) RoHS Directive (Europe)

ENVIRONMENTAL3

Ambient Operating Temperature Range: 32 - 104° F (0 - 40° C)
Humidity: 0-95% relative humidity (non-condensing)
Altitude: 0-10,000 ft (0-3000m) MSL

AUDIO5

Audio: Polar Pattern: Beamformed Sensitivity (94dB SPL, 1kHz): > 74dB Digital Interface: Custom/Proprietary Connector: RJ-45 (cable length 6.6 feet [2 meters])
Microphone: Microphone Technology: 16-Element Digital Array
Frequency Response: (150 Hz - 16 kHz): ± 3dB
Dynamic Range: (THD+N < 10%): 90dB, A-Weighted
SPL: Maximum SPL (at 0.5% THD): 109dB

Downloads

1 file from the manufacturer

PDF Manuals & guides biamp_manual_parle-dtm-x-xex_install_jul26.pdf 1.0 MB

Questions about Parlé DTM-XEX

What kind of Qatar meeting room is the DTM-XEX White best suited to?

It suits a medium or large room that already runs Devio UCX, such as a ministry boardroom in Msheireb or a West Bay office where some participants sit far from the existing pickup point. Each unit adds one more tabletop pickup point, and Beamtracking follows speakers as they move around the table. Check the room layout before ordering so the extra microphones cover the seats that are hard to hear today.

Is the DTM-XEX White compatible with Devio UCX systems?

Yes. The DTM-XEX is an expansion Beamtracking tabletop microphone designed specifically for Devio UCX meeting room systems. Its processing runs inside the included network box, so it does not need a Tesira DSP platform. If your room runs a different conferencing system, request a quote so compatibility can be confirmed before you buy.

How does Beamtracking work during a meeting?

Beamtracking follows active talkers automatically as the conversation moves around the table, so there is no manual lobe aiming or room mapping before use. The microphone splits its pickup into four 90-degree zones that together cover 360 degrees. Participants in Doha or abroad hear each speaker as people move between seats, and the LED indicators show mute status at a glance.

Can I add a DTM-XEX to an existing Devio UCX room?

Yes, if the room already runs Devio UCX, the DTM-XEX extends tabletop coverage without changing the core setup. A typical case is a hotel meeting room in The Pearl hosting larger client groups. Each microphone connects by RJ-45 with a 6.6 ft (2 m) cable length, and the distance to the DSP host must not exceed 33 ft (10 m). Send your room plan with your quote request.

Does each microphone use extra AEC channels when daisy-chained?

Each DTM-XEX uses one AEC channel, even when it is daisy-chained with a DCM-XEX. This helps system planners count available channels on the DSP host before ordering, especially in multi-room installations. Confirm your current channel allocation with the SmartRooms Qatar team when you request a quote so the new units fit alongside existing equipment.

What cabling does the DTM-XEX need?

A single CAT5 cable carries both signal and power, so the unit does not need a separate power supply at the table. The RJ-45 connector is rated for a 6.6 ft (2 m) cable length, and the maximum distance between the microphone and its DSP host device is 33 ft (10 m). Plan the cable route under the table to the network box before installation day, and a free site survey can check it.

Can it be used in unconditioned or outdoor spaces in Qatar?

No. The rated ambient operating range is 32 to 104 °F (0 to 40 °C), with 0 to 95 percent non-condensing humidity, and summer temperatures in Qatar can exceed 45 °C. Install it in air-conditioned rooms such as boardrooms, not in glass-fronted lobbies or outdoor pavilions. If you are unsure about a space, confirm the environment with the SmartRooms Qatar team before ordering.

What are the physical dimensions and weight?

The microphone measures 4.3 in (110 mm) in diameter and 0.7 in (18 mm) high, and weighs 0.5 lb (231 g). A low profile helps avoid blocking sightlines between participants across the table. Check table thickness and grommet fit before ordering accessories, since the optional table grommet has a 16 mm outer size and a 7 mm inner diameter.

Is the DTM-XEX White TAA compliant for government tenders in Qatar?

Yes, the DTM-XEX is listed as TAA compliant, which matters when a buyer requires that compliance in a tender. It also carries FCC Part 15B, CE, UL and C-UL listings and complies with RoHS. Public-sector buyers can include these listings in a Monaqasat submission or raise a purchase order, and SmartRooms Qatar accepts bank transfer, cheque or purchase order payment.

Which mounting accessories are available?

Two optional accessories are listed: a TTM-X-SM secure mounting bracket (part 910-00521) and a 16 mm table grommet with a 7 mm inner diameter, available in black (part 920-00524-20000) or white (part 920-00524-10000). The white grommet suits this White model. Include the accessory part numbers in your quote request so the correct pieces appear on the quotation.

How should I plan the layout for a West Bay boardroom?

Start by counting the seats that fall outside the existing pickup coverage, then decide where each DTM-XEX should sit. Keep each unit within 33 ft (10 m) of its DSP host and run a CAT5 cable from every microphone position. Because Beamtracking needs no room mapping, setup is quick, but a site survey confirms cable paths, table thickness and the air-conditioned environment before installation.

Can a school in Al Wakrah get a quote and site survey for several units?

Yes. SmartRooms Qatar offers a free site survey, and quotations are usually issued within one working day. A school ordering several units for staff and meeting rooms can raise a purchase order (LPO) that covers the full set, and the quotation can list the optional bracket and grommets as separate lines. Send the room count and your Devio UCX details with the quote request.
