Parlé TCM-1

What the Parlé TCM-1 white pendant microphone is for

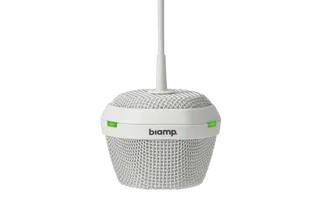

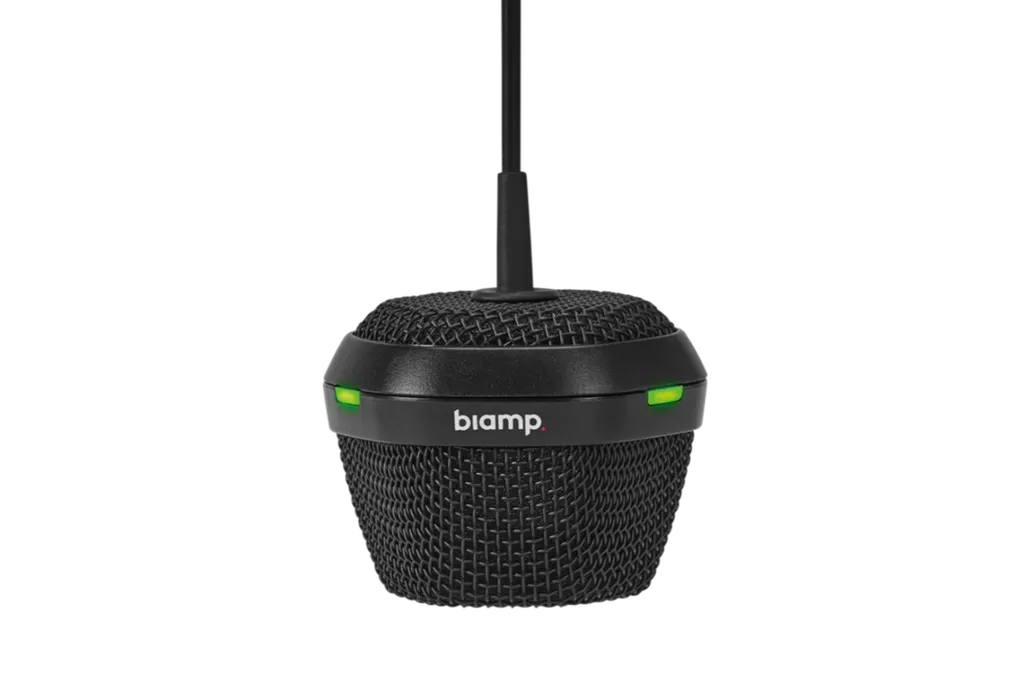

The Biamp Parlé TCM-1 is a ceiling pendant microphone for meeting rooms where people sit at different points around a table or move about during a discussion. Its 8-element digital array forms beams, and Beamtracking processing follows whoever is speaking, so nobody needs to lean toward a fixed microphone or wait for someone to adjust a lobe by hand. The white finish suits rooms with light ceiling tiles and white grids.

Coverage, processing and the plenum box

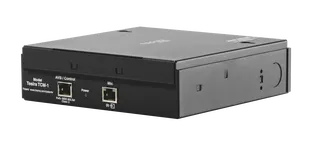

Three 120-degree tracking zones together give 360-degree pickup. The microphone head measures 51 mm high, 63 mm wide and 63 mm deep and weighs 0.2 kg, so it sits discreetly in a ceiling grid. The processing is handled by a separate plenum box with onboard DSP for Beamtracking, which measures 51 mm high, 178 mm wide and 181 mm deep and weighs 1.1 kg. Because the DSP sits in the plenum box, there is no separate processor to install, and the manufacturer states this reduces installation complexity and system latency.

• Microphone: 51 mm high, 63 mm wide, 63 mm deep, 0.2 kg
• Plenum box: 51 mm high, 178 mm wide, 181 mm deep, 1.1 kg

Power, cabling and expansion

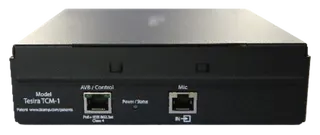

The plenum box is powered by PoE to IEEE 802.3at Class 3 at 15.4 W, so the switch port it connects to must supply that standard. One RJ-45 cable runs from the switch to the plenum box over distances up to 100 metres. The microphone head connects to the plenum box through a 2-pin 3.5 mm Phoenix connector on a 3-metre cable. For larger rooms, up to two TCM-1EX microphones can be daisy-chained with a maximum of 10 metres between plenum boxes. The plenum box LEDs show status in green, yellow or red, and the microphone mute LED shows green or red.

Where it fits in Qatar

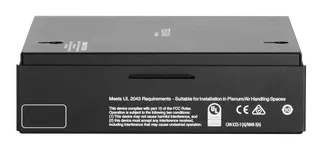

In a boardroom in West Bay or Msheireb, the TCM-1 lets executives join calls with teams abroad without anyone adjusting equipment mid-meeting. In a lecture room at Education City, a ceiling pendant keeps the lectern and floor free of cables. For ministries and public authorities, the TAA compliance, UL and C-UL listings, CE marking and RoHS compliance matter during specification. The data states the unit is evaluated to UL 2043 and suitable for air-handling spaces. No operating temperature range is given, so confirm ceiling void conditions with the SmartRooms Qatar team before installation, especially where voids run hot in summer.

What to plan before installation

• Confirm the switch port provides PoE to IEEE 802.3at
• Plan the cable route from the switch to the plenum box, within 100 metres
• Check the ceiling grid and whether optional tile bridge accessories are needed
• Confirm the audio platform connection, since the digital interface is custom and proprietary

SmartRooms Qatar offers free site surveys to set microphone positions and cable runs before the install. Quotations usually arrive within one working day, and lead times are estimates confirmed with the quotation. We deliver to all 8 municipalities of Qatar, accept purchase orders and government tenders, and the product is covered by the manufacturer's warranty, which the data lists as 5 years. Request a quote for item number 920-00485-20000 and we will confirm the switch requirements and installation scope with you.
