Name: Biamp Parlé TTM-XEX White Beamtracking Tabletop Microphone
Brand: Biamp
SKU: biamp-parle-ttm-xex-920-00511-20000
Availability: InStock

Overview

The Biamp Parlé TTM-XEX white is an expansion tabletop microphone for conference rooms already running a Parlé TTM-X system. Its Beamtracking covers four 90-degree zones, each unit needs only one AEC channel, and a single CAT5 cable carries both signal and power. Microsoft Certified and TAA compliant, it suits boardrooms and government meeting rooms in Doha, Lusail and West Bay.

An expansion microphone for Parlé TTM-X conference rooms

The Biamp Parlé TTM-XEX in white is built to extend an existing Parlé TTM-X installation rather than replace it. It is a low-profile tabletop unit measuring 18 mm high and 110 mm in diameter, weighing 231 g, so it sits discreetly beside laptops, name cards and documents. Its 16-element digital microphone array picks up speech from around the table and sends it to a DSP host device for processing.

The manufacturer provides a 5-year warranty on this model. The white variant is also listed as Microsoft Certified and TAA compliant. TAA compliance is a requirement some procurement policies set, so check the listing against your tender specification before ordering.

How Beamtracking covers a conference table

Beamtracking divides the space around the microphone into four 90-degree zones, giving full 360-degree coverage of the table. Voices are followed and mixed automatically, so participants do not need to sit close to the device or speak towards it. There is no lobe aiming or room mapping to carry out before use.

Four 90-degree zones for complete round-table pickup
One AEC channel per microphone, keeping system configuration simpler
Single CAT5 cable carrying both signal and power over RJ-45

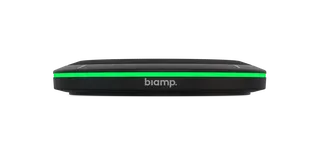

LED indicators showing mute status clearly during calls

Where it fits in Qatar

A mid-sized boardroom in a Lusail or West Bay office is a typical fit, especially where a long table seats more people than one microphone position can cover. A government ministry meeting room in Msheireb where Arabic and English speakers join the same call, or a training room in Education City hosting lecturers from abroad, can add units at the seating positions that need them.

What to plan before installation

The rated ambient operating range is 0 to 40 °C, with 0 to 95% relative humidity, non-condensing. Keep the unit in air-conditioned rooms away from sun-exposed windows, because outdoor temperatures in Qatar often exceed 45 °C in summer.
The maximum distance between the TTM-XEX and its DSP host device is 33 feet (10 metres), so plan the cable route and host location early.
The listed cable length is 6.6 feet (2 metres).
Optional accessories include the TTM-X-SM secure mounting bracket (Part# 910-00521) and a 16 mm table grommet with 7 mm inside diameter, available in white (Part# 920-00524-10000).

SmartRooms Qatar offers a free site survey before installation, so cable routes, table cut-outs and mounting positions can be checked on site. Request a quote and we will confirm the item number, accessories and installation plan against your room layout. Quotations are usually issued within one working day.

Highlights

Four 90-degree zones for full round-table pickup
Single CAT5 cable carries signal and power
One AEC channel required per microphone
RJ-45 connection supports additional TTM-XEX units
Microsoft Certified and TAA compliant
5-year manufacturer warranty

Room fit

Tell us the room size and platform (Teams, Zoom or BYOD) and we confirm the right combination with your quotation.

Estimated timeline

Quotation within 1 working day · delivery timing depends on stock availability, and we confirm it with your quotation.

Specifications

16 specifications · Source: manufacturer · checked Oct 2026

GENERAL4

Height: 0.7 inches (18 mm)
Diameter: 4.3 inches (110 mm)
Weight: 0.5 lbs (231 g)
Optional Accessories: TTM-X-SM Secure mounting bracket for TTM-X/-XEX: Part# 910-00521 16mm Grommet Table grommet, 7mm ID: Black (Part# 920-00524-20000) or White (Part# 920-00524-10000)

POWER1

Power: Power: Custom/Proprietary Max Distance Between Devices: 33 feet (10 meters) between TTM-XEX and DSP host device

CERTIFIED SOLUTIONS2

TAA Compliant: TAA Compliant
Certified Solutions: TAA Compliant

ENVIRONMENTAL3

Ambient Operating Temperature Range: 32 - 104° F (0 - 40° C)
Humidity: 0-95% relative humidity (non-condensing)
Altitude: 0-10,000 ft (0-3000m) MSL

AUDIO6

Audio: Polar Pattern: Beamformed Sensitivity (94dB SPL, 1kHz): > 74dB Digital Interface: Custom/Proprietary Connector: RJ-45 (cable length 6.6 feet [2 meters])
Microphone: Microphone Technology: 16-Element Digital Array
Input Type: RJ-45 (cable length 6.6 feet [2 meters])
Frequency Response: (150 Hz - 16 kHz): ± 3dB
Dynamic Range: (THD+N < 10%): 90dB, A-Weighted
SPL: Maximum SPL (at 0.5% THD): 109dB

Downloads

4 files from the manufacturer

PDF Datasheets Biamp_Data_Sheet_Parle_Tesira_Accessories_Mar25_v1.pdf 326 KB PDF Datasheets biamp_data_sheet_parle_ttm-xex_jul22.pdf 322 KB PDF Manuals & guides biamp_manual_parle_ttm-x_install_oct25.pdf 693 KB RFA Drawings & CAD · Opens on manufacturer site parle_biamp_revit_ttm-xex-tabletop-microphone_june23_4475.rfa

Questions about Parlé TTM-XEX

Which type of meeting room in Qatar suits the Parlé TTM-XEX white?

A mid-sized boardroom where one microphone position cannot reach every seat is a strong fit, such as an office in Lusail or West Bay with a long table. The four 90-degree zones capture speakers on both sides, and the white finish suits light-toned furniture. Because it is an expansion unit, it works best added to an existing Parlé TTM-X system, which SmartRooms Qatar can confirm during a free site survey.

Can the TTM-XEX white be used without an existing Parlé TTM-X system?

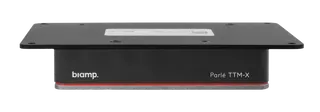

The manufacturer describes the TTM-XEX as an expansion microphone for the Parlé TTM-X system, so it is designed to join an existing setup. Audio is processed by a DSP host device within the included network box, and the microphone connects over RJ-45. If you are starting from scratch, ask SmartRooms Qatar to confirm the complete configuration in your quotation before ordering.

How does Beamtracking pick up people speaking at different points on the table?

Beamtracking follows voices across four 90-degree zones, giving 360-degree coverage of the table, and mixes active speakers automatically. Participants do not need to sit close to the microphone. No lobe aiming or room mapping is required, so the room can be used as soon as the system is installed. The listed sensitivity is above 74 dB at 94 dB SPL, 1 kHz.

How is the microphone wired, and how many units can one system support?

Each TTM-XEX connects with a single CAT5 cable using RJ-45, which carries both signal and power. The listed cable length is 6.6 feet (2 metres), and the maximum distance between the microphone and its DSP host device is 33 feet (10 metres). Each microphone uses one AEC channel, and the RJ-45 connection supports additional TTM-XEX units. Confirm the channel count your DSP host provides with the SmartRooms Qatar team.

Is it suitable for a ministry boardroom in Msheireb where Arabic and English speakers share one call?

The product data does not list specific language support, so we do not claim it. What it provides is full-table pickup from a 16-element digital array, wherever a speaker sits. A long ministry table with chairs spread along both sides is a good scenario. Before ordering, confirm the rest of the conferencing chain, such as the codec and room software, with SmartRooms Qatar.

Could a training room in Education City use this microphone with remote lecturers?

It suits a training room where a lecturer joins from abroad. The unit captures local speakers from four 90-degree zones and mixes them automatically, and its LED indicators show mute status during a session. The manufacturer lists this white model as Microsoft Certified, which helps if your sessions run on Microsoft Teams. Plan the cable route to the DSP host within the 10-metre limit.

Can it be installed in a meeting room with a west-facing window in Doha during summer?

The rated ambient operating range is 0 to 40 °C (32 to 104 °F), with 0 to 95% relative humidity, non-condensing. Summer temperatures in Doha regularly exceed 45 °C, so the room must be air-conditioned and the microphone should not sit in direct sunlight or near heat-producing equipment. Check the room cooling and sun exposure during the free site survey before installation.

Will the unit take up much space on a hotel meeting table at The Pearl?

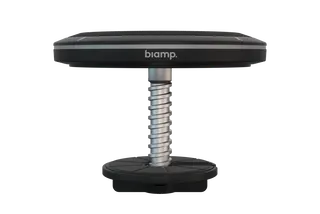

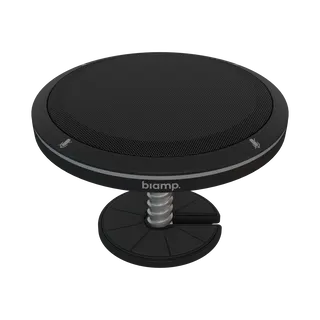

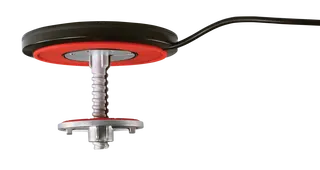

No. It measures 18 mm high and 110 mm in diameter and weighs 231 g (0.5 lb), so it is a compact, low-profile tabletop unit. Measure the table and decide where the cable will exit before ordering. A 16 mm grommet with 7 mm inside diameter can be fitted to a table hole, and the optional TTM-X-SM bracket provides a secure mounting option.

What mounting accessories are available for the TTM-XEX white?

The optional accessories are the TTM-X-SM secure mounting bracket (Part# 910-00521) and a 16 mm table grommet with 7 mm inside diameter. The grommet is available in white as Part# 920-00524-10000, and in black as Part# 920-00524-20000. Choose the bracket if the unit must be fixed firmly, and the grommet if the table needs a neat cable opening. Include the accessories in your request so the quotation matches your table design.

Is the TTM-XEX white Microsoft Certified and TAA compliant?

The manufacturer data lists this white model, item 920-00511-20000, as Microsoft Certified under Microsoft Teams, and as TAA compliant under the US Trade Agreement Act. TAA compliance matters to buyers who must meet a specific procurement rule, so compare the listing with your tender requirements. The black variant is listed as TAA compliant only, so the Microsoft certification detail applies to the white model.

What is the difference between the white and black TTM-XEX?

The published specifications for the white (920-00511-20000) and black (920-00511-10000) models are the same, including the 18 mm height, 110 mm diameter, 231 g weight and 0 to 40 °C operating range. The main differences are the finish and certification listing, as the white model is listed as Microsoft Certified. Choose the colour that matches your table and wall finish, and request a quote for the item number you need.

Can we order through an LPO or a government tender such as Monaqasat?

Yes. SmartRooms Qatar accepts purchase orders (LPOs) and government tenders, including Monaqasat, and payment can be made by bank transfer, cheque or purchase order. Quotations are usually issued within one working day. When preparing the purchase request, include item number 920-00511-20000 and any accessories such as the TTM-X-SM bracket, so the quotation matches your requirement exactly.
