Parlé TTM-XEX

What the Parlé TTM-XEX Black does in a meeting room

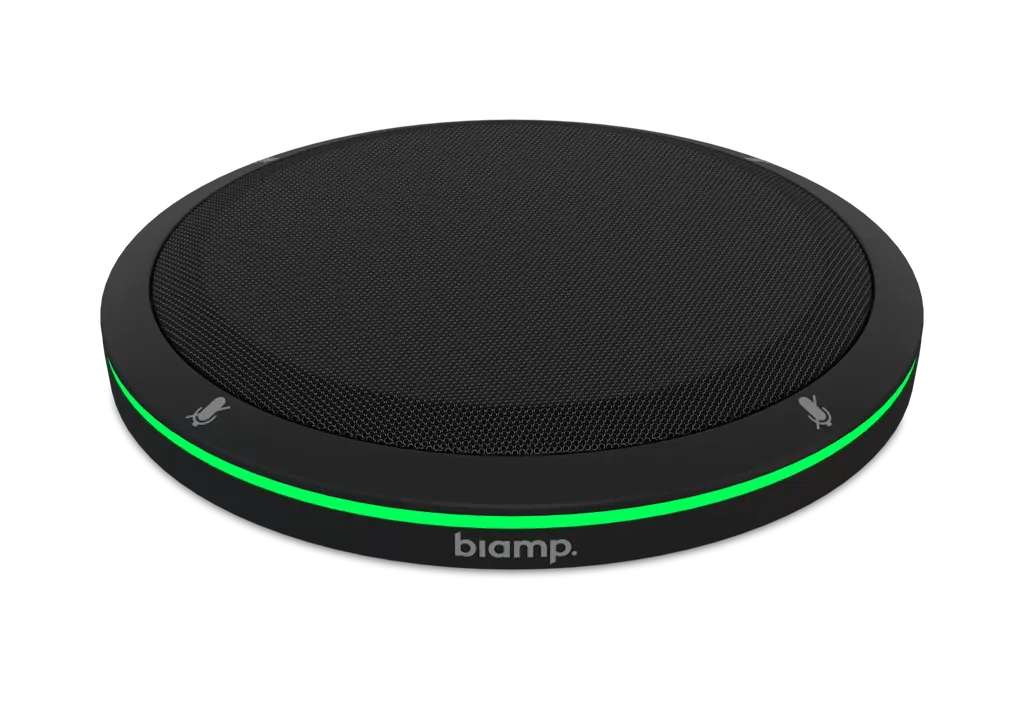

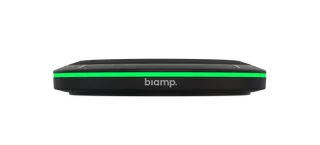

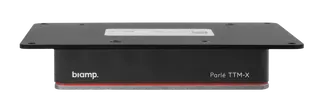

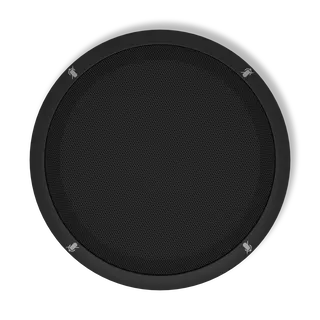

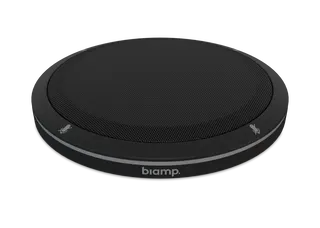

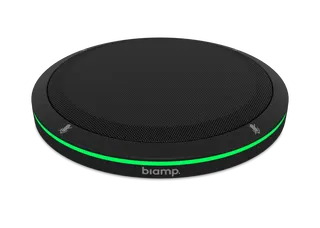

The Biamp Parlé TTM-XEX is an expansion tabletop microphone for the Parlé TTM-X conferencing system. This black version (item 920-00511-10000) uses a 16-element digital array and Beamtracking processing that picks up speakers wherever they sit around the table. The audio processing runs in the included network box, while the microphone itself stands 18 mm high, measures 110 mm across and weighs 231 g, a low-profile unit that suits most conference tables.

Coverage is split into four 90-degree zones that together cover the full 360 degrees around the microphone. Each unit uses one AEC channel, so the channel count stays predictable as you add microphones to a larger room.

Specifications that matter for planning

• Sensitivity: greater than 74 dB at 94 dB SPL, 1 kHz
• Frequency response: 150 Hz to 16 kHz, ±3 dB
• Dynamic range: 90 dB, A-weighted, at THD+N below 10%
• Maximum SPL: 109 dB at 0.5% THD

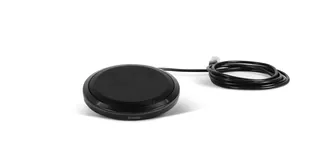

• Connection: RJ-45 with a 6.6 ft (2 m) cable, up to 33 ft (10 m) between the TTM-XEX and the DSP host
• Operating environment: 32 to 104°F (0 to 40°C), 0 to 95% relative humidity non-condensing, up to 10,000 ft (3,000 m)

Installation and where it fits in Qatar

Because a single CAT5 cable carries both signal and power, installation is simpler than running a separate power cable to the table. Plan the cable route from the table to the network box before the table is fixed in place, and keep the 33 ft (10 m) limit between the microphone and the DSP host in mind.

Three situations show where it fits. In a government boardroom in Msheireb, where the chair sits at the centre and officials sit along both sides, microphone pickup from every seat keeps the discussion audible without passing a handheld device around. In a lecture or seminar room in Education City, lecturers and students at the far end of the table need clear sound during video calls with colleagues abroad. In a corporate meeting room in Lusail that connects to teams overseas, a second unit can extend coverage to a longer table without rebuilding the whole system.

Environment, compliance and accessories

The operating range is 0 to 40°C. Summer temperatures in Qatar regularly pass 45°C, so use this microphone only in air-conditioned meeting rooms and avoid tables that receive direct sun through windows. Confirm the room's cooling and layout during the free site survey before the table is fixed in place.

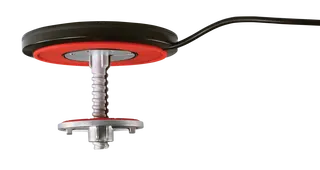

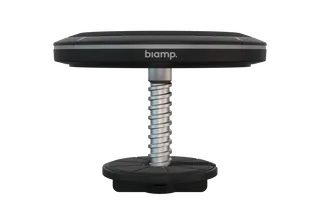

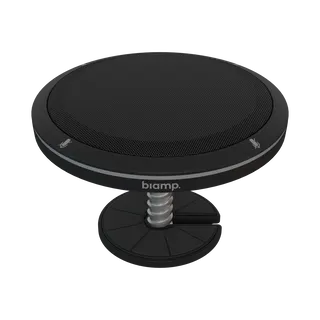

The model is TAA compliant, which matters for government and public-sector purchases that require it. Optional accessories include the TTM-X-SM secure mounting bracket (part 910-00521) and a 16 mm table grommet with a 7 mm inside diameter in black (part 920-00524-20000) to match this model. The manufacturer backs the TTM-XEX with a 5-year warranty.

Request a quotation

Send SmartRooms Qatar the room dimensions, table layout and number of microphones you need, and our team will prepare a quotation, usually within one working day. We deliver to all 8 municipalities of Qatar, install professionally and can support purchase orders (LPOs) and government tenders. Request a quote for the Parlé TTM-XEX Black today.
