Tesira HD-1

What the Tesira HD-1 controls inside a Tesira system

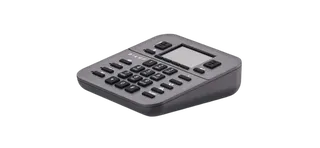

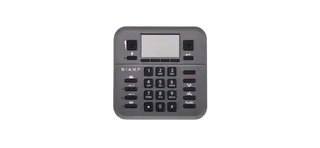

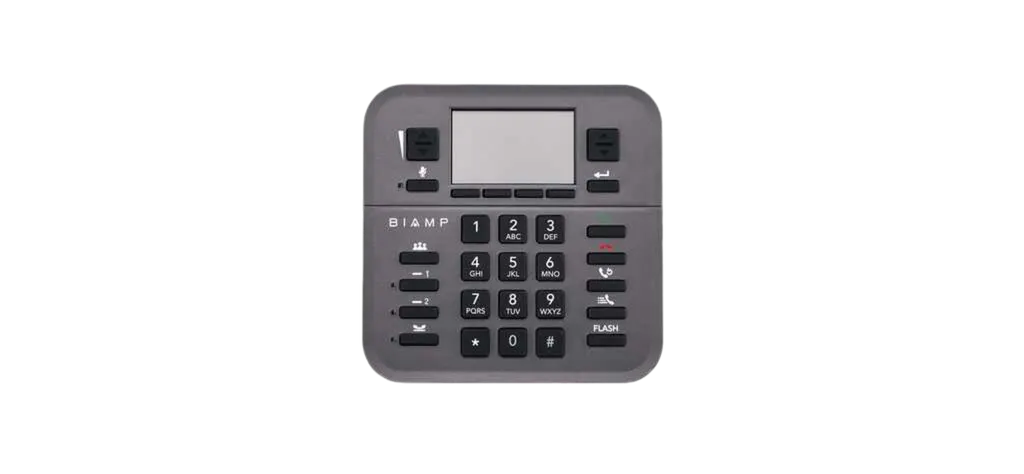

The Biamp Tesira HD-1 is a hardware dialer for Tesira audio DSPs. It puts a conventional 12-key dial pad in front of the user, supported by 13 dedicated buttons and four context (soft) buttons. Users can dial, redial, adjust call volume, mute and hold, and the familiar layout keeps the learning curve short for anyone used to a desk phone.

The 2.7-inch LCD gives call and control feedback on the device itself. Up to 100 speed dial numbers can be stored, and each entry can be edited on the phone or in Tesira Design Software. The HD-1 also passes privacy mute status to other devices in the system, so the mute state stays consistent across connected equipment.

Power and cabling for a single-cable installation

The HD-1 is powered over Ethernet under IEEE 802.3at Class 1, drawing 4 watts, so one RJ-45 connection carries both control data and power. It accepts CAT5, CAT5e, CAT6 or CAT7 cable, and the data and control cable can run up to 330 ft (100 m). Check that the switch port or PoE injector you plan to use meets 802.3at Class 1 before installation. The unit also includes an internal universal power supply.

Cable planning matters most in new builds. Agree the dialer position and cable route with your installer early, so that conduits and ceiling voids are sized correctly. SmartRooms Qatar offers a free site survey before work begins.

Where the HD-1 fits in Qatar

A government ministry in West Bay refitting a boardroom can place an HD-1 at the chair position, giving the chair direct control of calls and audio without a separate tablet. A private school in Al Rayyan equipping a lecture theatre can install dialers at the lectern and the teachers' desk, with the four soft buttons set to the functions staff use most. An energy company in Lusail running a meeting suite that connects to colleagues abroad can store regular contacts as speed dials, so staff reach them quickly.

Environment, certifications and compatibility

The HD-1 is rated for 0 to 40°C (32 to 104°F), 0 to 95% relative humidity non-condensing, and altitudes up to 3,000 m. Summer temperatures in Qatar often pass 45°C, so install the unit in air-conditioned rooms rather than unventilated joinery, outdoor kiosks or spots that receive direct sun through windows.

It works with Tesira SERVER and SERVER-IO when STC-2 or SVC-2 cards are installed, and with all models of TesiraFORTÉ VT, TesiraFORTÉ VT4 and TesiraFORTÉ X. The manufacturer lists FCC Part 15B, UL and C-UL, RCM, EAC, RoHS and KCC certifications, and the unit is TAA compliant. The CE marking applies when the PoE insertion device is also CE marked.

Planning your quote request

The HD-1 measures 40 mm high and 145 mm wide and deep, and weighs 0.4 kg, so it needs little space at a desk or lectern. The manufacturer lists a 5-year warranty. When you request a quote, send the Tesira DSP model, the number of dialer positions and the room layout. SmartRooms Qatar usually returns a quotation within one working day, delivers to all eight municipalities of Qatar, and can arrange professional installation. LPOs and government tenders are welcome, so request a quote for your project today.
