TesiraCONNECT TC-5
Biamp TesiraCONNECT TC-5 5-Port PoE+ Conferencing Expander
- Platforms
- TAA Compliant
Priceon request
QuotationWithin 1 working day
DeliveryConfirmed with your quote, based on stock
Overview
The Biamp TesiraCONNECT TC-5 is a 5-port Gigabit expansion device that connects Tesira DSPs, USB extenders, PoE+ amplifiers and microphones over a single cable run. Four ports deliver PoE+ at 30 W each, and it works with Tesira products without device configuration. Designed for conference rooms in Doha's offices, universities and government buildings, it removes the need for a third-party switch. Request a quote for your Qatar project.
What the TesiraCONNECT TC-5 does in a conference room
The TesiraCONNECT TC-5 is a compact 5-port Gigabit expander that brings Biamp conferencing hardware onto one connection point. Rather than running separate power and data links to every device, it carries power and media over a single category cable to endpoints such as Tesira AVB DSPs, USB extenders, PoE+ amplifiers and microphones. Because it works with Tesira products out of the box, it removes the need for a third-party switch in the room.
Port layout, power and capacity

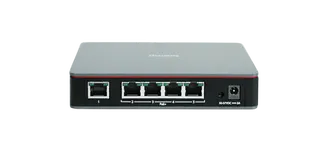

Four of the five RJ-45 ports supply PoE+ under IEEE 802.3at Class 4, at 30 W per port, within a total PoE power budget of 120 W. The fifth port connects to a Tesira DSP or links to another TC-5 in a daisy chain. Ports run at 100 Mbps or 1 Gbps. Up to four TC-5 units can be daisy-chained, and the specification allows up to 13 supported endpoints and 150 AVB streams, so planners can size a room before ordering.
Where it fits in Qatar
- Boardroom in West Bay or Lusail: the expander sits in a credenza or above a suspended ceiling, so ceiling microphones and an amplifier can be powered from one cable run without visible switches.
- Government ministry meeting room in Doha: an AV integrator upgrading an existing Tesira audio system can add the TC-5 to provide power and media to new endpoints in the same room.
- Hybrid teaching room in Education City: USB extenders and microphones keep a session connected with colleagues abroad, while the front-panel LEDs help the IT team spot a faulty port quickly.
Installation and environmental planning
The unit measures 28 mm high, 147 mm wide and 147 mm deep, and weighs 0.7 kg, so it can be wall-mounted, placed under a table, or fitted above a ceiling or inside a credenza. Its ambient operating range is 0 to 40 °C (32 to 104 °F), with 0 to 95% non-condensing humidity and altitudes up to 2,000 m. It cools by convection, draws less than 132 W, and runs from an external universal power supply on 100 to 240 VAC, 50/60 Hz. Qatar's summer heat can push enclosed ceiling voids above 40 °C, so measure the temperature of any concealed space during the free site survey before choosing a location.
Certifications, monitoring and ordering
The TC-5 is FCC Part 15B, UL and C-UL listed, CE marked and RoHS compliant, and it is TAA compliant. Front-panel indicators show power, device status, faults and the status of each port, while rear-panel link and activity lights for each port help with cable checks. Fault reporting and device monitoring are supported in SageVue. The manufacturer warranty is five years. Two item numbers are listed, 920-00039-00001 and 920-00039-00002, so confirm the correct one with your quotation. SmartRooms Qatar delivers to all eight municipalities, provides professional installation and free site surveys, and accepts LPOs and Monaqasat tender purchases. Quotations usually come within one working day. Request a quote for your TesiraCONNECT TC-5 project today.
Highlights
- Five Gigabit RJ-45 ports running at 100 Mbps or 1 Gbps
- Four PoE+ ports at 30 W each, IEEE 802.3at Class 4
- 120 W total PoE power budget across the unit
- Daisy-chain up to four TC-5 units together
- Supports up to 13 endpoints and 150 AVB streams
- TAA compliant; FCC, UL and C-UL, CE and RoHS listed
- Five-year manufacturer warranty
Room fit
Tell us the room size and platform (Teams, Zoom or BYOD) and we confirm the right combination with your quotation.
Estimated timeline
Quotation within 1 working day · delivery timing depends on stock availability, and we confirm it with your quotation.
Specifications
15 specifications · Source: manufacturer · checked Oct 2026
GENERAL4
- Height
- 1.1 inches (28 mm)
- Width
- 5.8 inches (147 mm)
- Depth
- 5.8 inches (147 mm)
- Weight
- 1.5 lbs (0.7 kg)
POWER2
- Power Consumption
- (100-240VAC 50/60Hz): < 132W
- Cooling
- Convection
NOTES1
- Specification Notes
- Maximum Number of AVB Streams: 150 Maximum Daisy Chain Device Count: 4 Maximum Number of Supported Endpoints: 13
NETWORK1
- Network Connection(s)
- Number of Ports: 5 Power and media over a single category cable between devices Connector Type: RJ-45 Supported Connection Speeds: 100Mbps, 1Gbps Number of PoE+ Powered Ports (IEEE 802.3at Class 4, 30W): 4 Supported IEEE Protocols: 802.1, 802.1at, 802.1w, 802.1AS, 802.1BA, 802.1Qav, 802.3ab, 802.3af, 803.3u Total PoE Power Budget: 120W
CONTROLS & INDICATORS1
- Control

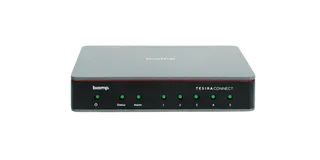

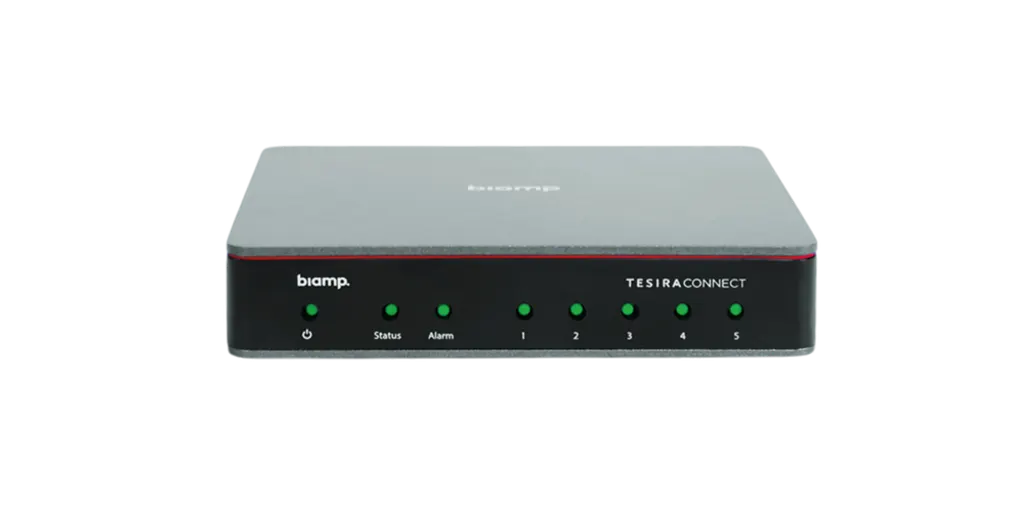

- Indicators: Front Panel: Power, Device Status, Fault, Port Status (per port) Rear Panel (per port): Link, Activity
CERTIFIED SOLUTIONS2
- TAA Compliant
- TAA Compliant
- Certified Solutions
- TAA Compliant
COMPLIANCE1
- Certifications
- FCC Part 15B (USA) UL and C-UL listed (USA and Canada) CE Marked (Europe) RoHS Directive (Europe) Evaluated to the requirements of UL 2043 and is suitable for use in air handling spaces
ENVIRONMENTAL3
- Ambient Operating Temperature Range
- 32-104° F (0–40° C)
- Humidity
- 0–95%, non-condensing
- Altitude
- 0-6,600 feet (0–2000 Meters) MSL
Downloads
8 files from the manufacturer
PDF
Biamp TesiraCONNECT TC-5 datasheets (PDF, 326 KB)
PDF
Biamp TesiraCONNECT TC-5 datasheets (PDF, 185 KB)
PDF
Biamp TesiraCONNECT TC-5 manuals & guides (PDF, 1.5 MB)
PDF
Biamp TesiraCONNECT TC-5 manuals & guides (PDF, 55 KB)
PDF
Biamp TesiraCONNECT TC-5 manuals & guides (PDF, 2.0 MB)
PDF
Biamp TesiraCONNECT TC-5 brochures (PDF, 35.2 MB)
RFA
Biamp TesiraCONNECT TC-5 drawings & cad (RFA)
TFA2
Biamp TesiraCONNECT TC-5 software & firmware (TFA2)
Questions about TesiraCONNECT TC-5
What is the TesiraCONNECT TC-5 used for?
The TesiraCONNECT TC-5 is a 5-port expansion device that acts as the hub joining Biamp devices in a meeting room. Four of its ports send PoE+ power to endpoints such as microphones and PoE+ amplifiers, while the fifth connects to a Tesira DSP or another TC-5. Power and media travel over one category cable, which keeps conference room cabling simpler for installers in Doha and beyond.
Do I need a separate network switch with it?
No. The TC-5 removes the need for a third-party switch in Tesira conference installations. It works out of the box with Tesira products and does not require any device configuration, so installers can connect endpoints and power them from one unit. Confirm your full device list when you request a quote so the port count matches the room layout.
How many ports provide PoE+ and how much power do they deliver?
Four of the five Gigabit RJ-45 ports provide PoE+ under IEEE 802.3at Class 4, rated at 30 W per port. The total PoE power budget is 120 W across the unit. The fifth port links to a Tesira DSP or to another TC-5. Ports support 100 Mbps and 1 Gbps, so check the combined load of your endpoints against the 120 W budget before ordering.
Can several TC-5 units be chained in a large boardroom?
Yes, up to four TC-5 units can be daisy-chained, and the specification allows up to 13 supported endpoints and 150 AVB streams. A boardroom in Lusail with ceiling microphones, two amplifiers and USB extenders may need more than one unit, so map each device before choosing the item number. A free site survey helps confirm cable routes.
Will it run on Qatar's 240 V mains supply?
The TC-5 is rated for 100 to 240 VAC at 50/60 Hz and uses an external universal power supply. Qatar's 240 V, 50 Hz supply falls within that range. Power consumption is below 132 W. Your installer should confirm the supply connection with you when the quotation is prepared.
Can it sit above a suspended ceiling or inside a credenza in Qatar?
It can be placed above a ceiling or inside a credenza, but its ambient operating range is 0 to 40 °C (32 to 104 °F). It cools by convection and is evaluated to UL 2043 for use in air handling spaces. Because Qatar's summer heat can push enclosed spaces above 40 °C, measure the temperature of the chosen void and check ventilation during the free site survey.
How do the indicators help with troubleshooting?
Front-panel indicators show power, device status, faults and the status of each port. Rear-panel link and activity lights for each port show whether a cable is connected and active. Fault reporting and device monitoring are supported in SageVue, which helps IT teams track issues. Keep a port map with your installation drawings to speed up fault finding later.
Is it TAA compliant and which certifications does it carry?
Yes, the TC-5 is TAA compliant, which matters for organisations whose procurement rules reference the US Trade Agreements Act. It also carries FCC Part 15B, UL and C-UL listings, CE marking and RoHS compliance. List these certifications in your tender submission when a government or university project requires them.
Which item number should I order: 920-00039-00001 or 920-00039-00002?
The source data lists both item numbers under the TesiraCONNECT TC-5 name with the same published specifications. Confirm the item number your project needs when you request a quote. Share your room layout and device list so the quotation matches the actual installation.
How long is the warranty on the TC-5?
The manufacturer warranty for the TC-5 is five years. Keep the item number, purchase order and invoice together so any warranty claim can be matched quickly to the installed unit. Mention the intended installation area in your request so the correct item is confirmed in the quotation.
How do I buy it for a government ministry or school in Qatar?
SmartRooms Qatar delivers to all eight municipalities and accepts purchase orders (LPOs) as well as Monaqasat tender purchases. Payment can be made by bank transfer, cheque or purchase order. Quotations usually come within one working day. Send your device list and room dimensions so the free site survey can confirm cable routes before the order is placed.
How does it support a hybrid meeting between Doha and teams abroad?
In a boardroom in Msheireb, for example, the TC-5 powers ceiling microphones and amplifiers from a single cable so remote participants hear speech clearly. USB extenders connected through the unit can link the room's conferencing peripherals to the computer. Hybrid meetings run best when cable routes are checked during the site survey before installation.
