TesiraCONNECT TC-5

What the TesiraCONNECT TC-5 does in a conference room

The TesiraCONNECT TC-5 is a five-port Gigabit expansion unit for Biamp Tesira conferencing systems. It carries power and media to the devices around the table, including Tesira AVB DSPs, USB extenders, PoE+ amplifiers and microphones, so each device can share a single category cable back to the unit instead of needing its own supply and network link. In a room with several Biamp devices, that reduces the cabling a technician has to pull and terminate.

The unit also removes the need for a third-party network switch in the room. According to the manufacturer data, it works with Tesira products without any device configuration, which keeps the setup straightforward for an integrator.

Ports, power budget and connections that matter

Of the five RJ-45 ports, four supply PoE+ under IEEE 802.3at Class 4, rated at 30 W per port, with a combined PoE budget of 120 W. That budget is the figure to check before you commit. Four full-power endpoints at 30 W each would consume the entire allocation, so plan the load on each port rather than assuming every port can run at maximum.

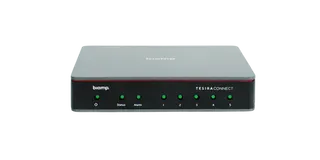

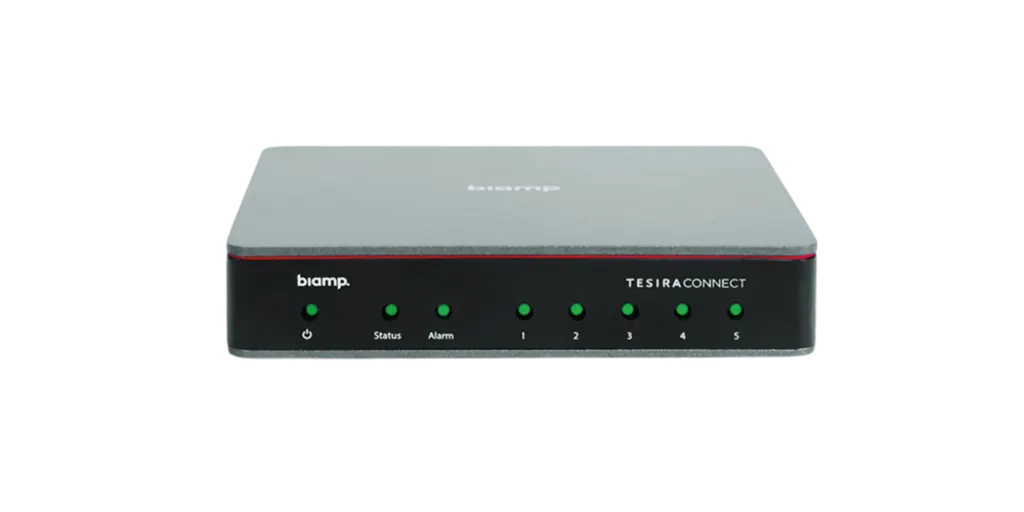

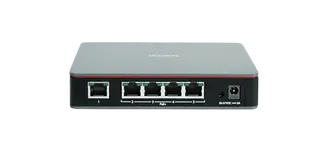

The fifth port is used to connect a DSP or to daisy-chain another TC-5. Up to four units can be chained together, and the system is specified for 150 AVB streams and 13 supported endpoints. All five ports run at 100 Mbps or 1 Gbps. Front-panel LEDs show power, device status, faults and per-port status, while rear-panel LEDs show link and activity on every port.

Installation and environment planning

• Dimensions: 28 mm high, 147 mm wide and 147 mm deep, weighing 0.7 kg.
• Mounting options include a wall, under a table, above a ceiling or inside a credenza.
• Power: 100-240 VAC at 50/60 Hz, drawing less than 132 W through an external universal power supply. This rating covers Qatar's 240 V, 50 Hz mains.
• Cooling is by convection, so the unit has no fan.
• Ambient operating range 0 to 40°C (32 to 104°F), humidity 0 to 95% non-condensing, altitude up to 2,000 m.
• Evaluated to UL 2043 and suitable for use in air handling spaces.

Qatar summer temperatures regularly exceed 45°C, while the rated ambient range stops at 40°C. If the TC-5 goes above a ceiling or into a credenza, confirm that the space is air-conditioned and that heat can escape before you finalise the layout.

Where it fits in Qatar

• A government ministry in Doha upgrading a boardroom, where routing the unit inside a credenza keeps the table clear of equipment.
• Seminar and lecture rooms at a university in Education City, where several rooms share the same Tesira layout and cabling method.
• Meeting rooms in a hotel in West Bay or The Pearl, where the TC-5 sits above the ceiling and PoE+ powers the connected endpoints.

Ordering and planning with SmartRooms Qatar

Two item numbers exist for this model, 920-00039-00001 and 920-00039-00002. The manufacturer data lists identical specifications for both, so state the item number your project needs when requesting a quote. Send us the room layout, the Tesira devices you plan to connect and the intended mounting position, and our team can check the port and PoE budget before quoting. We offer free site surveys, professional installation and delivery to all eight municipalities of Qatar, with quotations usually within one working day. We accept purchase orders, LPOs and government tenders, with payment by bank transfer, cheque or purchase order. The unit carries the manufacturer's 5-year warranty. Request a quote for the TesiraCONNECT TC-5 today.
