DS-D5F10CB/BH
Hikvision DS-D5F10CB/BH 10-inch Scheduling Panel
- Microphones
- Include
- Speakers
- 8 Ω，2 W × 2
- Connectivity
- Micro USB OTG × 1;USB 3.0 × 1
Priceon request
QuotationWithin 1 working day
DeliveryConfirmed with your quote, based on stock
Overview
The DS-D5F10CB/BH is a wall-mounted 10.1-inch scheduling panel that shows room bookings on a 1280 × 800 touchscreen beside a meeting room door. It identifies attendees by face or NFC card, reports sign-ins to the meeting platform and can release an electromagnetic lock through its access control interface. It is powered over Ethernet or by adapter, and suits corporate boardrooms, government meeting suites and shared rooms in Doha, West Bay and Lusail.
A meeting room door panel that shows bookings and checks people in
The Hikvision DS-D5F10CB/BH is a 10.1-inch wall-mounted scheduling panel for the outside of a meeting room. Its display shows the meeting topic, room name, host and start and end times, and updates as the meeting status changes. Staff can see from the corridor whether a room is free, and attendees sign in at the door without involving reception.
Sign-in, door control and the booking platform
Attendees can be identified by face recognition or by tapping a card on the NFC reader, which supports 13.56 MHz cards in ISO14443A, ISO14443B, ISO15693, Mifare Classic and Sony FeliCa formats. A successful sign-in is reported to the Hispire SMM meeting management platform. The access control linkage interface sends an electric signal that can drive an electromagnetic lock, so the door releases only for verified participants. The panel also supports Active Directory domain functions and connects to an Exchange server, which helps when room calendars and staff accounts are already managed in a corporate directory and mail system.
Key specifications to plan around
- Display: 10.1-inch panel, 1280 × 800 resolution, 250 cd/m² brightness, 170° horizontal and vertical viewing angle, 10-point touch.
- Processing: 4-core ARM Cortex-A55, 2 GB memory, 16 GB built-in storage, Android 11.0.
- Audio and camera: two 2 W loudspeakers rated 8 Ω, a microphone, a 2 MP WDR camera and a 3.5 mm audio port.
- Network and power: 1000 M RJ45 LAN with PoE (IEEE802.3at, class 4, 25.5 W), or a 12 VDC 1.5 A adapter; 18 W power consumption; Bluetooth 4.1.

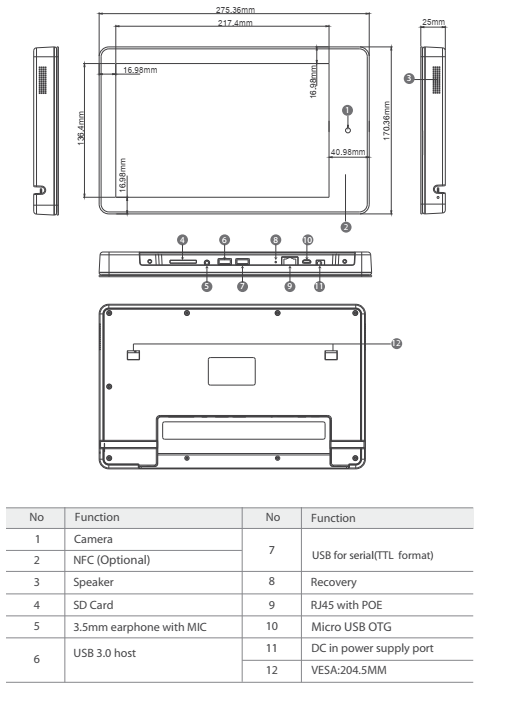

- Physical: 275 × 170 × 25 mm, 1.5 kg net, wall mounting.
Where it fits in Qatar
In Msheireb, a government authority fitting out a floor of meeting rooms can place one panel beside each door, so staff and visitors see bookings and sign in consistently across the floor. In Education City, a university training centre can use card or face sign-in for reserved seminar rooms and keep a record of who attended. In West Bay or The Pearl, a private company can protect a boardroom behind a locked door, with the lock released only after sign-in succeeds.
Environment matters here. The panel is rated for 0 °C to 40 °C operation and 0% to 95% humidity, so it belongs indoors in air-conditioned space. Avoid a hot entrance lobby, a wall that receives direct afternoon sun through glass, or a corridor that loses cooling after hours. Qatar summers regularly exceed 45 °C, so confirm the mounting position before fixing the bracket.
Planning the installation
Before mounting, check the wall position relative to the door, the route for an Ethernet cable if you use PoE or a socket and cable route for the 12 VDC adapter, and the wiring from the access control linkage to the lock. SmartRooms Qatar offers free site surveys, which is useful when several doors need consistent placement. Organisations buying several panels through an LPO or a government tender can request one quotation covering all rooms, with delivery to all eight municipalities of Qatar.
To request a quote for the DS-D5F10CB/BH, send your room count, door lock type and network arrangement to SmartRooms Qatar. Quotations are usually issued within one working day.
Highlights
- 10.1-inch display with 1280 × 800 resolution and 250 cd/m² brightness
- Face recognition and NFC card sign-in at the meeting room door
- Access control linkage for electromagnetic door locks
- PoE (IEEE802.3at, 25.5 W) or 12 VDC 1.5 A adapter power
- 4-core processor, 2 GB memory, 16 GB storage, Android 11.0
- Indoor use only, rated 0 °C to 40 °C operating range
Room fit
Tell us the room size and platform (Teams, Zoom or BYOD) and we confirm the right combination with your quotation.
Estimated timeline
Quotation within 1 working day · delivery timing depends on stock availability, and we confirm it with your quotation.
Specifications
29 specifications · Source: manufacturer · checked Oct 2026
Product Model1
- Product Model
- DS-D5F10CB/BH
Display4
- Screen Size
- 10.1 inch
- Brightness
- 250 cd/m²
- Viewing Angle
- 170°(H)/170°(V)
- Physical Resolution
- 1280 × 800
Touch1
- Touch point
- 10
Built-in System7
- Processor
- 4 cores ARM Cortex-A55
- Memory
- 2 GB
- Built-in storage
- 16 GB
- Operation System
- Android 11.0
- Camera
- 2 MP WDR Camera
- Card Reader
- NFC,13.56MHz, (ISO14443A/ISO14443B/ISO 15693/Mifare classic/Sony felica）
- Mic Function
- Include
General8
- Power
- 12 VDC, 1.5 A
- Product Dimensions
- 275*170*25mm
- Mounting Type
- Wall mounting
- Power Consumption
- 18 W
- Net Weight
- 1.5 kg
- Package Dimensions
- 390*220*68mm
- Gross Weight
- 3.7 kg
- Packing List
- Power adapter × 1, Access control linkage line × 1, Quick start guide × 1, Screw kit × 1, Micro USB Cable× 1, Compliance Manual× 1
Internal Function1
- Loudspeaker
- 8 Ω，2 W × 2
Interface4
- Data transmission interface
- Micro USB OTG × 1;USB 3.0 × 1 Access control linkage interface × 1; 3.5mm Audio × 1
- Network interface
- RJ45, 1000 M LAN (IEEE802.3at，PoE 56-57V，class 4，25.5W)
- Bluetooth
- BT4.1
- Indicator
- LED
Working Environment3
- Operation Humidity
- 0%~95%
- Storage Temperature
- -40 ℃~85 ℃
- Opration Temperature
- 0 ℃~40 ℃
Downloads
3 files from the manufacturerQuestions about DS-D5F10CB/BH
What is the DS-D5F10CB/BH used for?
It is a wall-mounted scheduling panel for the outside of a meeting room. The 10.1-inch screen shows the meeting topic, room information, host and times, so people in the corridor can see whether a room is free. Attendees sign in on the panel with a face scan or NFC card, which records attendance for the meeting platform. It suits offices, government suites and campus rooms that need a booking display and controlled sign-in.
Can the panel open a door?
Yes. Its access control linkage interface sends an electric signal after a successful sign-in, which can drive an electromagnetic lock, so the door releases only for participants the panel has verified. Before ordering, ask SmartRooms Qatar to explain the wiring details in your quotation so your installer can match the lock to the linkage line supplied in the box.
Which cards does the NFC reader accept?
The reader works at 13.56 MHz and supports ISO14443A, ISO14443B, ISO15693, Mifare Classic and Sony FeliCa cards. If your organisation already issues cards in one of these formats, check compatibility before buying. Ask SmartRooms Qatar to confirm your card format on the quotation, particularly for government or university ID cards that may use a different technology.
Does it need a separate power supply?
Not necessarily. It can be powered over Ethernet using IEEE802.3at class 4, with up to 25.5 W at the RJ45 port, or from the 12 VDC 1.5 A adapter supplied in the box. Its rated power consumption is 18 W. If the wall position is far from a network switch, the adapter route may be simpler. A site survey will show which option the room layout supports.
Does it work with Active Directory and Exchange?
The manufacturer data states that it supports Active Directory domain functions and access to an Exchange server. This allows an IT team to connect room calendars and staff accounts already held in a corporate directory and mail system. Confirm the exact integration steps, the Exchange version and your Active Directory setup with SmartRooms Qatar before ordering, since integration depends on your environment.
Can it be installed outdoors or in a hot entrance?
No. The operating temperature range is 0 °C to 40 °C with 0% to 95% humidity, so the panel is for indoor, air-conditioned spaces. In Qatar, where summer temperatures can exceed 45 °C, avoid entrance lobbies that may lose air conditioning, outdoor walls and sunlit glass areas. The storage range is wider at -40 °C to 85 °C, but that applies to storage, not operation.
Is it suitable for a boardroom in West Bay?
It suits a boardroom where a booking display and controlled sign-in are needed outside the door. A West Bay office could mount the panel beside a single door, use card or face sign-in for directors and staff, and link the lock to the sign-in result. Its 10.1-inch screen is sized for reading from a few steps away, so visitors can confirm the room and host without asking staff.
Is it a fit for a university in Education City?
Yes, for reserved seminar rooms, training rooms and research spaces. A training centre in Education City can use face or card sign-in to record who attended each session, while the booking display shows the topic and host outside the room. Because the panel is for indoor use, install it inside the building, not on a glass partition facing direct sun. Request a quote to match the room count across the campus.
How should a government ministry in Msheireb buy several panels?
A ministry fitting out a floor of meeting rooms can request one quotation covering every door. SmartRooms Qatar supplies against purchase orders (LPOs) and government tenders, including Monaqasat, and delivers to all eight municipalities. Plan the access control linkage for each door and ask for a free site survey, so panel heights and cable routes stay consistent across the floor.
What are the physical dimensions and weight?
The panel measures 275 × 170 × 25 mm and weighs 1.5 kg net, with a gross weight of 3.7 kg including packaging. The package measures 390 × 220 × 68 mm. The box includes a power adapter, access control linkage line, quick start guide, screw kit, Micro USB cable and compliance manual. The 25 mm depth suits a shallow wall-mounted installation, and a site survey can confirm the mounting surface.
Does it have a camera, microphone and speakers?
Yes. It includes a 2 MP WDR camera, a microphone, two 2 W loudspeakers rated 8 Ω and a 3.5 mm audio port. The camera is used for the face sign-in function. WDR processing is designed to handle scenes with mixed light, such as a bright corridor beside a darker room. Ask SmartRooms Qatar to confirm how the camera data is used before ordering, especially for your privacy policy.
Which meeting platform does it report to, and is the model current?
The panel reports sign-ins to the Hispire SMM meeting management platform. The model is current, so SmartRooms Qatar can quote it directly. If you are comparing it with another scheduling panel, ask for a quotation that lists the platform, the Android 11.0 operating system and your chosen power option, PoE or the 12 VDC adapter.
