Biamp Evoko Kleeo Desk Manager 6-Pack (910-01972) Desk Booking Display
DS-D5F22CB/BH
Hikvision DS-D5F22CB/BH 22-inch Scheduling Panel with Access Control
- Microphones
- Include
- Speakers
- 8 Ω / 3 W × 2
- Connectivity
- USB 2.0 × 2
Priceon request
QuotationWithin 1 working day
DeliveryConfirmed with your quote, based on stock
Overview

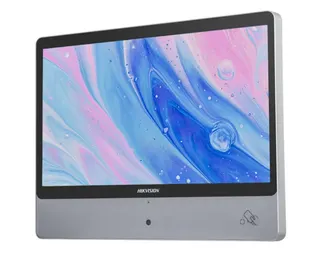

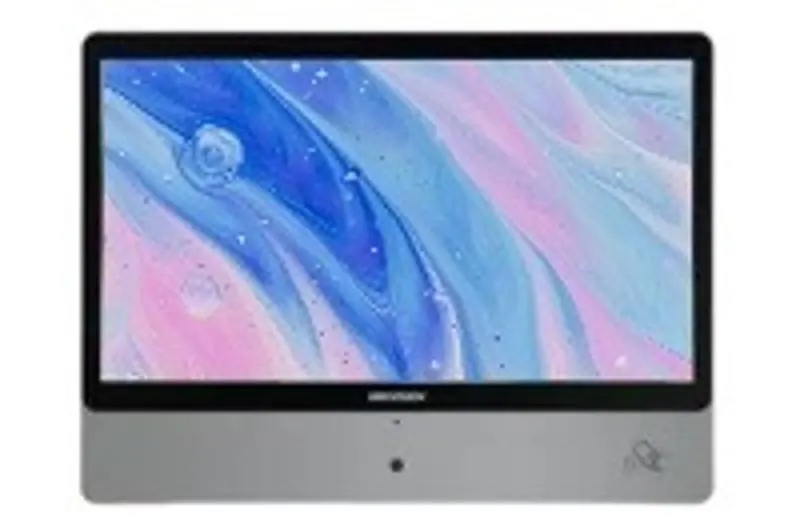

The Hikvision DS-D5F22CB/BH is a wall-mounted room scheduling panel with a full HD touchscreen, RFID card reading, Wiegand and relay links for door locks, and face comparison for up to 10 people. It runs Android 12.0 with built-in Wi-Fi, a LAN port and a 2 MP camera. Qatar offices, schools and government buildings that want booking displays and card-controlled entry at the same door will find it a practical fit.
What the DS-D5F22CB/BH does at a room entrance
The DS-D5F22CB/BH is a wall-mounted scheduling panel for the door of a meeting room, office or teaching space. It shows room availability on a touchscreen and can release a door lock through its access control links, so one unit handles both the booking display and the entry point. Hikvision markets it as a 22-inch Scheduling Panel, but its data lists a 21.5-inch screen, so confirm the size against your wall space before ordering.
Screen, touch and processing
The screen runs at 1920 × 1080 full HD with a 60Hz refresh rate, 600 cd/m² brightness and a 178° viewing angle horizontally and vertically. Its 10-point capacitive touch has an 8-millisecond response, which keeps tapping and swiping quick. Anti-glare toughened glass cuts reflections from corridor lights and windows, and a built-in light sensor adjusts brightness to the room, which saves energy in spaces that move between daylight and artificial light. Inside, a quad-core Cortex-A55 processor, 2 GB of memory and 16 GB of storage run Android 12.0. The body is 27 mm thick and rated IPX3 for water resistance.
RFID, access control and face comparison
- RFID reader: 13.56 MHz module compatible with type A and type B cards.
- Door control: Wiegand protocol and relay outputs for door locks, using the access control linkage line in the box.
- Face comparison: Built-in algorithm checks up to 10 people on screen at once, suited to short attendance windows.
- Camera: 2 MP WDR camera for clearer images when the subject faces a bright window or door.
Connectivity covers one LAN port, built-in Wi-Fi, two USB 2.0 ports and Bluetooth 4.0. A microphone and two 3 W speakers are included, and power is 24 VDC at 2.5 A with a listed consumption of 60 W.
Where it fits in Qatar
In a West Bay office, a panel by each boardroom door lets staff see bookings and enter with a card, while the facilities team links the door hardware to the existing controller. A university building in Education City could use units at seminar room entrances, where card-based entry and room schedules are both needed. A government or hospital administration floor in Msheireb or Al Sadd may only need a few units for restricted rooms. The listed operating range is 0 to 40°C with 0 to 90% humidity, so place it in indoor, climate-controlled corridors rather than outdoors or beside a hot window. Qatar summers can exceed 45°C, so check each wall position first.
Planning the mount, power and quotation

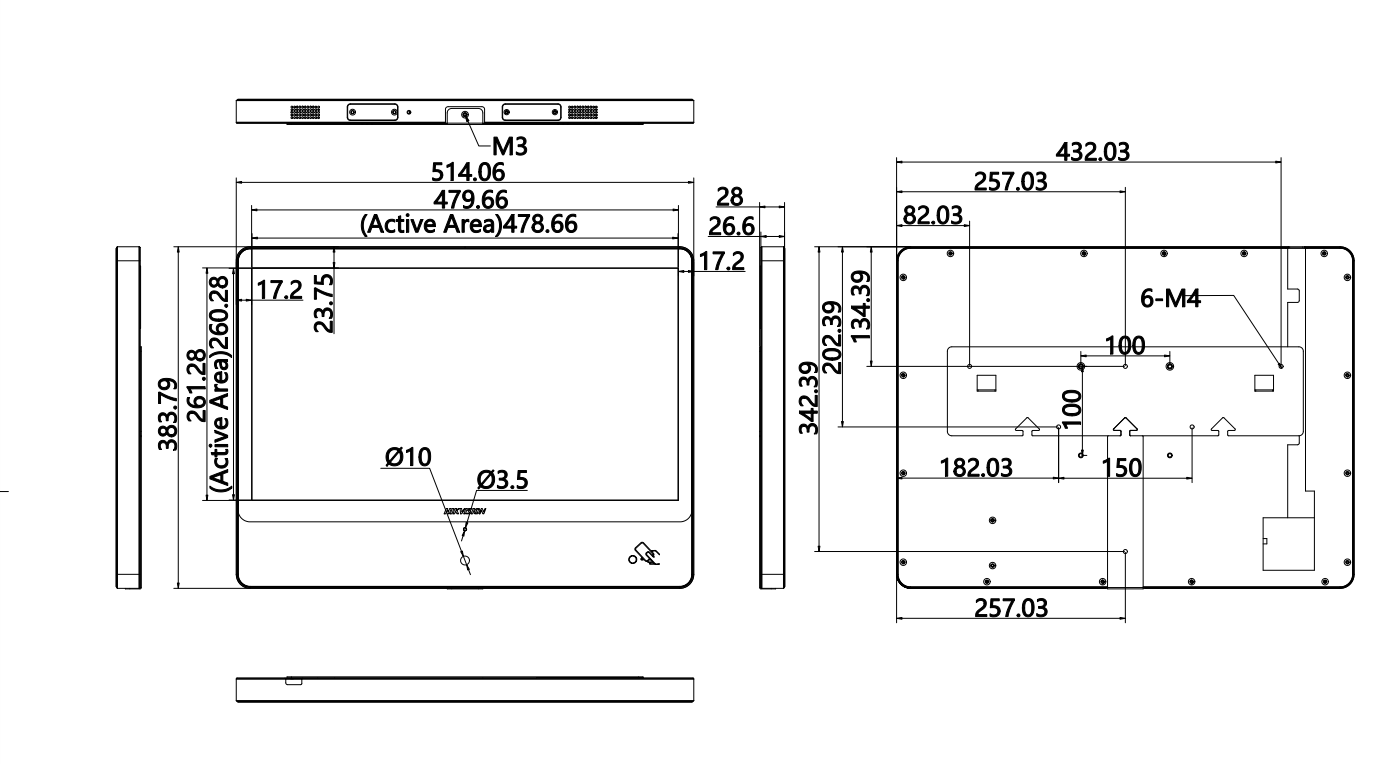

Check the wall before drilling. The product is 514.06 mm wide and 383.79 mm high, with a depth of 26.6 mm without the base and 28 mm with it. The box includes wall mounting screws, a screw kit, an L-type ring spanner and a dust-proof bag. Plan the LAN and access control cable routes before fixing the panel. SmartRooms Qatar offers free site surveys and professional installation, so we can review wall type, cable runs and power position before the unit goes up. Multi-unit orders, such as a school fitting out several doors, can be placed by LPO or through government tenders including Monaqasat. Quotations are usually issued within one working day. To request a quote for the DS-D5F22CB/BH, send the number of doors, your access control system and the mounting locations.
Highlights
- 1920 × 1080 full HD display with 10-point capacitive touch
- 8-millisecond touch response and 600 cd/m² brightness
- Built-in 13.56 MHz RFID reader for type A and type B cards
- Wiegand protocol and relay outputs for door locks
- Face comparison for up to 10 people on one screen
- Android 12.0 with built-in Wi-Fi, LAN and Bluetooth 4.0
Room fit
Tell us the room size and platform (Teams, Zoom or BYOD) and we confirm the right combination with your quotation.
Estimated timeline
Quotation within 1 working day · delivery timing depends on stock availability, and we confirm it with your quotation.
Specifications
29 specifications · Source: manufacturer · checked Oct 2026
Product Model1
- Product Model
- DS-D5F22CB/BH
Display4
- Screen Size
- 21.5 inch
- Brightness
- 600 cd/m²
- Viewing Angle
- 178°(H)/178°(V)
- Physical Resolution
- 1920 × 1080
Touch1
- Touch point
- 10
Built-in System7
- Processor
- Cortex-A55, 4 Cores
- Memory
- 2 GB
- Built-in storage
- 16 GB
- Operation System
- Android 12.0
- Camera
- 2 MP WDR Camera
- Card Reader
- RFID
- Mic Function
- Include
Internal Function1
- Loudspeaker
- 8 Ω, 3 W × 2
Interface4
- Data transmission interface
- USB 2.0 × 2, BT 4.0 × 1, Card-swiping for IC card, Access control linkage
- Network interface
- LAN × 1, built-in Wi-Fi
- Bluetooth
- BT4.0
- Indicator
- /
Working Environment3
- Operation Humidity
- 0%~90%
- Storage Temperature
- -20℃-60℃
- Opration Temperature
- 0 ℃~40 ℃
General8
- Net weight
- 8.21 kg
- Gross weight
- 6.54 kg
- Power Consumption
- 60 W
- Product dimensions
- With base: 514.06 (W) mm × 383.79 (H) mm × 28 (D) mm (20.24'' ×15.11'' × 1.1'') ; Without base: 514.06 (W) mm × 383.79 (H) mm × 26.6 (D) mm (20.24'' × 15.11'' × 1.06'')
- Package dimensions
- 662 (W) mm × 530 (H) mm × 110 (D) mm (26.1 '' × 20.9 '' × 4.3 '')
- Mounting Type
- Wall mounting
- Packing List
- Power adapter × 1, Access control linkage line × 1, Quick start guide × 1, Screw kit × 1, L-type ring spanner × 1, Wall Mounting Screw Pack*2，Dust-proof bag × 1, Intelligent cloud digital signage paper card × 1, Power cord × 1
- Power
- 24 VDC, 2.5 A
Downloads
4 files from the manufacturerQuestions about DS-D5F22CB/BH
What is the DS-D5F22CB/BH used for?
It is a wall-mounted scheduling panel that sits beside a meeting room or office door. It displays room bookings on a touchscreen, reads RFID cards, and can send signals to door locks through Wiegand and relay links. Organisations that want booking information and controlled entry at one point, such as a corporate office in West Bay or a training centre in Education City, are well suited to it. Request a quote if you need units for several rooms.
Is the screen 21.5 inch or 22 inch?
The unit is sold under the name 22-inch Scheduling Panel, but the manufacturer's data lists a 21.5-inch display with 1920 × 1080 resolution. Measure your wall area and check the overall size of 514.06 mm by 383.79 mm before ordering. If wall space is tight, SmartRooms Qatar can review dimensions during a free site survey before you request a quote.
Which cards can the RFID reader use?
The built-in 13.56 MHz RFID module is compatible with the standard card of type A and type B. It is designed for quick card swiping at the door. Before ordering, confirm which card technology your staff and visitor passes use, because the reader is specified only for the types named in the data.
Can it open doors on an existing access control system?
It can, through the Wiegand protocol and relay outputs that support door locks. The packing list includes an access control linkage line. Your existing controller must accept Wiegand input or be compatible with this linkage method, so ask your IT or security contractor to check the controller model and lock type. SmartRooms Qatar can confirm the wiring plan during the site survey.
How many people can the face comparison handle at once?
The built-in Hikvision face comparison algorithm supports 10 people on the same screen. It is designed for short-term attendance needs, such as checking a group entering a training room at the start of a session. Consider how many people arrive together at each door. If groups are larger, plan additional units or a separate check process, and discuss your numbers with SmartRooms Qatar before requesting a quote.
Can I install it outdoors or near a window in Doha?
The listed operating temperature is 0 to 40°C and operating humidity is 0 to 90%. Its IPX3 rating covers water splash resistance only, and the data does not describe it as an outdoor product. Summer temperatures in Doha often pass 45°C, so mount it in an indoor, air-conditioned corridor away from direct sunlight. If you have a specific location in mind, send it to SmartRooms Qatar for review before ordering.
Does the interface support Arabic?
The source data does not list language support for the screen or the Android 12.0 interface, so we cannot confirm Arabic display or Arabic on-screen text. Ask SmartRooms Qatar to confirm the available interface languages for this model before you request a quote, especially if your staff work in Arabic and English side by side.
What connectivity does it have?
It has one LAN port, built-in Wi-Fi, two USB 2.0 ports and Bluetooth 4.0. The USB 2.0 ports are listed as data transmission interfaces. Wired LAN and built-in Wi-Fi give IT teams a choice of connection for the wall position they select. Confirm your network requirements with your IT team before ordering.
What is in the box?
The packing list includes the power adapter, power cord, access control linkage line, quick start guide, screw kit, two wall mounting screw packs, an L-type ring spanner, a dust-proof bag and an intelligent cloud digital signage paper card. Check the contents on delivery against your order, and keep the quick start guide with your installation records.
What wall space and mounting do I need?
The panel is wall mounted. Its overall size is 514.06 mm wide and 383.79 mm high, with a depth of 26.6 mm without the base and 28 mm with it. Packaged dimensions are 662 mm by 530 mm by 110 mm. Plan a clear wall area and a cable route before drilling. A free site survey from SmartRooms Qatar can confirm wall type, mounting height and cable access in Doha offices, schools or clinics.
What power does it need and what should I check?
It uses a 24 VDC, 2.5 A power adapter and its power consumption is listed at 60 W. The power cord is included. Confirm that the cord and socket position on site suit Qatar's BS 1363 sockets and 240 V, 50 Hz supply, because the source data does not state the adapter's input rating. Your electrician should confirm the socket position during the site survey.
Can a school or ministry order several units through an LPO or tender?
Yes. SmartRooms Qatar supplies against purchase orders (LPOs) and government tenders, including Monaqasat, and accepts payment by bank transfer, cheque or purchase order. For a school fitting out several doors or a ministry with multiple restricted rooms, list each door, its access control system and its mounting location in one request. Quotations are usually issued within one working day, and products are covered by the manufacturer's warranty.
