iDS-UVC-X28-B

What the iDS-UVC-X28-B does in a meeting room

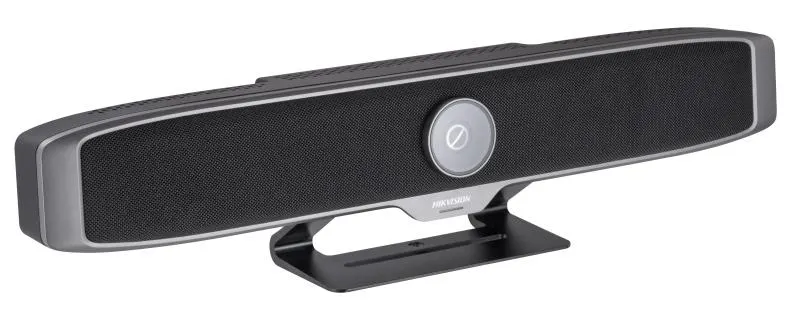

The Hikvision iDS-UVC-X28-B is a single video bar that houses a camera, a microphone array and a speaker in one unit. Instead of assembling three separate devices, a room gets one bar to mount, one cable to run to a laptop and one remote control to manage it. It is aimed at small and medium meeting rooms, where a clear picture and easy-to-follow speech matter more than a large conference system.

Camera and audio performance that matters

The camera uses a 1/2.8 inch CMOS sensor with about 8 million effective pixels and outputs 4K at 30 frames per second. Its diagonal field angle is 118.8 degrees, and a 3x digital zoom adjusts framing electronically. HDR processing adapts image settings when a room has bright windows or mixed lighting. Automatic framing, speaker tracking and group close-up views keep the active participant or the whole table in shot, and five presets can be saved for fixed seating positions.

Eight microphones provide a 6 m pickup range, so participants seated around a table can be heard without leaning toward a device. Echo cancellation, automatic noise suppression and automatic gain control are supported. The built-in 10 W speaker carries remote voices across the room at a level suitable for a small or medium space.

Connecting laptops, displays and wireless sources

The USB 3.0 Type-C port handles the main laptop connection using UVC and UAC standards, so the bar is recognised as a camera and microphone by common conferencing platforms on Windows 7, 10 and 11 and on Mac OS. A 5 m USB cable is included. Two HDMI outputs support up to 4K at 60 frames per second for displays, and an HDMI input accepts a source up to 4K at 30. A wireless dongle supports screen mirroring up to 4K at 30, and the unit has dual-band Wi-Fi on 2.4 GHz and 5 GHz. A gigabit Ethernet port, two USB 2.0 Type-A ports and 3.5 mm line input and output complete the rear connections.

Where it fits in Qatar

• Government and authority meeting rooms in Doha, where a small team needs to join calls with colleagues abroad during the Sunday to Thursday working week.
• Private schools in Al Wakrah or Al Rayyan equipping staff meeting rooms or parent consultation rooms with one compact device rather than a multi-part kit.
• Training centres and university departments in Education City running small seminar rooms where an instructor and remote participants need a clear view and audible speech.

What to plan before installation

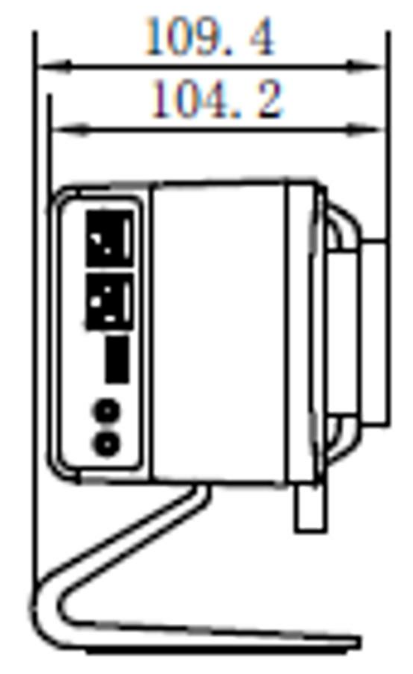

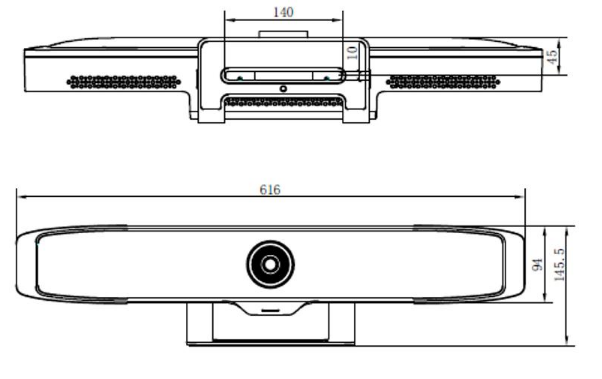

The bar weighs 2.49 kg and measures 616 × 145 × 104.23 mm, so it is light enough for a wall bracket and expansion screws, and it has a 1/4-20 tripod hole for desk use. Power comes from a DC 12 V, 2 A adapter, with a typical power draw of 24 W. The packing list includes a European or German plug adapter, so confirm the plug arrangement for BS 1363 sockets before ordering. The rated operating range is 0 to 40 °C, so the bar should be installed in air-conditioned rooms only, away from windows that receive direct afternoon sun. Mounting height and distance to seating affect framing, which is why a free site survey is useful before fixing the bracket.

Request a quote from SmartRooms Qatar for the iDS-UVC-X28-B, and tell us the room size, the number of participants and the display you plan to use. Quotations are usually issued within one working day, and we can supply against an LPO for offices and schools.
