Jabra Video Conferencing Current

PanaCast 50 VBS Bar Only

Jabra PanaCast 50 VBS Bar Only 4K Video Bar

Video: Up to 3x 13 megapixels
Field of view: Horizontal: 180°
Zoom: Up to 3x lossless digital zoom…
Microphones: 8 microphone beamforming array…

Priceon request

QuotationWithin 1 working day

DeliveryConfirmed with your quote, based on stock

PDFDownload datasheet

Overview

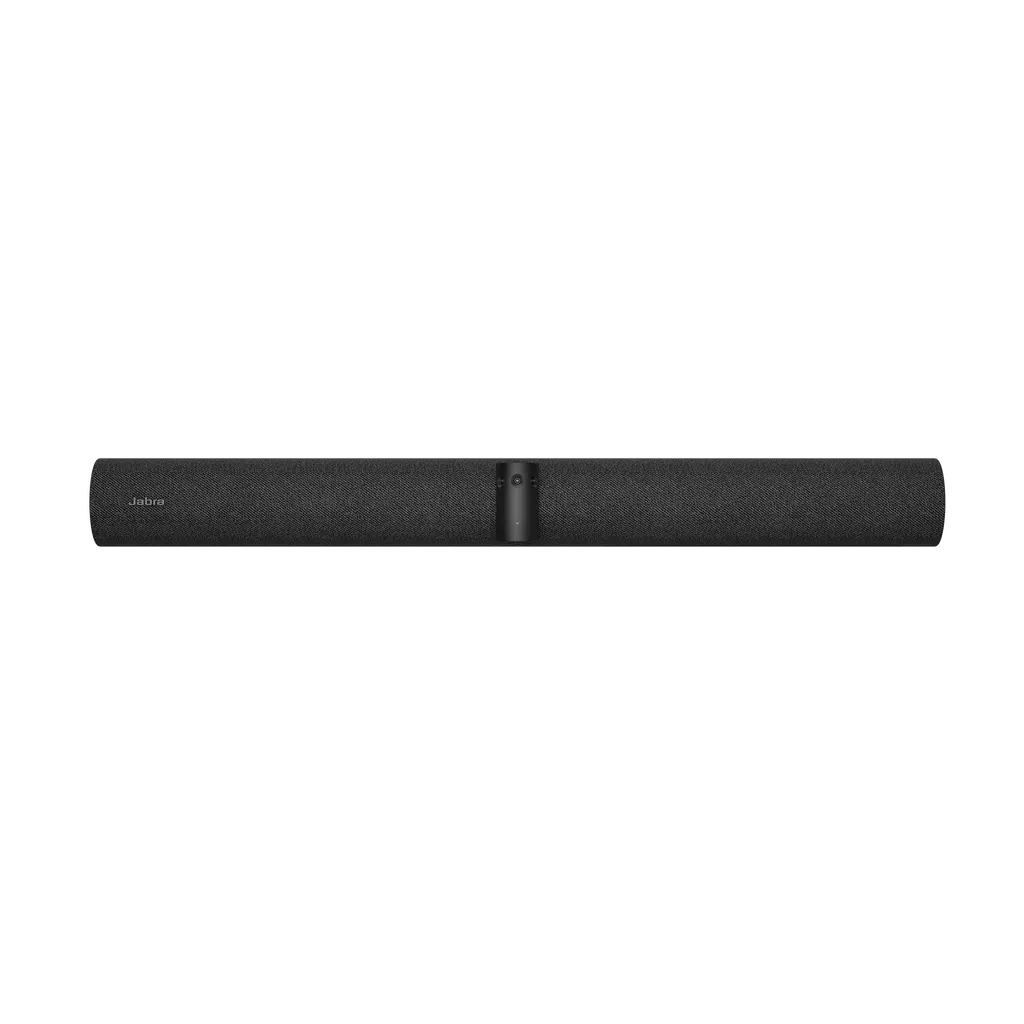

The Jabra PanaCast 50 VBS is a bar-only video conferencing unit running Android. Three 13-megapixel cameras provide a 180° panoramic view at up to 4K, and it works with Microsoft Teams Rooms and Zoom Rooms without a separate touch controller. Pair it with a touchscreen or mobile cart for meeting rooms up to 4.5m x 6m, from Lusail boardrooms to Education City seminar rooms. Request a quote.

A bar-only unit for custom Teams and Zoom rooms

The Jabra PanaCast 50 VBS bar only is the video bar itself, supplied without a touch controller. That suits rooms where the meeting is started from a touchscreen or a mobile cart, so the room can be set up around how your team works rather than around a fixed console. The unit runs Android and is certified for Microsoft Teams Rooms and Zoom Rooms, so it can be managed alongside the rest of your meeting-room estate.

Camera and audio facts that shape the meeting

Three 13-megapixel cameras sit in a multi-camera array and combine into a 180° horizontal view with 54° vertical coverage. Capture is 4K, and the bar supports a 4K display. That width helps a table sit closer to the wall while everyone remains in frame.

Intelligent Zoom reads where people are seated and reframes the view as the room fills or empties.
Virtual Director follows the active speaker, powered by an Edge-AI chipset.
Audio: four speakers (two 2-inch woofers and two 3/4-inch tweeters) and an eight-microphone beamforming array, certified for rooms up to 4.5m x 6m and picking up voices up to 6m away.

Connectivity, security and remote management

Share content from a laptop through the single HDMI input, and use USB-A, USB-C, Ethernet (RJ45) with auto MDIX, Wi-Fi or Bluetooth 5.1 for the rest of your connections. Apple AirPlay works only with Zoom, and Microsoft Teams-Cast works only with Teams. Administrators can manage devices through Jabra WebConsole over HTTPS, Jabra Plus for admins, or the Microsoft Teams Admin Center and Zoom Device Management portals. Secure boot and vendor lock are included, and the unit carries temperature, humidity, CO2 and TVOC sensors along with integrated people count.

Where it fits in Qatar

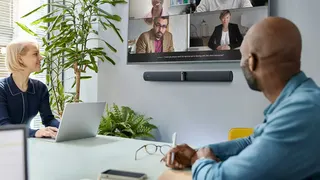

Boardroom in West Bay: a meeting room of up to 4.5m x 6m with a touchscreen on the wall and remote directors joining from abroad.
Training centre in Msheireb: a mobile cart that moves between two classrooms, with the bar and touchscreen set up together on it.
Clinic in Al Sadd: a staff meeting room where the Aux-Out connection can serve a hearing augmentation transmitter for hearing aid users.

What to plan before you order

The main unit measures 730mm x 77mm x 146mm and weighs 2259g, and a wall mount is included. Plan the wall type, mounting height and cable route before delivery, and ask for a free site survey to confirm them. Power is 100-240V and the box includes a regional power cable, so confirm the plug against your room's socket. The stated operating range is 5°C to 35°C (41°F to 95°F) with 15% to 80% humidity, so keep the bar in air-conditioned rooms, especially when Qatar summer temperatures outdoors exceed 45°C.

The product carries a 2-year manufacturer warranty. Request a quote from SmartRooms Qatar with your room size, meeting platform and mounting details, and quotations are usually returned within one working day.

Highlights

180° horizontal field of view with 54° vertical coverage
Three 13-megapixel cameras with 4K panoramic capture
Four speakers and an eight-microphone beamforming array
Certified for Microsoft Teams Rooms and Zoom Rooms
No separate touch controller needed
Operating range 5°C to 35°C, 15% to 80% humidity

Room fit

Tell us the room size and platform (Teams, Zoom or BYOD) and we confirm the right combination with your quotation.

Estimated timeline

Quotation within 1 working day · delivery timing depends on stock availability, and we confirm it with your quotation.

Specifications

71 specifications · Source: manufacturer · checked Oct 2026

Video13

Video input: 1 x HDMI
Supported display resolution: Supports up to 4K, Touch Display Compatible
Camera resolution: Up to 3x 13 megapixels
Content sharing: Apple Airplay (only supported by Zoom), HDMI input, Microsoft Teams-Cast (only supported by Teams)
Number of cameras: 3
Type of camera: Panoramic multi-camera array
Zoom: Up to 3x lossless digital zoom at 720p
Field of view: Horizontal: 180°, Vertical: 54°
Intelligent Zoom: Yes
Dynamic Composition: Yes
Virtual Director: Yes
Vivid HDR: Yes
Support secondary external USB camera: Yes

Audio14

Speakers: 2 x 2" (50mm) woofers, 2 x 3/4" (20mm) tweeters
Speaker frequency range: 80Hz - 20000Hz
Number of speakers: 4
Automatic Speaker Detection: Yes
Full Duplex: Yes
Noise Reduction Echo Cancellation: Yes
Non-Speech Noise Suppression: Yes
Woofer driver: 2 inches, outer diameter 61mm, Sensitivity: 79dB +-2db @ 1 Watt, 1 meter, Rated Power: 5 Watts, Impedance: 4 Ohms
Mid-Range driver: 0,6 inches, outer diameter 33,2mm, Sensitivity:80,5db +/- 2bd @ 1 Watt, 1 meter, Rated Power: 5 Watts, Impedance: 4 Ohms
Microphone type: 8 microphone beamforming array - certified for rooms up to 4.5m x 6m
Number of microphones: 8
Microphone sensitivity: -37dBFS
Microphone frequency range: 100Hz - 16000Hz
Microphone pick up range: 6m | 20ft

Software and Apps2

Compatible software and/or apps: Support for native 3rd party applications, including Microsoft Teams Room for Android and Zoom Rooms, cloud service providers including Microsoft Teams Admin Center and Zoom Device Management, Jabra Plus for admins, Jabra WebConsole for remote device management via HTTPs
Integrated People Count: Yes

Ease of use6

Appliance mode: Yes
BYOD mode: Yes
Digital pan/tilt/zoom: Yes
Manual Pan-Tilt-Zoom (PTZ): Yes
One touch meeting join: Yes
Camera privacy cover: Yes

Connectivity3

Interfaces: USB-A, USB-C, Ethernet (RJ45), HDMI, Wi-Fi
Bluetooth® version: 5.1
Supported USB versions: USB 2.0, USB 3.0

Network6

Internet Protocol (IP): IPv4
Ethernet: 10/100/1000 Mbps
Auto-MDIX: Yes
Proxy support: HTTPS
Support DHCP: Yes
Support Static IP Address: Yes

Security7

Media encryption: Provided by VaaS Partner
Access management: Jabra Plus for admins, Admin menus, Jabra WebConsole, Local account, VaaS Admin Portals including MS Teams Admin Center and Zoom Device Management
Security management: Remote log in via Jabra WebConsole, Jabra Plus for admins, and VaaS Admin Portal
Authenticated access to Admin settings, Jabra WebConsole, Jabra Plus for admins: Yes
Lockdown with secureboot, OS verified boot, Vendor lock: Yes
Log retrieval via Web Console: Yes
Microsoft and Zoom based Vaas account authentication: Yes

Extended info8

Operating temperature: 5°C to 35°C | 41°F to 95°F
Operating humidity: 15% to 80%
Storage temperature: -20°C to 60°C | -4°F to 140°F
Maximum altitude: 4876.8m | 16000ft
Temperature sensor: Yes
Humidity sensor: Yes
CO2 sensor: Yes
TVOCs sensor: Yes

General12

Box contents: Video bar, power supply, wall mount, Privacy cover with sensor, Cable compartment cover and tool, 1 x Ethernet cable 1.83m/6ft, 1 x HDMI cable 1.83m/6ft, 1 x regional power cable
Packaging dimensions: 785mm x 189mm x 183mm | 30.9in x 7.4in x 7.2in
Main unit dimensions (WxHxD): 730mm x 77mm x 146mm | 28.8in x 3.1in x 5.8in
Main unit weight (base unit): 2259g | 79.7oz
Package weight: 4850.7g | 171.1oz
Warranty: 2 years
Onboard AI: Yes
Cable management: Yes
Kensington lock compatible: Yes
Operating voltage: 100-240V, 12V, 5A
LED features and functions: Answer/end call, Firmware update status, Mute/unmute, Power indicator
Certifications and compliance: Microsoft Teams Rooms, Zoom Rooms

Downloads

27 files from the manufacturer

Questions about PanaCast 50 VBS Bar Only

What does the Jabra PanaCast 50 VBS bar only include?

It is the video bar itself, with no touch controller, so it suits organisations building their own conferencing setup around touchscreens or mobile carts. The box contains the bar, a power supply, a wall mount, a privacy cover with sensor, a cable compartment cover and tool, a 1.83m Ethernet cable, a 1.83m HDMI cable and a regional power cable. The bar is Android-based and certified for Microsoft Teams Rooms and Zoom Rooms, making it a fit for Doha meeting rooms that run either platform.

Do I need a separate touch controller with this model?

No. The PanaCast 50 VBS is supplied as a bar only, so the room is started from the touchscreen or mobile cart you choose. The unit supports appliance mode and BYOD mode, and it offers one touch meeting join. If your boardroom layout changes between meetings, that flexibility matters, and we can quote a touchscreen to pair with the bar when you request your quotation.

Which meeting platforms and apps does it support?

It is certified for Microsoft Teams Rooms and Zoom Rooms, and it supports native third-party applications on its Android base. Content sharing differs by platform: Apple AirPlay is supported only with Zoom, and Microsoft Teams-Cast is supported only with Teams. Administrators can also manage the unit through Microsoft Teams Admin Center or Zoom Device Management. If your offices in Doha use both platforms, confirm which content-sharing method you need before ordering.

What room size is this model designed for?

The eight-microphone array is certified for rooms up to 4.5m x 6m and picks up voices up to 6m away, which suits a boardroom or executive meeting room. A consultancy boardroom in West Bay with a long table running along the room is a typical fit. The 180° horizontal field of view keeps seated participants in frame, so remote attendees can see everyone present. Ask for a free site survey to confirm the layout before ordering.

Can it sit on a mobile cart in a training room?

Yes, the bar-only design is intended for use with mobile carts and touchscreens. A training provider in Msheireb could use one cart to move between two classrooms, with the bar and touchscreen set up together on it. Confirm the cart's mounting options and weight with our team, since the main unit weighs 2259g and measures 730mm wide. Wi-Fi or Ethernet connections should also be checked for each classroom.

Can it be used in a hot room or an unshaded site office?

The stated operating range is 5°C to 35°C (41°F to 95°F) with 15% to 80% humidity, so the bar should stay in air-conditioned rooms. Outdoor temperatures in Qatar regularly exceed 45°C in summer, so a site office in Al Khor or Mesaieed should be properly cooled and kept out of direct sun before installation. Storage range is -20°C to 60°C. Ask our team to confirm room conditions before you request a quote.

Can hearing aid users follow meetings with this bar?

The bar has an Aux-Out connection for assistive listening devices, which lets a hearing augmentation transmitter connect to the unit so hearing aid users can stream meeting audio to their hearing aids. A clinic in Al Sadd could use this for staff meetings or case reviews. The transmitter is not in the box, so confirm its compatibility and the audio setup with the SmartRooms Qatar team before installation.

What connections are available for laptops and room PCs?

The bar has one HDMI video input for content sharing, plus USB-A, USB-C, a 10/100/1000 Mbps Ethernet (RJ45) port, Wi-Fi and Bluetooth 5.1. It supports USB 2.0 and USB 3.0, and it can connect a secondary external USB camera. A 1.83m Ethernet cable is included. In a school or company with mixed laptops, check which port suits each user and confirm where the network point sits during the site survey.

How is the bar managed and secured across several rooms?

IT teams can manage it through Jabra WebConsole over HTTPS, through Jabra Plus for admins, or through the Microsoft Teams Admin Center and Zoom Device Management portals. Access to admin settings is authenticated, logs can be retrieved through the web console, and the unit uses secure boot with vendor lock. This central management suits a ministry or company that runs several meeting rooms from one head office in Doha.

What should we plan for mounting and cabling?

The main unit measures 730mm x 77mm x 146mm and weighs 2259g, and a wall mount is included. Plan the wall, mounting height, cable route and power outlet before delivery. The box also includes a privacy cover with sensor and a cable compartment cover with tool. A private school in Al Wakrah fitting out several classrooms can have every room surveyed in one visit, which helps with planning.

Can a school order several units on a purchase order?

Yes. SmartRooms Qatar accepts purchase orders (LPOs) and government tenders, and payment can be made by bank transfer, cheque or purchase order. Each room needs its own unit and network point, so send the dimensions of each room and its connection details with your request. Quotations are usually returned within one working day, and delivery covers all eight municipalities of Qatar.
