PanaCast Room Kit

Name: Jabra PanaCast Room Kit 9000-231 4K Video Conferencing System
Brand: Jabra
SKU: jabra-panacast-room-kit
Availability: InStock

Jabra PanaCast Room Kit 9000-231 4K Video Conferencing System

Priceon request

QuotationWithin 1 working day

DeliveryConfirmed with your quote, based on stock

PDFDownload datasheet

Overview

The Jabra PanaCast Room Kit 9000-231 is an all-in-one video conferencing kit for large meeting rooms. It combines the PanaCast 55 video bar, a three-camera panoramic array with a 180° horizontal field of view and output up to 4K, an eight-microphone array, and a PanaCast SpeakerMic for wider audio pickup. It suits boardrooms, lecture halls and training rooms in Doha where remote colleagues join meetings regularly.

What the kit contains

The 9000-231 is a complete room system built around the PanaCast 55 VBS video bar. Its three-camera panoramic array covers a 180° horizontal view and a 54° vertical view, with up to 6x lossless digital zoom. The master box also holds a PanaCast SpeakerMic for extended audio pickup and a Jabra Cam L1 as an additional camera, while the video bar package includes a wall mount and a Jabra Control IP touch panel.

Video and audio coverage for large rooms

The camera array captures up to 3840 x 1080 pixels, and the video bar supports output up to 4K. Intelligent Zoom, Virtual Director and Dynamic Composition are all listed, so the system can frame the people who are speaking instead of relying on one fixed wide shot. The eight-microphone beamforming array is certified for rooms up to 4.5m x 6m, with audio coverage of up to 7 m from the video bar and up to 11 m when the PanaCast SpeakerMic is added. Noise reduction, echo cancellation and non-speech noise suppression help calls stay clear in busy rooms.

Where it fits in Qatar

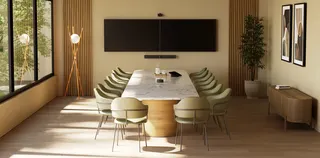

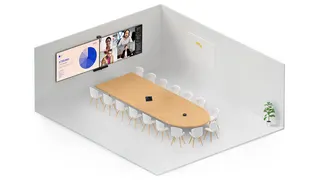

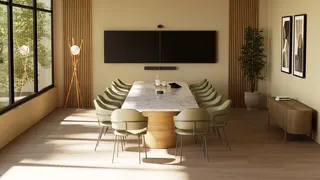

Government boardroom in West Bay: a 4.5m x 6m room where ministry staff join meetings with colleagues in other offices and need one camera and microphone system for the whole table.
Lecture theatre in Education City: two HDMI outputs and a listed touch display compatibility suit a lecturer who shares slides from a laptop while students join from another location.
Training room in Lusail: a company running sessions for teams in Doha and abroad can use Microsoft Teams Room for Android or Zoom Rooms, both listed as supported.

What to plan before installation

Check the room environment first. The video bar is rated for operating temperatures from 5°C to 35°C and 15% to 80% humidity, and the SpeakerMic for 0°C to 40°C. Qatar summer temperatures can pass 45°C outdoors, so the kit should be installed in an air-conditioned meeting room. The SpeakerMic needs a Cat6 cable, which is not included, and its RJ45 connection supports runs of up to 30 m. The video bar connects by Ethernet or Wi-Fi (802.11a/b/g/n/ac), and its power adapter accepts 100-240 V input with a regional power cable included.

Management and security

IT teams can manage the device remotely through Jabra Plus, the Jabra Web Console over HTTPS, and VaaS admin portals such as Microsoft Teams Admin Center and Zoom Device Management. Secure boot, verified boot and vendor lock are listed, along with authenticated access to admin settings and log retrieval through the Jabra Web Console. SmartRooms Qatar supplies the kit across all eight municipalities of Qatar, with professional installation and a free site survey to confirm mounting positions before the order. Purchase orders (LPOs) and government tenders are accepted. Request a quote, and we usually respond within one working day.

Highlights

Three-camera panoramic array with 180° horizontal field of view
Video output up to 4K with two HDMI outputs
Eight-microphone array certified for rooms up to 4.5m x 6m
PanaCast SpeakerMic extends audio coverage up to 11 m
Jabra Control IP 10.1-inch touch panel included
Works with Microsoft Teams Room for Android and Zoom Rooms

Room fit

Tell us the room size and platform (Teams, Zoom or BYOD) and we confirm the right combination with your quotation.

Estimated timeline

Quotation within 1 working day · delivery timing depends on stock availability, and we confirm it with your quotation.

Specifications

2 specifications · Source: manufacturer · checked Oct 2026

General info2

Master box contents: PanaCast 55 VBS, PanaCast SpeakerMic, Jabra Cam L1
Master box dimensions (WxHxD): 210 x 300 x 888 mm | 8.3 x 11.8 x 31.5 in

Downloads

13 files from the manufacturer

Questions about PanaCast Room Kit

What is the Jabra PanaCast Room Kit 9000-231 and who is it for?

It is an all-in-one video conferencing kit for large meeting rooms, built around the PanaCast 55 video bar. The master box also includes a PanaCast SpeakerMic and a Jabra Cam L1 camera. It suits boardrooms, lecture halls and training rooms where remote participants need to see and hear everyone in the room. Model 9000-231 is the current version of this kit.

What room size does the kit cover?

The eight-microphone array is certified for rooms up to 4.5m x 6m. Audio coverage reaches up to 7 m from the video bar and up to 11 m when the PanaCast SpeakerMic is added. For a long boardroom table in West Bay, the SpeakerMic helps reach seats at the far end, and a free site survey can check the seating layout before you order.

How does the camera frame people during a hybrid meeting?

The panoramic array uses three cameras to cover 180° horizontally and 54° vertically, capturing up to 3840 x 1080 pixels. Intelligent Zoom, Virtual Director and Dynamic Composition are listed features that help frame active speakers. A team in Doha meeting partners abroad can therefore show the person speaking rather than a distant wide shot, with up to 6x lossless digital zoom available.

Does the kit support 4K output?

Yes. The PanaCast 55 VBS supports up to 4K display resolution and has two HDMI outputs, with Vivid HDR also listed. The camera array itself captures up to 3840 x 1080 pixels, which gives a wide panoramic picture rather than a standard 16:9 frame. Confirm the room display's input and resolution during the site survey so the setup matches your screen.

Can it work with a lecture theatre display at Education City?

The video bar has two HDMI outputs, an HDMI input for content sharing, and is listed as touch display compatible. A lecturer can share slides from a laptop while students join from another location. Ask SmartRooms Qatar to check the display's HDMI and touch configuration during the free site survey, so the lecture theatre setup is confirmed before installation.

Will it cope with Qatar's summer heat?

The video bar is rated for operating temperatures from 5°C to 35°C and 15% to 80% humidity. The SpeakerMic is rated from 0°C to 40°C. Qatar summer temperatures can exceed 45°C outdoors, so the kit should be installed in an air-conditioned meeting room. Ask SmartRooms Qatar to confirm the room environment before you request a quote.

What comes in the box?

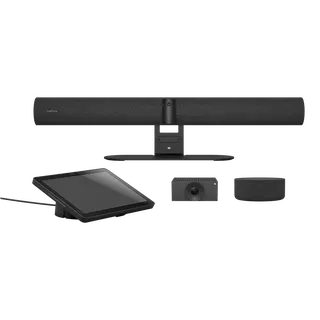

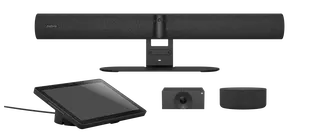

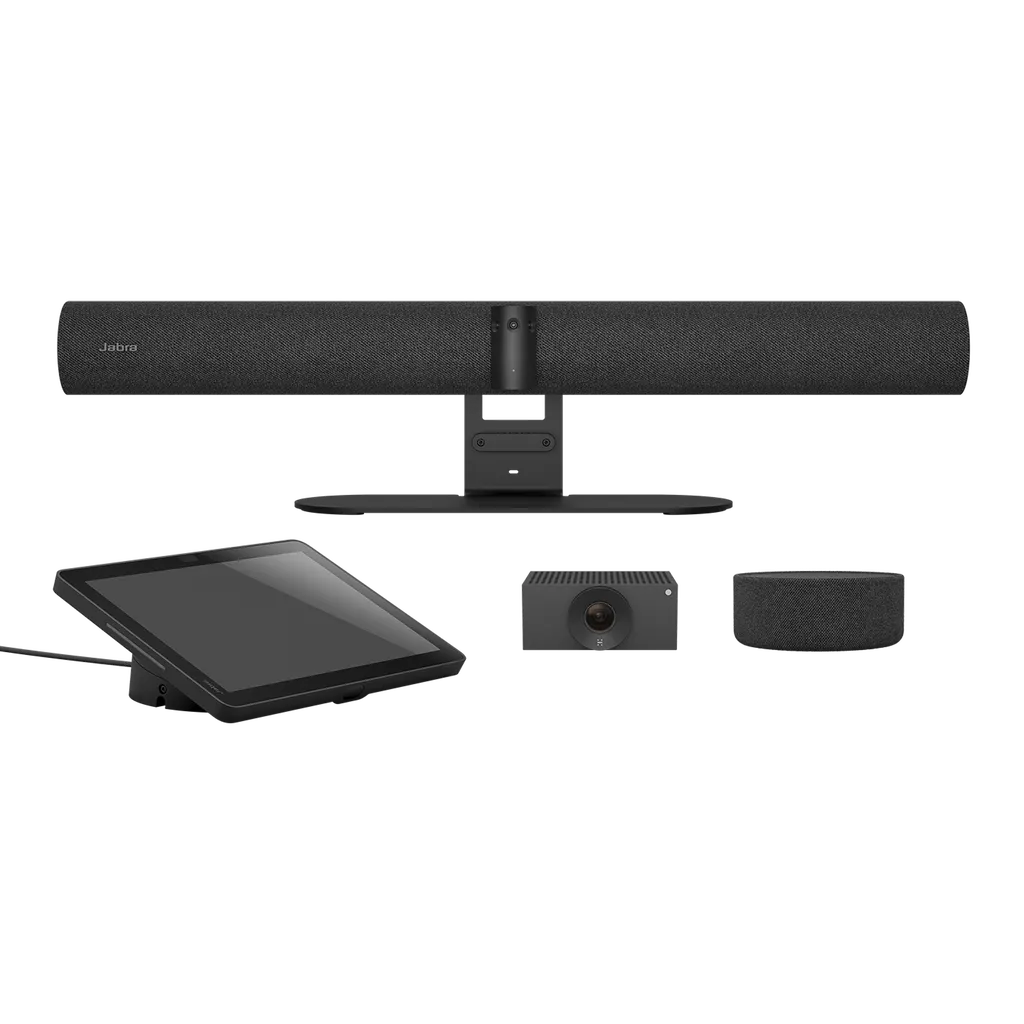

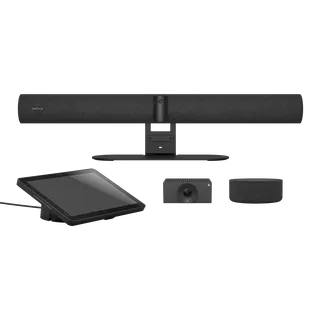

The master box contains the PanaCast 55 VBS video bar, the PanaCast SpeakerMic and the Jabra Cam L1 camera. The video bar package includes a Jabra Control IP touch panel, a wall mount, a privacy cover with sensor, a cable compartment cover and tool, a 1.83 m HDMI cable and a regional power cable. The SpeakerMic box includes a mounting plate, SpeakerMic adapter and table adhesive.

Which meeting platforms are supported?

The kit supports Microsoft Teams Room for Android and Zoom Rooms as native third-party applications. Cloud management works through Microsoft Teams Admin Center and Zoom Device Management. Apple AirPlay content sharing is supported only with Zoom, and Microsoft Teams-Cast only with Teams. Your IT team should confirm which platform your organisation uses before ordering.

What network and power does it need?

The video bar has Ethernet (RJ45), Wi-Fi 802.11a/b/g/n/ac and Bluetooth 5.1. Its power adapter is rated AC 100-240V with 12V 5A output, and a regional power cable is included. The Jabra Control IP panel uses Power over Ethernet under IEEE 802.3af through the included PoE power injector. The room therefore needs a network point, and the SpeakerMic also requires a separate Cat6 cable.

How is the system secured and managed remotely?

Remote management works through Jabra Plus, the Jabra Web Console over HTTPS, and VaaS admin portals. The data sheet lists secure boot, verified boot and vendor lock, authenticated access to admin settings, and log retrieval through the Jabra Web Console. Media encryption is provided by the VaaS partner. This suits IT teams who manage several meeting rooms from one place.

How far can the PanaCast SpeakerMic be from the video bar?

The SpeakerMic connects over RJ45 using a Cat6 cable of up to 30 m, which is not included, and an RJ45 to USB-C adapter is supplied. It has four omnidirectional microphones, an IPX2 rating and a 60 mm speaker. Its operating range is 0°C to 40°C, so it should sit inside the air-conditioned room with the video bar, and it carries a 3-year warranty.

Can a school or ministry buy several kits through an LPO?

Yes. SmartRooms Qatar accepts purchase orders (LPOs), government tenders including Monaqasat, and payment by bank transfer, cheque or purchase order. A school fitting out several meeting rooms, or a ministry equipping its boardrooms, can request one quotation covering each kit. Quotations are usually provided within one working day, and a free site survey helps plan each room before delivery.
