Maxhub MAXHUB Mic Pod DM30 · Price in Qatar

Name: MAXHUB Mic Pod DM30 Expansion Microphone for Meeting Rooms
Brand: Maxhub
SKU: maxhub-mic-pod-dm30
Availability: InStock

Overview

The MAXHUB Mic Pod DM30 is an expansion microphone for meeting rooms that need wider voice pickup. Eight silicon microphones cover a 3 m optimal radius, and up to four pods can be daisy-chained over standard network cable. A one-touch mute button and colour-coded lights show each pod's status. Suited to medium and large rooms across Doha, Lusail and Al Sadd. Request a quote.

What the DM30 adds to a meeting room

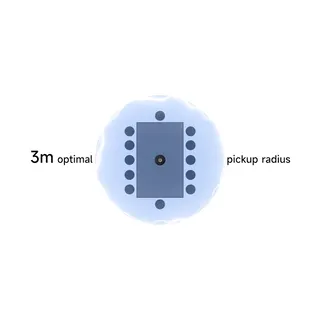

The MAXHUB Mic Pod DM30 is a wired expansion microphone for rooms where a single pickup point leaves people at the far end of the table hard to hear. Each pod houses eight silicon microphones with an optimal pickup radius of 3 m. The manufacturer positions it for Microsoft Teams Rooms installations and also lists plug-and-play compatibility with the MAXHUB XBar built-in microphone, which it says is recognised automatically.

Pickup, cascading and connections

The facts below shape most purchase decisions, and each one comes from the manufacturer's data.

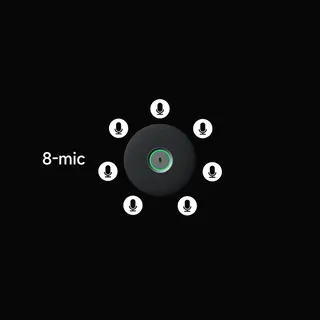

Eight microphones per unit, silicon type, covering 100 Hz to 20 kHz.
Up to four units daisy-chained over standard network cable, with a 7.5 m cable included.
Dual RJ45 ports, rated 52 V / 0.24 A input and 52 V / 0.18 A output.
Microphone sensitivity of -37 dBFS per unit.
One-touch mute with green, red and white status lights.

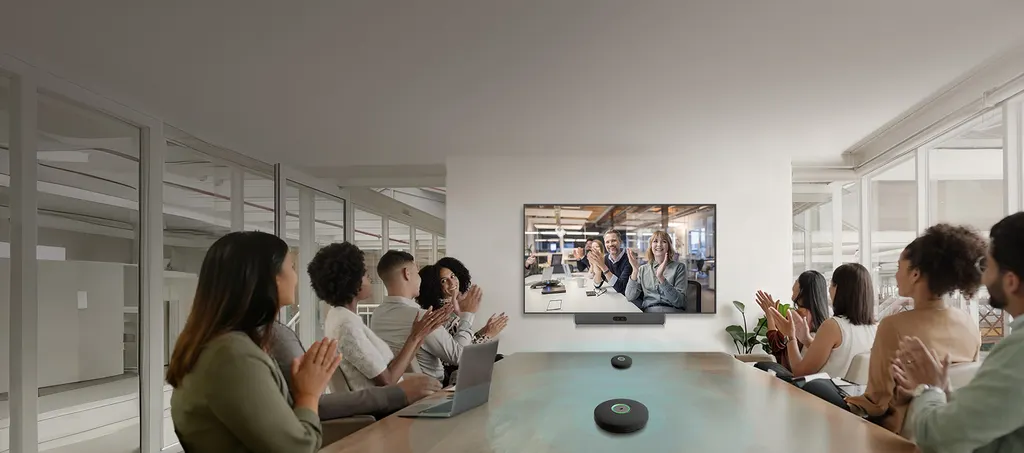

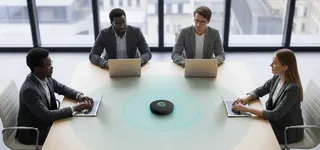

Placing a pod at the centre of a long table extends pickup to seats that the main microphone may struggle to reach. Chaining pods lets you widen the capture area as the group grows, without rebuilding the room layout.

Where it fits in Qatar

Three situations suit the DM30 well:

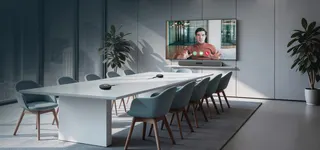

A boardroom in Msheireb or West Bay with a long oval table, where two or three pods serve one Teams Rooms system and cover every seat.
A private school in Al Wakrah fitting out a staff meeting room where an XBar is already fitted, and the pods extend coverage to each chair.
A hybrid meeting room in a Lusail developer's office linking a Doha team with colleagues abroad, where clear pickup at every seat matters most.

Heat, mounting and planning

The operating range is 0°C to 40°C at 10% to 90% relative humidity, with an altitude limit below 5,000 m. Storage is rated from -20°C to 60°C. Outdoor temperatures in Qatar can exceed 45°C in summer, so plan for an air-conditioned room and keep the pod away from direct sun and window glare. If the planned spot is close to a window, a sun-facing wall or a hot ceiling void, ask the SmartRooms Qatar team to confirm the location before ordering.

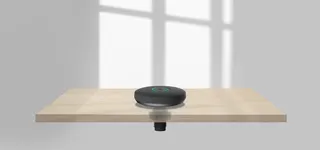

Each unit weighs 0.265 kg net and measures 112.5 mm in diameter by 30.3 mm high. The box includes a non-slip base, a mounting bracket, a screw kit, a cable grommet and a 7.5 m (24.6 ft) network cable. Plan the cable route from each pod to its connection point before installation day, and use the grommet where the cable passes through a table. According to the manufacturer, the IP-based dashboard lets IT teams check device status, adjust settings and deploy updates remotely. SmartRooms Qatar offers free site surveys, a practical step before fixing units to a table or bracket.

Request a quote for your room

Send SmartRooms Qatar your room dimensions, seating layout and the number of pods you need, then request a quote. We usually issue quotations within one working day, accept LPOs and government tender documents, and take payment by bank transfer, cheque or purchase order.

Highlights

Eight silicon microphones with a 3 m optimal pickup radius
Daisy-chain up to four units over standard network cable
Dual RJ45 ports rated 52 V input and 52 V output
One-touch mute with red, green and white status lights
Plug-and-play with the MAXHUB XBar built-in microphone
Operating range 0°C to 40°C, 10% to 90% RH

Room fit

Tell us the room size and platform (Teams, Zoom or BYOD) and we confirm the right combination with your quotation.

Estimated timeline

Quotation within 1 working day · delivery timing depends on stock availability, and we confirm it with your quotation.

Specifications

24 specifications · Source: manufacturer · checked Oct 2026

MAXHUB Mic Pod DM3024

Microphone · Quantity: 8
Microphone · Pickup Distance: 3 m (Optimal Radius)
Microphone · Type: Silicon Microphone
Microphone · Frequency Range: 100 Hz – 20 kHz
Microphone · Microphone Unit Sensitivity: -37dBFS
Microphone · Maximum Number of Devices in a Cascade: 4 units
I/O ports · Port: Dual RJ45 Ports INPUT(RJ45): 52V / 0.24A OUTPUT(RJ45): 52V / 0.18A
I/O ports · Touch Button: Mute/Unmute the microphone
I/O ports · Indicator Light: Green Light: In meeting – microphone active. Red Light: In meeting – microphone muted. White Light: Standby mode.
Physical Specifications · Dimension (D×H): φ112.5 × 30.3 mm
Physical Specifications · Dimension (package) (L×W×H): 208 × 187 × 114 mm (1pcs) 595 × 395 × 250 mm(10pcs)
Physical Specifications · Net Weight: 0.265 kg
Physical Specifications · Gross Weight: 0.9 kg(1pcs) 10.5 kg(10pcs)
Physical Specification · Product Dimension: 278 × 164 × 82 mm /11 × 6.4 × 3.2 inch
Physical Specification · Product Weight: 1.16 kg / 2.56 lbs
Accessories · 7.5 m (24.6 ft) Network Cable: × 1
Accessories · Cable Grommet: × 1
Accessories · Screw Kit: × 1
Accessories · Mounting Bracket: × 1
Environmental Conditions · Operation Temperature: 0°C~40°C
Environmental Conditions · Operation Humidity: 10%~90%RH
Environmental Conditions · Storage Temperature: -20°C~60°C
Environmental Conditions · Storage Humidity: 10%~90%RH
Environmental Conditions · Altitude: Below 5000 meters

Downloads

8 files from the manufacturer

PDF Datasheets UC-Omnidirectional Microphone DM30-Datasheet.pdf 129 KB PDF Datasheets UC-Omnidirectional Microphone DM30-Leaflet.pdf 3.0 MB PDF Manuals & guides DM30 Deployment guide with XBar U50& W70.pdf 4.4 MB PDF Manuals & guides DM30 Deployment guide with XBar V50& V70.pdf 3.2 MB PDF Manuals & guides UC-Omnidirectional Microphone DM30-QSG.pdf 5.3 MB PDF Drawings & CAD UC-Omnidirectional Microphone DM30-Mechanical Drawing.pdf 789 KB URL Drawings & CAD · Opens on manufacturer site UC-Omnidirectional Microphone DM30-ID Drawing URL Other documents · Opens on manufacturer site UC-Omnidirectional Microphone DM30-PPT

Questions about MAXHUB Mic Pod DM30

What is the MAXHUB Mic Pod DM30 for?

It is an expansion microphone for meeting rooms where the main microphone cannot cover every seat. Each unit has eight silicon microphones with a 3 m optimal pickup radius, and the manufacturer positions it for Microsoft Teams Rooms installations. It suits medium to large rooms, such as a boardroom with a long table or a school meeting room with many participants.

How many DM30 units can be daisy-chained?

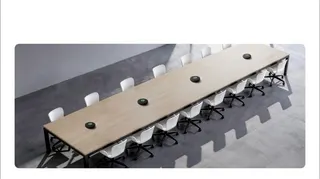

Up to four units can be linked in a cascade using standard Ethernet cable, according to the manufacturer's data. A long boardroom table might use two pods, while a larger hall-style room could use the full chain of four. Confirm the layout with SmartRooms Qatar before ordering so the cable route and placement match the room.

Does the DM30 work with the MAXHUB XBar?

Yes. The manufacturer lists plug-and-play compatibility with the MAXHUB XBar built-in microphone and says the DM30 is recognised automatically, with no settings to configure. This suits a room in Doha's business district that already has an XBar and needs wider coverage for a hybrid meeting without a new installation project.

What cable and connectors are included?

The box includes a 7.5 m (24.6 ft) network cable, a cable grommet, a screw kit and a mounting bracket. The unit has dual RJ45 ports, with an input rated 52 V and 0.24 A and an output rated 52 V and 0.18 A. Plan the cable route before installation, and ask the team if you need a run longer than the supplied cable.

Will the DM30 cope with Qatar's summer heat?

Its operating range is 0°C to 40°C at 10% to 90% relative humidity, so plan for an air-conditioned room. Outdoor summer temperatures in Qatar can exceed 45°C, so avoid positions near an unshaded window, a sun-facing wall or a hot ceiling void. Storage is rated from -20°C to 60°C, but the operating limit is the figure to plan around.

How do the mute button and lights work?

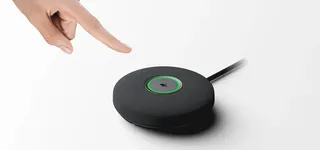

A single touch of the touch button mutes or unmutes the microphone. The indicator turns red when muted, green when the microphone is active in a meeting, and white in standby. These colours let participants see the status from their seats without looking at a screen.

Can the pod sit on a table, or does it need mounting?

Both are possible. The non-slip base keeps the unit steady on a table, while the included mounting bracket and screw kit support fixed installations. Place the pod so the seats it serves are within about 3 m, and book a free site survey with SmartRooms Qatar if you plan to fix units to furniture in a Doha office or school.

How does an IT team manage several DM30 units?

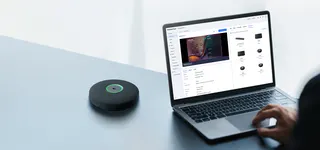

According to the manufacturer's data, the units use an IP-based protocol and can be managed from one dashboard. IT staff can monitor device status, fine-tune settings and deploy updates remotely. This helps a team looking after several meeting rooms on one campus, avoiding a visit to each room for routine checks.

Is the DM30 suitable for a school in Al Wakrah?

It can be, for a staff meeting room or a school board room. Eight microphones and a 3 m pickup radius suit a table of teachers or administrators, and the mute button helps keep discussions orderly. Schools can order against a purchase order, and SmartRooms Qatar delivers to all eight municipalities of Qatar, including Al Wakrah.

Can it support a hybrid meeting with colleagues abroad?

The manufacturer positions the DM30 for Microsoft Teams Rooms, a platform often used for meetings that link a Doha room with overseas colleagues. A company in Lusail or West Bay can place pods to capture each participant at the table, so remote attendees hear the room clearly. Confirm your Teams Rooms platform and room system with the team before ordering.

What frequency range and sensitivity does the microphone have?

The microphones cover 100 Hz to 20 kHz, and the unit sensitivity is -37 dBFS. These figures describe the microphone array, which is designed for speech in meeting rooms. When comparing audio pods, the practical figures to match against your seat layout are the eight-microphone count and the 3 m optimal pickup radius.

Can I buy a DM30 for a government tender or purchase order?

Yes. SmartRooms Qatar supplies the DM30 for government tenders, including Monaqasat, and accepts LPOs. Send the tender documents or LPO requirements with your room layout and the number of pods, then request a quote. Quotations usually follow within one working day, and payment can be made by bank transfer, cheque or purchase order.
