Nearity C30R 4K All-in-one Web Conferencing Bar

Name: Nearity C30R 4K All-in-one Web Conferencing Bar
Brand: Nearity
SKU: nearity-c30r
Availability: InStock

Overview

The Nearity C30R is an all-in-one video conferencing bar for small and medium meeting spaces. It combines a 4K UHD camera with a 120° diagonal field of view, a five-microphone array and a built-in speaker in one unit. Auto-framing, speaker tracking and AI noise suppression keep participants in view and keep keyboard clicks out of the call. It suits huddle rooms and boardrooms in Doha, West Bay and Lusail. Request a quote for supply and installation across Qatar.

A compact all-in-one bar for small and medium rooms

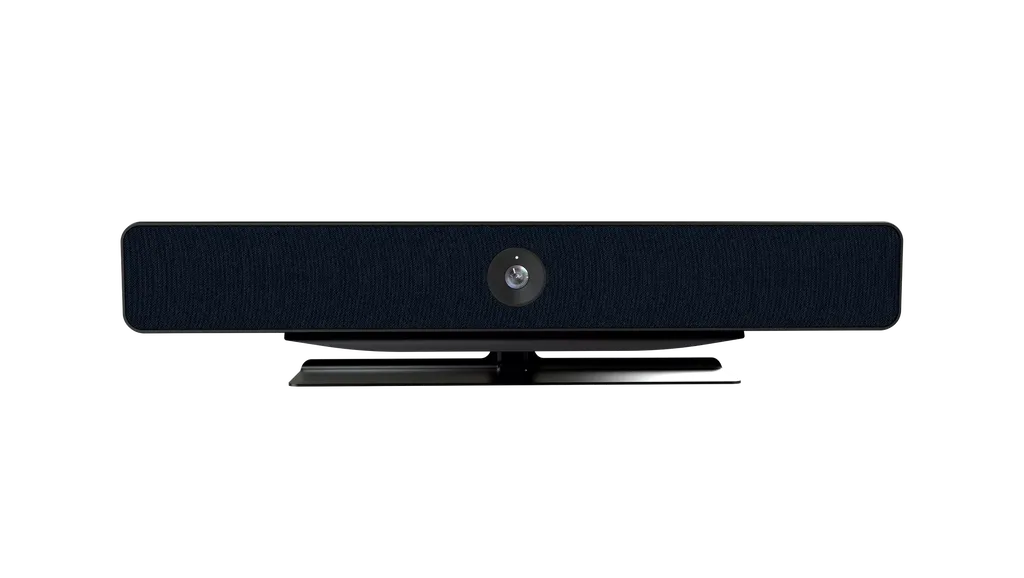

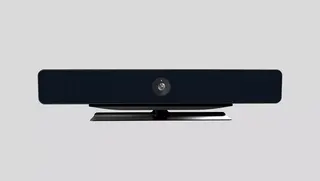

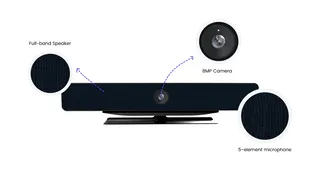

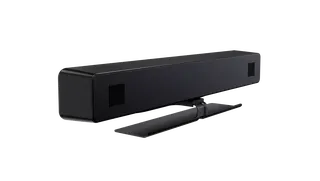

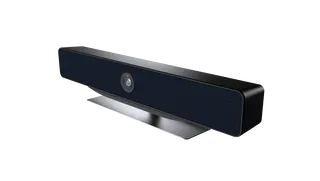

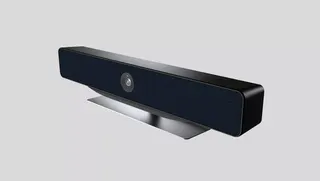

The Nearity C30R brings a 4K UHD camera, a microphone array and a speaker into one unit that sits on the desk by default. For a huddle room or a medium meeting space, that means one device to position and one cable run to plan, instead of separate camera, microphone and speaker hardware. The unit measures 570 mm wide, 81 mm high and 77 mm deep, and weighs 2010 g net, so it is easy to reposition when a room changes layout.

Camera framing that keeps everyone in view

The camera uses a Sony 1/2.8-inch CMOS sensor with an F/1.8 aperture and 8MP maximum pixels. The 120° diagonal field of view and 75° horizontal field of view cover a row of seats across a table, and lens distortion correction keeps the edges of the picture straight. Auto-framing, close-up group and speaker tracking adjust the view as people move, without someone adjusting the camera by hand. Digital zoom reaches 6x.

H.264: up to 2160P at 25fps
MJPEG: up to 1080P at 30fps
YUV: up to 480P at 30fps

Audio designed for speech rather than keyboards

Five MEMS microphones pick up speech from up to 5 m (16 ft) away. Beamforming and direction of arrival help the bar focus on the person speaking. The deep-learning noise algorithm targets non-stationary sounds such as keyboard typing and mouse clicks, while echo cancellation, automatic gain control and reverberation suppression help keep the call level steady. The speaker is rated 4Ω/5W with a 160Hz to 20kHz frequency response, an output of 80±3 dB at one metre and THD of 3% or less.

Where it fits in Qatar

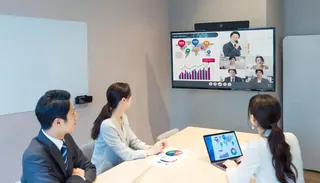

A private school in Al Wakrah fitting out a staff meeting room or a small classroom for hybrid lessons can place the C30R on a desk or near the display. A consultancy office in West Bay that runs daily calls with colleagues abroad benefits from auto-framing and noise handling when several people share one table. In Msheireb, a team holding a small session with a government body or a partner can connect laptops running Windows, Mac or Linux to the bar.

Planning the installation

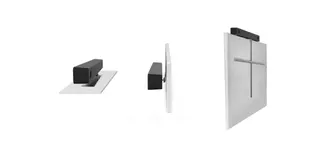

The desktop stand is the default mount, and a TV bracket and a wall bracket are available as options, so confirm the mounting method before ordering. Daisy-chaining up to four NEARITY A20 SpeakerMics uses UTP RJ45 CAT6 cable, which should be planned into the room layout before installation. The source lists an external DC 48V/1.35A power supply, and the USB 2.0 Type-C port and operating system support should be checked against your host computer. SmartRooms Qatar offers free site surveys, which are worth booking before wall-mounting or running cable in an occupied building.

To check whether the C30R fits your room, send the room dimensions and seat count to SmartRooms Qatar and request a quote. The team will confirm the accessories, cabling and installation for your site.

Highlights

4K UHD camera with 120° diagonal field of view
Auto-framing, close-up group and speaker tracking
Deep-learning AI noise suppression for typing and mouse clicks
Five-microphone array with 5 m effective pickup
Daisy-chain up to four NEARITY A20 SpeakerMics

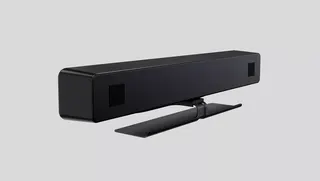

Desktop stand by default; TV and wall brackets optional

Room fit

Tell us the room size and platform (Teams, Zoom or BYOD) and we confirm the right combination with your quotation.

Estimated timeline

Quotation within 1 working day · delivery timing depends on stock availability, and we confirm it with your quotation.

Specifications

32 specifications · Source: manufacturer · checked Oct 2026

Camera features6

Aperture: F/1.8
Sensor: Sony 1/2.8 inches CMOS
Maximum pixels: 8MP
_items: 6x digital zoom
FOV(D): 120°
FOV(H): 75°

Video characteristics5

_items: Lens distortion correction supported · Anti-flickering supported · Automatic white balance and exposure supported · 3D noise suppression supported · 4K UHD image · Speaker tracking supported · Closeup group supported · Auto-framing supported
Aspect ratio: 16:9
YUV: max of 480P@30fps
MJPEG: max of 1080P@30fps
H264: max of 2160P@25fps

Microphone Characteristics4

_items: 5 MEMS microphone array
Effective pickup distance: 5m(16ft)
Sensitivity: -38dBV/Pa 94dB SPL@1kHz
SNR: 63dBV/Pa 94dB SPL@1kHz,A-weighted

Speaker characteristics4

Rated output power: 4Ω/5W
Speaker frequency response: 160Hz ~20kHz
Speaker volume: 80±3dB @1m
_items: THD≤3%

Audio Features1

_items: Direction of arrival（DOA）supported · Beamforming supported · AI noise suppression · Full-duplex · Echo cancellation · Automatic Gain Control(AGC) · Reverberation suppression

Daisy-chain1

_items: POE UTP RJ45 (CAT6)

Physical characteristics8

Height: 81mm (3.2 inches)
Width: 570mm (22 inches)
Depth: 77mm (3 inches)
Net weight: 2010g(70.9 oz)
Gross weight: 3410g
Color: lunar rock gray
Mounting Options: Desktop stand(default)
_items: TV bracket(optional) / Wall bracket(optional)

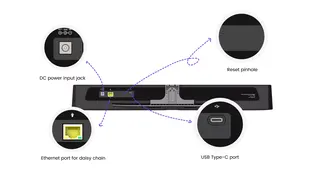

Power and connectivity3

External power supply: DC 48V/1.35A
Compatible operating systems: Windows/Mac/Linux
USB port: USB 2.0 Type-C

Downloads

3 files from the manufacturer

PDF Datasheets Datasheet - C30R.pdf 706 KB PDF Manuals & guides C30R - Support Guide - support-C30R.pdf 42.8 MB PDF Manuals & guides User Manual - C30R_User Manual_V2.pdf 2.4 MB

Questions about C30R

Who is the Nearity C30R designed for?

The C30R is designed for small and medium conference rooms and huddle spaces, where one device handles the camera, microphones and speaker. In Qatar that usually means a meeting room in a West Bay office or a school staff room, where a full AV system would be more than the space needs. Request a quote to confirm the bar suits your room size and seating.

What camera specification does the C30R have?

It captures 4K UHD video from a Sony 1/2.8-inch CMOS sensor with an F/1.8 aperture and 8MP maximum pixels. The diagonal field of view is 120°, the horizontal field of view is 75°, the aspect ratio is 16:9, and digital zoom reaches 6x. Lens distortion correction is supported, which helps keep the edges of the picture straight in a wide-angle view.

Will the camera follow people who move around the room?

Yes. Using its AI algorithms, the C30R supports auto-framing, close-up group and speaker tracking. Auto-framing keeps participants in shot, close-up group focuses on the seated group, and speaker tracking moves toward whoever is talking. A board table in Msheireb where people change seats during a session would make good use of these features.

How does the C30R handle keyboard and mouse noise?

Its deep-learning AI algorithm reduces background noise, with a focus on non-stationary sounds such as keyboard typing and mouse clicks. Echo cancellation, beamforming, automatic gain control and reverberation suppression are also supported. This matters in open-plan offices in Doha, where several people type during the same call and the remote side should hear the speaker clearly.

How far away can the microphones pick up speech?

The five MEMS microphone array has an effective pickup distance of 5 m (16 ft). Direction of arrival and beamforming help it focus on the active speaker. Check the seating plan before ordering, because participants sitting beyond that distance from the bar may need additional audio coverage through the daisy-chained microphones.

Can I extend the audio coverage to a larger room?

Yes. The C30R is daisy-chain ready and can connect up to four NEARITY A20 SpeakerMics using UTP RJ45 CAT6 cable. This suits a larger boardroom, lecture room or training space where the bar alone does not cover every seat. Confirm the cable routes and the number of microphones with SmartRooms Qatar in your quotation.

What power does the C30R need?

The source data lists an external DC 48V/1.35A power supply. Plan a power point close to where the bar will sit, and ask the SmartRooms Qatar team to confirm which power supply is included in your quotation. The unit has a net weight of 2010 g and a gross weight of 3410 g, which is useful information for handling and delivery planning.

Which computers and ports does it support?

The source data lists compatibility with Windows, Mac and Linux, and a USB 2.0 Type-C port on the unit. Check the operating system and connector on your host computer before ordering, and confirm with the team which cable you need so the setup works the first time in your meeting room.

Can the C30R be mounted on a TV or a wall?

The default mount is a desktop stand. A TV bracket and a wall bracket are listed as optional accessories, so specify the one you need in your quotation. For a wall or display mount in an occupied building, book a free site survey first to check the wall, the cable route and the mounting height.

Is the C30R suitable for a school in Al Wakrah?

A private school in Al Wakrah could place the C30R in a staff room or a small classroom for hybrid lessons. The 4K camera and 5 m microphone pickup suit a handful of seated participants, and Windows, Mac and Linux support helps when teachers use different laptops. Discuss the room layout during the site survey before you order.

How do we buy the C30R through an LPO or a government tender?

SmartRooms Qatar supplies against purchase orders (LPOs) and government tenders, including Monaqasat. Quotations are usually issued within one working day, and payment can be made by bank transfer, cheque or purchase order. Send the room size and seat count with your request so the quotation lists the correct accessories and bracket options.
