10BDL3351T/00
Philips 10BDL3351T/00 10.1-inch Multi-Touch Display
Priceon request
QuotationWithin 1 working day
DeliveryConfirmed with your quote, based on stock
Overview
The Philips 10BDL3351T/00 is a 10.1-inch multi-touch display for compact placements such as meeting room door panels, wayfinding points and shelf-edge advertising. It runs Android 13 on an RK3568 processor, supports ten simultaneous touch points and can be powered over a single Ethernet cable using PoE+. With 1280 x 800 resolution and 350 cd/m² brightness, it suits reception areas, offices and hotels across Qatar where wall space is limited.
What this panel is designed to do

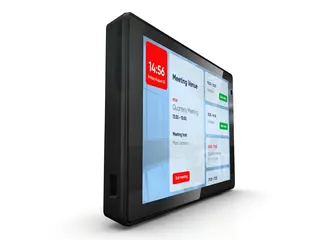

The Philips 10BDL3351T/00 is a 10.1-inch touch display for placements where a large screen would not fit. Its 1280 x 800 panel uses a 16:10 aspect ratio, and the projected capacitive touch layer registers up to ten simultaneous touch points. The front is 0.7 mm tempered safety glass with a Mohs hardness of 7, which suits frequent contact in busy corridors.
Specifications that shape the buying decision
- Processing: RK3568 CPU, 2 GB DDR4 memory and 8 GB eMMC storage, running Android 13.
- Power: Network-powered through IEEE 802.3at PoE+, or a 12 V DC adapter in the box. Maximum draw is 13 W, typical draw 4 W, and standby below 0.5 W.
- Connectivity: RJ45 port for external control, Wi-Fi 802.11 ac/a/b/g/n on 2.4 and 5 GHz, Bluetooth 5.0, HDMI video output, 3.5 mm audio output, a USB 2.0 port, a USB-C port and a micro SD slot.
- Display: 350 cd/m² brightness, 1000:1 typical contrast, 16.7 million colours and 160-degree viewing angles horizontally and vertically.
Where it fits in Qatar
This unit suits places where information is needed beside a point of use:

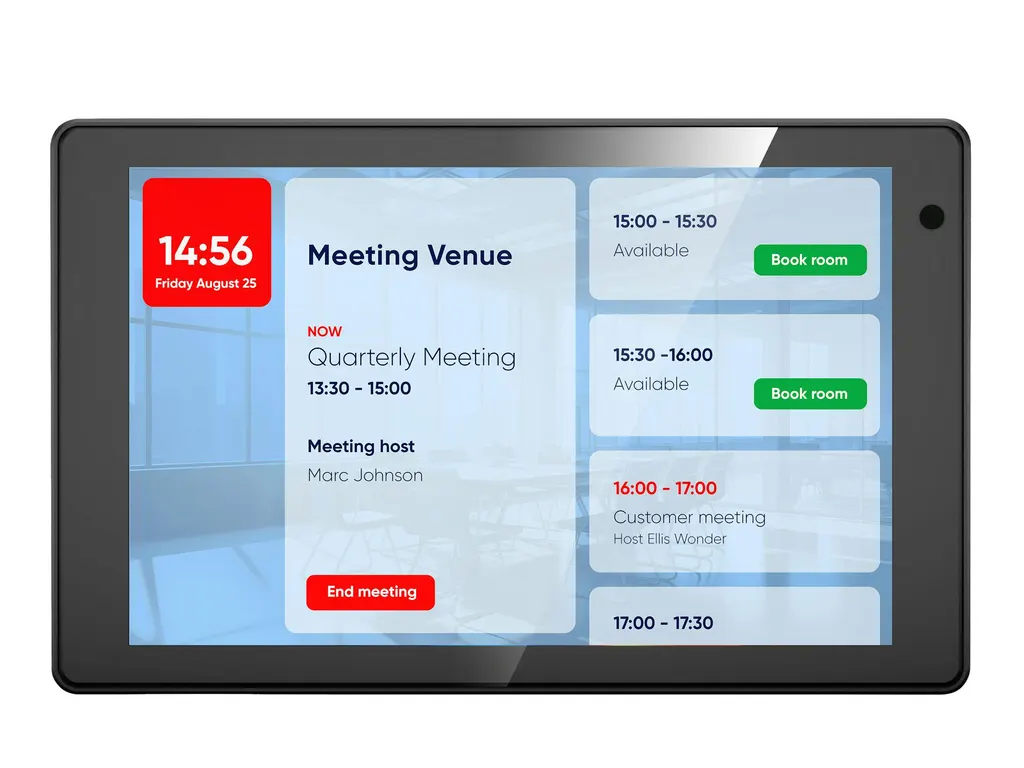

- A corporate office in West Bay or Lusail placing one unit beside each meeting room door to show room status, with the booking software confirmed during the quotation.
- A hotel or serviced apartment in The Pearl with a unit at the entrance to a conference suite, guiding delegates to event spaces inside an air-conditioned lobby.
- A school or training centre in Al Rayyan or Education City showing lecture room timetables in corridors, away from direct sunlight.
- A shopping mall in Al Sadd using a shelf-edge unit in a store, mounted in landscape or portrait to suit the shelf layout.
Planning the installation

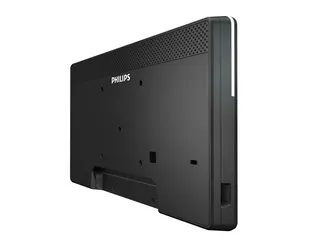

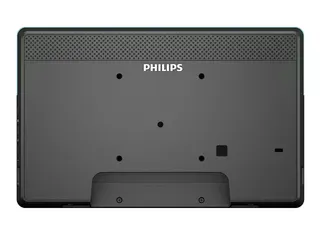

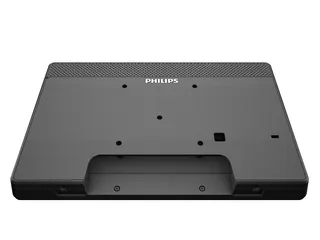

The set mounts to the wall using a 75 x 75 mm pattern and measures 262 x 164 x 24.75 mm, weighing 0.8 kg, so a single unit needs only a small section of wall. It can be placed in landscape or portrait and is rated for 24/7 operation. The operating range is 0 to 40 °C with 30 to 80% humidity without condensation, and up to 3000 m altitude. Qatar summers can pass 45 °C, so keep the unit indoors in an air-conditioned space, away from direct sunlight, sun-facing glass and exterior walls. A Kensington lock and hidden, lockable keyboard control help secure it in public areas. Confirm the power route, either a PoE+ port or the included adapter, and the cable plan before installation. SmartRooms Qatar offers a free site survey before wall-mounting, and the product carries a 3 year warranty.
Request a quote for your site
To request a quote for the Philips 10BDL3351T/00, send us the quantity, the rooms or corridors where units will go, and your preferred power route. SmartRooms Qatar usually returns quotations within one working day, accepts LPOs and government tender purchases, and delivers to all eight municipalities of Qatar. Request a quote today.
Highlights
- 10.1-inch multi-touch panel at 1280 x 800 resolution
- Ten simultaneous touch points on 0.7 mm tempered glass
- Android 13 on RK3568 CPU with 2 GB DDR4 memory
- IEEE 802.3at PoE+ power or included 12 V DC adapter
- Operating range 0 to 40 °C, 30 to 80% humidity
- 3 year warranty
Room fit
Tell us the room size and platform (Teams, Zoom or BYOD) and we confirm the right combination with your quotation.
Estimated timeline
Quotation within 1 working day · delivery timing depends on stock availability, and we confirm it with your quotation.
Specifications
54 specifications · Source: manufacturer · checked Oct 2026
Connectivity4
- Audio output
- 3.5 mm jack
- Video output
- HDMI
- External control
- RJ45
- Other connections
- micro SD; USB 2.0 (x 1); USB C
Convenience8
- Picture performance
- Advanced colour control
- Energy-saving functions
- Smart Power
- Screen-saving functions
- Low brightness
- Programmable side LED
- No
- Other convenience
- G sensor; Kensington lock
- Placement
- Landscape (24/7); Portrait (24/7)
- Keyboard control
- Hidden; Lockable
- Network controllable
- Wi-Fi; BT 5.0; Ethernet
Accessories1
- Included Accessories
- AC power adapter; Quick start guide (x 1)
Internal Player4
- Storage
- 8 GB eMMC
- CPU
- RK3568
- Wi-Fi
- 802.11 ac/a/b/g/n; 2.4/5 GHz
- Memory
- 2 GB DDR4
Dimensions10
- Set Height
- 164 mm
- Wall Mount
- 75 x 75 mm
- Set Width
- 262 mm
- Set Width (inch)
- 10.32 inch
- Product weight
- 0.8 kg
- Product weight (lb)
- 1.63 lb
- Set Depth (inch)
- 0.97 inch
- Set Height (inch)
- 6.46 inch
- Bezel width (L/R, T/B)
- 22 (L/R), 14 (T/B)
- Set Depth
- 24.75 mm
Power3
- Consumption (Max)
- 13 W
- Mains power
- DC12V +/- 5%, 2A, IEEE 802.03at PoE+
- Consumption (Typical)
- 4 W
Operating conditions6
- Humidity range (storage) [RH]
- 10-85% (without condensation)
- Temperature range (storage)
- -10 ~ 60 °C
- Altitude
- 0 ~ 3000 m
- Humidity range (operation)[RH]
- 30-80% (without condensation)
- Temperature range (operation)
- 0 ~ 40 °C
- MTBF
- 50,000 hour(s)
Picture/Display12
- Brightness
- 350 cd/m²
- Diagonal screen size (metric)
- 25.6 cm
- Panel resolution
- 1280 x 800
- Optimum resolution
- 1280 x 800
- Response time (typical)
- 35 ms
- Operating system
- Android 13
- Diagonal screen size (inch)
- 10.1'' inch
- Viewing angle (vertical)
- 160 degree
- Contrast ratio (typical)
- 1000:1
- Display colours
- 16.7 million
- Viewing angle (horizontal)
- 160 degree
- Aspect ratio
- 16:10
Miscellaneous3
- On-Screen Display Languages
- Arabic; English; French; German; Italian; Japanese; Polish; Spanish; Turkish; Russian; Simplified Chinese; Traditional Chinese; Danish; Dutch; Finnish; Norwegian; Portuguese; Swedish
- Regulatory approvals
- CB; CE; RoHS; FCC, Class A; ETL
- Warranty
- 3 year warranty
Interactivity3
- Protection glass
- 0.7 mm tempered safety glass; Tempered safety glass 7 MOHS
- Multi-touch technology
- Projected capacitive
- Touchpoints
- 10 simultaneous touch points
Downloads
5 files from the manufacturerQuestions about 10BDL3351T/00
What is the Philips 10BDL3351T/00 used for?
It is a 10.1-inch multi-touch display for room booking panels, wayfinding and compact advertising. A typical use is a meeting room door in a West Bay office tower, where a small screen beside the door shows room status and supports booking. At 262 mm wide, it works where a larger panel would not fit. It suits offices, hotels, schools and retail spaces across Qatar.
What screen size and resolution does it have?
The panel measures 10.1 inches diagonally, with a 1280 x 800 resolution and a 16:10 aspect ratio. Brightness is rated at 350 cd/m², with 1000:1 typical contrast, 16.7 million colours and 160-degree horizontal and vertical viewing angles. That makes it readable for people standing at a door or passing a shelf, though it is not a substitute for a large display in a boardroom.
Can it be powered over Ethernet?
Yes. The unit supports IEEE 802.3at PoE+, so one network cable can carry both data and power when it is connected to a PoE+ port. Alternatively, the included AC power adapter supplies 12 V DC at 2 A. Maximum consumption is 13 W, typical consumption is 4 W and standby is below 0.5 W. Confirm the switch and cabling plan with the SmartRooms Qatar team during the quotation.
Which operating system and processor does it use?
It runs Android 13 on an RK3568 processor, with 2 GB DDR4 memory and 8 GB eMMC storage. The software you run on it is a decision for your IT team, so confirm that any room booking or signage application you plan to use is supported on Android 13 before ordering. Wi-Fi covers 802.11 ac/a/b/g/n on 2.4 and 5 GHz, and Bluetooth 5.0 is included.
Can it be installed near a window or outdoors in summer?
Not outdoors and not in direct sunlight. The operating temperature range is 0 to 40 °C with 30 to 80% humidity without condensation, and the altitude limit is 3000 m. Qatar summers can pass 45 °C, so position it inside an air-conditioned space, away from sun-facing glass and exterior walls. Storage range is -10 to 60 °C. Ask SmartRooms Qatar to confirm the exact location during the free site survey.
Is it suitable for public use, and can it be locked down?
It suits shared spaces such as corridors and reception areas. The keyboard control can be hidden and locked, which limits settings changes by visitors. A Kensington lock slot lets facilities teams secure the unit to a fixed point. The front is 0.7 mm tempered safety glass, and the touch layer accepts up to ten simultaneous touch points, so several people can use it at once.
Can it show Arabic and English menus?
The on-screen display supports Arabic and English, along with French, German, Spanish, Russian, Turkish, Chinese and several other languages. That helps Qatari offices and schools where staff work in Arabic and English side by side. Content language, such as a room timetable or wayfinding text, is set by the software running on the display, so check that before ordering.
How much wall space does it need and how is it mounted?
The set measures 262 mm wide, 164 mm high and 24.75 mm deep, weighs 0.8 kg, and has a 75 x 75 mm wall-mount pattern. It can be used in landscape or portrait orientation for 24/7 operation. In an office corridor in West Bay or Lusail, a single unit at each meeting room door needs only a small section of wall. Plan cable routing for the Ethernet or power connection before the installer arrives.
What connections does it have for laptops and room systems?
It has HDMI video output, a 3.5 mm audio output, an RJ45 port for external control, a USB 2.0 port, a USB-C port and a micro SD slot. These cover external control and basic media connection, but they do not replace the video conferencing hardware in a room. If you plan to pair it with a conferencing system, confirm the signal path and control method with the SmartRooms Qatar team during the quotation.
Does the unit come with a warranty, and how do I order?
Yes. The product carries a 3 year warranty. Ordering is by quotation: send the quantity, placement and power plan, and SmartRooms Qatar typically returns a quotation within one working day. Purchase orders (LPOs) and government tender purchases are accepted, with payment by bank transfer, cheque or purchase order. Delivery covers all eight municipalities of Qatar.
Can a school order several units under one LPO?
Yes. Schools and training centres in Qatar can order several 10BDL3351T/00 units under one LPO, for example one unit at every lecture room door in a building. Ask for one quotation covering all units, the mounting plan and the power option, so the purchase order matches the final specification. Installation can be arranged after the free site survey, and quotations usually come back within one working day.
