10BDL5051T/00
Philips 10BDL5051T/00 10-inch Multi-Touch Room Booking Display
- Speakers
- 2 x 1.5 W
Priceon request
QuotationWithin 1 working day
DeliveryConfirmed with your quote, based on stock
Overview
The Philips 10BDL5051T/00 is a 10.1-inch multi-touch smart display built for room booking, wayfinding and shelf-level promotion where wall space is limited. It runs Android 13, supports 10 simultaneous touch points on tempered glass and can draw both power and network data over one Ethernet cable through PoE+. Suited to offices, universities and hotels in Doha and across Qatar. Request a quote from SmartRooms Qatar.

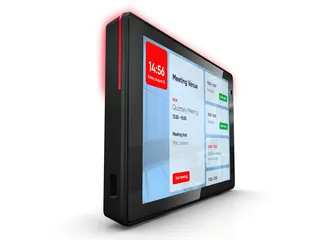

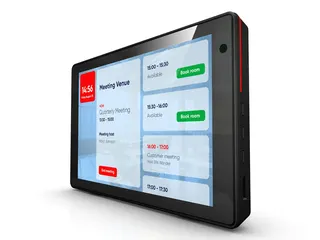

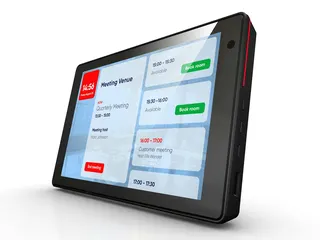

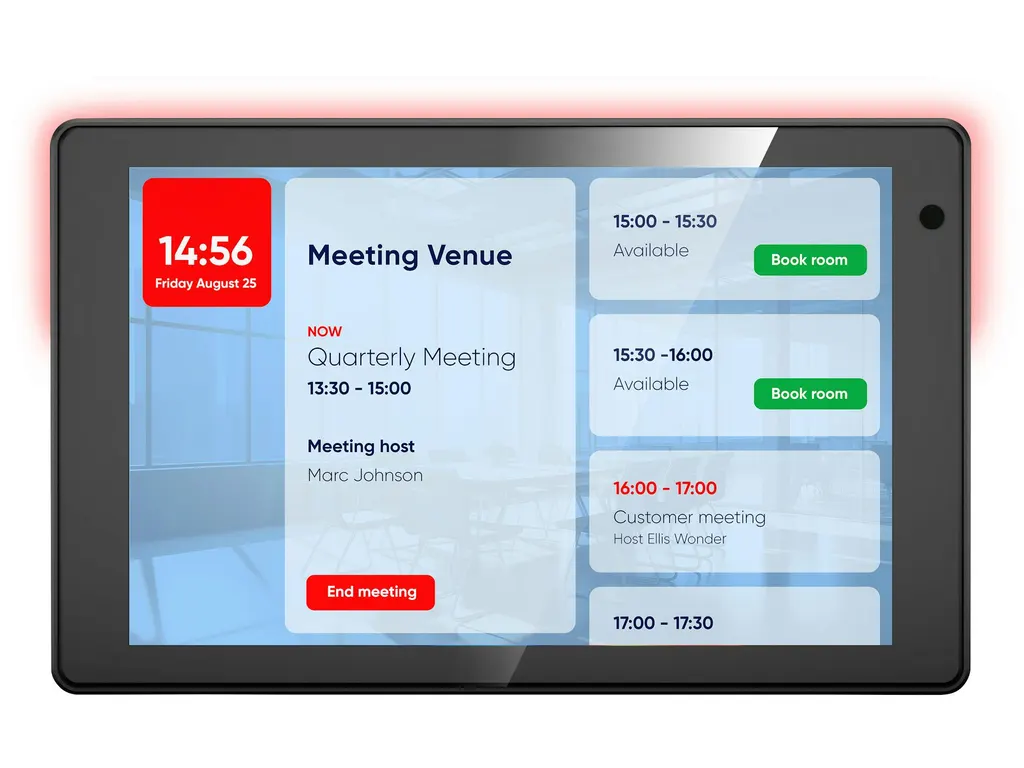

A compact touch panel for room booking and wayfinding
The 10BDL5051T/00 is a 10.1-inch touch display from Philips' T-Line range, designed for jobs that need a small, always-on screen beside a door, on a reception desk or on a shelf. It is not a presentation screen. Its strength is a 16:10 panel at 1280 x 800 resolution, controlled by touch, with Android 13 running on an RK3568 processor, so room schedules, directions or promotional content can be managed on the device itself.
Specifications that shape the buying decision
The panel is rated at 350 cd/m² brightness, with a typical contrast ratio of 1000:1 and a 160-degree viewing angle both horizontally and vertically, which keeps text readable from the side of a corridor. Touch uses projected capacitive technology with 10 simultaneous touch points, protected by 0.7 mm tempered safety glass rated 7 on the Mohs scale. The 2 GB DDR4 memory and 16 GB eMMC storage give the internal player room for its software and content.
- Connectivity: Wi-Fi 802.11 ac/a/b/g/n on 2.4 and 5 GHz, Bluetooth 5.0, Ethernet through an RJ45 port, NFC, HDMI output, one USB 2.0 port, USB-C and micro SD.
- Power: PoE+ support to IEEE 802.3at, or the included DC12V, 2A adapter. Typical draw is 4 W, maximum 18 W, and standby below 0.5 W.
- Sound: two 1.5 W built-in speakers and a 3.5 mm audio output.
Where it fits across Qatar
In Msheireb or West Bay, an office with a busy meeting-room floor can mount one unit beside each door to show live booking status in place of paper sheets. A university in Education City could place panels at lecture theatre entrances or inside building directories. A hotel in Lusail or The Pearl might use a landscape unit beside a conference corridor to show the day's event schedule. Each of these sites needs a stable network connection and a wall that accepts a 75 x 75 mm wall-mount pattern.
Planning the installation for Qatar's climate
The rated operating range is 0 to 40 °C with 30 to 80 percent humidity, non-condensing. Summer temperatures in Qatar regularly pass 45 °C, so the panel belongs in air-conditioned interior spaces, not in a sun-facing lobby window or an outdoor kiosk. Running PoE+ over one Ethernet cable keeps power and data together, or the included adapter can be used with a nearby socket. At 262 x 164 x 24.75 mm and 0.8 kg, the unit is light, but a site survey should confirm the wall type, cable route and mounting height before drilling. The product carries a three-year manufacturer warranty.
For a school fitting out several rooms or a ministry selecting booking panels under an LPO, SmartRooms Qatar supplies the units, delivers to all eight municipalities, installs them professionally and offers free site surveys. Quotations are usually issued within one working day. Request a quote with your quantity and room list, and we will prepare it for you.
Highlights
- 10.1-inch panel at 1280 x 800 resolution, 16:10 ratio
- 10 simultaneous touch points, projected capacitive
- Android 13 on RK3568 with 16 GB eMMC storage
- PoE+ (IEEE 802.3at) or included 12V DC adapter
- Wi-Fi 802.11 ac, Bluetooth 5.0 and Ethernet RJ45
- Three-year manufacturer warranty; 0 to 40 °C operating range
Room fit
Tell us the room size and platform (Teams, Zoom or BYOD) and we confirm the right combination with your quotation.
Estimated timeline
Quotation within 1 working day · delivery timing depends on stock availability, and we confirm it with your quotation.
Specifications
54 specifications · Source: manufacturer · checked Oct 2026
Connectivity4
- External control
- RJ45
- Video output
- HDMI
- Other connections
- micro SD; USB 2.0 (x 1); USB C
- Audio output
- 3.5 mm jack
Convenience7
- Network controllable
- Wi-Fi; BT 5.0; Ethernet
- Other convenience
- G sensor; NFC; Kensington lock
- Programmable side LED
- 3 sides
- Keyboard control
- Hidden; Lockable
- Screen-saving functions
- Low brightness
- Placement
- Landscape (24/7); Portrait (24/7)
- Picture performance
- Advanced colour control
Accessories1
- Included Accessories
- AC power adapter; Quick start guide (x 1); USB A to C cable; HDMI cable
Internal Player4
- Wi-Fi
- 802.11 ac/a/b/g/n; 2.4/5 GHz
- CPU
- RK3568
- Storage
- 16 GB EMMC
- Memory
- 2 GB DDR4
Dimensions10
- Set Depth
- 24.75 mm
- Set Depth (inch)
- 0.97 inch
- Product weight
- 0.8 kg
- Product weight (lb)
- 1.63 lb
- Set Width (inch)
- 10.32 inch
- Set Height (inch)
- 6.46 inch
- Set Width
- 262 mm
- Bezel width (L/R, T/B)
- 22 (L/R), 14 (T/B)
- Set Height
- 164 mm
- Wall Mount
- 75 x 75 mm
Sound1
- Built-in speakers
- 2 x 1.5 W
Power3
- Consumption (Typical)
- 4 W
- Mains power
- DC12V +/- 5%, 2A, IEEE 802.03at PoE+
- Consumption (Max)
- 18 W
Miscellaneous3
- Warranty
- 3 year warranty
- Regulatory approvals
- CE; FCC, Class A; RoHS; CB; ETL
- On-Screen Display Languages
- Arabic; Dutch; Danish; English; French; Finnish; German; Italian; Japanese; Norwegian; Polish; Portuguese; Russian; Spanish; Swedish; Simplified Chinese; Turkish; Traditional Chinese
Operating conditions6
- MTBF
- 50,000 hour(s)
- Temperature range (storage)
- -10 ~ 60 °C
- Altitude
- 0 ~ 3000 m
- Humidity range (storage) [RH]
- 10-85% (without condensation)
- Temperature range (operation)
- 0 ~ 40 °C
- Humidity range (operation)[RH]
- 30-80% (without condensation)
Picture/Display12
- Viewing angle (horizontal)
- 160 degree
- Aspect ratio
- 16:10
- Operating system
- Android 13
- Response time (typical)
- 35 ms
- Panel resolution
- 1280 x 800
- Diagonal screen size (inch)
- 10.1'' inch
- Contrast ratio (typical)
- 1000:1
- Viewing angle (vertical)
- 160 degree
- Optimum resolution
- 1280 x 800
- Display colours
- 16.7 million
- Diagonal screen size (metric)
- 25.6 cm
- Brightness
- 350 cd/m²
Interactivity3
- Touchpoints
- 10 simultaneous touch points
- Multi-touch technology
- Projected capacitive
- Protection glass
- 0.7 mm tempered safety glass; Tempered safety glass 7 MOHS
Downloads
3 files from the manufacturerQuestions about 10BDL5051T/00
What is the Philips 10BDL5051T/00 used for in an office?
It is a 10.1-inch touch display for room booking, wayfinding and shelf-level content. Its Android 13 platform shows booking schedules or directions from the panel itself, without a separate computer. It suits offices in West Bay or Msheireb that need a compact screen beside each meeting room door, where a large display would not fit the wall.
Does the on-screen menu support Arabic?
Yes. The on-screen display languages include Arabic, alongside English, French, German and many others. Teams in Doha that work in Arabic and English side by side can set the menu to either language. Right-to-left support in your booking or signage software depends on that software, so confirm it with the SmartRooms Qatar team before going live.
How does PoE+ work with this model?
The unit supports IEEE 802.3at PoE+, so one Ethernet cable through the RJ45 port can carry both power and network data. This removes the need for a socket beside the wall mount. It can also run from the included DC12V, 2A adapter. Check that your network switch provides PoE+ before ordering, and plan the cable route during the site survey.
Will the screen stay readable in a bright glass-fronted lobby in Doha?
The panel is rated at 350 cd/m² brightness, with a typical contrast ratio of 1000:1 and a 160-degree viewing angle. These figures suit indoor corridors and meeting-room entrances under normal lighting. A lobby with strong daylight or a window facing the sun needs a placement review, which the SmartRooms Qatar team can carry out during the site survey.
Can I install it in an outdoor kiosk in a car park in Al Rayyan?
No. The operating range is 0 to 40 °C with 30 to 80 percent humidity, non-condensing. Summer temperatures in Qatar often exceed 45 °C, so car parks, rooftops and open walkways are outside the operating conditions. Install it inside air-conditioned spaces such as a reception area or an interior corridor.
How many touch points does it support, and what protects the glass?
It supports 10 simultaneous touch points using projected capacitive technology. The front is 0.7 mm tempered safety glass rated 7 on the Mohs scale. Multi-touch matters when two people use the panel at once, for example a visitor searching for a room while a facilities officer checks the schedule on the same screen.
Which processor, memory and operating system does it use?
It runs Android 13 on an RK3568 processor, with 2 GB of DDR4 memory and 16 GB of eMMC storage. The built-in player runs apps and content locally. Before quotation, ask the SmartRooms Qatar team to review the memory and storage needs of the booking or signage software you plan to install, so the capacity matches the workload.
Which ports and wireless options are available?
Ports include RJ45 for external control and network, HDMI video output, one USB 2.0 port, a USB-C port, micro SD and a 3.5 mm audio output. Wireless options are Wi-Fi 802.11 ac/a/b/g/n on 2.4 and 5 GHz, Bluetooth 5.0 and NFC. For booking panels that must stay online, a wired Ethernet connection is the more stable choice.

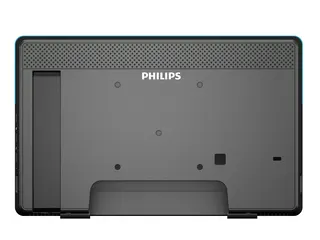

What are the dimensions, and how is it mounted on a wall?
The set measures 262 x 164 x 24.75 mm and weighs 0.8 kg. The wall-mount pattern is 75 x 75 mm. Its light weight makes handling simple, but the wall type, cable route and mounting height should be confirmed during a free site survey before drilling, especially when several units are planned along the same corridor.
Can it be mounted in portrait for a university building directory?
Yes. The data lists both landscape and portrait placement for continuous 24/7 operation. Portrait suits directory lists and floor maps in a building in Education City, while landscape suits booking timelines beside a room. The unit includes a G sensor, but the content orientation is set in software, so choose the orientation before installation.
What comes in the box?
The package includes an AC power adapter, a quick start guide, a USB A to C cable and an HDMI cable. Confirm that your power source matches the rating of the included adapter before connecting. If your project also needs a PoE+ switch or other installation items, list them in your quote request so the quotation covers the full job.
What warranty applies, and how do schools or ministries order several units?
The manufacturer's three-year warranty applies. For multiple units, SmartRooms Qatar supplies and delivers to all eight municipalities, installs professionally and offers free site surveys. We accept LPOs and government tenders, including Monaqasat, and payment by bank transfer, cheque or purchase order. Quotations are usually issued within one working day.
