SL CM EB US
Sennheiser SL CM EB US Extension Brackets for TeamConnect Ceiling Mic 2
Priceon request
QuotationWithin 1 working day
DeliveryConfirmed with your quote, based on stock
Overview

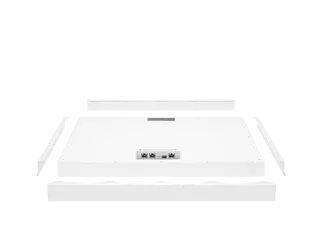

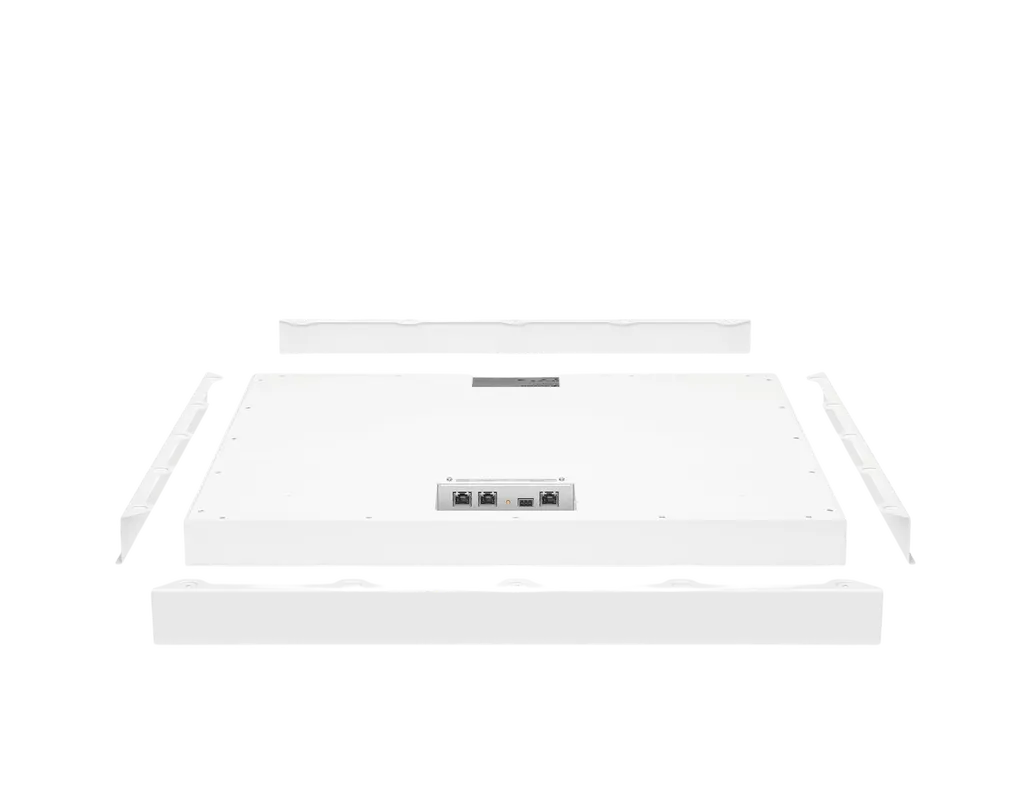

The Sennheiser SL CM EB US is a kit of extension brackets for the TeamConnect Ceiling Mic 2. Fitting it lets the microphone housing sit flush in a 2-foot ceiling grid, growing the housing from 590 mm to 605 mm. The kit includes four metal angle brackets, four M3x8 Torx screws and two guides, with a 2-year manufacturer warranty. It suits meeting rooms and boardrooms in Doha, Lusail and Education City where the ceiling grid is already fixed. Request a quote from SmartRooms Qatar.
What the SL CM EB US adds to a TeamConnect Ceiling Mic 2 installation
The SL CM EB US is a bracket kit rather than a microphone. Its job is to make the TeamConnect Ceiling Mic 2 fit when the unit is flush-mounted in a 2-foot ceiling grid. The kit is supplied separately from the microphone, so a room that already has or is ordering a TeamConnect Ceiling Mic 2 needs it only when the grid layout calls for the larger housing.
For IT and facilities managers, the key point is what changes on the ceiling. The housing grows from 590 mm to 605 mm, a difference of 15 mm, so the fit must be checked against the grid before installation begins.
What is in the box and how it fits

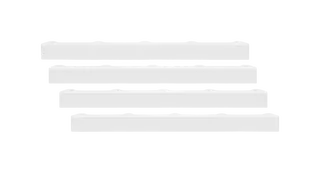

Each kit contains one set of SL CM EB US extension brackets, four metal angle brackets, four M3x8 housing screws with Torx T10 heads, a quick guide and a safety guide. The screws are the fixing hardware for the housing, so keep them with the installation pack and count them before work starts.
- Extension brackets: one set
- Metal angle brackets: four
- Housing screws: four, M3x8, Torx T10
- Guides: one quick guide and one safety guide
Where it fits across Qatar
Boardroom refurbishment in Msheireb. An office fit-out in Msheireb replaces an older conference room. The ceiling grid is already set, and the facilities team needs the microphone to sit flush without changing the tiles. Confirm the grid before ordering the kit.
Seminar rooms in Education City. A university department fitting out several seminar rooms can use the same bracket kit in every room where the ceiling uses a 2-foot grid, keeping the ceiling finish consistent across the building.
Hybrid training rooms in Lusail. A training centre in Lusail that connects classes with colleagues abroad needs a ceiling microphone that stays neat within the grid. Where several rooms are being fitted, one purchase order can cover all the kits.
What to plan before installation
- Measure the ceiling grid and confirm it is 2 feet before ordering.
- Check that the 605 mm housing clears the ceiling void and any services above it.
- Ask the SmartRooms Qatar team to confirm the environment, because the source data does not list an operating temperature range for this kit.
- Keep the quick guide with your site records for future reference.
SmartRooms Qatar offers free site surveys, so a surveyor can check the grid and ceiling void before the kit is specified. Quotations usually follow within one working day. Request a quote and we will confirm the kit, the microphone and the delivery and installation options for your site.
Highlights
- Extends TeamConnect Ceiling Mic 2 housing from 590 mm to 605 mm
- Designed for flush mounting in a 2-foot ceiling grid
- Kit includes four metal angle brackets
- Four M3x8 housing screws with Torx T10 heads
- Manufacturer warranty: 2 years
- Accessory only; the ceiling microphone is not included
Room fit
Tell us the room size and platform (Teams, Zoom or BYOD) and we confirm the right combination with your quotation.
Estimated timeline
Quotation within 1 working day · delivery timing depends on stock availability, and we confirm it with your quotation.
Specifications
6 specifications · Source: manufacturer · checked Oct 2026
Logistics1
- Warranty (years)
- 2
Battery & Power1
- Battery included
- N
Dimensions4
- Product weight (g)
- 1791
- Product height
- 84
- Product length
- 639
- Product width
- 118
Downloads
9 files from the manufacturer
PDF
Sennheiser SL CM EB US datasheets (PDF, 355 KB)
PDF
Sennheiser SL CM EB US manuals & guides (PDF, 628 KB)
PDF
Sennheiser SL CM EB US manuals & guides (PDF, 2.8 MB)
PDF
Sennheiser SL CM EB US manuals & guides (PDF, 1.2 MB)
PDF
Sennheiser SL CM EB US manuals & guides (PDF, 4.8 MB)
PDF
Sennheiser SL CM EB US drawings & cad (PDF, 84 KB)
DWG
Sennheiser SL CM EB US drawings & cad (DWG)
DXF
Sennheiser SL CM EB US drawings & cad (DXF)
STP
Sennheiser SL CM EB US drawings & cad (STP)
Questions about SL CM EB US
Is the SL CM EB US a microphone?
No. The SL CM EB US is an accessory kit of extension brackets for the TeamConnect Ceiling Mic 2. It is used when the microphone is flush-mounted in a 2-foot ceiling grid, and the microphone itself is not included in the box. If you do not already have a TeamConnect Ceiling Mic 2, include it in your quotation request.
Which microphone is this kit designed for?
The kit is designed for the TeamConnect Ceiling Mic 2 and is specified for use when that microphone is installed flush-mounted in a 2-foot ceiling grid. Request the kit alongside the microphone so the bracket size matches the ceiling layout of the room before installation.
How much does the kit change the housing size?
It extends the housing from 590 mm to 605 mm, which is 15 mm larger. Facilities teams should measure the ceiling opening and the clearance above the tiles before installation, because the larger housing must fit both the grid and the void above it.
What comes in the box?
Each kit contains one set of SL CM EB US extension brackets, four metal angle brackets, four M3x8 housing screws with Torx T10 heads, a quick guide and a safety guide. The manufacturer lists the product weight at 1,791 g. Check the contents against this list when the kit is delivered.
Does the kit need batteries or a separate power supply?
No battery is included, according to the manufacturer data. The kit is mechanical hardware that holds the microphone housing in place. Power for the microphone itself is set by the microphone's own specification, which SmartRooms Qatar can confirm when you request a quote.
What warranty applies to the SL CM EB US?
The manufacturer provides a 2-year warranty on this product, and SmartRooms Qatar supplies it with the manufacturer's warranty. Keep the purchase order and invoice with your installation records so the kit's supply details are available for your facilities file.
Our boardroom in Msheireb is being refitted. Is this kit the right choice?
It is the right choice if the boardroom ceiling uses a 2-foot grid and a TeamConnect Ceiling Mic 2 is planned for flush mounting there. During a free site survey, a surveyor can check the grid, the tile type and the space above it before the kit is specified for the refit.
How does the kit suit a campus such as Education City?
A university department fitting out several seminar rooms can use the same kit in every room that has a 2-foot grid, which keeps the ceiling look consistent across the building. Each kit includes four metal angle brackets and four housing screws, so list the quantity per room on the purchase order and match it to the microphones being installed.
Can the kit work in a Lusail training room that connects to colleagues abroad?
Yes, provided the room has a 2-foot ceiling grid and a TeamConnect Ceiling Mic 2 is planned for it. The kit is a fixing accessory only, so call quality depends on the microphone and the rest of the video conferencing system. SmartRooms Qatar can scope those parts with you within the quotation.
Will Qatar's summer heat affect the bracket kit?
The source data does not give an operating temperature range for this kit, so a specific figure cannot be quoted here. Ask the SmartRooms Qatar team to confirm the conditions of the room and the ceiling void when you request a quote, especially in service rooms or areas without full air conditioning.
Do I need a site survey before ordering?
A survey is not required, but it is useful. SmartRooms Qatar offers free site surveys, and during one a surveyor can confirm the grid is 2 feet, measure the clearance needed for the 605 mm housing and check access above the tiles. This prevents a mismatch between the kit and the ceiling before work begins.
How do I request a quote for this kit?
Send your room layout, the ceiling grid size and the number of TeamConnect Ceiling Mic 2 units you need. SmartRooms Qatar usually responds with a quotation within one working day. Government bodies and schools can pay by purchase order (LPO), and bank transfer, cheque or purchase order are accepted.
