Sennheiser SL MCR 2 DW-5 · Price in Qatar

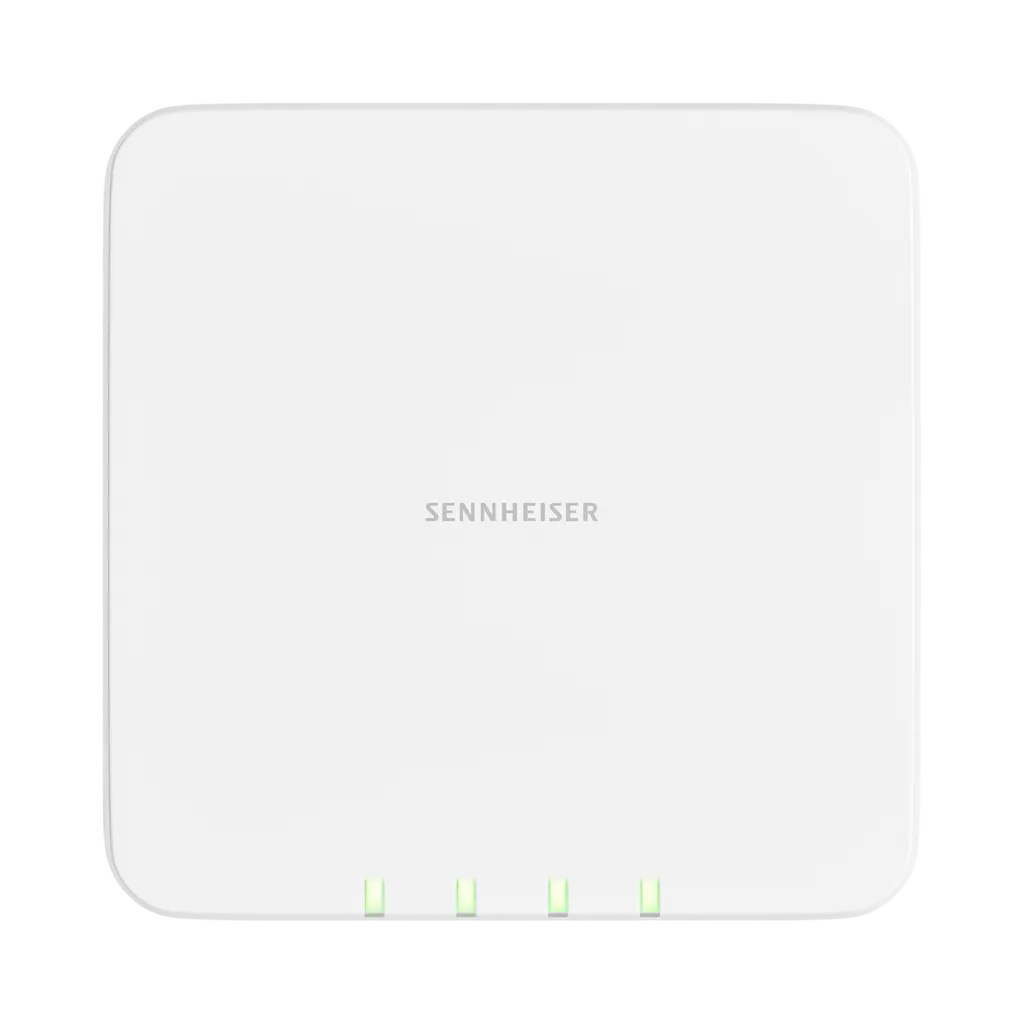

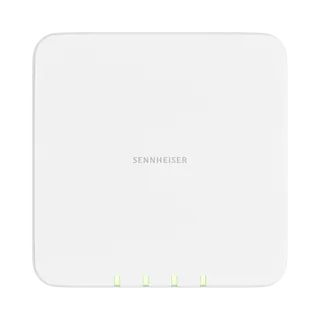

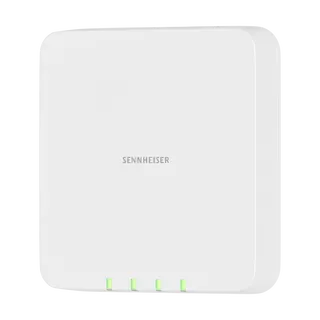

Name: Sennheiser SL MCR 2 DW-5 Two-Channel SpeechLine Digital Wireless Receiver
Brand: Sennheiser
SKU: sennheiser-sl-mcr-2-dw-5-508851
Availability: InStock

Overview

The Sennheiser SL MCR 2 DW-5 is a two-channel receiver for the SpeechLine Digital Wireless system, designed to sit on a wall, ceiling or mic stand. It runs over a single network cable with PoE and Dante, and includes an integrated automixer with an analog mix output for existing sound systems. Its 1893.000 - 1906.000 frequency range suits meeting rooms, boardrooms and lecture halls across Qatar.

What the SL MCR 2 DW-5 does in a SpeechLine system

The SL MCR 2 DW-5 is the two-channel member of the SpeechLine Multi-Channel Receiver family for SpeechLine Digital Wireless. It receives audio from two wireless channels, mixes them, and sends the result onward as analog audio or as Dante digital audio. The white housing measures 180 x 180 x 45 mm including its wall mounting plate and weighs 560 g, so it can be fitted to a wall, a ceiling or a mic stand without taking up much space in a room or technical cabinet.

Network cabling, Dante and analog outputs

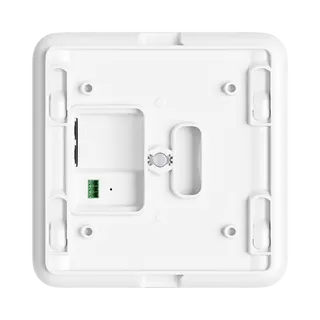

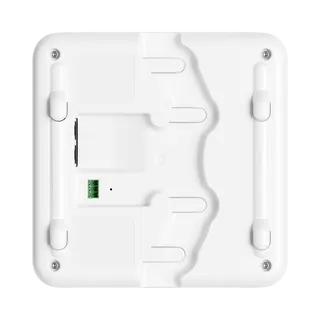

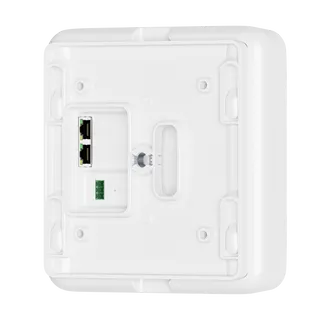

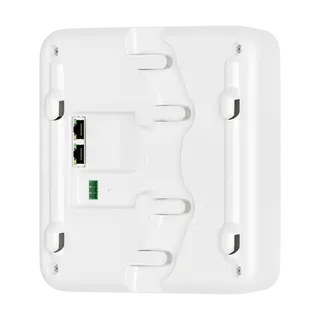

The receiver can be operated with a single network cable thanks to PoE and Dante, which removes much of the analog cabling a conventional install would need. It has two Dante RJ-45 sockets for primary and secondary connections. Because the audio mix is available digitally over Dante, the receiver can extend an existing setup without replacing the DSP. For analog systems, a 3-pin socket carries the analog mix output, and the integrated automixer combines all channels into one sum signal. Latency is 23 ms, typical total harmonic distortion is 0.1 %, dynamic range is above 120 dB(A), and the audio frequency response runs from 20 to 20,000 Hz.

Frequency band, encryption and pairing

Automatic frequency management removes the need for manual frequency settings, and automatic interference management is designed to keep transmission reliable. Signals are encrypted with AES 256, and the pairing function links each transmitter to its receiver. This model operates in the 1893.000 - 1906.000 range, while sibling models in the series cover different bands, so confirm the band of your transmitters before ordering.

Where it fits in Qatar

University lecture room in Education City: a ceiling-mounted receiver feeds the campus audio network over Dante, with one status LED per link for quick checks.
Ministry boardroom in Msheireb: a wall-mounted receiver monitored remotely through a media control system such as AMX, Crestron or Q-SYS Control.
Hotel conference room in West Bay: the analog mix output connects to an existing amplifier, while the Dante output is kept ready for future expansion.

What to plan before installation

The operating temperature range is -10°C to +45°C, with relative humidity up to 95 %. Summer temperatures in Doha can exceed 45°C in poorly ventilated spaces, so avoid unventilated ceiling voids and locations beside hot equipment. The box contains the receiver, a wall mounting plate, a drilling template, a 3-pin Phoenix connector (3.81mm) and a quick guide. The product is covered by the manufacturer's 2-year warranty. A free site survey helps confirm ceiling structure and cable routes before drilling in large halls.

Request a quote from SmartRooms Qatar for the SL MCR 2 DW-5, and include your channel count, transmitter band, mounting location and network layout so we can confirm the right configuration.

Highlights

Two-channel receiver for SpeechLine Digital Wireless
Frequency range 1893.000 - 1906.000
PoE operation with two Dante RJ-45 sockets
Integrated automixer with analog mix output
AES 256 encryption and automatic frequency management
2-year warranty, operating range -10°C to +45°C

Room fit

Tell us the room size and platform (Teams, Zoom or BYOD) and we confirm the right combination with your quotation.

Estimated timeline

Quotation within 1 working day · delivery timing depends on stock availability, and we confirm it with your quotation.

Specifications

48 specifications · Source: manufacturer · checked Oct 2026

Logistics1

Warranty (years): 2

Product Features1

Color HEX: #FFFFFF

Product4

Color: White
Latency (ms): 23 ms
Total harmonic distortion (THD): typ. 0.1 %
Automatic gain control (AGC): Yes

Frequency Specifications2

Frequency range: 1880.000 - 1900.000
Audio frequency response: 20 to 20,000 Hz

Acoustic Properties1

Dynamic range (>): > 120 dB(A)

Connectivity2

Connection: Wireless
Connectors: RJ45 (for Ethernet)

Inputs/Outputs2

Dante™: Primary and Secondary
Audio output: One 3-pin socket (suitable for Phoenix Contact MCVW 1.5-3-ST-3.81) Two Dante™ Digital Audio Network sockets (RJ-45)

Ambient Conditions2

Operating relative humidity (≤ %): max. 95 %
Operating temperature (C): -10°C to +45°C (14°F to 113°F)

Battery & Power2

Battery included: N
Power consumption (Amp): < 15 W

Technology1

Encryption: AES 256

Dimensions5

Dimensions: 180 x 180 x 45 mm (incl. wallmount)
Product weight (g): 560
Product height: 45
Product length: 180
Product width: 180

SL MCR 2 DW-525

article_number: 508851
specs · Logistics · Warranty (years): 2
specs · Product Features · Color HEX: #FFFFFF
specs · Product · Color: White
specs · Product · Latency (ms): 23 ms
specs · Product · Total harmonic distortion (THD): typ. 0.1 %
specs · Product · Automatic gain control (AGC): Yes
specs · Frequency Specifications · Frequency range: 1893.000 - 1906.000
specs · Frequency Specifications · Audio frequency response: 20 to 20,000 Hz
specs · Acoustic Properties · Dynamic range (>): > 120 dB(A)
specs · Connectivity · Connection: Wireless
specs · Connectivity · Connectors: RJ45 (for Ethernet)
specs · Inputs/Outputs · Dante™: Primary and Secondary
specs · Inputs/Outputs · Audio output: One 3-pin socket (suitable for Phoenix Contact MCVW 1.5-3-ST-3.81) Two Dante™ Digital Audio Network sockets (RJ-45)
specs · Ambient Conditions · Operating relative humidity (≤ %): max. 95 %
specs · Ambient Conditions · Operating temperature (C): -10°C to +45°C (14°F to 113°F)
specs · Battery & Power · Battery included: N
specs · Battery & Power · Power consumption (Amp): < 15 W
specs · Technology · Encryption: AES 256
specs · Dimensions · Dimensions: 180 x 180 x 45 mm (incl. wallmount)
specs · Dimensions · Product weight (g): 560
specs · Dimensions · Product height: 45
specs · Dimensions · Product length: 180
specs · Dimensions · Product width: 180
in_the_box: (1) SL MCR DW Multichannel receiver · (1) Wall mounting plate · (1) Drilling template · (1) 3-pin Phoenix connector (3.81mm) · (1) Quick guide

Downloads

0 files from the manufacturer

No downloadable files are listed for this model yet. Ask us and we will send the datasheet.

Questions about SL MCR 2 DW-5

What is the Sennheiser SL MCR 2 DW-5 used for?

It is a two-channel receiver for the SpeechLine Digital Wireless system. It picks up signals from wireless microphone transmitters and outputs the combined audio either as an analog mix or as Dante digital audio. It suits meeting rooms, boardrooms and lecture halls in Qatar where a fixed receiver should sit on a wall or ceiling and feed an existing sound or conferencing system.

How does the SL MCR 2 DW-5 differ from the SL MCR 4 DW-5?

The main difference is channel count. The SL MCR 2 DW-5 has two channels, while the SL MCR 4 DW-5 has four. Both list the same 1893.000 - 1906.000 frequency range and the same 2-year warranty. Choose the two-channel model for a room that needs two wireless audio channels, and the four-channel model if the same space needs more.

What frequency range does this model cover?

The SL MCR 2 DW-5 lists a frequency range of 1893.000 - 1906.000. Sibling models use different ranges, so the band must match the SpeechLine transmitters you plan to pair with it. When requesting a quote, send us the transmitter model and band so we can confirm compatibility before anything is ordered.

Can the receiver be powered over the network cable?

Yes. The product data lists PoE, and the receiver can run from a single network cable together with Dante. This reduces the analog cabling a conventional install would need. Confirm that your network switch can supply PoE to the device before installation, and note the power consumption, which is below 15 W.

What do the Dante connections offer?

The receiver has two Dante RJ-45 sockets, configured as primary and secondary. Its audio mix is available digitally over Dante, so a room can join an existing Dante network and extend that setup without replacing the DSP. Plan Dante addressing with your AV integrator before connecting, so the primary and secondary links are configured correctly on the network switch.

How does the analog mix output work with an existing sound system?

The integrated automixer combines all receiver channels into one sum signal, which is sent through the analog mix output on a 3-pin socket. The matching 3-pin Phoenix connector is included in the box. This suits a school hall in Al Rayyan that already has an analog amplifier and wants wireless microphones without rewiring the room. Check the connector wiring with the installer before connecting to the amplifier input.

Can it be mounted on a ceiling above a lecture hall in Lusail?

Yes. The receiver can be fixed to a wall, a ceiling or a mic stand. The box includes a wall mounting plate and a drilling template, which makes marking fixing points easier. The unit measures 180 x 180 x 45 mm including the wall mounting plate and weighs 560 g. A free site survey helps confirm ceiling structure and cable routes before drilling in a lecture hall in Lusail.

Can it be installed in a plant room or hot ceiling void during a Doha summer?

The operating temperature range is -10°C to +45°C, with relative humidity up to 95 %. Summer temperatures in Doha can exceed 45°C in poorly ventilated spaces, so avoid unventilated ceiling voids and locations next to hot equipment. Install the receiver in the conditioned space where the audio is used, and ask the installer to check the temperature at the mounting point.

How would a university lecture room in Education City use this receiver?

A ceiling-mounted receiver can feed a campus audio network over Dante, with one status LED per link showing each connection. Remote monitoring through AMX, Crestron or Q-SYS Control lets the AV team check the receiver from a control system. AES 256 encryption protects the wireless link during lectures and internal meetings.

What should a hotel conference room in West Bay check before ordering?

Confirm the number of wireless channels, the frequency band of the transmitters already in use, and whether the amplifier takes analog or Dante input. The SL MCR 2 DW-5 has two channels and a 1893.000 - 1906.000 range. Send these details with your quote request. Quotations are usually issued within one working day, and a site survey helps plan the receiver location in a ballroom.

Can a school in Al Rayyan order this for several rooms through an LPO?

Yes. SmartRooms Qatar accepts purchase orders (LPOs), as well as government tenders including Monaqasat. Each room may need its own receiver and transmitter pairing, so list the channel count and frequency band for each room on the purchase order. Payment can be made by bank transfer, cheque or purchase order. The receiver is covered by the manufacturer's 2-year warranty.

What comes in the box?

The box contains one SL MCR DW multichannel receiver, a wall mounting plate, a drilling template, a 3-pin Phoenix connector (3.81mm) and a quick guide. The manufacturer also lists an instruction manual and a 3rd party API for Sennheiser products as online resources. Check the contents on arrival, and mention any extra accessories you need when requesting a quote.
