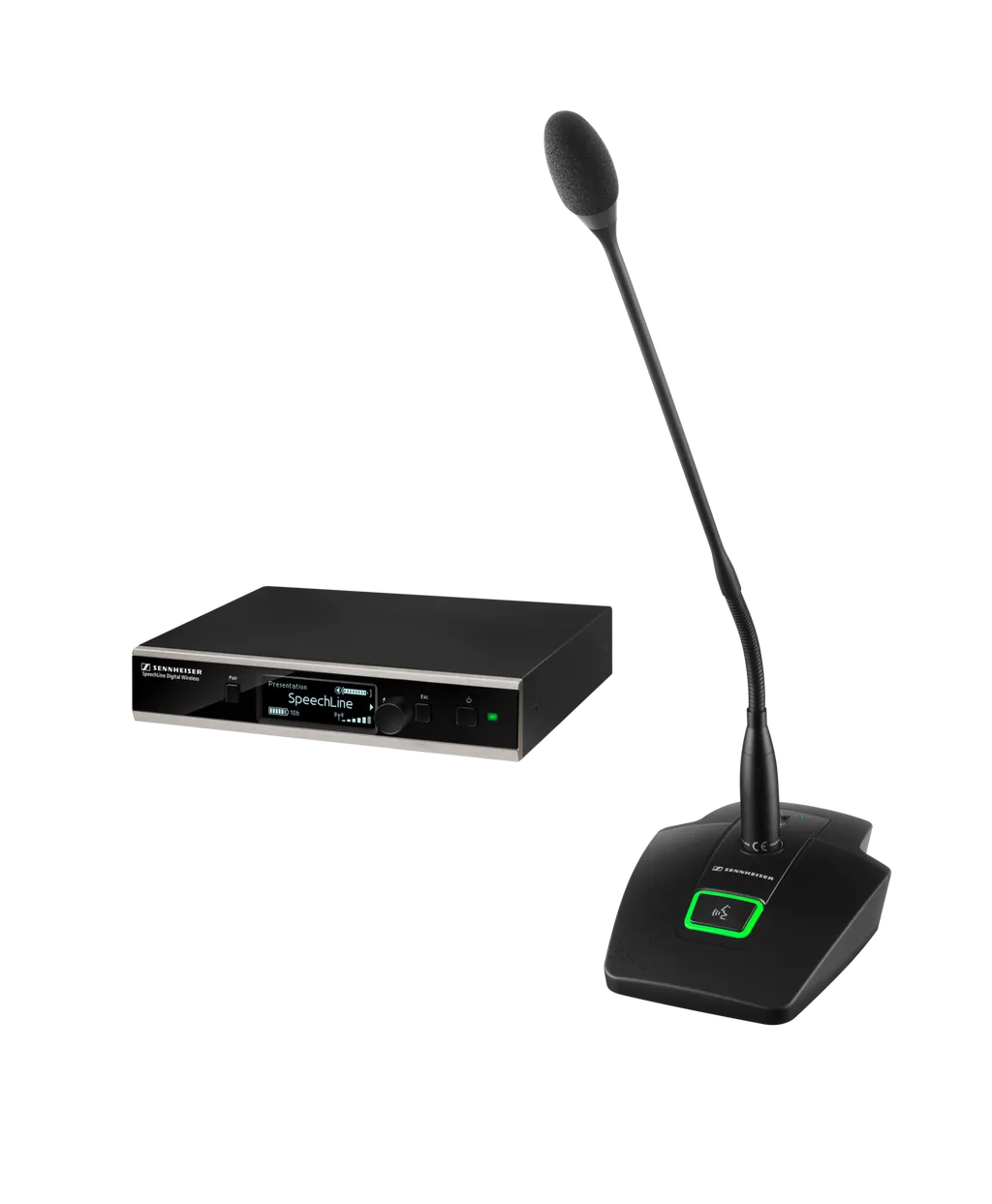

SL TS 133 GN Set DW-5 US

A 1893 to 1906 MHz wireless link built for speech

The SL TS 133 GN Set DW-5 US transmits in the 1893 to 1906 MHz band. This detail matters because this variant is tied to one frequency range, so it should be checked against your site before ordering. Within that link, the receiver is rated at an RF sensitivity of less than -90 dBm, and the audio path samples at 24 bit/48 kHz with a frequency response of 75 to 20,000 Hz.

The signal-to-noise ratio is rated above 90 dB(A) and the dynamic range above 120 dB(A). Total harmonic distortion is typically 0.1 %. For a presenter at a lectern or a chair at a boardroom table, these figures mean speech that stays clear at normal speaking levels, with less noise floor and distortion than weaker wireless chains can introduce.

What arrives in the box and how it is set up

Each set is supplied complete for installation and use. The contents are:

• SL Tablestand 133-S DW, the wireless base unit
• MEG 14-40 B gooseneck microphone, 40 cm long, with cardioid pickup
• BA 40 rechargeable battery, rated 2.2 Ah at 3.6 V
• SL Rack Receiver DW with its power supply
• GA 4 rackmount kit, quick guide and safety guide

The tablestand measures 73 mm high, 405 mm long and 350 mm wide, and draws 350 mA. The BA 40 battery is rated for typically 10 hours of operation. The gooseneck uses an XLR-3 connection, and the set is compatible with Sennheiser XLR-3 gooseneck microphones generally.

Charging, control and day-to-day running

The tablestand supports the Qi wireless charging standard and can also be charged by USB. The two-device wireless base, CHG 2W, is sold separately if you want to charge more than one unit at a time. Battery status LEDs show the remaining charge at a glance, and the set can be monitored and controlled remotely through the Sennheiser Control Cockpit.

The operating temperature range is 0 to 40 °C (14 to 131 °F). Qatar summer temperatures regularly pass 45 °C outdoors, so keep the tablestand, battery and receiver in air-conditioned rooms, and do not leave spare batteries in a parked car or an unconditioned store room.

Where this set fits across Qatar

A university lecturer in Education City who moves between a lectern and a projector screen can keep the gooseneck in position while the tablestand stays on the desk. A government authority in Msheireb or West Bay can place the SL Rack Receiver DW in its AV cabinet, keeping the boardroom table free of cables. A training provider in the Industrial Area or Al Sadd can run a session with a speaker and a panel using the same set, without re-cabling between sessions.

Planning the installation and ordering

Before ordering, measure the rack space needed for the receiver and rackmount kit, and plan the cable run from the XLR 3M audio output to your mixer or DSP. Because the DW-5 US is a regional variant with a specific frequency band, confirm with the SmartRooms Qatar team that the 1893 to 1906 MHz band suits your site and that this is the right variant for your project. Free site surveys are available to check the room layout and equipment placement.

Quotations are usually issued within one working day. SmartRooms Qatar supplies the set across all 8 municipalities of Qatar, installs it professionally, and accepts LPOs, government tenders, and payment by bank transfer, cheque or purchase order. The set is covered by the manufacturer's 2-year warranty.

Request a quote for the SL TS 133 GN Set DW-5 US and our team will confirm the configuration, frequency band and delivery plan for your site.
