TeamConnect Bar M KOR

What the TeamConnect Bar M KOR is

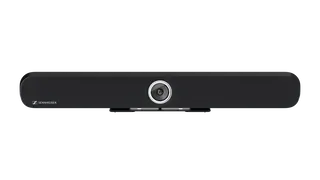

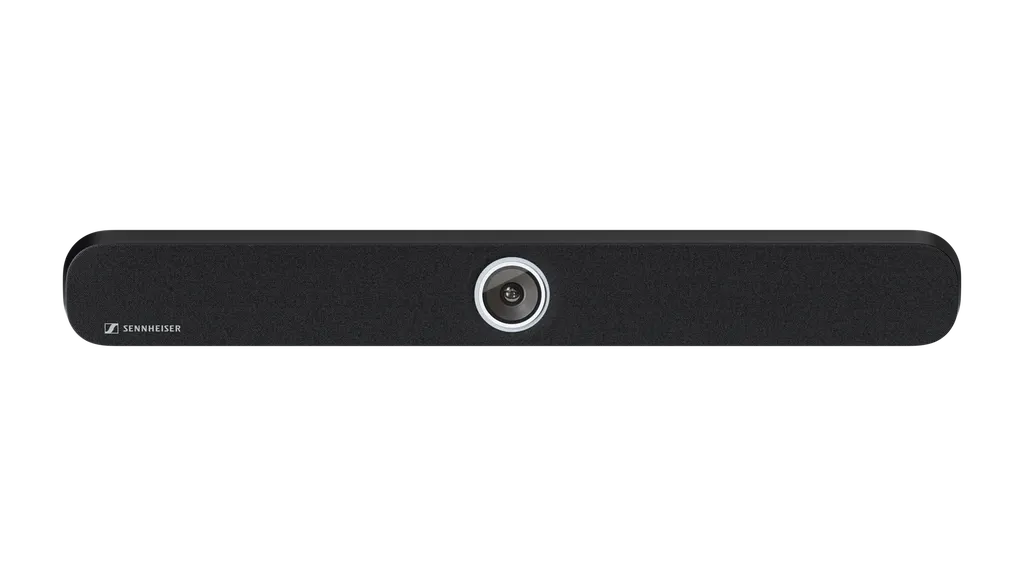

The TeamConnect Bar M KOR combines a camera, microphone array and speakers in one bar that mounts above or below a display in a mid-sized meeting room. Article number 700115 identifies the KOR edition of the TeamConnect Bar M family, so specifications should be checked against this exact model. It is aimed at rooms where a team gathers around a table while some participants join from another site.

Video, audio and connectivity in detail

The camera records UHD 2160p (4K) video with an ePTZ design, a 120° diagonal and 115° horizontal field of view, and 1.5x digital zoom. Autoframing keeps every seated participant in the picture, and the camera includes advanced AI features. Six MEMS microphones have a pickup range of 4.5 m, and four speakers reproduce 100 Hz to 14.5 kHz with a maximum output of 84 dB SPL.

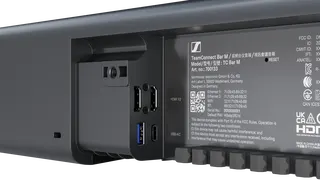

Connections include two HDMI 2.0 outputs, USB, an RJ45 Ethernet port and Dante, which allows extension microphones or a second external USB camera to be added. Wireless options are IEEE 802.11a/b/g/n/ac Wi-Fi and Bluetooth 5.1 with A2DP and SBC. The KOR edition lists a Bluetooth transmission band of 2402 MHz to 2480 MHz, a figure worth comparing when you look at the other regional editions.

Where it fits in Qatar

• Boardroom in West Bay or Lusail: executives join calls with head office abroad, and autoframing keeps the speaker in view as people move around the table.
• Training room in Education City or Al Sadd: a trainer presents to people in the room while remote staff join through Microsoft Teams or Zoom.
• Meeting room in a government building in Msheireb: IT staff who want fewer cables and one device to manage per room will find a single unit simpler to support.

Summer temperatures outdoors in Qatar can exceed 45°C. The bar is rated for operation between 0 °C and 40 °C and 0 to 75% relative humidity, non-condensing, so it belongs in an air-conditioned meeting room rather than a hot lobby or a window-side space exposed to dust storms. Check the room's cooling with your facilities team before choosing the location.

What to plan before installation

The bar measures 750 mm long, 71 mm wide and 95 mm high, and weighs 2500 g. The package includes a mounting bracket with a drilling template, screws and a bracket and storage kit, and the unit supports wall, VESA, tabletop and freestanding placement. Check the display's VESA pattern and the depth of the wall or stand before ordering. A free site survey from SmartRooms Qatar can confirm camera height and seating distances within the 4.5 m pickup range.

Power draw is up to 72 W from an 18 V DC, 4 A supply, and a power supply unit is included. The data does not state the mains input range of that supply, so SmartRooms Qatar will confirm its suitability for Qatar's 240 V, 50 Hz supply before the order is placed. Two AAA batteries are also supplied.

Management, security and platform support

Sennheiser DeviceHub provides full remote-control access, so an IT team can manage the bar from one place rather than visiting each room. Control communication is encrypted, and the device is password protected by default. The bar is certified for Microsoft Teams and Zoom and is approved for third-party control systems from Barco, Crestron, Extron and Q-Sys. The manufacturer's warranty is three years.
