TeamConnect Bar M US

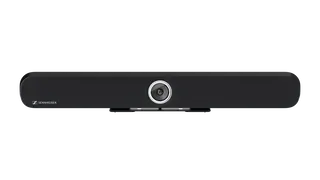

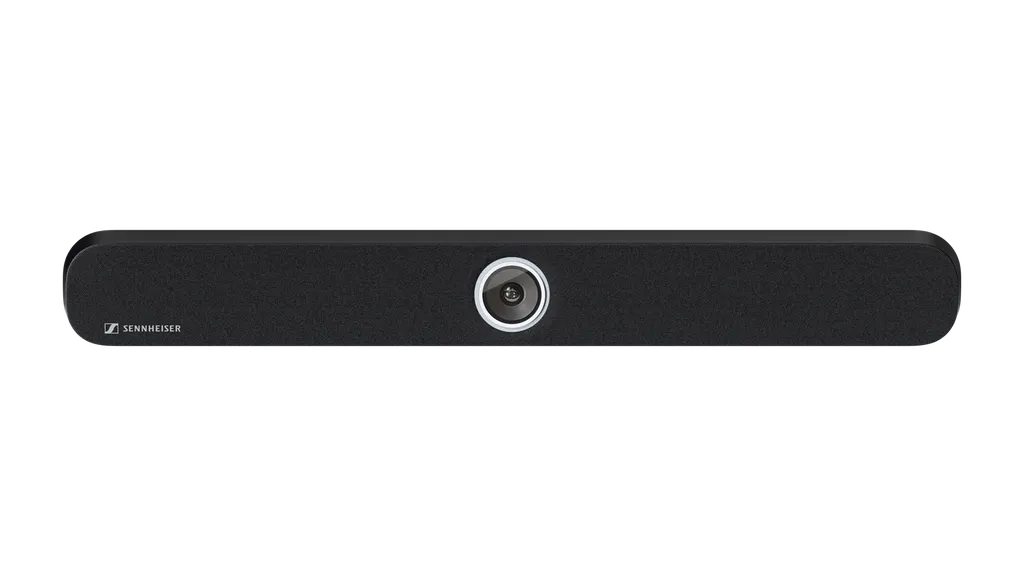

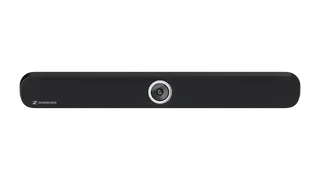

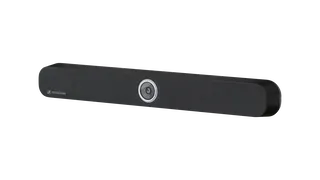

Sennheiser TeamConnect Bar M US 4K All-in-One Video Bar
- Video
- UHD 2160p (4K)
- Field of view
- 120°
- Zoom
- 1.5x digital (Microsoft Teams…
- Microphones
- 4.5m
Priceon request
QuotationWithin 1 working day
DeliveryConfirmed with your quote, based on stock
Overview
The Sennheiser TeamConnect Bar M US (article 700111) is an all-in-one video bar for mid-sized meeting rooms. It combines a 4K UHD camera with autoframing, six microphones with beamforming, four speakers and built-in DSP in one unit. It is certified for Microsoft Teams and Zoom, and suits boardrooms and collaboration spaces in Doha, West Bay and Lusail where local and overseas teams meet in the same call.
The Sennheiser TeamConnect Bar M US, article 700111, places the camera, microphone array, speakers and audio processing in a single bar that sits above or below a display. It is built for mid-sized meeting rooms and collaboration spaces, where one unit has to handle video, audio and the connection to the room screen without a separate set of components.
Camera and audio performance
The 4K UHD camera records at 2160p and uses electronic pan, tilt and zoom with 1.5x digital zoom. Its field of view is 120 degrees diagonally and 115 degrees horizontally. Autoframing and person tiling keep participants clearly visible when someone walks to a whiteboard or when several people sit at the far end of a table.
Six microphones with beamforming pick up speech within a 4.5 m range, and built-in DSP adjusts the audio to the room automatically. Four speakers deliver up to 84 dB SPL, with an audio frequency response specified from 100 Hz to 18 kHz, which helps remote participants follow discussion. The transducers are MEMS type, and total harmonic distortion is listed below 5 percent.
Connectivity, control and security

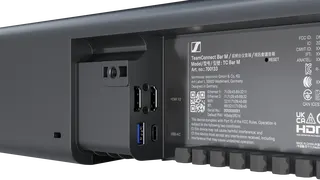

- Two HDMI out 2.0 ports for the room display and a second screen
- USB and RJ45 Ethernet connectors, with a USB-C 3.1 cable in the box
- Dante support for extension microphones or a second external USB camera
- Bluetooth 5.1 with A2DP and SBC, and WiFi to IEEE 802.11 a/b/g/n/ac

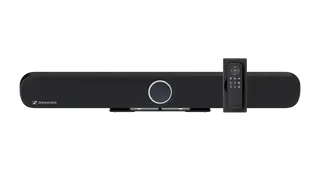

- Remote control through Sennheiser DeviceHub, with encrypted control communication
- Password protection enabled by default, which helps IT teams manage access
For integrated rooms, the bar is certified for third-party media control systems from Barco, Crestron, Extron and Q-Sys. Certifications for Tencent and DingTalk are listed as pending.
Where it fits in Qatar
A boardroom in West Bay or Lusail where executives join calls with teams in Europe or Asia benefits from one device that frames the room and carries clear speech in both directions. A university seminar room in Education City can host hybrid lectures, with the camera covering the presenter and the back rows. A government ministry meeting room in Msheireb that already runs a certified control system can add the bar as a managed endpoint, with the integration scope confirmed before ordering.
What to plan before installation
- Mounting: wall mount, VESA mount, tabletop or freestanding, with the bracket and drilling template included
- Size and weight: 750 mm long, 95 mm high, 71 mm wide, and 2,500 g
- Environment: operating range 0 °C to 40 °C at 0 to 75 percent relative humidity, non-condensing. Qatar summers can exceed 45 °C, so install in an air-conditioned room away from direct sunlight and window glare
- Power: a maximum of 72 W from the supplied power supply unit (model S050-1A150300M2), which takes 18 V DC at up to 4 A. Confirm that the supply suits Qatar's 240 V, 50 Hz BS 1363 sockets before installation
- Seating: keep participants within the 4.5 m pickup range of the bar
SmartRooms Qatar offers a free site survey before wall mounting, so the drilling template, cable route and display alignment are checked on site. Send us your room dimensions, display size and conferencing platform, and the team will return a quotation, usually within one working day. Request a quote for article 700111 today.
Highlights
- 4K UHD camera with autoframing and person tiling
- Six microphones with beamforming and four speakers
- 4.5 m microphone pickup range
- Dante support for extension microphones or a second USB camera
- Certified for Microsoft Teams and Zoom
- Wall, VESA, tabletop or freestanding mounting
Room fit
Tell us the room size and platform (Teams, Zoom or BYOD) and we confirm the right combination with your quotation.
Estimated timeline
Quotation within 1 working day · delivery timing depends on stock availability, and we confirm it with your quotation.
Specifications
84 specifications · Source: manufacturer · checked Oct 2026
Logistics1
- Warranty (years)
- 3
Product1
- Transducer type
- MEMS
Frequency Specifications2
- Frequency range
- 100 Hz to 14.5 kHz
- Audio frequency response
- 100 Hz to 18 kHz
Acoustic Properties2
- Dynamic range (>)
- 69 dB(A)
- Max. sound pressure level
- 84 dB SPL
Connectivity3
- Connection ports
- (2) HDMI out 2.0
- Connection
- Wired
- Connectors
- USB, RJ45 (for Ethernet)
Inputs/Outputs1
- Dante™
- Yes
Ambient Conditions4
- Storage temperature range
- -25 °C to 70 °C (-13 °F to 158 °F)
- Microphone pickup range
- 4.5m
- Operating relative humidity (≤ %)
- 0 to 75 %, non-condensing
- Operating temperature (C)
- 0 °C to 40 °C (32 °F to 104 °F)
Battery & Power7
- Battery capacity (Ah)
- 0.38
- Battery count
- 2
- Battery included
- Y
- Battery voltage (V)
- 1.5
- DC IN dimension
- 5.5 x 2.1 x 10.5 mm
- Power consumption (Amp)
- Max. power consumption 72 W
- Battery specification
- (2) AAA
Electrical Properties1
- Input voltage
- DC IN: 18 V DC, max. 4 A
Dimensions4
- Product weight (g)
- 2500
- Product height
- 95
- Product length
- 750
- Product width
- 71
Wifi4
- WiFi frequency ranges
- 2412 MHz – 2472 MHz (max 20 dBm RF power)
- WiFi modulation
- 64QAM
- WiFi standard
- IEEE 802.11a /b /g /n /ac
- WiFi transmission system
- SISO (Single-In, Single-Out)
Camera5
- Camera diagonal field of view
- 120°
- Camera horizontal field of view
- 115°
- Camera technology
- ePTZ
- Camera zoom
- 1.5x digital (Microsoft Teams certified)
- Camera resolution
- UHD 2160p (4K)
Bluetooth6
- Bluetooth version
- 5.1
- Bluetooth max. RF output power
- 10 dBm
- Bluetooth modulation
- GFSK
- Bluetooth transmission frequency
- 2403 MHz - 2480 MHz
- Bluetooth codec
- SBC
- Bluetooth profile
- A2DP
TeamConnect Bar M US43
- article_number
- 700111
- specs · Logistics · Warranty (years)
- 3
- specs · Product · Transducer type
- MEMS
- specs · Frequency Specifications · Frequency range
- 100 Hz to 14.5 kHz
- specs · Frequency Specifications · Audio frequency response
- 100 Hz to 18 kHz
- specs · Acoustic Properties · Dynamic range (>)
- 69 dB(A)
- specs · Acoustic Properties · Max. sound pressure level
- 84 dB SPL
- specs · Connectivity · Connection ports
- (2) HDMI out 2.0
- specs · Connectivity · Connection
- Wired
- specs · Connectivity · Connectors
- USB, RJ45 (for Ethernet)
- specs · Inputs/Outputs · Dante™
- Yes
- specs · Ambient Conditions · Storage temperature range
- -25 °C to 70 °C (-13 °F to 158 °F)
- specs · Ambient Conditions · Microphone pickup range
- 4.5m
- specs · Ambient Conditions · Operating relative humidity (≤ %)
- 0 to 75 %, non-condensing
- specs · Ambient Conditions · Operating temperature (C)
- 0 °C to 40 °C (32 °F to 104 °F)
- specs · Battery & Power · Battery capacity (Ah)
- 0.38
- specs · Battery & Power · Battery count
- 2
- specs · Battery & Power · Battery included
- Y
- specs · Battery & Power · Battery voltage (V)
- 1.5
- specs · Battery & Power · DC IN dimension
- 5.5 x 2.1 x 10.5 mm
- specs · Battery & Power · Power consumption (Amp)
- Max. power consumption 72 W
- specs · Battery & Power · Battery specification
- (2) AAA
- specs · Electrical Properties · Input voltage
- DC IN: 18 V DC, max. 4 A
- specs · Dimensions · Product weight (g)
- 2500
- specs · Dimensions · Product height
- 95
- specs · Dimensions · Product length
- 750
- specs · Dimensions · Product width
- 71
- specs · Wifi · WiFi frequency ranges
- 2412 MHz – 2472 MHz (max 20 dBm RF power)
- specs · Wifi · WiFi modulation
- 64QAM
- specs · Wifi · WiFi standard
- IEEE 802.11a /b /g /n /ac
- specs · Wifi · WiFi transmission system
- SISO (Single-In, Single-Out)
- specs · Camera · Camera diagonal field of view
- 120°
- specs · Camera · Camera horizontal field of view
- 115°
- specs · Camera · Camera technology
- ePTZ
- specs · Camera · Camera zoom
- 1.5x digital (Microsoft Teams certified)
- specs · Camera · Camera resolution
- UHD 2160p (4K)
- specs · Bluetooth · Bluetooth version
- 5.1
- specs · Bluetooth · Bluetooth max. RF output power
- 10 dBm
- specs · Bluetooth · Bluetooth modulation
- GFSK
- specs · Bluetooth · Bluetooth transmission frequency
- 2405 MHz - 2480 MHz
- specs · Bluetooth · Bluetooth codec
- SBC
- specs · Bluetooth · Bluetooth profile
- A2DP
- in_the_box
- (1) TC Bar M Conferencing microphone · (1) Mounting bracket + drilling template · (1) Power supply unit (S050-1A150300M2) · (1) RC TC Bar · (1) Bracket and storage · (1) Magnetic lens cap · (1) HDMI Cable · (1) Screws · (2) AAA 1.5 V Batteries · (1) USB-C 3.1 Cable · (1) Manual
Downloads
0 files from the manufacturerNo downloadable files are listed for this model yet. Ask us and we will send the datasheet.
Questions about TeamConnect Bar M US
What is the TeamConnect Bar M US used for?
It is an all-in-one video conferencing bar that combines a 4K camera, six microphones, four speakers and audio processing in one unit for mid-sized meeting rooms. In Qatar it suits a boardroom in West Bay or Lusail where one device should handle camera, audio and the link to the room display, so the room does not need a separate set of components.
How does the US model differ from the other TeamConnect Bar M variants?
The core specifications in the manufacturer data are the same across the EU, UK, AUS/NZS, CN and KOR versions. The US article number 700111 is listed with a Bluetooth transmission frequency of 2405 MHz to 2480 MHz, which is specific to this variant. Quote article number 700111 when you request a quotation so the correct version is supplied for your site.
What camera does the bar use and how wide is its view?
It has a 4K UHD (2160p) camera with electronic pan, tilt and zoom, a 120 degree diagonal and 115 degree horizontal field of view, and 1.5x digital zoom. In a university seminar room in Education City, the presenter at the front and students in the back rows can stay in frame, while autoframing and person tiling keep each participant clearly visible.
How far can the microphones pick up speech, and how should I plan seating?
The microphone pickup range is 4.5 m. The unit uses six microphones with beamforming and built-in DSP to adjust to the room automatically. Plan the layout so participants sit within 4.5 m of the bar. For a long table, place the bar centrally on the display wall and test the far seat with a colleague during the site survey.
Does it work with Microsoft Teams and Zoom?
Yes. The manufacturer lists certifications for both Microsoft Teams and Zoom, and the camera zoom is also noted as Microsoft Teams certified. For a Doha office that joins meetings with colleagues in Europe or Asia, confirm which platform and account your organisation uses, and ask the SmartRooms Qatar team to confirm the setup during the quotation stage.
Can it integrate with an existing control system in a government meeting room?
The bar is certified for third-party media control systems from Barco, Crestron, Extron and Q-Sys, and the manufacturer provides a third-party API. Certifications for Tencent and DingTalk are listed as pending. A ministry or authority meeting room in Msheireb already running one of the certified systems should confirm the integration scope with the SmartRooms Qatar team before ordering.
What is included in the box?
The box contains the TC Bar M conferencing unit, a mounting bracket with a drilling template, a bracket and storage piece, a power supply unit (model S050-1A150300M2), an RC TC Bar remote control, a magnetic lens cap, an HDMI cable, a USB-C 3.1 cable, screws, two AAA 1.5 V batteries and a manual. Check the contents against your order before installation and keep the drilling template for accurate wall marking.
What power does it need, and does the supplied power supply suit Qatar?
The unit draws a maximum of 72 W and takes 18 V DC at up to 4 A from the supplied power supply unit, model S050-1A150300M2. Qatar mains is 240 V, 50 Hz with BS 1363 sockets. The source data does not state the plug or input voltage range of that power supply, so confirm it with the SmartRooms Qatar team before installation and check the cable route to the nearest socket.
Where can it be mounted, and do we need a site survey?
It can be wall mounted with the included bracket, fixed by VESA mount, placed on a tabletop or used freestanding. It weighs 2,500 g and measures 750 mm long, 95 mm high and 71 mm wide. For a wall-mounted install in a West Bay or Msheireb office, SmartRooms Qatar offers a free site survey before drilling, so the template, cable route and display alignment are checked first.
Can it run in a hot room during Qatar summers?
The operating temperature range is 0 °C to 40 °C with 0 to 75 percent relative humidity, non-condensing, and storage is rated from -25 °C to 70 °C. Qatar summers can pass 45 °C, so install it in an air-conditioned room and keep it out of direct sunlight and window glare. A hotel meeting room in Doha with reliable cooling is a better fit than an uncooled hall.
How secure is it, and how is it managed remotely?
Control communication is encrypted and the unit is password protected by default, which suits IT teams in banks and government offices that manage devices on their networks. Remote control is available through Sennheiser DeviceHub, and the unit connects over RJ45 Ethernet or WiFi using IEEE 802.11 a/b/g/n/ac. Ask your IT team to set the password and network policy before go-live.
Is it covered by warranty, and how do I order?
The manufacturer gives a 3-year warranty for this model. SmartRooms Qatar supplies the bar, delivers it to all eight municipalities of Qatar and can arrange professional installation. Quotations are usually issued within one working day, and purchase orders (LPOs), government tenders and payment by bank transfer, cheque or purchase order are accepted. Quote article number 700111 with your room and display details.
