Sennheiser TeamConnect Ceiling 2 US Kit

Name: Sennheiser TeamConnect Ceiling 2 US Kit Ceiling Microphone Array
Brand: Sennheiser
SKU: sennheiser-teamconnect-ceiling-2-us-kit-509178
Availability: InStock

Overview

The Sennheiser TeamConnect Ceiling 2 US Kit is a 590 mm square ceiling microphone array that replaces one tile in a grid ceiling, keeping tables clear of cables. It offers a 160 Hz to 18,000 Hz response, 83 dB(A) signal-to-noise ratio and a 3-pin analogue output, with a 5-year warranty. It suits larger boardrooms, lecture rooms and collaboration spaces in Qatar where hybrid meetings need clear pickup.

A ceiling microphone array that replaces one tile

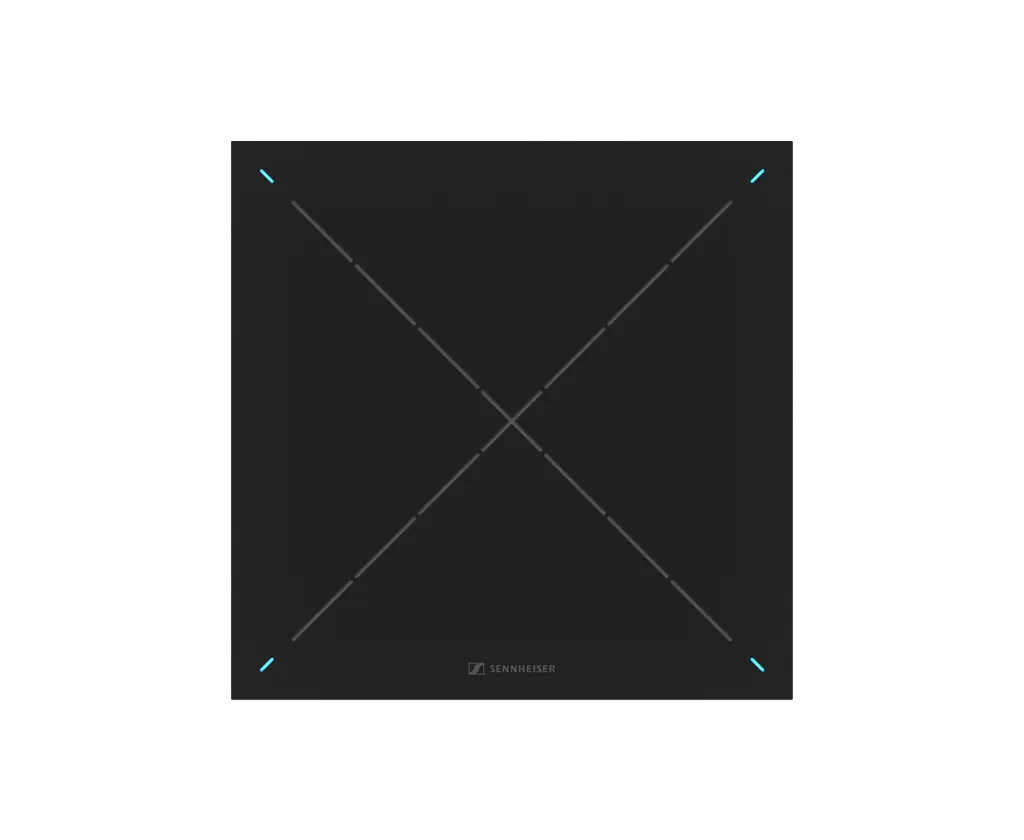

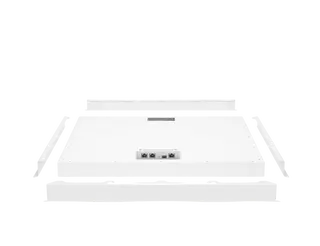

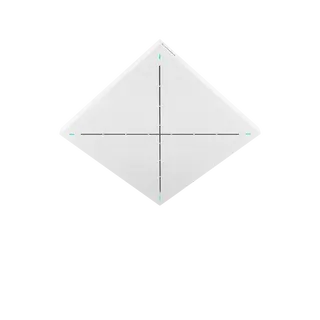

The TeamConnect Ceiling 2 US Kit is a square microphone array measuring 590 x 590 mm that mounts in a suspended ceiling grid in place of a standard tile. Installed flush, it keeps microphones off the table and removes cable runs across desks, which suits meeting rooms that are rearranged for different sessions. This is the US Kit variant of the TeamConnect Ceiling 2 series, article number 509178, and its kit contents list an additional item, SL CM EB US.

Audio figures that matter for room planning

Audio frequency response: 160 Hz to 18,000 Hz
Signal-to-noise ratio: 83 dB(A), with a dynamic range of 93 dB(A)
Maximum sound pressure level: 104 dB SPL
Latency: 4 ms

The manufacturer describes series-level features including patented automatic dynamic beamforming, TruVoicelift, exclusion zones and a priority zone, camera control driven by talker position data, and IEEE 802.1x network authentication. The series is listed as certified for Microsoft Teams, Zoom, DingTalk and Tencent. Confirm the exact feature set for this kit when you request a quote.

Connectivity and power

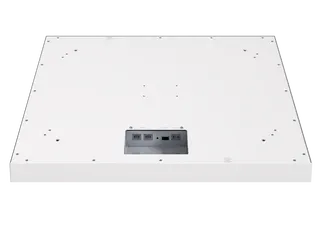

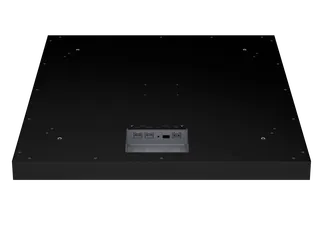

The data for this kit lists one 3-pin terminal audio output, which fits the Phoenix Contact MCVW 1.5-3-ST-3.81 connector, and a 3-pin Phoenix connector (3.81 mm) is included in the box. The connection is wired with a maximum power consumption of 8.8 W. Networked Dante output is listed for the TeamConnect Ceiling 2 White rather than this kit, so check that your amplifier, DSP or codec accepts a 3-pin analogue input. The listed operating humidity range is 20 to 95% non-condensing.

Where it fits in Qatar

A boardroom in West Bay or Msheireb, where a long table needs even pickup and no cables across it.
A university lecture room in Education City or Lusail, where the lecturer moves and remote students join from abroad.
A government training room in Doha, where Arabic and English speakers share one meeting.

What to plan before installation

Each unit is 43 mm deep and weighs 5,670 g, so confirm the grid module, tile footprint and void space before ordering. A free site survey from SmartRooms Qatar checks the ceiling type, room layout and cable route to the control equipment. Multi-room projects such as a lecture hall fit-out can be ordered on a purchase order (LPO) or through a government tender.

Request a quote

Send the room sizes, the number of units and the conferencing platform you use. The SmartRooms Qatar team usually returns a quotation within one working day, covering delivery to all eight municipalities of Qatar and professional installation. Payment by bank transfer, cheque or purchase order is accepted. Request a quote today.

Highlights

590 x 590 x 43 mm square ceiling tile form factor
Audio frequency response of 160 Hz to 18,000 Hz
Maximum sound pressure level of 104 dB SPL
Signal-to-noise ratio of 83 dB(A)
3-pin terminal audio output with Phoenix connector included
5-year warranty listed by the manufacturer

Room fit

Tell us the room size and platform (Teams, Zoom or BYOD) and we confirm the right combination with your quotation.

Estimated timeline

Quotation within 1 working day · delivery timing depends on stock availability, and we confirm it with your quotation.

Specifications

44 specifications · Source: manufacturer · checked Oct 2026

Logistics1

Warranty (years): 5

Product Features1

Color HEX: #000000

Product4

Transducer type: Pre-polarised condenser
Color: Black
Latency (ms): 4 ms
Warranty AMER (years): 5

Frequency Specifications1

Audio frequency response: 160 Hz to 18,000 Hz

Acoustic Properties4

Dynamic range (>): 93 dB(A)
Equivalent noise level (db): 11 dB(A)
Max. sound pressure level: 104 dB SPL
Signal-to-noise ratio: 83 dB(A)

Connectivity1

Connection: Wired

Inputs/Outputs1

Audio output: 1 x 3-pin terminal (fits Phoenix contact MCVW 1.5-3-ST-3.81)

Ambient Conditions1

Operating relative humidity (≤ %): 20 to 95%, non-condensing

Battery & Power2

Battery included: N
Power consumption (Amp): Max. 8.8 W

Electrical Properties1

Sensitivity: 0 dBV/Pa (988 mV/Pa)

Dimensions5

Dimensions: 590 x 590 x 43 mm
Product weight (g): 5670
Product height: 130
Product length: 700
Product width: 700

TeamConnect Ceiling 2 US Kit22

article_number: 509178
specs · Logistics · Warranty (years): 5
specs · Product · Transducer type: Pre-polarised condenser
specs · Product · Latency (ms): 4 ms
specs · Product · Warranty AMER (years): 5
specs · Frequency Specifications · Audio frequency response: 160 Hz to 18,000 Hz
specs · Acoustic Properties · Dynamic range (>): 93 dB(A)
specs · Acoustic Properties · Equivalent noise level (db): 11 dB(A)
specs · Acoustic Properties · Max. sound pressure level: 104 dB SPL
specs · Acoustic Properties · Signal-to-noise ratio: 83 dB(A)
specs · Connectivity · Connection: Wired
specs · Inputs/Outputs · Audio output: 1 x 3-pin terminal (fits Phoenix contact MCVW 1.5-3-ST-3.81)
specs · Ambient Conditions · Operating relative humidity (≤ %): 20 to 95%, non-condensing
specs · Battery & Power · Battery included: N
specs · Battery & Power · Power consumption (Amp): Max. 8.8 W
specs · Electrical Properties · Sensitivity: 0 dBV/Pa (988 mV/Pa)
specs · Dimensions · Dimensions: 590 x 590 x 43 mm
specs · Dimensions · Product weight (g): 5670
specs · Dimensions · Product height: 130
specs · Dimensions · Product length: 700
specs · Dimensions · Product width: 700
in_the_box: (1) TeamConnect SL Ceiling 2 Microphone Array · (1) SL CM EB US · (1) 3-pin Phoenix connector (3.81 mm) · (8) Self-adhesive rubber feet · (1) Instruction manual · (1) Supplement sheet with manufacturer declarations

Downloads

0 files from the manufacturer

No downloadable files are listed for this model yet. Ask us and we will send the datasheet.

Questions about TeamConnect Ceiling 2 US Kit

What is the TeamConnect Ceiling 2 US Kit used for?

It is a ceiling microphone array for larger meeting rooms, lecture spaces and collaboration rooms where microphones should not sit on the table. Its square 590 x 590 x 43 mm body replaces one ceiling tile, and its 160 Hz to 18,000 Hz frequency response covers the speech range needed for conferencing. It suits boardrooms, training rooms and lecture halls across Qatar where hybrid meetings are common.

What size is the unit and will it fit my ceiling?

The unit measures 590 x 590 x 43 mm and weighs 5,670 g. Before ordering, measure the ceiling module, the tile footprint and the space above the grid, because the 43 mm depth must fit the void. A free site survey from SmartRooms Qatar checks this on site, including the ceiling type and whether the grid can safely carry the weight of the unit.

What audio output does the kit provide and what connector do I need?

The kit data lists one 3-pin terminal audio output, which fits the Phoenix Contact MCVW 1.5-3-ST-3.81 connector. A 3-pin Phoenix connector (3.81 mm) is included in the box. Confirm that your amplifier, DSP or conferencing codec accepts a 3-pin analogue input before ordering. Networked Dante output is listed for the TeamConnect Ceiling 2 White, not for this kit.

Is it certified for Microsoft Teams and Zoom?

The TeamConnect Ceiling 2 series is listed as certified for Microsoft Teams, Zoom, DingTalk and Tencent. Certification applies to the series as described by the manufacturer, so confirm the exact integration for your platform, room system and control equipment with the SmartRooms Qatar team during the quotation stage, especially if your setup uses a third-party codec.

How does it compare on sensitivity and signal-to-noise ratio?

The kit lists a signal-to-noise ratio of 83 dB(A), a dynamic range of 93 dB(A), an equivalent noise level of 11 dB(A) and a maximum sound pressure level of 104 dB SPL. Sensitivity is 0 dBV/Pa (988 mV/Pa) and latency is 4 ms. Compare these figures side by side with other microphone arrays when you assess how the room will sound.

What power does it need and how is it powered?

The source data for this kit lists a maximum power consumption of 8.8 W and a wired connection. It does not state a power method for this kit, so ask SmartRooms Qatar to confirm how the unit should be powered in your room, along with the rest of the audio and control chain, before you order. Confirming this early avoids delays at installation.

Can it be used in a hot Qatar summer or in a humid room?

The kit is a ceiling unit for indoor meeting rooms. Its data gives an operating relative humidity of 20 to 95% non-condensing but does not give an operating temperature range. For any room that is not air-conditioned, or that receives heat from windows or lobbies, ask the SmartRooms Qatar team to confirm the conditions before installation.

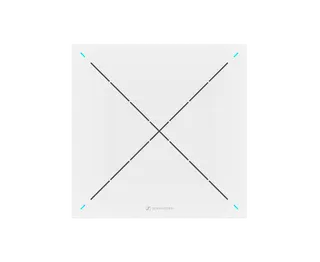

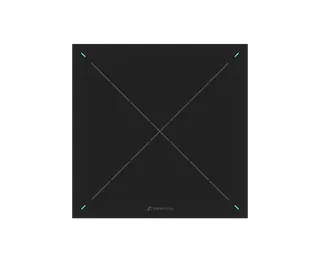

How does this kit differ from the Black and White versions?

This kit's specification sheet does not list a colour and lists a single 3-pin audio output. Its kit contents include an additional item, SL CM EB US. The Black model is listed in black, and the White model lists both the 3-pin terminal and two RJ-45 Dante network ports. Choose the variant that matches your cabling and network plan.

Will it capture speakers in a large lecture hall at Education City?

In a lecture hall where the presenter moves and remote students join, the series features matter. Automatic dynamic beamforming, exclusion zones and a priority zone are listed for the family, and camera control uses talker position data. A maximum sound pressure level of 104 dB SPL gives headroom for speech in larger rooms. Test coverage during the site survey before fixing the layout.

Does it suit a ministry boardroom where Arabic and English are used?

The product data does not describe language features, so this kit should not be chosen on that basis. The data does support a wide frequency response, an 83 dB(A) signal-to-noise ratio and beamforming, which help capture speakers seated around a long table in mixed-language meetings. Ask the team to confirm how it works with your room's conferencing system.

Can a school or ministry order several units on a purchase order?

Yes. SmartRooms Qatar accepts purchase orders (LPOs) and government tenders, including Monaqasat tenders, and payment can be made by bank transfer, cheque or purchase order. Send the room list and the number of units. The team usually returns a quotation within one working day, and a free site survey can be arranged before you place the order.

What warranty is included?

The source data lists a 5-year warranty for this kit from the manufacturer, and products supplied by SmartRooms Qatar are covered by that manufacturer warranty. Ask for the warranty terms and coverage details with your quotation. Keep the purchase invoice and unit details in your asset register so that any future claim can be handled quickly.
