Sennheiser TeamConnect Ceiling M Plus CT-W

Name: Sennheiser TeamConnect Ceiling M Plus CT-W Ceiling Microphone Array
Brand: Sennheiser
SKU: sennheiser-teamconnect-ceiling-m-plus-ct-w-700519
Availability: InStock

Overview

Sennheiser's white TeamConnect Ceiling M Plus CT-W is a ceiling microphone array with 15 capsules and automatic beamforming. It picks up speech up to 4.3 m away in rooms up to 60 m², and ships with a ceiling tile plate for suspended ceilings. Cloud management through DeviceHub suits Qatari IT teams running several meeting rooms.

A white ceiling microphone array built for medium and large rooms

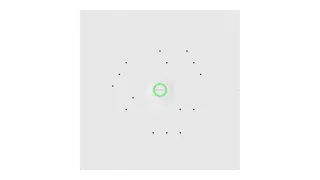

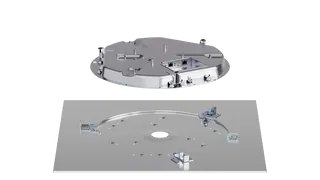

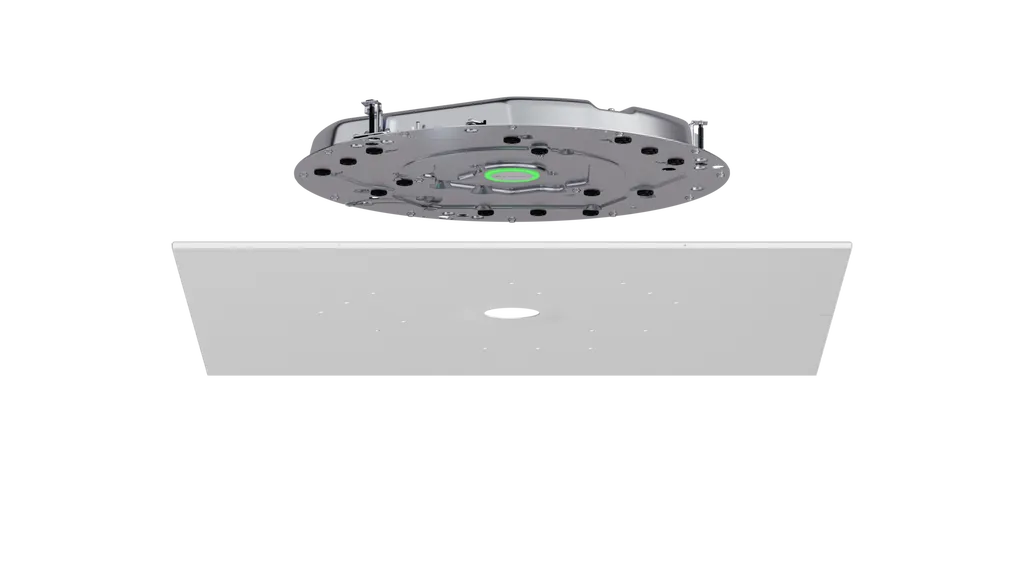

The TeamConnect Ceiling M Plus CT-W is a ceiling-mounted microphone array from Sennheiser's TeamConnect Ceiling M Plus series, supplied in white with a ceiling tile plate for suspended ceiling installations. It is aimed at meeting rooms and flexible collaboration spaces where people speak from different points around the room, and where the microphone should stay out of sight. Its listed pickup range is up to 4.3 m (14 ft), across spaces up to 60 m² (646 ft²).

The audio facts that matter for speech

Sound quality depends on how the microphone captures voices and how much background noise it lets through. This model uses 15 precision capsules engineered in Germany and a patented automatic dynamic beamforming system that focuses on speakers and reduces background noise. Key figures for buyers:

Frequency response: 100 Hz to 16,000 Hz
Max. sound pressure level: 98 dB SPL
Signal-to-noise ratio: 79 dB(A), with a dynamic range of 83 dB(A)
Equivalent noise level: 15 dB(A)
Sensitivity: 0 dBV/Pa (1020 mV/Pa)

TruVoiceLift adds natural in-room voice lifting, and automatic speaker-position detection supports camera tracking.

Setup and management across several rooms

Setup and control run through a browser-based interface. DeviceHub provides cloud-based device management so IT teams can check and control units from one place, while PartnerLink allows direct configuration within third-party AV platforms. Connection options include single cable, split mode and daisy-chaining, which helps when several units share one cabling route. The connection is wired, and the box includes a Phoenix connector for the audio output.

Where it fits in Qatar

A government ministry in Msheireb refitting a boardroom with a suspended ceiling is a typical case: the ceiling tile plate and flush mount kit suit a tile-based ceiling, and the 4.3 m pickup range covers a table of normal length. In West Bay, a bank or corporate office modernising several meeting rooms can use the same model in each room and manage them together through DeviceHub. In Education City, a university seminar room of up to 60 m² can connect the microphone to its existing conferencing setup once the room system has been confirmed.

What to plan before installation

Confirm the ceiling type and the void above it, since the box supplies a ceiling tile plate and mounting kits.
Check the room area against the 60 m² guideline and map seating against the 4.3 m pickup range.
Plan the cable route to the audio output and confirm the power arrangement with our team, as the box does not list a separate adapter.
Choose the connection mode (single cable, split mode or daisy-chain) before cabling is installed.

SmartRooms Qatar offers free site surveys, professional installation and delivery to all eight municipalities of Qatar. Quotations usually follow within one working day, and we accept purchase orders (LPOs) from public and private buyers. Request a quote for the CT-W and tell us your room sizes and ceiling type, and we will confirm the quantity and fixings you need.

Highlights

15 German-engineered capsules with automatic dynamic beamforming
Speech pickup up to 4.3 m across spaces up to 60 m²
Frequency response 100 Hz to 16,000 Hz; max. 98 dB SPL
Ceiling tile plate, flush mount kit and suspension kit in the box
DeviceHub cloud device management and browser-based setup
Wired connection with single cable, split mode or daisy-chain options

Room fit

Tell us the room size and platform (Teams, Zoom or BYOD) and we confirm the right combination with your quotation.

Estimated timeline

Quotation within 1 working day · delivery timing depends on stock availability, and we confirm it with your quotation.

Specifications

46 specifications · Source: manufacturer · checked Oct 2026

Logistics1

Warranty (years): 5

Product Features2

Color HEX: #FFFFFF
On/off switch: No

Product3

Transducer type: Pre-polarised condenser
Color: White
Warranty AMER (years): 2

Frequency Specifications1

Audio frequency response: 100 Hz to 16,000 Hz

Acoustic Properties4

Dynamic range (>): 83 db(A)
Equivalent noise level (db): 15 db(A)
Max. sound pressure level: 98 dB SPL
Signal-to-noise ratio: 79 dB(A)

Connectivity1

Connection: Wired

Inputs/Outputs1

Audio output: 1 x 3-pin terminal (fits Phoenix contact MCVW 1.5-3-ST-3.81)

Ambient Conditions2

Microphone pickup range: up to 4.3 m (14 ft)
Operating relative humidity (≤ %): 20 to 95%, non-condensing

Battery & Power2

Battery included: N
Power consumption (Amp): Approx. 8 W

Electrical Properties1

Sensitivity: 0 dBV/Pa (1020 mV/Pa)

Dimensions4

Product weight (g): 4100
Product height: 45.8
Product length: 590.8
Product width: 590.8

TeamConnect Ceiling M Plus CT-W24

article_number: 700519
specs · Logistics · Warranty (years): 5
specs · Product Features · Color HEX: #FFFFFF
specs · Product Features · On/off switch: No
specs · Product · Transducer type: Pre-polarised condenser
specs · Product · Color: White
specs · Product · Warranty AMER (years): 2
specs · Frequency Specifications · Audio frequency response: 100 Hz to 16,000 Hz
specs · Acoustic Properties · Dynamic range (>): 83 db(A)
specs · Acoustic Properties · Equivalent noise level (db): 15 db(A)
specs · Acoustic Properties · Max. sound pressure level: 98 dB SPL
specs · Acoustic Properties · Signal-to-noise ratio: 79 dB(A)
specs · Connectivity · Connection: Wired
specs · Inputs/Outputs · Audio output: 1 x 3-pin terminal (fits Phoenix contact MCVW 1.5-3-ST-3.81)
specs · Ambient Conditions · Microphone pickup range: up to 4.3 m (14 ft)
specs · Ambient Conditions · Operating relative humidity (≤ %): 20 to 95%, non-condensing
specs · Battery & Power · Battery included: N
specs · Battery & Power · Power consumption (Amp): Approx. 8 W
specs · Electrical Properties · Sensitivity: 0 dBV/Pa (1020 mV/Pa)
specs · Dimensions · Product weight (g): 4100
specs · Dimensions · Product height: 45.8
specs · Dimensions · Product length: 590.8
specs · Dimensions · Product width: 590.8

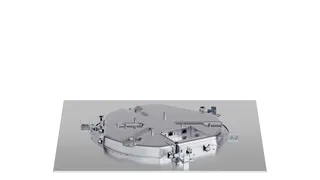

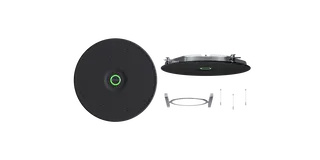

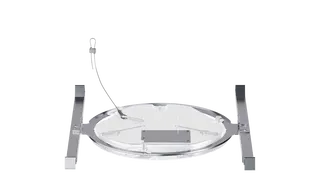

in_the_box: (1) TCC M Plus · (1) Ceiling Tile Plate · (1) Flush Mount Kit · (1) Phoenix connector · (1) Safety Rope · (1) Suspension Kit

Downloads

0 files from the manufacturer

No downloadable files are listed for this model yet. Ask us and we will send the datasheet.

Questions about TeamConnect Ceiling M Plus CT-W

What room size is the CT-W designed for?

The CT-W is built for medium and large flexible collaboration spaces, with a listed voice pickup range of up to 4.3 m (14 ft) across spaces up to 60 m² (646 ft²). That suits most boardrooms and meeting rooms in Doha offices. For a room larger than 60 m² or with an unusually long table, ask the SmartRooms Qatar team to check placement before you request a quote.

How does the CT-W differ from the other TeamConnect Ceiling M Plus variants?

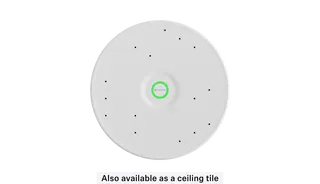

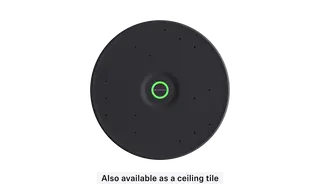

The CT-W is the white variant, and its box includes a ceiling tile plate for suspended ceilings. The F and S variants ship with a front plate and a Chicago plenum connection box cover plate instead, and they are offered in black or white. The CT-W 2FT has larger dimensions (606.5 mm) and a heavier body (4.3 kg). Choose the variant that matches your ceiling finish and fit-out before requesting a quote.

Can the CT-W be installed in a West Bay meeting room with a suspended ceiling?

Yes, a suspended ceiling is the fit-out this variant is designed around, since the ceiling tile plate, flush mount kit, suspension kit and safety rope are all in the box. Before ordering, check the tile type and the depth of the void above it. A free site survey from SmartRooms Qatar confirms the mounting position, cable route and access before any installation work starts.

Does the CT-W need a battery or a separate power adapter?

No battery is included, and the listed power consumption is approximately 8 W. The unit has no on/off switch, so its energy-saving standby mode manages idle periods. The box does not list a separate power adapter, so ask the SmartRooms Qatar team to confirm the power arrangement for your installation before you request a quote.

What connects to the audio output?

The CT-W has one 3-pin audio output terminal that fits the Phoenix Contact MCVW 1.5-3-ST-3.81 connector, and a Phoenix connector is included in the box. The connection type is wired only, so plan the cable route before installation. The manufacturer's responsive manual covers connection steps in more detail, and our team can help match the cable to your room system.

How is the CT-W set up and managed across several meeting rooms?

Setup and control run through a browser-based interface (LUI). DeviceHub adds cloud-based device management for visibility across units, and PartnerLink lets you configure the microphone directly within supported third-party AV platforms. For an organisation running several rooms, this centralises oversight in one place rather than requiring checks at each room individually.

Does the CT-W support camera tracking?

The CT-W includes automatic speaker-position detection, which the manufacturer lists for camera tracking. Whether it drives a particular camera depends on your video conferencing setup. Confirm the camera and conferencing platform with the SmartRooms Qatar team before quoting, since integration depends on your existing equipment.

What does TruVoiceLift do in practice?

TruVoiceLift is Sennheiser's in-room voice lifting feature. It lifts voices within the room so that people sitting further from the microphone are easier to follow for remote participants. Combined with the 4.3 m pickup range, it is relevant to tables where participants sit at different distances from the unit.

Can the CT-W be used in hot or outdoor areas?

The CT-W is intended for indoor meeting rooms and collaboration spaces. The source data lists an operating relative humidity of 20 to 95%, non-condensing, but it does not give an operating temperature range. Because Qatar summers are very hot, avoid outdoor, open-air or poorly ventilated locations, and confirm the ceiling void conditions with the SmartRooms Qatar team before installation.

Can a government ministry buy several CT-W units under an LPO?

Yes. SmartRooms Qatar accepts purchase orders (LPOs) and government tenders, including Monaqasat, and accepts payment by bank transfer, cheque or purchase order. For a ministry fitting out several meeting rooms in Msheireb, request one quotation that lists each unit with its ceiling tile plate and mounting kit, and send the room list with the LPO. Delivery covers all eight municipalities of Qatar.

How many CT-W units does a long boardroom table need?

It depends on the table length and layout. One unit covers the listed pickup range of up to 4.3 m (14 ft) across a room up to 60 m². If every seat sits within that range, one unit may be enough, but a longer table, such as one in a Lusail boardroom, may need more. A site survey will check seat positions against the pickup range before you commit to a quantity.
