Sennheiser TeamConnect Ceiling M Plus F-B

Name: Sennheiser TeamConnect Ceiling M Plus F-B Ceiling Microphone Array
Brand: Sennheiser
SKU: sennheiser-teamconnect-ceiling-m-plus-f-b-700508
Availability: InStock

Overview

The Sennheiser TeamConnect Ceiling M Plus F-B is a black, flush-mounted ceiling microphone array for video conferencing. It uses 15 capsules and automatic dynamic beamforming to pick up speech up to 4.3 m away in rooms up to 60 m². Cloud-based DeviceHub management and browser-based setup let IT teams deploy and monitor it easily, making it a fit for meeting rooms and collaboration spaces in Doha, Lusail and Education City.

A black flush-mount ceiling array for medium and large rooms

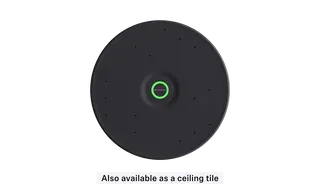

The Sennheiser TeamConnect Ceiling M Plus F-B is a ceiling microphone array designed for meeting rooms and flexible collaboration spaces where participants move around and speak from different positions. Its black front plate sits flush with the ceiling, which suits offices and rooms with darker finishes. It is the black-faced option in the TeamConnect Ceiling M Plus series.

The audio figures behind clear speech

When comparing ceiling microphones, buyers usually start with pickup range and room coverage. These are the figures to check:

Pickup range: up to 4.3 m (14 ft), across spaces up to 60 m² (646 ft²).
Capsules: 15 precision capsules feeding patented automatic dynamic beamforming.
Frequency response: 100 Hz to 16,000 Hz.
Signal-to-noise ratio: 79 dB(A), with a dynamic range of 83 dB(A) and an equivalent noise level of 15 dB(A).
Maximum sound pressure level: 98 dB SPL.

Beamforming focuses pickup on the active talker and reduces background noise, so speech stays intelligible when the room is busy. TruVoiceLift helps lift in-room voices naturally, so remote participants can hear people seated far from the table.

Where it fits in Qatar

A typical case is a 60 m² boardroom in West Bay, with executives at both ends of the table and regular video calls to teams abroad. One ceiling array covers the room without placing microphones on the table. A seminar room at a university in Education City running hybrid teaching can use the same approach. A government office in Msheireb fitting out several meeting rooms can standardise on one model and manage the devices from a central point. Hotels and serviced apartments in Lusail or The Pearl can apply it to function rooms whose layouts change between events.

What to plan before installation

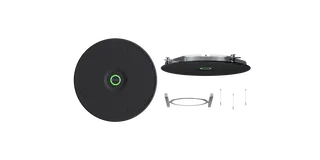

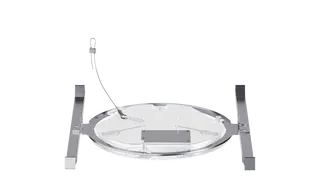

Plan the ceiling opening before the unit arrives. The box includes the black front plate, a flush mount kit, a Chicago plenum connection box cover plate, drilling templates, a Phoenix connector, a safety rope and a suspension kit, so the installer has the hardware in one package. The unit weighs 4,100 g. Its audio output is a 3-pin terminal that fits the Phoenix Contact MCVW 1.5-3-ST-3.81 connector, so confirm the cable run with your cabling contractor. Power consumption is approximately 8 W. The source does not list an operating temperature range, so confirm the environment with the SmartRooms Qatar team before fitting it in hot or dusty areas, and note the listed humidity range of 20 to 95% non-condensing. SmartRooms Qatar offers free site surveys and professional installation, and a survey is worth booking before any ceiling work.

Request a quote

Whether you need one meeting room or several rooms across a building, request a quote from SmartRooms Qatar. Quotations are usually provided within one working day, and we supply under purchase orders (LPOs) or government tenders, with delivery to all eight municipalities of Qatar. Send us your room sizes, ceiling type and number of units, and we will confirm the quantity and accessories.

Highlights

Black front plate for flush ceiling installation
Voice pickup up to 4.3 m across spaces up to 60 m²
15 precision capsules with automatic dynamic beamforming
Cloud device management through DeviceHub
Browser-based setup and control, plus PartnerLink integration
Wired connection with single cable, split and daisy-chain options

Room fit

Tell us the room size and platform (Teams, Zoom or BYOD) and we confirm the right combination with your quotation.

Estimated timeline

Quotation within 1 working day · delivery timing depends on stock availability, and we confirm it with your quotation.

Specifications

46 specifications · Source: manufacturer · checked Oct 2026

Logistics1

Warranty (years): 5

Product Features2

Color HEX: #FFFFFF
On/off switch: No

Product3

Transducer type: Pre-polarised condenser
Color: White
Warranty AMER (years): 2

Frequency Specifications1

Audio frequency response: 100 Hz to 16,000 Hz

Acoustic Properties4

Dynamic range (>): 83 db(A)
Equivalent noise level (db): 15 db(A)
Max. sound pressure level: 98 dB SPL
Signal-to-noise ratio: 79 dB(A)

Connectivity1

Connection: Wired

Inputs/Outputs1

Audio output: 1 x 3-pin terminal (fits Phoenix contact MCVW 1.5-3-ST-3.81)

Ambient Conditions2

Microphone pickup range: up to 4.3 m (14 ft)
Operating relative humidity (≤ %): 20 to 95%, non-condensing

Battery & Power2

Battery included: N
Power consumption (Amp): Approx. 8 W

Electrical Properties1

Sensitivity: 0 dBV/Pa (1020 mV/Pa)

Dimensions4

Product weight (g): 4100
Product height: 45.8
Product length: 590.8
Product width: 590.8

TeamConnect Ceiling M Plus F-B24

article_number: 700508
specs · Logistics · Warranty (years): 5
specs · Product Features · Color HEX: #000000
specs · Product Features · On/off switch: No
specs · Product · Transducer type: Pre-polarised condenser
specs · Product · Color: Black
specs · Product · Warranty AMER (years): 2
specs · Frequency Specifications · Audio frequency response: 100 Hz to 16,000 Hz
specs · Acoustic Properties · Dynamic range (>): 83 db(A)
specs · Acoustic Properties · Equivalent noise level (db): 15 db(A)
specs · Acoustic Properties · Max. sound pressure level: 98 dB SPL
specs · Acoustic Properties · Signal-to-noise ratio: 79 dB(A)
specs · Connectivity · Connection: Wired
specs · Inputs/Outputs · Audio output: 1 x 3-pin terminal (fits Phoenix contact MCVW 1.5-3-ST-3.81)
specs · Ambient Conditions · Microphone pickup range: up to 4.3 m (14 ft)
specs · Ambient Conditions · Operating relative humidity (≤ %): 20 to 95%, non-condensing
specs · Battery & Power · Battery included: N
specs · Battery & Power · Power consumption (Amp): Approx. 8 W
specs · Electrical Properties · Sensitivity: 0 dBV/Pa (1020 mV/Pa)
specs · Dimensions · Product weight (g): 4100
specs · Dimensions · Product height: 45.8
specs · Dimensions · Product length: 590.8
specs · Dimensions · Product width: 590.8
in_the_box: (1) TCC M Plus Conferencing microphone · (1) Front plate black · (1) Flush mount kit · (1) Chicago plenum connection box cover plate · (1) Drilling templates · (1) Phoenix connector · (1) Safety rope · (1) Suspension kit

Downloads

0 files from the manufacturer

No downloadable files are listed for this model yet. Ask us and we will send the datasheet.

Questions about TeamConnect Ceiling M Plus F-B

What is the TeamConnect Ceiling M Plus F-B designed for?

It is a ceiling microphone array for medium and large flexible collaboration spaces, such as meeting and conference rooms where people sit at different points around the table. It picks up voices up to 4.3 m (14 ft) away across spaces up to 60 m² (646 ft²), using 15 capsules and automatic dynamic beamforming. Its listed frequency response is 100 Hz to 16,000 Hz. Request a quote to confirm it suits your room layout and ceiling.

What is the difference between the F-B and the white F-W model?

The F-B has a black front plate and is listed in black, while the F-W uses a white front plate. Both carry the same acoustic, electrical and frequency specifications, including 4.3 m pickup, 100 Hz to 16,000 Hz frequency response and approximately 8 W power consumption. Choose the F-B where a black finish suits the ceiling or room design. SmartRooms Qatar can confirm the right variant in your quotation.

Will one unit cover a 60 m² boardroom in West Bay?

Within its rated coverage, yes. The source lists pickup up to 4.3 m (14 ft) across spaces up to 60 m² (646 ft²), so a boardroom with a central table that stays within that footprint is a good fit. For a longer or irregular room, plan placement with a site survey before ordering. SmartRooms Qatar offers free site surveys and can check the ceiling position against your table layout.

How does automatic dynamic beamforming help during meetings?

Beamforming uses the 15 capsules to focus pickup on active talkers while reducing background noise such as air conditioning or papers being moved. The source describes it as patented automatic dynamic beamforming. In practice, people seated at different positions can be heard clearly without passing a microphone around the table. This matters most on calls with teams abroad, where audio quality is the first thing remote participants judge.

What are the frequency response and signal-to-noise figures?

Audio frequency response is listed as 100 Hz to 16,000 Hz. The signal-to-noise ratio is 79 dB(A), the dynamic range is 83 dB(A) and the equivalent noise level is 15 dB(A). The maximum sound pressure level is 98 dB SPL, and sensitivity is 0 dBV/Pa (1020 mV/Pa). The transducer is a pre-polarised condenser. These figures let an AV integrator compare it with other ceiling arrays on a like-for-like basis.

What power and connection does it need?

Power consumption is approximately 8 W. The audio output is a 1 x 3-pin terminal that fits the Phoenix Contact MCVW 1.5-3-ST-3.81 connector, and a Phoenix connector is included in the box. The connection type is listed as wired. The source does not describe the power supply arrangement, so ask the SmartRooms Qatar team to confirm how the unit will be powered and wired in your building before cabling is installed.

Can several units be daisy-chained for a multi-room university project?

The unit offers single cable, split mode and daisy-chain connection options, so cabling can be adapted to each room. For a university project with several seminar rooms in Education City, daisy-chaining can reduce separate cable runs, depending on the building layout. The source does not state a maximum number of units per chain, so confirm chain length, cable type and split mode requirements with the team before ordering.

How do IT teams manage the device across several rooms?

DeviceHub is the cloud-based device management service, giving centralised visibility and control. Setup and day-to-day control can be carried out through a browser-based interface called LUI. For a government office in Msheireb with several meeting rooms, the IT team can check device status from one place rather than visiting each room. Ask the SmartRooms Qatar team how DeviceHub would be set up for your organisation before committing to multiple units.

Does it integrate with third-party AV platforms?

PartnerLink provides direct configuration within third-party AV platforms, and a 3rd Party API for Sennheiser products is listed among the online resources. Whether your specific conferencing platform is supported should be confirmed against the current integration documentation. SmartRooms Qatar can review your existing system during the quotation process, so the integration plan is clear before purchase.

Does it work with cameras that track speakers?

The array includes automatic speaker-position detection for camera tracking, which gives a camera system the location of the active talker. This suits lecture halls and training rooms where the camera should follow a presenter. The source does not name compatible camera models, so confirm the camera and control system with the SmartRooms Qatar team before ordering. Include your room drawing and camera details when you request a quote.

What should be planned before installing a flush-mounted unit?

Check the ceiling opening against the drilling templates and flush mount kit before the unit arrives. The box also includes a Chicago plenum connection box cover plate, a Phoenix connector, a safety rope and a suspension kit. The unit weighs 4,100 g. SmartRooms Qatar offers free site surveys and professional installation, so book a survey to confirm ceiling structure, cable routes and access before work starts in an office in Lusail or West Bay.

Is it suitable for hot or dusty areas such as a lobby or site office?

The source lists an operating relative humidity of 20 to 95%, non-condensing, but it does not give an operating temperature range. The product data points to meeting-room use, so keep the installation to conditioned indoor rooms unless the team confirms otherwise. A lobby facing a window or a site office in the Industrial Area, where summer temperatures exceed 45°C, needs confirmation first. Describe the space in your quote request so the SmartRooms Qatar team can advise.
