Sennheiser TeamConnect Ceiling M Plus S-B

Name: Sennheiser TeamConnect Ceiling M Plus S-B Black Ceiling Microphone Array
Brand: Sennheiser
SKU: sennheiser-teamconnect-ceiling-m-plus-s-b-700510
Availability: InStock

Overview

The Sennheiser TeamConnect Ceiling M Plus S-B is a black ceiling microphone array for medium and large flexible meeting spaces. It picks up voices up to 4.3 m away across rooms up to 60 m², using 15 German-engineered capsules and automatic beamforming. Its black design housing and front plate suit boardrooms and collaboration areas. Request a quote from SmartRooms Qatar for supply and installation.

A black ceiling array for medium and large meeting rooms

The Sennheiser TeamConnect Ceiling M Plus S-B is the black version of the TCC M Plus ceiling microphone array, with a black front plate and black design housing. It is made for flexible collaboration spaces of medium and large size, where ceiling-mounted pickup lets people speak naturally without passing a table microphone around.

Pickup range, voice capture and sound quality

Within its specified range, the array picks up speech up to 4.3 m (14 ft) away and covers spaces up to 60 m² (646 ft²). Fifteen German-engineered capsules feed an automatic beamforming process that adapts to where people are speaking, which reduces background noise and keeps speech clear for remote participants. TruVoiceLift provides natural in-room voice lifting, so speakers at the far side of the room stay easy to follow.

The key figures from the manufacturer's data are:

Frequency response: 100 Hz to 16,000 Hz
Maximum sound pressure level: 98 dB SPL
Signal-to-noise ratio: 79 dB(A)
Dynamic range: 83 dB(A)
Sensitivity: 0 dBV/Pa (1020 mV/Pa)
Power consumption: approximately 8 W
Weight: 4.1 kg

Setup, management and integration

Configuration runs in a browser, so IT teams can commission the array from a standard web interface. DeviceHub adds cloud-based device management, giving visibility and control over units across several rooms. PartnerLink allows configuration within supported third-party AV platforms, and a third-party API for Sennheiser products is published for integrators. Automatic speaker-position detection supports camera tracking. The audio output is a 3-pin terminal that fits the Phoenix Contact MCVW 1.5-3-ST-3.81 connector, which is included, and the unit supports single-cable, split and daisy-chain connection modes.

Where this model fits in Qatar

Three situations suit this variant well:

A government ministry meeting room in Doha where colleagues join from other cities or abroad and need clear speech from every chair.
A university seminar room in Education City where lecturers and students move between tables, so the ceiling array captures speakers without handheld microphones.
A boardroom in West Bay or Msheireb used for hybrid calls, where a black finish suits a dark ceiling scheme.

What to plan before ordering

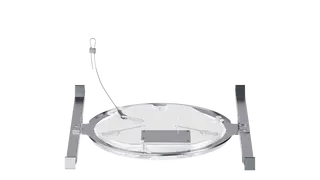

Measure the room and confirm where the array will sit relative to the table, the display and the camera before drilling. The box includes a suspension kit, safety rope, drilling templates and a Chicago plenum connection box cover plate. This S-B variant uses a design housing instead of the flush mount kit supplied with the F variants. Because the unit weighs about 4.1 kg, a free site survey is a sensible step for ceilings in older buildings or spaces with limited access. The data gives an operating humidity range of 20 to 95% non-condensing but no operating temperature range, so confirm the environment, particularly for ceiling voids that may run hot during Qatar's summer.

Share your room dimensions, ceiling type and the number of rooms you plan to equip, and SmartRooms Qatar will prepare a quotation, usually within one working day. Government buyers can order on a purchase order or through a tender, and the team will help you choose the right configuration for each space.

Highlights

15 German-engineered capsules with automatic beamforming
Pickup up to 4.3 m (14 ft) in rooms up to 60 m²
Frequency response from 100 Hz to 16,000 Hz
Black front plate and black design housing included
Browser setup, DeviceHub cloud management and PartnerLink integration
3-pin Phoenix audio output with connector included

Room fit

Tell us the room size and platform (Teams, Zoom or BYOD) and we confirm the right combination with your quotation.

Estimated timeline

Quotation within 1 working day · delivery timing depends on stock availability, and we confirm it with your quotation.

Specifications

46 specifications · Source: manufacturer · checked Oct 2026

Logistics1

Warranty (years): 5

Product Features2

Color HEX: #FFFFFF
On/off switch: No

Product3

Transducer type: Pre-polarised condenser
Color: White
Warranty AMER (years): 2

Frequency Specifications1

Audio frequency response: 100 Hz to 16,000 Hz

Acoustic Properties4

Dynamic range (>): 83 db(A)
Equivalent noise level (db): 15 db(A)
Max. sound pressure level: 98 dB SPL
Signal-to-noise ratio: 79 dB(A)

Connectivity1

Connection: Wired

Inputs/Outputs1

Audio output: 1 x 3-pin terminal (fits Phoenix contact MCVW 1.5-3-ST-3.81)

Ambient Conditions2

Microphone pickup range: up to 4.3 m (14 ft)
Operating relative humidity (≤ %): 20 to 95%, non-condensing

Battery & Power2

Battery included: N
Power consumption (Amp): Approx. 8 W

Electrical Properties1

Sensitivity: 0 dBV/Pa (1020 mV/Pa)

Dimensions4

Product weight (g): 4100
Product height: 45.8
Product length: 590.8
Product width: 590.8

TeamConnect Ceiling M Plus S-B24

article_number: 700510
specs · Logistics · Warranty (years): 5
specs · Product Features · Color HEX: #000000
specs · Product Features · On/off switch: No
specs · Product · Transducer type: Pre-polarised condenser
specs · Product · Color: Black
specs · Product · Warranty AMER (years): 2
specs · Frequency Specifications · Audio frequency response: 100 Hz to 16,000 Hz
specs · Acoustic Properties · Dynamic range (>): 83 db(A)
specs · Acoustic Properties · Equivalent noise level (db): 15 db(A)
specs · Acoustic Properties · Max. sound pressure level: 98 dB SPL
specs · Acoustic Properties · Signal-to-noise ratio: 79 dB(A)
specs · Connectivity · Connection: Wired
specs · Inputs/Outputs · Audio output: 1 x 3-pin terminal (fits Phoenix contact MCVW 1.5-3-ST-3.81)
specs · Ambient Conditions · Microphone pickup range: up to 4.3 m (14 ft)
specs · Ambient Conditions · Operating relative humidity (≤ %): 20 to 95%, non-condensing
specs · Battery & Power · Battery included: N
specs · Battery & Power · Power consumption (Amp): Approx. 8 W
specs · Electrical Properties · Sensitivity: 0 dBV/Pa (1020 mV/Pa)
specs · Dimensions · Product weight (g): 4100
specs · Dimensions · Product height: 45.8
specs · Dimensions · Product length: 590.8
specs · Dimensions · Product width: 590.8
in_the_box: (1) TCC M Plus Conferencing microphone · (1) Front plate black · (1) Design housing black · (1) Chicago plenum connection box cover plate · (1) Drilling templates · (1) Phoenix connector · (1) Safety rope · (1) Suspension kit

Downloads

0 files from the manufacturer

No downloadable files are listed for this model yet. Ask us and we will send the datasheet.

Questions about TeamConnect Ceiling M Plus S-B

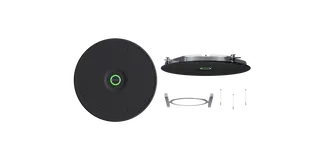

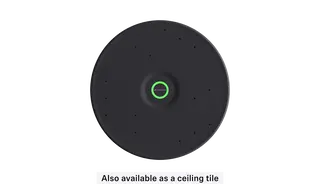

How does the S-B differ from the F-B flush-mount version?

Both are black and share the same acoustic specifications, including a 100 Hz to 16,000 Hz frequency response and a 98 dB SPL maximum level. The S-B box includes a black front plate and a black design housing, while the F-B box includes a flush mount kit. If the ceiling will be finished around the unit, check which mounting method fits before you order.

How large a room does the TeamConnect Ceiling M Plus S-B cover?

The data gives a microphone pickup range of up to 4.3 m (14 ft) and describes coverage for spaces up to 60 m² (646 ft²). That suits a medium meeting room or a collaboration area rather than a large auditorium. For rooms with several seating zones, ask the SmartRooms Qatar team to review the layout during a free site survey before ordering.

Who is this ceiling microphone array designed for?

It is designed for medium and large flexible collaboration spaces, where people move around rather than sitting in fixed positions. Typical buyers are IT and facilities managers in government offices, corporate headquarters and universities who want voice pickup from the ceiling instead of desk or table microphones.

Can it cover a university seminar room in Education City?

Yes, provided the room stays within the 60 m² coverage described for this model. A seminar room where a lecturer walks between tables and students speak from different positions is a good match, because automatic beamforming adapts to where people are speaking. Confirm the room dimensions and ceiling details with us before ordering.

How does it help hybrid calls from a boardroom in West Bay?

Hybrid meetings often fail when remote colleagues cannot follow speakers at the far end of the table. This array uses 15 capsules and beamforming to pick up speech up to 4.3 m away, and its noise reduction helps remote listeners hear clearly. It can be configured within supported third-party AV platforms through PartnerLink.

Is it suitable for an open collaboration area in Lusail?

An open area with several small tables suits this model if the total space stays within the 60 m² coverage figure in the data. Ceiling-mounted pickup keeps tables clear of microphones that get moved or lost between sessions. Ask the SmartRooms Qatar team to check the layout, because the pickup range is specified as up to 4.3 m.

Which conferencing platforms can it work with?

The data says PartnerLink provides direct configuration within third-party AV platforms, and the manufacturer publishes a third-party API for Sennheiser products. It does not name specific platforms, so confirm that your AV or conferencing system is supported before ordering. SmartRooms Qatar can help you check compatibility.

How is it set up and managed after installation?

Setup and control use a browser-based interface, and DeviceHub provides cloud-based device management for visibility and control across units. These tools help IT teams that look after several meeting rooms, such as a school group with multiple boardrooms. Automatic speaker-position detection is also available for camera tracking.

What is included in the box, and what should I plan for mounting?

The box contains the TCC M Plus unit, a black front plate, a black design housing, a Chicago plenum connection box cover plate, drilling templates, a Phoenix connector, a safety rope and a suspension kit. Plan the fixing point with the drilling templates and the 4.1 kg weight in mind, and use a site survey to confirm the ceiling structure and cable routing before installation.

Can it be installed in a hot or dusty area?

The data lists an operating relative humidity of 20 to 95%, non-condensing, but gives no operating temperature range. SmartRooms Qatar therefore advises confirming the installation environment before ordering, especially for ceiling voids or spaces that may not be air-conditioned, where Qatar's summer temperatures can exceed 45°C.

How much power does the unit draw?

The manufacturer lists approximate power consumption of 8 W for this model. The source data does not describe how the unit is powered, so the quotation will confirm what is needed to power and connect it at your site. Qatar mains supply is 240 V, 50 Hz, and the power arrangement should be confirmed with us rather than assumed.

What warranty applies, and can we order several units on an LPO?

The source data lists a 5-year warranty for this model, and the quotation confirms the terms that apply. Schools, ministries and other government bodies can order several units on a purchase order (LPO) or through a tender, with payment by bank transfer, cheque or purchase order. Mention your number of rooms when you request a quote.
