TeamConnect Ceiling Medium CTFP-W 2FT
Sennheiser TeamConnect Ceiling Medium CTFP-W 2FT Replacement Ceiling Tile
Priceon request
QuotationWithin 1 working day
DeliveryConfirmed with your quote, based on stock
Overview

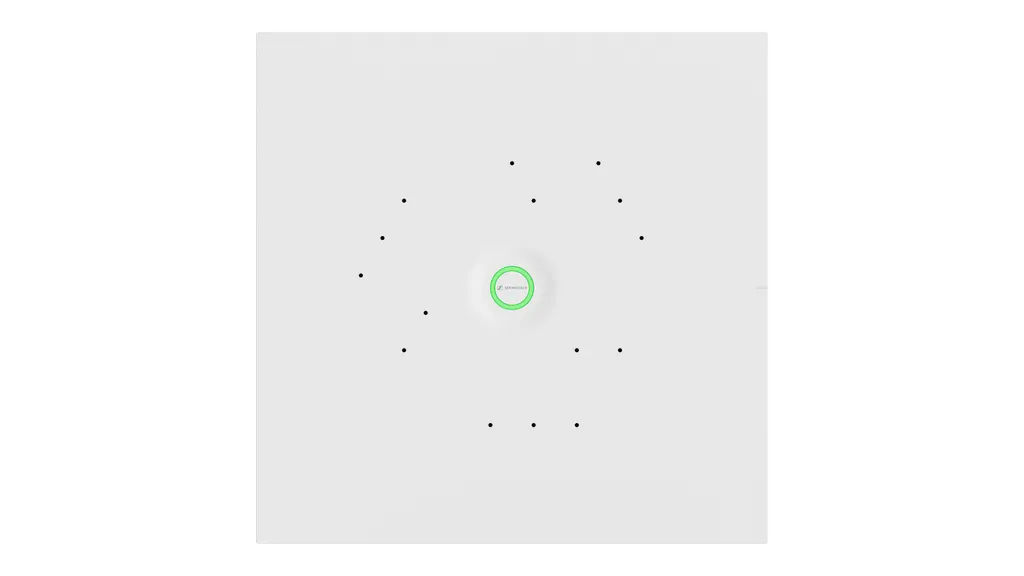

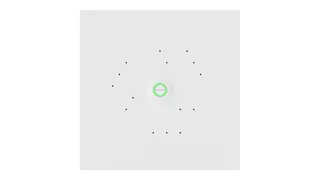

The CTFP-W 2FT is a white replacement ceiling tile for the TeamConnect Ceiling Medium and TeamConnect Ceiling M Plus. It houses the microphone array with TruVoicelift processing, offers Dante or analog output and runs on PoE or PoE+. Its 606.5 mm square format matches a 2 ft ceiling grid. It suits boardrooms and training rooms in Doha and Lusail that need a like-for-like replacement for a worn or damaged tile.
What this tile does in a TeamConnect ceiling

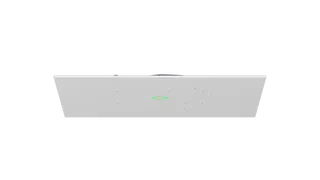

The CTFP-W 2FT is the white replacement tile for the TeamConnect Ceiling Medium and TeamConnect Ceiling M Plus. It takes the place of the tile in an existing ceiling microphone unit, so a worn or damaged part can be swapped without replacing the whole system. Its square body measures 606.5 mm by 606.5 mm, stands 26 mm deep and weighs 1.09 kg, which matters when you plan who will lift it into the ceiling.
Audio and integration facts that matter
- Dynamic beamforming: patented beamforming that adapts to where people are speaking.
- TruVoicelift and 15 electret capsules: SMD condenser capsules made in Germany, which the manufacturer positions for speech intelligibility.
- Output and power: Dante or analog output, powered by PoE or PoE+, with single-cable mode and daisy chaining.
- Room control: exclusion and priority zones, plus camera control driven by talker position data.
- Security and certification: encrypted SSCv2 control API over TLS 1.2, IEEE 802.1x support and certification for Microsoft Teams.
The feature set also includes Intelligent Noise Control, which helps in rooms with air conditioning or other background noise. The housing is metal and white as supplied.
Where it fits in Qatar
A ministry boardroom in West Bay that holds weekly calls with overseas delegations depends on one ceiling microphone for clear pickup across the table. When a single tile is damaged, the CTFP-W 2FT lets facilities staff restore that room without redesigning the ceiling.
A training room in Education City that runs courses linked to teams abroad, or the hall of a private school in Al Wakrah where parent evenings need a steady audio feed, are similar cases. In each, the tile is chosen because it matches the existing TeamConnect unit, not because it is a new system.
A boardroom in The Pearl used by a bank or real estate developer for routine Teams calls benefits from the Microsoft Teams certification and the encrypted control path, once the IT team has reviewed the setup.
Planning the swap before you order
Start by confirming the model of the TeamConnect unit above the room, since the tile is listed only for the TeamConnect Ceiling Medium and TeamConnect Ceiling M Plus. Then confirm that a PoE or PoE+ port is available close to the ceiling location, and that your network team knows how IEEE 802.1x authentication will be applied to that port.
The product data does not give an operating temperature range for this tile. Ceilings in Doha can run warm through the summer, so confirm the installation environment with the SmartRooms Qatar team before fitting. A free site survey lets the team check ceiling access, the grid and the network port before any tile is ordered. SmartRooms Qatar also supplies professional installation and delivers to all eight municipalities of Qatar.
Send us your current TeamConnect model, the room and the network port location, and the SmartRooms Qatar team will prepare a quotation, usually within one working day. Request a quote for the CTFP-W 2FT and we will confirm every detail before anything is ordered.
Highlights
- Replacement tile for TeamConnect Ceiling Medium and M Plus
- Patented dynamic beamforming with TruVoicelift processing
- Dante or analog output, powered over PoE or PoE+
- Single-cable mode, daisy chaining, exclusion and priority zones
- Certified for Microsoft Teams with two-year warranty
- 606.5 mm square, 26 mm deep, 1.09 kg, white
Room fit
Tell us the room size and platform (Teams, Zoom or BYOD) and we confirm the right combination with your quotation.
Estimated timeline
Quotation within 1 working day · delivery timing depends on stock availability, and we confirm it with your quotation.
Specifications
9 specifications · Source: manufacturer · checked Oct 2026
Logistics1
- Warranty (years)
- 2
Product Features1
- Color HEX
- #FFFFFF
Product2
- Color
- White
- Warranty AMER (years)
- 2
Battery & Power1
- Battery included
- N
Dimensions4
- Product weight (g)
- 1090
- Product height
- 26
- Product length
- 606.5
- Product width
- 606.5
Downloads
10 files from the manufacturer
PDF
Sennheiser TeamConnect Ceiling Medium CTFP-W 2FT datasheets (PDF, 46 KB)
PDF
Sennheiser TeamConnect Ceiling Medium CTFP-W 2FT manuals & guides (PDF, 1.2 MB)
PDF
Sennheiser TeamConnect Ceiling Medium CTFP-W 2FT manuals & guides (PDF, 2.2 MB)
PDF
Sennheiser TeamConnect Ceiling Medium CTFP-W 2FT manuals & guides (PDF, 1.2 MB)
PDF
Sennheiser TeamConnect Ceiling Medium CTFP-W 2FT manuals & guides (PDF, 1.4 MB)
DWG
Sennheiser TeamConnect Ceiling Medium CTFP-W 2FT manuals & guides (DWG)
DXF
Sennheiser TeamConnect Ceiling Medium CTFP-W 2FT manuals & guides (DXF)
PDF
Sennheiser TeamConnect Ceiling Medium CTFP-W 2FT certificates & compliance (PDF, 93 KB)
QPLU
Sennheiser TeamConnect Ceiling Medium CTFP-W 2FT other documents (QPLUG)
ZIP
Sennheiser TeamConnect Ceiling Medium CTFP-W 2FT other documents (ZIP)
Questions about TeamConnect Ceiling Medium CTFP-W 2FT
What is the CTFP-W 2FT and which systems is it for?
It is a white replacement ceiling tile for the TeamConnect Ceiling Medium and TeamConnect Ceiling M Plus. It takes the place of the tile in an existing ceiling unit, so a worn or damaged part can be swapped without replacing the whole device. Before ordering, confirm that the unit above your room is one of these two models, because the source data names no other compatible products.
Will it work with other TeamConnect models?
The manufacturer data lists only the TeamConnect Ceiling Medium and TeamConnect Ceiling M Plus as compatible systems. If your ceiling holds a different TeamConnect product, ask the SmartRooms Qatar team to check before you request a quote. Do not assume a tile from another unit will fit, even if the ceiling grid looks the same.
Which audio outputs are available?
According to the product data, the tile is offered with Dante or analog output. Choose the option that matches your existing mixer, DSP or Dante network before you request a quote, because the data does not say which configuration suits each system. State your audio setup clearly in the request so the correct version is quoted.
How is the tile powered and cabled?
It is powered over PoE or PoE+ and supports single-cable mode and daisy chaining, which reduces the number of cables run into the ceiling. It includes no battery. Confirm that the network switch serving the room has a PoE or PoE+ port close to the ceiling location, and ask the IT team to check that port during the site survey.
Can the tile control a camera?
The feature list includes camera control driven by talker position data, along with exclusion and priority zones that shape which microphones respond. Camera control depends on how the room camera is configured to accept that data, so confirm the camera model and setup with SmartRooms Qatar before installation.
How secure is the control connection?
The control interface uses an encrypted Sennheiser Sound Control Protocol API, SSCv2, over TLS 1.2, and the tile supports IEEE 802.1x for port-based network authentication. Ask your IT team to match the authentication setup with your organisation's network policy before installation, especially in ministries and public bodies with strict access rules.
Is it suitable for Microsoft Teams meetings?
Yes, the tile is certified for Microsoft Teams, which matters for ministries, banks and companies that hold Teams calls with colleagues abroad. Certification covers the device itself, while the Teams room set-up, licensing and meeting policies remain the responsibility of your IT provider, so review them before the tile goes live.
A ministry boardroom in West Bay has one damaged tile. What should we do?
Send us the model of the TeamConnect unit above the table, the room location and the network port details. SmartRooms Qatar offers a free site survey to check ceiling access, the grid and the PoE port before installation, and quotations are usually sent within one working day. Ask for the survey in your quote request so the replacement can be planned around working hours.
Can a private school in Al Wakrah use it in a hall?
Yes, provided the hall already has a TeamConnect Ceiling Medium or M Plus and a PoE or PoE+ port near the ceiling. Assemblies and parent evenings benefit from steady ceiling pickup, and a single tile lets the school repair one position without replacing the whole unit. The data gives no operating temperature range, so confirm the hall's environment with SmartRooms Qatar.
Is it suitable for a meeting room in Al Sadd with a hot ceiling?
The product data does not give an operating temperature range for this tile, so its suitability for a hot ceiling cannot be confirmed from the specifications. Before installing it in an Al Sadd meeting room, or any space with heat from a roof void or lighting, ask SmartRooms Qatar to confirm the environment. The tile is network-powered and has no battery.
What is the warranty and what comes in the box?
The manufacturer data gives a two-year warranty, and the product is covered by the manufacturer's warranty. The box contains one replacement tile measuring 606.5 mm by 606.5 mm, 26 mm high and weighing 1.09 kg. Plan the lifting and ceiling access before the installation day so the replacement can be fitted safely.
Can a government body or school order several units through an LPO or tender?
Yes. SmartRooms Qatar accepts purchase orders (LPOs) and government tenders, including Monaqasat, with payment by bank transfer, cheque or purchase order. A school or authority replacing tiles across several rooms should list each TeamConnect model and room in one request, so the quotation covers every tile at once.
