TeamConnect Ceiling Medium SK

What this kit does in a high-ceiling room

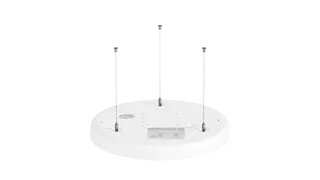

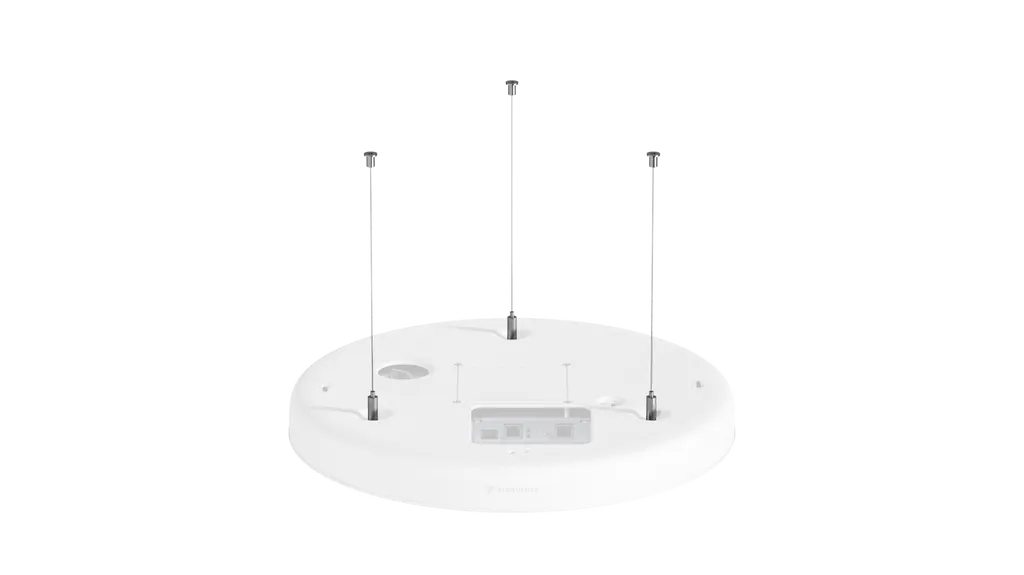

The Sennheiser TeamConnect Ceiling Medium SK is not a microphone. It is the hanging hardware used to suspend a TeamConnect Ceiling Medium or TeamConnect Ceiling M Plus from the ceiling when the room is tall enough that a standard fixed position would leave the microphone too far above the speakers. Ceiling microphones pick up speech best when they sit reasonably close to the people talking, and suspension lets the installer lower the unit to a suitable height without changing the ceiling layout.

Cable length and height planning

The kit contains three steel cables, each 5 m (16.4 ft) long. Each cable can be adjusted to the installation height the room requires, so the drop is set on site rather than fixed in advance. The box also includes three ceiling installation threads and three ceiling housing threads.

• Three steel cables: 5 m (16.4 ft) each.
• Adjustable height: set to the drop your room needs.
• Threads: three installation threads and three housing threads.

Before ordering, measure the floor-to-ceiling height and the distance from the ceiling to the table or to the lowest point where the microphone should sit. These simple measurements show whether the 5 m cables cover your drop and prevent ordering a kit that does not suit the room.

Where a suspended ceiling microphone fits in Qatar

Three situations come up often for this kit:

• A lecture hall at a campus in Education City with a double-height ceiling, where speech from the lectern must reach seats at the front and back.
• A boardroom in West Bay with a raised ceiling above a long table, where a lowered microphone sits closer to the participants.
• A meeting hall in Msheireb or a conference room in a Lusail hotel, where the ceiling is higher than a typical office and the room hosts hybrid meetings with teams abroad.

What to confirm before installation

The source data for this kit does not list an operating temperature range or dust rating, so SmartRooms Qatar should confirm the room conditions before installation. The paired microphone is listed with Dante or analog output, PoE, IEEE 802.1x and TLS 1.2 security, and these should be matched with the network and audio system the room will use. The microphone itself is not in the kit's box list, so specify it on the same quotation.

Requesting a quote from SmartRooms Qatar

SmartRooms Qatar supplies this kit across all eight municipalities of Qatar and can arrange a free site survey to confirm ceiling height and fixing points before anything is ordered. Quotations are usually issued within one working day. Purchase orders (LPOs) and government tenders, including Monaqasat, are accepted for schools and public bodies fitting out several rooms. Request a quote with your room dimensions and microphone model, and the team will confirm the cable and thread set for your installation.
