V420

A 4K conference camera for small and medium meeting rooms

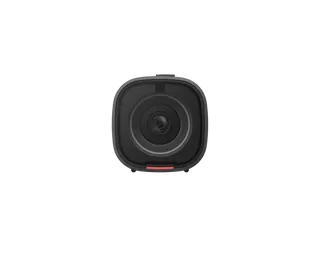

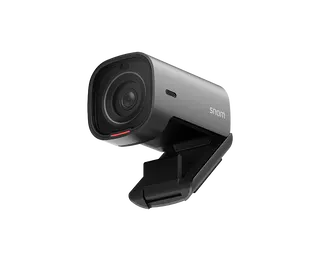

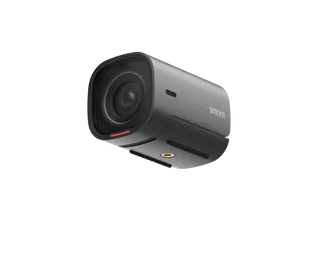

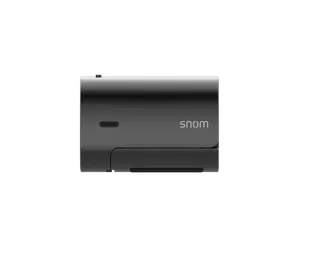

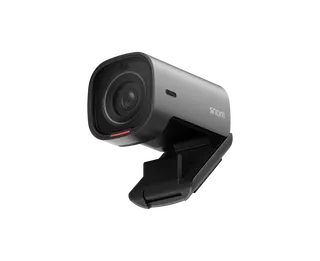

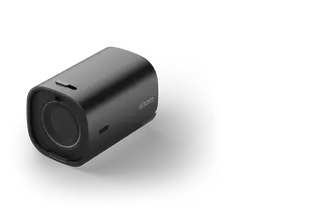

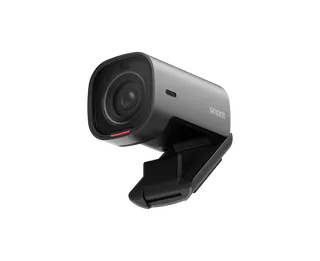

The Snom V420 is a USB conference camera that outputs 4K video at 30 frames per second over its USB 3.0 Type-C port. It is aimed at meeting rooms that seat a handful of people, and at staff who join calls from a desk or a home office. The camera measures 81 mm × 56 mm × 57 mm and weighs 139.5 g, so it sits on a monitor without taking up much space.

Image and framing in practice

• Sensor: 8 MP CMOS, 1/2.7-inch, f/2.4 aperture
• Modes: 4K at 30 FPS over USB 3.0, 1080p at 30 FPS over USB 2.0, 720p at 30 FPS
• Field of view: diagonal 95° to 120°, set by three presets or adjusted manually
• Depth of field: 0.5 m to 3 m

Continuous adjustment lets you frame one person closely at the table or widen the view to take in a full row of seats. Automatic exposure and light compensation raise brightness by up to 50% when needed, which helps when daylight from a window mixes with ceiling lights.

Audio pickup for group discussions

Three microphones work together: two omnidirectional units on the left and right, and one unidirectional unit in the middle used for beamforming. The frequency range is 20 Hz to 10.0 kHz, sensitivity is -38 dB, and pickup reaches up to 5 m. Around a table of six, participants can be heard without leaning toward the camera. For larger rooms, a dedicated conference speaker is the usual addition, and the SmartRooms Qatar team can confirm the right setup within your quotation.

Where it fits in Qatar

• A consultancy office in West Bay mounts the camera on the screen of a six-seat meeting room and joins Microsoft Teams calls with colleagues abroad.

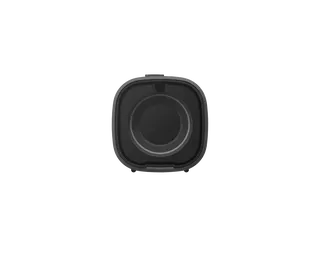

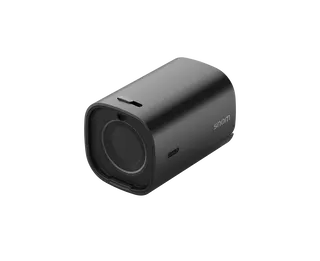

• A private school in Al Rayyan equips a staff meeting room and closes the lens cover when the camera is not in use.
• A government office in Doha runs hybrid meetings from Sunday to Thursday over Webex with colleagues outside the country.

Planning the installation

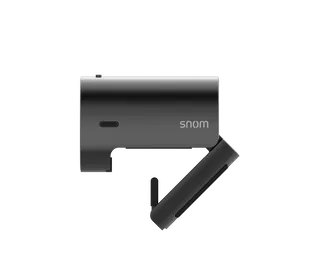

The operating ambient range is 5 °C to 35 °C, and storage range is -20 °C to 60 °C. Outdoor summer temperatures in Qatar regularly exceed 45 °C, so keep the camera inside an air-conditioned room, away from direct sunlight through windows and hot shelving. The built-in mount clip fixes the camera to a monitor or computer screen. Check the screen edge thickness and the cable route to the host computer, as the cable is about 2.2 m long. Power comes from the USB connection at 5 V. The package contains the camera, a 2.2 m USB-C to USB-A cable and a quick installation guide. Setup uses the Snom Connect Desktop App on Windows 10 or later, or macOS 12.0 or later.

SmartRooms Qatar supplies the Snom V420 with delivery to all eight municipalities of Qatar and professional installation. A free site survey is available before installation. Quotations are usually issued within one working day, and we accept LPOs and government tenders. Request a quote for the number of rooms you need, and we will confirm the setup for each one.
