BRC-H800

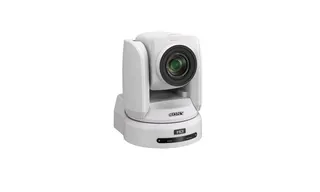

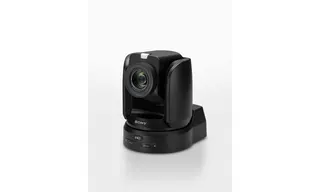

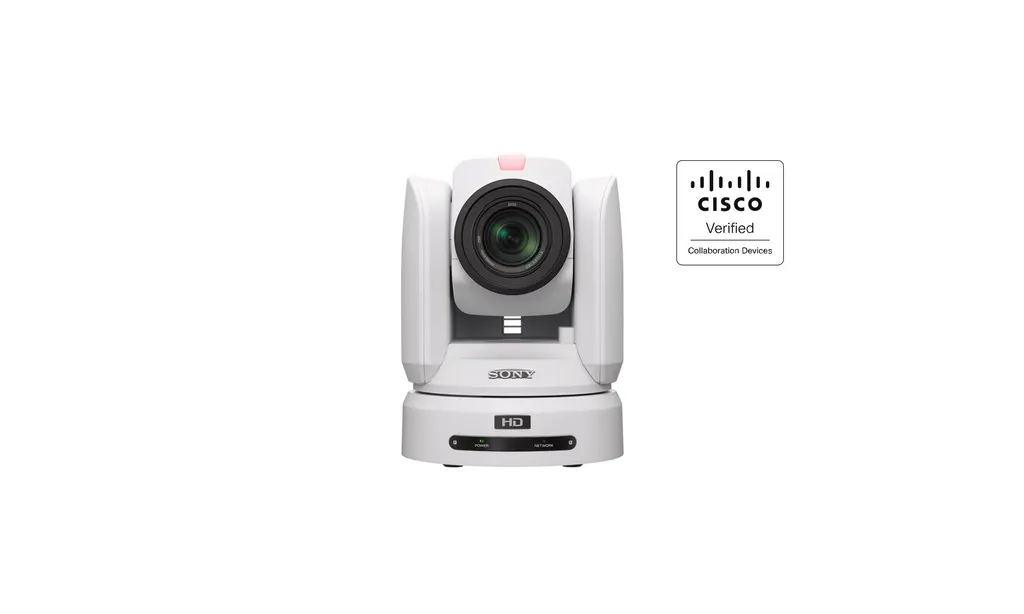

Sony BRC-H800 Full HD PTZ Camera with 12x Optical Zoom
- Zoom
- 12x
- Connectivity
- VISCA RS-422

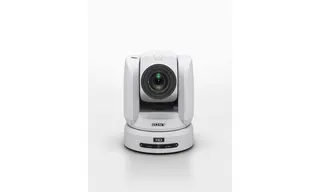

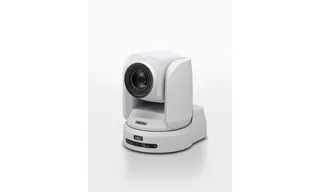

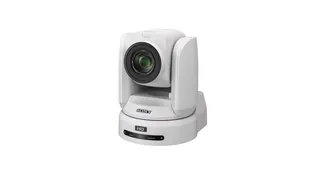

The Sony BRC-H800 is a Full HD pan-tilt-zoom camera built for unattended broadcast and AV work. Its 1.0-type sensor and 12x optical zoom capture 1080p at 60 frames per second, with low-light capability down to 1.7 lux. It offers two 3G-SDI outputs, HDMI, PoE+ and VISCA over IP control, making it suited to lecture theatres, auditoriums and multi-camera production rooms across Qatar where one operator runs the shots.
Broadcast-grade Full HD for a camera one person can run
The Sony BRC-H800 is a robotic pan-tilt-zoom camera. An operator frames shots from a control room or desk, so the camera can sit in a ceiling corner or other discreet position where a conventional camera operator cannot. Its 1.0-type back-illuminated Exmor R CMOS sensor, with approximately 14.2 megapixels of effective pixels, outputs Full HD 1080 at 60p for fast-moving action, and it can switch to 24p for a film-like look.
Zoom, lens and low-light performance
The Zeiss Vario-Sonnar T lens covers a focal length from 9.3 mm to 111.6 mm, which is 12x optical zoom. The aperture runs from F2.8 at wide to F4.5 at tele. Clear Image Zoom extends reach to 24x in HD, and Tele Convert Mode doubles it again to 48x while keeping 1920x1080 resolution. The camera captures colour video at light levels as low as 1.7 lux, which suits lecture theatres and halls where lights are dimmed during presentations.
Control, movement and connectivity
Pan runs ±170° and tilt covers +90° to -30°, with pan and tilt speeds from 0.3° to 60° per second in normal mode. The camera stores 100 preset positions, and PTZ Trace Memory records movement sequences. Operating noise is rated at NC30 or less under Sony's measurement conditions. Control is available through the supplied IR remote commander, VISCA RS-422, or VISCA over IP. The optional RM-IP500 Remote Control Unit can manage several cameras from one point.
- Two 3G-SDI outputs and one HDMI output, with genlock input on BNC
- PoE+ (IEEE 802.3at) with DC 10.8 V to 13.2 V alternative
- Dual tally lamps on the front and rear of the body
- Free-d tracking data output for VR and AR setups, with firmware V2.10
Where it fits in Qatar
A university lecture theatre in Education City can record and stream lectures with one operator and a fixed ceiling camera, so the instructor stays in frame without a second camera crew. A government conference hall or corporate auditorium in Lusail or Msheireb can use the camera for hybrid meetings that connect Doha with teams abroad, with the operator framing speakers from the control room. A private school hall in Al Rayyan can capture assemblies and performances on a ceiling bracket, keeping floor space clear.
The operating range tops out at 40 °C, while Qatar summer temperatures often exceed 45 °C. Keep the camera in air-conditioned rooms and avoid exposed or unshaded positions. Confirm the environment with the SmartRooms Qatar team before mounting.
What to plan before ordering
- Ceiling or wall structure and load, given the body weighs approximately 4.3 kg
- Mounting angle limited to less than ±15 degrees
- Power route: PoE+ at 23.0 W maximum, or a DC 12 V supply at 19.0 W maximum
- AC power supply and cord sold separately in regions outside US and Canada
- Cable routing for 3G-SDI, HDMI and the VISCA over IP control network
Our team offers a free site survey before the camera is fixed, and quotations are usually provided within one working day. Orders can be placed by purchase order or through a government tender, and payment can be made by bank transfer, cheque or purchase order. Request a quote for the BRC-H800 and we will confirm the power option, bracket and cabling for your room.
Highlights
- 1.0-type Exmor R CMOS sensor with Full HD 60p output
- 12x optical zoom, 24x HD Clear Image Zoom, 48x Tele Convert
- 1.7 lux minimum illumination for low-light rooms
- Two 3G-SDI outputs, HDMI, PoE+ and VISCA over IP
- Pan ±170°, tilt +90° to -30°, 100 preset positions
- Operating range 0 °C to 40 °C; ceiling or tripod mounting
Room fit
Tell us the room size and platform (Teams, Zoom or BYOD) and we confirm the right combination with your quotation.
Estimated timeline
Quotation within 1 working day · delivery timing depends on stock availability, and we confirm it with your quotation.
Specifications
Camera26
- Image Sensor
- 1.0-type back-illuminated Exmor R CMOS sensor
- Image Sensor (Number of Effective Pixels)
- Approx. 14.2 Megapixels
- Image Sensor (Total Number of Pixels)
- Approx. 20.4Megapixels
- Signal System
- 1080/59.94p,1080/59.94i,720/59,94p, 1080/50p,1080/50i, 720/50p, 1080/23.98p
- Minimum Illumination (50IRE)
- 1.7 lux (50IRE, F2.8, 1/30s, Max.Gain)
- Horizontal Resolution
- 850 TV line (in 3G-SDI output) (center)
- Gain
- Auto/Manual (-3dB to +33dB)
- Shutter Speed
- 1/10000s to 1/8 (59.94/29.97) 1/10000s to 1/6 (50/25/23.98)
- Exposure Control
- Auto, Manual, Priority mode (shutter priority, iris priority, gain priority), Back light, Spot light
- White Balance
- Auto1/Auto2/One Push/Indoor/Outdoor/Manual
- Optical Zoom
- 12x
- Clear Image Zoom
- 2x
- Digital Zoom
- No
- Tele Convert Mode
- Off, 2x *1920x1080 only
- Focusing System
- Auto/Manual
- Horizontal Viewing Angle
- Typ. 64.6° (Wide-end)
- Focal Length
- f=9.3 to 111.6mm F2.8(Wide) ,F4.5(Tele)
- Minimum Object Distance
- 1000mm(Tele) 80mm (Wide)
- Pan/Tilt Angle
- Pan: ±170° Tilt: +90°/-30°
- Pan/Tilt Speed
- Pan: 0.3° to 60°/s *1 0.05° to 60°/s *2 0.02° to 60°/s *3 Tilt: 0.3° to 60°/s *1 0.05° to 60°/s *2 0.02° to 60°/s *3 *1 When P/T SPEED TYPE setting is NORMAL *2 When P/T SPEED TYPE setting is Extd. RANGE (Requires firmware V2.10) *3 When P/T SPEED TYPE setting is Extd. STEP (Requires firmware V2.10)
- Pan/Tilt Slow Mode
- Yes
- Pan/Tilt Operation Noise
- NC30 or less* * Sony measurement conditions
- Preset Position
- 100
- PTZ Trace Memory
- 16
- PTZ Motion Sync
- Yes
- Camera Tracking Data Output
- Yes (Requires firmware V2.10)
Camera Features15
- Day/Night
- Yes
- Visibility Enhancer
- Yes
- Image Flip
- On/Off
- Picture Profile Preset
- Yes
- ND Filter
- Off, 1/4, 1/16, 1/64 switchable in menu
- Color Gain
- Yes (15 step)
- Color Hue
- Yes (15 step)
- Color Matrix
- Off/Standard/High Saturation/FL light/MOVIE/STILL/CINEMA/PRO/ITU709/BW
- Gamma
- Standard/Straight/MOVIE/STILL/CINE1/CINE2/CINE3/CINE4/ITU709//Pattern
- Gamma Level
- Yes (15 step)
- Black Level
- Yes (97 step)
- Black Gamma
- Yes (15 step)
- Knee Point
- Yes (13 step)
- Knee Slope
- Yes (15 step)
- Flicker Cancel
- On/Off

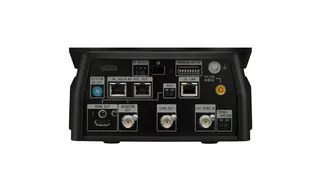

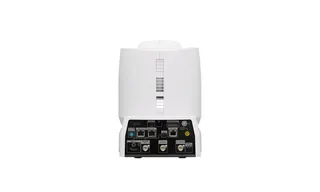

Interface6
- 4K Video Output
- No
- HD Video Output
- 3G-SDI x2 and HDMI
- HDMI Color Space
- YCbCr, 4:2:2 RGB, 4:4:4
- Camera Control Interface
- VISCA RS-422 RJ45(In/Out) VISCA over IP RJ45
- External Sync. Input
- BNC, 75Ω, HD 3-level sync, SD Black Burst
- Power Connector Type
- IEC60130-10 (JEITA standard RC-5320A) TYPE4
General12
- Power Requirements
- DC 10.8V to 13.2V, PoE+ (IEEE802.3at compliant)
- Power Consumption
- DC12 V:19.0W (Max) PoE+:23.0 W (Max)
- Operating Temperature
- 0 °C to 40 °C 32 °F to 104 °F
- Storage Temperature
- -20 °C to +60 °C -4 °F to +140 °F
- Dimensions (W x H x D)*1
- Approx. 198 x 260 x 238mm (without projecting object) Approx. 7 7/8 x 10 1/4 x 9 3/8 inch (without projecting object）
- Mass
- Approx. 4.3kg Approx. 9 lb 7.7oz
- Optional Card Slots
- Not needed
- Body Color

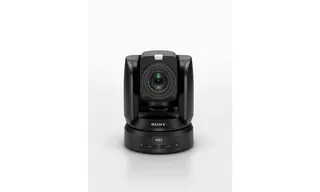

- Black and White
- Size of Screw Hole for Tripod
- 1/4-20UNC x2
- Mountable Angle
- Less than ±15 degrees

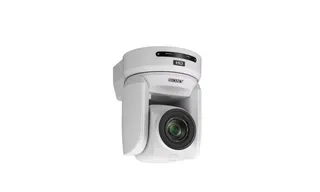

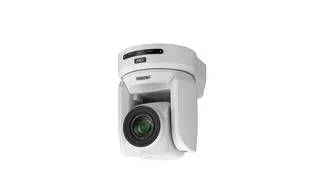

- Ceiling Mount
- Yes
- Supplied Accessories
- IR Remote Commander Unit (1) Ceiling bracket (2) Wire rope (1) Screws(M3 x 8) (7) Screws(M4 x 8) (1) HDMI cable fixing plate (1)
